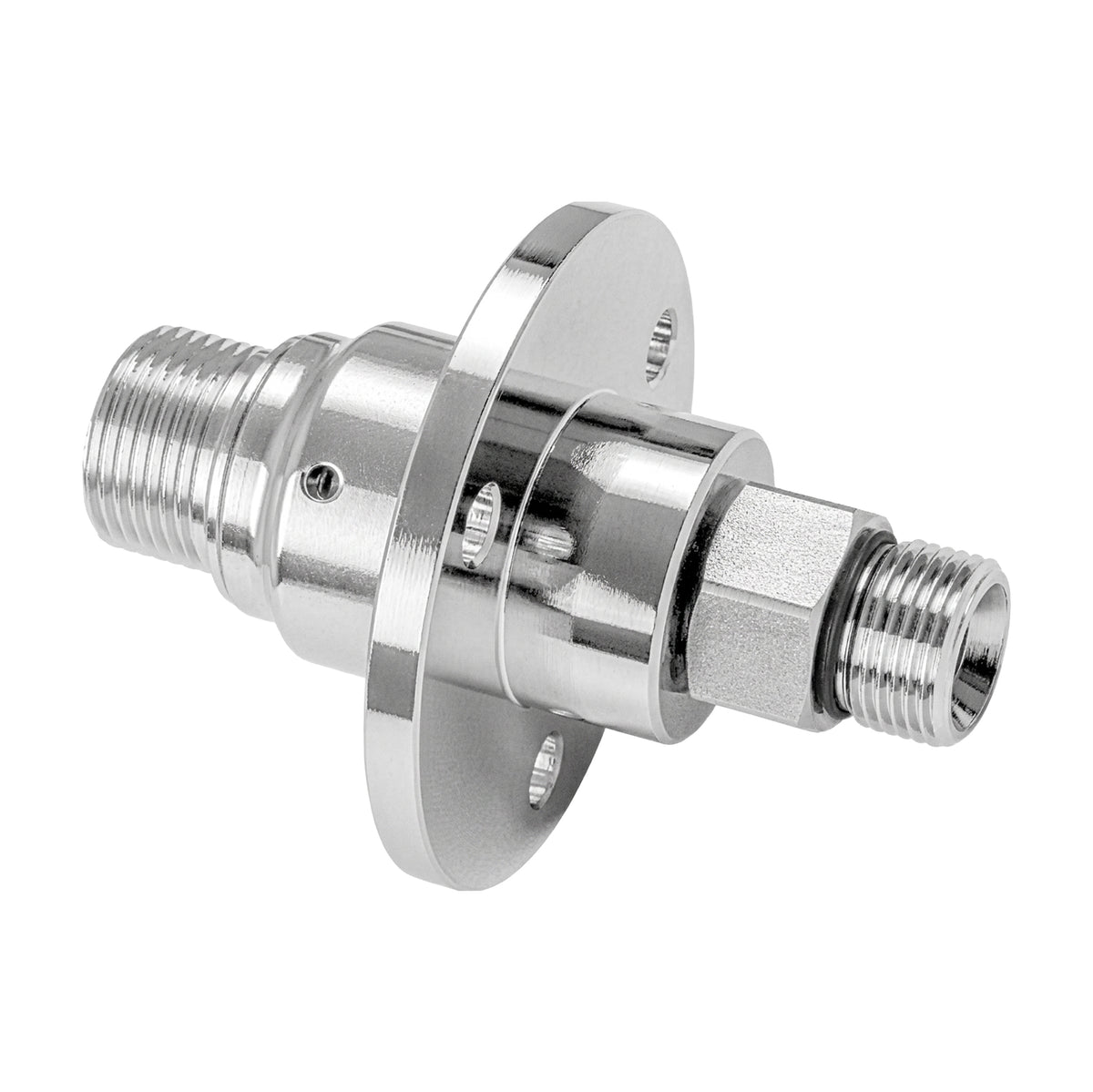

Mosmatic DYF-06 M22x1.5 G3/8" Swivel 4000PSI - 7538

High-Pressure Swivel for Smooth, Leak-Free Rotation Under Load

The Mosmatic DYF 06 swivel is a compact, high-performance rotary union/swivel engineered for continuous 360-degree rotation in high-pressure cleaning systems - delivering smooth, leak-free hose and tool rotation without pressure loss, even under full load. Rated for a maximum pressure of 4,000 PSI (275 bar) and up to 2,000 rpm, it's built for professional pressure washing rigs and industrial cleaning setups where cheap swivels seize up, leak, or drag.

Below, you'll find everything you need to know: benefits, unique design features, how the swivel works in your system, detailed specs, ideal users, setup guidance, maintenance tips, and answers to the most common questions.

Why You'll Love the Mosmatic DYF 06 Swivel

The DYF 06 swivel delivers one thing above all else: less downtime, less hose damage, and easier handling - so you can focus on cleaning, not fighting your equipment.

• Effortless live rotation under pressure – The DYF 06 allows continuous, no-snag, 360-degree rotation while your system is fully pressurized. Spray guns, lances, surface cleaners, and rotating tools move freely at working pressure, so you never have to stop and untwist your hose. The DYF-06 allows for continuous 360-degree rotation even at maximum pressure.

• Protects hoses and connections – Swivels eliminate hose twist and reduce operator stress. By absorbing rotational forces, the DYF 06 minimizes kinking, torsion, and the premature hose and fitting failures that cost you money and jobs. Like the Legacy T-Swivel, which increases high pressure hose lifetime, this unit keeps your lines working longer.

• Improves operator comfort and control – Over a long shift with a wand or surface cleaner, wrist and arm fatigue add up fast. With the DYF 06 handling the rotation, your gun or lance follows your movement naturally, not against you.

• Built for long-term, heavy-duty use – The swivel's construction resists corrosion thanks to its nickel-plated brass body with stainless steel inner parts. Precision bearings and carbide seals are made to handle constant rotation in wet, high pressure environments. Mosmatic is recognized for its durable construction and long service life in pressure-washing applications, and this unit is a prime example.

• Low maintenance, high uptime – The swivel is maintenance-free due to its sealed bearing design. Once installed and properly supplied with clean, filtered water, it can run for long intervals without service - keeping your rig in the field and earning.

What Makes the Mosmatic DYF 06 Swivel Different

Most swivels on the market seize, leak, or drag under high pressure and high RPM - especially in professional cleaning setups where the system runs hard, day after day. Mosmatic DYF-06 swivels are positioned as premium options in the market for good reason.

• Engineered for true live rotation at working pressure – Many cheaper swivels only rotate freely when depressurized or at low pressure. The DYF 06 is engineered for high-pressure and self-rotating applications, maintaining free rotation even at 4,000 PSI - the kind of pressure you're running on a Centurion 4 GPM rig or comparable professional unit.

• Precision bearing and seal stack – The DYF 06 features a triple ball bearing system: two radial bearings plus one thrust bearing. This multi-bearing construction supports both rotational movement and side loads from long lances, boom arms, or heavy hose runs - without wobble, without binding. The DYF-06 has a carbide seal system designed for high-speed rotation, and the Mosmatic DYF-06 swivel includes weep holes for early seal wear indication, giving you a visual warning before a full failure ever happens.

• Compact form factor with robust body – The DYF 06 model packs serious performance into a small footprint. With a length of approximately 1.45 inches and an outer diameter of roughly 1.77–2.36 inches depending on configuration, it fits tight gun or boom assemblies without adding bulk. Yet the thick-walled, nickel-plated brass body (or stainless steel in the DYFI variant) provides the safety margin you need.

• Optimized internal flow path – The NW-6 (approximately 6 mm / ¼-inch) internal channel is designed for low pressure drop, meaning you keep the cleaning power from high-output pumps while still getting smooth rotation. High-pressure swivels reduce stress on hoses and fittings, and this swivel does it without strangling your flow.

• Versatile mounting and connection options – Common thread sizes and configurations - including 3/8" female to 1/4" male, 3/8" F to 3/8" M, NPTF, BSPP, and metric threads like M22x1.5 and M12x1 - allow easy installation into guns, lances, hose reels, and rotating tools. There are also 90-degree elbow variants and flange-mount versions for space-constrained or angular installations.

How the Mosmatic DYF 06 Swivel Works

At its core, the DYF 06 uses a stationary body and a rotating inner component, separated by precision bearings and sealed fluid channels. Water passes straight through the swivel while the outer and inner halves spin independently - simple in concept, precise in execution.

1. Install between your fixed line and rotating tool – Thread the inlet side to your rigid hose, pipe, or boom fitting, and the outlet side to the device that must rotate - your gun, lance, boom end, or rotating spray head. The common thread sizes and straight or 90-degree configurations make this a straightforward bolt-on upgrade.

2. Pressurize the system – When your pump (for example, a Centurion 4 GPM unit running at 4,000 PSI) comes up to pressure, water passes through the internal channel of the swivel without blocking or restricting rotation. The Mosmatic 35.163 withstands a maximum pressure of 4,000 PSI, keeping your system safe and responsive.

3. Rotate freely during operation – The outer portion stays aligned with your hose while the inner section turns with the gun or tool. The triple bearing stack takes the load - radial and axial - and the carbide seals keep water contained. The DYF 06 is used in high-pressure self-rotating cleaning applications, from surface cleaners to tire cleaners and parts washers, all without hose twist.

4. Maintain performance over time – With clean water, good filtration (10-micron or finer recommended), and correct installation that avoids excessive side loads, the bearing and seal stack maintains smooth rotation season after season. The swivel is maintenance-free due to its sealed bearing design - no grease fittings, no regular tear-downs.

Product Details – Mosmatic DYF 06 Swivel Specifications

Here are the key specs for easy reference and planning:

• Body material: Nickel-plated brass for the standard DYF; stainless steel variant (DYFI) available for chemically aggressive or high-corrosion environments. The DYF-06 features a nickel-plated brass body with stainless steel inner parts. Stainless steel swivels resist rupture under high pressure.

• Seals and bearings: Carbide seal system paired with a stainless steel axle. Triple ball bearing system (2 radial + 1 thrust) supports both high RPM and side/axial loads. High-speed applications can reach up to 1,000 RPM in many setups, while the max rotational speed for the DYF-06 is 2,000 rpm.

• Pressure rating: Max working pressure of 275 bar (approximately 4,000 PSI). Mosmatic 35.163 withstands a maximum pressure of 4,000 PSI - giving you a solid safety margin over typical operating pressures. The Mosmatic 35.163 operates at a maximum speed of 1,000 RPM in standard configurations.

• Flow capacity: Sized with an NW-6 (approximately 6 mm / ¼-inch) nominal width, compatible with common commercial flows in the 3–5+ GPM range. Suitable for rigs like a Centurion 4 GPM pump without significant flow restriction - just confirm your GPM doesn't push the internal capacity of the NW-6 bore.

• Connection types: Available in 3/8" F : 1/4" M, 3/8" F : 3/8" M, NPTF, BSPP, BSPM, and metric threads (M22x1.5, M12x1, and more). Straight, 90-degree elbow, and flange variants available to suit different rigs and mounting needs.

• Temperature limits: The maximum operating temperature for the DYF-06 is 250°F (120°C), making it well-suited for hot-water pressure washing, dairy sanitation, and food-processing cleaning where temperatures run high.

• Dimensions and weight: Length approximately 1.45 inches (L1), with an additional protrusion of about 0.43–0.47 inches (L2) depending on thread ends. Outer diameter approximately 1.77–2.36 inches depending on version. Weight approximately 11 oz (0.31 kg) for common straight configurations - compact enough for gun-mounted and boom-mounted installations.

• What's included: Ships as a single assembled unit with specified thread adapters and seals pre-installed. Seal kits (hard-metal, carbide) are available separately for maintenance or replacement. The Mosmatic DYF-06 swivel includes weep holes for early seal wear indication.

Who the Mosmatic DYF 06 Swivel Is For

This swivel is designed for serious users running high pressure systems daily or weekly - the kind of people who can't afford downtime or cheap parts failing mid-job.

• Professional pressure washing contractors – If you're doing exterior building cleaning, fleet washing, or concrete and flatwork, you're handling long hoses and guns all day. The DYF 06 gives you live swiveling where it matters most, reducing fatigue and hose damage on every job. The DYF-06 is suited for applications such as surface cleaners and parts washers.

• Auto detailing and wash bay operators – In self-serve bays, wand assemblies, and ceiling booms, hoses must swing freely without wrapping up. The DYF 06 keeps wands and tire cleaners rotating smoothly in high-traffic environments.

• Industrial and manufacturing maintenance teams – For parts washers, equipment cleaning stations, and process rinsing rigs, the DYF 06 delivers reliable rotation under constant duty. Its carbide seals and triple bearings handle the punishment of continuous, high-rpm cycles.

• Agricultural and food-processing operations – Cleaning machinery, barns, and processing areas with hot water and detergents is routine. The 250°F (120°C) temperature rating and corrosion-resistant construction make the DYF 06 a strong fit for these demanding environments.

• Anyone upgrading a heavy-duty pump system – If you're stepping up to a Centurion 4 GPM pump or comparable pro-grade unit, pairing it with a live swivel like the DYF 06 transforms how the system handles. You'll notice the difference at the trigger - smoother, easier, and far less wear on your hoses and fittings. The Legacy Hose Reel Swivel increases high pressure hose lifetime, and the DYF 06 takes that same principle even further.

How to Choose and Set Up Your DYF 06 Swivel in a High-Pressure System

Correct swivel sizing and installation are key to long service life, safety, and getting your money's worth out of high pressure cleaning technology.

• Match pressure and flow to your pump – Confirm that the DYF 06 swivel's 4,000 PSI maximum pressure rating comfortably exceeds your pump's working pressure. For a Centurion 4 GPM system, you're right in the sweet spot. Also verify that the NW-6 flow capacity matches your GPM - for flows significantly above 5–6 GPM, consider stepping up to a larger nominal width swivel.

• Select the right port sizes and thread type – Check whether your hoses and guns are NPT, BSP, or metric, and order the correct DYF 06 variant. Using mismatched adapters or cross-threading connections will cause leaks or damage. Multiple thread options are in stock for most common configurations.

• Position the swivel correctly in the line – Install at the gun inlet, at the end of a boom, or before a rotating accessory - wherever hose twist causes the most trouble. For space-constrained mounting, the 90-degree elbow version is a smart choice. Easy installation is one of the DYF 06's strengths.

• Support hoses to reduce side loads – Use strain reliefs, hose guides, or short whip hoses so the swivel isn't bearing the full weight and pull of long hose runs. The triple bearing stack handles side loads well, but minimizing unnecessary stress extends life.

• Verify seal compatibility with detergents and temperature – The DYF 06's seals handle media with a pH between 3 and 12. If you're running aggressive chemicals or temperatures near the 250°F max, consider the stainless steel DYFI variant for added protection.

• Test under pressure for leaks and smooth rotation – Slowly pressurize the line, check for drips at threads and the rotating joint, and confirm that rotation feels free and consistent during trigger cycles. Check the weep holes - any moisture there is your early warning of a seal issue.

Keeping Your Mosmatic DYF 06 Swivel Running for Years

Simple, periodic checks can dramatically extend swivel life - just like basic pump care for your Centurion or any other pro-grade unit.

• Daily/weekly inspections – Do a quick check for weeping at the rotating joint, stiffness or grinding when rotating by hand, and obvious hose strain on the swivel body. Catching problems early saves you from mid-job failures.

• Protect it with clean water and filtration – Install a 10-micron or finer filter upstream of the swivel so grit and debris don't score the internal carbide seals or bearing races. If your water is hard or mineral-heavy, consider a pre-treatment or water softener.

• Avoid running dry or cavitating – A starved pump produces pressure spikes and vibration that shorten swivel life fast. Make sure your supply hose is properly sized, kink-free, and delivering a steady, air-free water supply - the same principles that protect a Centurion 4 GPM pump protect your swivel.

• Respect temperature and chemical limits – Don't exceed the 250°F (120°C) max operating temperature or use chemicals outside the pH 3–12 range. Doing so can harden seals, degrade the nickel plating, and accelerate leakage.

• Plan for periodic seal or swivel replacement – Like high-pressure hoses and pump seals, swivel seals are wear items. When rotation becomes rough or leaks appear, replace the seal kit or the entire swivel. Carbide seal kits are available from Barens and authorized distributors. Keeping a spare in stock is smart insurance.

• Proper storage in off-season – Depressurize the system, purge water from the swivel and connected lines, and store in a dry environment. If the entire rig is winterized with antifreeze, make sure the swivel is properly flushed afterward.

Frequently Asked Questions About the Mosmatic DYF 06 Swivel

Can the DYF 06 swivel handle the output of a 4 GPM, 4,000 PSI pump? Yes. The DYF 06 is rated for a maximum pressure of 4,000 PSI (275 bar), making it well-suited to rigs powered by professional-grade pumps like a Centurion 4 GPM unit. Just make sure the NW-6 flow capacity is adequate for your GPM - for most 4 GPM setups, it works well. Add the DYF 06 to your cart when you order your pump to get everything dialed in from day one.

Is the swivel suitable for hot-water pressure washers? Absolutely. The maximum operating temperature for the DYF-06 is 250°F (120°C), so it handles hot-water cleaning in food processing, dairy, agricultural, and industrial sanitation. For continuous hot-water duty near the limit, the stainless steel DYFI variant offers extra margin.

Where should I install the DYF 06 in my system? Most users mount it at the gun inlet, lance connection, or boom end - wherever hose twisting causes the most trouble. The 90-degree elbow and flange variants are ideal for tight or angular mounting. Position a short whip hose after the swivel to prevent side loads.

Does the swivel require lubrication or special maintenance? No. The DYF 06 is maintenance-free due to its sealed bearing design - no grease fitting, no field disassembly needed. Periodic inspection, external cleaning, and monitoring the weep holes for early seal wear indication are all that's required.

What happens if my swivel starts to leak or feels rough? This usually indicates worn seals or bearing damage from abrasive particles, excessive load, or running past temperature and chemical limits. Replace the seal kit or the entire swivel promptly - continuing to run a degraded swivel can lead to hose burst or complete pressure loss under load.

Can I retrofit a DYF 06 onto an existing hose reel or boom? Yes, as long as the thread sizes and pressure rating match your system. The wide range of connection types (NPTF, BSP, metric) and straight, elbow, or flange configurations make retrofitting into most existing rigs straightforward. Check stock and order the variant that matches your fittings.

Ready to Upgrade Your High-Pressure Rig?

Stop fighting twisted hoses and worn-out fittings. The Mosmatic DYF 06 swivel delivers smooth live rotation, protects your hoses, and boosts operator comfort in the most demanding cleaning environments - from surface cleaners and self rotating applications to parts washers and tire cleaners.

Pairing a robust swivel like the DYF 06 with a pro-grade pump like the Centurion 4 GPM transforms how your system feels and performs, day in and day out. You get less downtime, longer hose life, and easier handling on every single job.

Add the Mosmatic DYF 06 swivel to your gun, lance, or boom assembly now. Add to cart, place your order, and experience the difference that premium high pressure cleaning technology makes at the trigger.
