General Pump TSF1819 24mm 6.3GPM 4350PSI - 7484

High-Flow Power for Heavy-Duty Pressure Washing

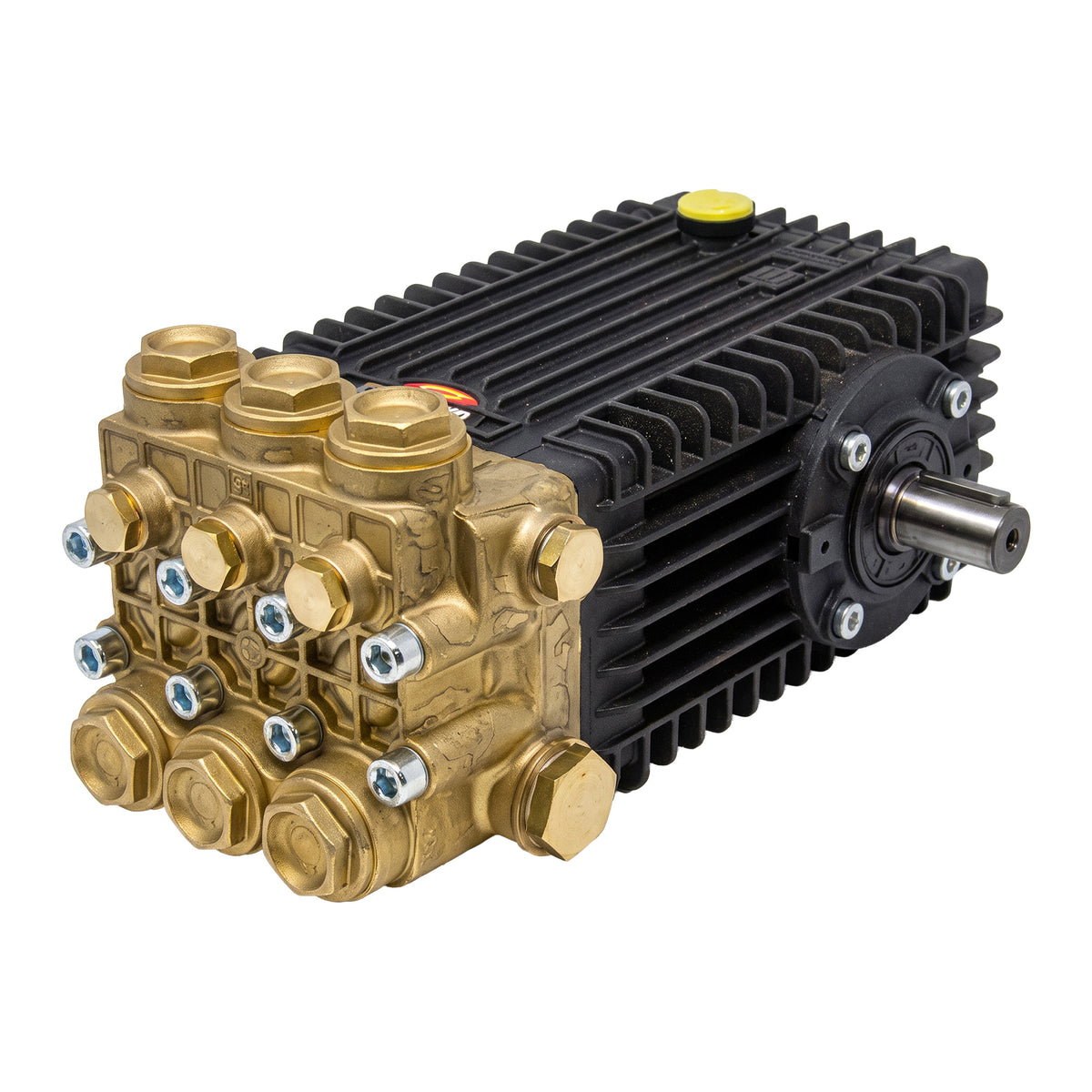

The General Pump TSF1819 is a triplex plunger pump from the 66 Series that delivers 6.3 GPM at up to 4,350 PSI - the kind of flow and pressure combination that separates professional-grade cleaning rigs from everything else. The TSF1819 is designed for continuous-duty applications that require reliable high-pressure output, making it the backbone of trailer-mounted wash units, large surface cleaners, and multi-gun systems where both volume and force need to stay rock-solid all day long.

The TSF1819 operates at a maximum flow rate of 6.3 GPM, a maximum speed of 1,750 RPM, and sits on a 24 mm solid shaft that opens up a huge range of drive configurations. If you're building or upgrading a commercial pressure washing skid, a fleet wash bay, or an industrial cleaning rig, this pump was engineered specifically for you. It's suitable for industrial pressure washing applications including vehicle washing, sewer jetting, and concrete surface preparation - anywhere that high-volume, high-pressure water needs to hit hard and keep hitting.

Most pressure washer pumps live in a fairly predictable window: 2 to 10 GPM at 500 to 5,000 PSI. But the TSF1819 is a different animal for demanding high-flow work - you get enough volume to rinse and clean massive surfaces in a single pass, with enough force to strip grease, coatings, and heavy grime without doubling back.

Why You'll Love the General Pump TSF1819

Specs tell part of the story. What matters is how they translate into results on the jobsite - faster cleaning, fewer breakdowns, and lower costs over the life of the machine.

• Cover more ground, faster – The TSF1819 can achieve a maximum pressure of 4,350 PSI while pushing 6.3 GPM, giving you roughly 27,400 cleaning units (PSI × GPM). That means parking garages, truck fleets, large concrete pads, and industrial floors get cleaned in a fraction of the time compared to pumps running 3–4 GPM. When you're billing by the job, that kind of throughput is money in your pocket.

• Built for all-day duty – The design incorporates improved sealing, oversized bearings, and a fully anodized crankcase for durability. Paired with a triplex plunger configuration running at a relaxed 1,750 RPM, the TSF1819 generates less friction heat and mechanical stress than direct-drive units screaming at 3,400+ RPM. That translates to a pump that keeps working when lighter units would already be overheating and wearing out.

• Smooth, consistent pressure – The triplex plunger design provides consistent fluid delivery with minimal pulsation. Three plungers cycle in overlapping phases - one pulling while another pushes - so you get an even spray pattern at the wand, surface cleaner, or manifold. Less pulsation also means less fatigue on your hoses, fittings, and downstream components.

• Lower lifecycle cost – Solid ceramic plungers improve thermal shock resistance and minimize wear. Hardened stainless steel valves and premium seals are all individually serviceable, so you rebuild what needs rebuilding instead of replacing the entire pump. Compared to lightweight seasonal pumps, the TSF1819's internals are built to go hundreds of hours between service intervals.

• Flexible for advanced setups – The pump handles warm and light hot water applications within spec, works with multi-gun manifolds, and integrates easily into reclaim/recycle systems and custom skids. Whether you're running a single wand or splitting flow across two operators, it has the volume to keep pressure stable.

What Makes the General Pump TSF1819 Different

Most contractor-grade pumps claiming "4,000 PSI" are built around smaller frames, faster RPMs, and lighter components that sacrifice durability under sustained, heavy-duty load. The TSF1819 comes from a fundamentally different engineering philosophy.

• Industrial 66 Series frame – The TSF1819 is part of General Pump's 66 Series, featuring a large, fully anodized crankcase and oversized roller bearings designed for severe service. This isn't a consumer pump dressed up with a spec sheet - it's built for the kind of daily abuse that would kill a lighter unit in weeks.

• High-flow at low RPM – Delivering 6.3 GPM at only 1,750 RPM means significantly lower noise, less internal heat generation, and dramatically longer component life versus direct-drive units running at 3,400 RPM. Slower operation reduces friction wear across every moving part - bearings, plungers, seals, and valves all benefit.

• Advanced plunger and seal design – Updated plunger geometry and an innovative seal configuration improve thermal shock resistance and extend seal life, especially when dealing with variable water temperatures or intermittent bypass cycling. A new valve cap design enhances hydrostatic performance, improving flow consistency and reducing turbulent losses at the manifold.

• 24 mm solid shaft for flexible drive options – The 0.945-inch (24 mm) solid shaft supports belt-drive and gearbox configurations, making integration into custom rigs, trailer mounts, and industrial skids straightforward. No proprietary couplings or adapters needed.

• Designed for very high pressure – With a maximum working pressure of 4,350 PSI, the TSF1819 sits a clear step above the crowded field of "4,000 PSI" pumps marketed at contractors. That extra headroom matters when you're running long hose lengths or dealing with pressure drop across multiple downstream components.

How the General Pump TSF1819 Works

This is a positive-displacement triplex plunger pump. It converts rotational shaft power into high-pressure water flow - simple in concept, precise in execution. Here's how to get it running and what happens inside.

Step 1 – Mount and Connect the Pump

Mount the TSF1819 on your skid, trailer frame, or equipment base using standard bolt patterns. Align the 24 mm solid shaft with your belt-drive pulley or gearbox output - proper alignment is critical to prevent premature bearing stress. The pump requires 18.8 EBHP to operate efficiently, so make sure your drive source (electric motor, gas engine with gearbox, or belt-drive setup) is sized to deliver at least that much power at 1,750 RPM.

Connect the inlet plumbing from your buffer tank or pressurized water supply to the ¾-14 BSP-F inlet port. Use adequately sized lines - at 6.3 GPM, undersized or restricted inlet plumbing will starve the pump and cause cavitation. Install an inline screen or filter to keep grit and debris out of the manifold.

Step 2 – Prime and Start

Before the first start, fill the inlet line with clean water and purge all trapped air. The pump must be fully flooded before you fire up the drive. The maximum inlet pressure for the TSF1819 is 125 PSI, and the maximum inlet vacuum is approximately 9 ft of water - so keep suction runs short and minimize restrictions.

Start the drive motor at low speed, verify water is flowing through the discharge port (3⁄8-19 BSP-F), and then bring it smoothly up to 1,750 RPM. Confirm that your unloader or pressure regulator is set correctly so the system does not exceed the 4,350 PSI maximum working pressure.

Step 3 – Clean with High-Flow Precision

Once running, the three ceramic plungers reciprocate inside the TSF1819 uses a forged brass manifold for strength and corrosion resistance, pulling water through inlet valves and forcing it through discharge valves at high pressure. The overlapping plunger phases deliver stable, low-pulsation flow to your spray wand, surface cleaner, or distribution manifold - noticeably smoother than cheaper single- or wobble-plate designs.

When you release the trigger, the unloader diverts flow to bypass, preventing dangerous pressure spikes and protecting the pump, hoses, and fittings. Keep in mind that prolonged bypass can raise fluid temperature, so manage bypass cycling carefully - the maximum fluid temperature tolerated by the pump is 165°F.

Geneal Pump TSF1819 Details

Here are the key specs for easy reference when speccing, building, or integrating the TSF1819 into your system.

• Material / Construction: The TSF1819 uses a forged brass manifold, a large fully anodized crankcase, solid ceramic plungers, stainless steel valves, and premium seals designed for high-pressure service. Oversized roller bearings handle the radial and thrust loads of continuous heavy-duty operation.

• Flow and Pressure: 6.3 GPM nominal flow at a maximum working pressure of 4,350 PSI. This combination supports large surface cleaners (20–24 inch), long hose runs, and multi-gun manifold configurations without significant pressure drop.

• Speed and Power Requirements: Rated pump speed is 1,750 RPM. The pump requires approximately 18.8 EBHP - plan on a 20+ HP electric motor or an appropriately sized engine with gearbox or belt-drive to deliver full output without overloading the drive system.

• Shaft and Mounting: 24 mm (0.945 in) solid shaft with keyway. Compatible with standard industrial belt-drive pulleys, gearbox couplings, and custom mounting configurations. The pump's compact footprint - approximately 14.94 × 9.78 × 6.99 inches - fits trailer and skid frames with ease.

• Port Configuration: Inlet port is ¾-14 BSP-F; discharge port is 3⁄8-19 BSP-F. Use inlet hose diameter large enough to support 6.3 GPM without restriction, and high-pressure discharge hose rated well above 4,350 PSI for an appropriate safety margin.

• Temperature and Fluid Limits: Maximum inlet fluid temperature is 165°F, making the TSF1819 suitable for warm and light hot water applications. Maximum inlet pressure is 125 PSI. Use only compatible pressure washer detergents - consult the manufacturer for aggressive chemical compatibility.

• Size and Weight: The pump's weight is approximately 40.7 lbs. Crankcase oil capacity is about 40.6 oz.

• Included with the Pump: Ships as a bare pump unit ready for integration. Unloaders, pressure regulators, chemical injectors, and other accessories are selected and added to suit your specific system design.

Who the General Pump TSF1819 Is For

This is a professional-grade component built for operators who run their equipment hard, often, and can't afford downtime. If you need a pump that delivers day after day without excuses, the TSF1819 belongs on your shortlist.

• Commercial pressure washing contractors – Flatwork specialists, parking garage crews, graffiti removal teams, and multi-gun operations all benefit from the 6.3 GPM flow rate. Pair it with a 20–24 inch surface cleaner and you'll clear large pads faster than any 4 GPM pump can touch.

• Fleet and facility maintenance teams – Municipal fleets, trucking companies, and distribution centers that need consistent, all-day washing of vehicles, trailers, and loading docks. The TSF1819 supports applications such as vehicle washing, sewer jetting, and concrete surface preparation - the kind of diverse workload that fleet operations demand.

• Agricultural, food, and livestock operations – Washdown and sanitation of barns, processing areas, milking sheds, and heavy farm equipment where high volume speeds rinsing and warm water capability helps cut through organic soils.

• Industrial plants and fabrication shops – Parts washing, equipment stripping, tank cleaning, and surface preparation before coating or welding. Anywhere that volume and pressure need to work together at industrial scale.

If you need faster cleaning, reliable uptime, and higher throughput from a single operator or small crew, this pump is built to deliver exactly that.

Choosing and Setting Up Your General Pump TSF1819

A proper installation dramatically extends the life and performance of the TSF1819. Cutting corners on setup is the fastest way to shorten the life of an otherwise bulletproof pump.

Picking the Right Configuration

Match the 6.3 GPM and 4,350 PSI capability to your actual job requirements. Running a single gun with a large surface cleaner? You'll use the full flow. Splitting across two guns? Size your tips so combined flow doesn't exceed 6.3 GPM. Consider hose length - longer runs mean more pressure drop, so you may want to run at slightly lower nozzle pressure to compensate.

For the drive, you need 18.8 EBHP at 1,750 RPM. That means a 20+ HP electric motor, or a gasoline/diesel engine paired with a gearbox or belt-drive with the correct pulley ratio to hit 1,750 RPM at the pump shaft. Undersizing the drive means underperformance and accelerated wear; oversizing risks overloading the pump.

If you plan to run hotter water regularly or use more aggressive detergents, consult General Pump about head or seal material upgrades to stay within safe operating parameters.

Dialing In the Inlet Side

At 6.3 GPM, inlet plumbing matters more than most people think. Use a properly sized buffer tank and supply line - typically 1-inch minimum diameter - to ensure the pump stays fully flooded. A restricted or undersized inlet will cause cavitation, which rapidly damages plunger surfaces, valves, and the manifold.

Install a screen or inline filter to protect the pump from grit, sand, and debris. Keep suction runs as short as possible, avoid sharp elbows, and eliminate any kinks or restrictions that could starve the pump. If you're drawing from a tank, make sure the tank refill rate exceeds your 6.3 GPM draw.

Setting Up the Discharge and Safety Components

Choose high-pressure hose rated well above 4,350 PSI - a minimum burst rating of 2× working pressure is standard practice. Select guns, lances, and nozzles sized for the flow rate and pressure you'll actually be using.

Position the unloader or pressure regulator close to the pump discharge, and install a safety relief valve and pressure gauge to monitor system performance. During initial testing, set operating pressure, check every connection for leaks, listen for abnormal pulsation, and verify that bypass temperature stays manageable during trigger-off periods.

Keeping Your General TSF1819 Running for Years

Simple routine maintenance can double or triple the service life of the TSF1819, even in the most demanding environments. This pump will reward basic care with thousands of hours of reliable operation.

Daily and Weekly Checks

Before each shift, check for visible leaks at seals, fittings, and hose connections. Listen to the pump at the wand - unusual noises or pulsation are early warnings of valve or seal issues. Check the crankcase oil level and sight glass; milky oil is a red flag for water intrusion and needs immediate attention.

Inspect inlet strainers and filters regularly. A clogged filter at 6.3 GPM will starve the pump faster than you'd expect, and cavitation damage is expensive to repair.

Scheduled Service Intervals

Change the crankcase oil after the first 50 hours of operation to flush out any break-in metal particles. After that, change oil every 250–500 hours depending on operating conditions, using non-detergent pump oil (GP Series 100 Oil or equivalent).

Plan on replacing seal and valve kits based on hours of operation, or whenever you notice pressure loss, increased pulsation, or visible leakage at the manifold. Keep OEM rebuild kits on hand - during busy season, having parts ready can be the difference between a 30-minute repair and days of downtime waiting on shipping.

Seasonal Storage and Protection

At end of season, flush the entire system with clean water, then run pump saver or antifreeze through all internal passages and lines. Drain all hoses, fittings, and the pump manifold thoroughly.

Store the pump and rig in a dry, frost-free environment. Protect exposed components from corrosion and UV damage if the unit lives outdoors. During long idle periods, periodically rotate the shaft or briefly run the pump to keep seals from sticking and lubricated surfaces protected.

Frequently Asked Questions About the General Pump TSF1819

Here are common customers questions contractors and builders ask before specifying this pump.

Is 6.3 GPM too much for a single-operator setup?

Not at all. 6.3 GPM is ideal for large surface cleaners (20–24 inch) and long hose runs where lower-flow pumps would lose too much effective pressure. A single operator with a properly sized surface cleaner will cover flatwork dramatically faster. And if your system design calls for it, you can manifold the flow to feed two lighter guns - just size your tips so combined draw doesn't exceed the pump's rated output.

What motor or engine size do I need to drive the TSF1819?

The pump requires approximately 18.8 EBHP at 1,750 RPM. In practice, that means a 20+ HP electric motor or a comparable gasoline/diesel engine paired with a gearbox or belt-drive system that delivers the correct RPM. Always build in a small power margin - undersizing the drive leads to poor performance and accelerated wear on both the pump and the motor.

Can the TSF1819 be used with hot water?

Yes, within limits. The maximum fluid temperature tolerated by the pump is 165°F, making it suitable for warm and light hot water applications. Seal and oil life depend on staying within that rating - exceeding it will accelerate wear on seals and potentially stress the manifold. If you need true steam or near-boiling temperatures, you'll need a pump specifically engineered for that service.

How hard is it to rebuild the TSF1819?

The pump is designed for field serviceability. Valves, seals, and plungers are all accessible without removing the pump from the rig. A competent mechanic with the exploded parts drawing and service manual can handle seal and valve kit replacements in a couple of hours. General Pump provides detailed parts lists with item numbers for every serviceable component.

What happens if the pump runs dry or is starved for water?

Running dry or with a restricted inlet can rapidly damage seals and plungers - ceramic plungers can crack, seals will overheat and scorch, and the manifold can warp. Always maintain a flooded inlet, keep filtration clean, and make sure your water supply rate exceeds 6.3 GPM. An unloader valve is essential to manage bypass when the trigger is closed, but don't leave the pump in bypass for extended periods without flow.

Ready to Build Your Next High-Flow Rig Around the General Pump TSF1819?

The TSF1819 combines 6.3 GPM, up to 4,350 PSI, and a heavy-duty 66 Series frame to deliver industrial-grade performance that lighter pumps simply can't match. With its oversized bearings, anodized crankcase, advanced seal and plunger design, and a relaxed 1,750 RPM operating speed, it's built to run hard for years - not just seasons.
