Deep, Streak‑Free Cleaning Power in a Compact Surface Cleaner Rotary Head

The Whirl A Way rotary head is the core spinning component that drives every Whirl A Way surface cleaner's performance. A Whirl-a-Way is a rotary surface cleaner attachment for high-pressure washers, and the rotary head is the mechanism that makes it all work. Built to restore concrete, pavers, and industrial floors fast - with an even, swirl‑free finish - this unit is the heart of your cleaning setup. When you see "Whirl A Way" stamped on that rotary head, it means we've put everything we've got into it.

This article focuses specifically on the rotary head (swivel/rotor) used in 16", 18", 20", and 24" Whirl A Way surface cleaners, though the 14" Whirl-A-Way Surface Cleaner is available for purchase and the 30" Whirl-A-Way Surface Cleaner is also available for larger-scale jobs.

Why You'll Love the Whirl A Way Rotary Head

When the rotary head inside your whirl a way surface cleaner is performing correctly, you get better cleaning, less fatigue, and fewer callbacks. Here's what that looks like when you're out there:

• Consistent, streak‑free results – The dual or tri nozzle rotation inside the rotary head creates a uniform cleaning path across concrete, pavers, and other flat surfaces. The design eliminates streaking and maintains a streak-free surface finish, so you spend less time going back over missed spots. It's all done at the highest level.

• Faster job completion – The unit is designed to clean large flat surfaces quickly and evenly. It reduces cleaning time by up to 60% compared to traditional nozzles, meaning a driveway that used to take an hour with a standard pressure washer wand now takes well under half that time. When you need to conquer the deepest dirt, this is your machine.

• Reduced operator fatigue – The hover effect allows the unit to glide effortlessly, minimizing operator fatigue. Less wrist movement, smoother travel, and a more ergonomic working posture make long days on driveways and commercial flatwork far more manageable. Ergonomic handles and triggers are often included to reduce operator strain during use. Because when you're working all day, every day, you need equipment that works as hard as you do.

• Built for heavy, regular use – The rotary head features a robust body, high-load bearings, and high‑pressure seals designed for frequent professional cleaning. Whirl-A-Way rotary heads can handle flow rates up to 8 GPM, and the maximum pressure for Whirl-A-Way rotary heads is 4000 PSI - more than enough for demanding contractor work. We've built this thing strong enough to bear the Whirl A Way name.

• Clean results with fewer striping issues – A healthy rotary head minimizes "tiger stripes" and patchy areas. That means fewer rework passes, reduced water usage, and faster turnaround on every job. When the job's done right the first time, everyone's happy.

What Makes Our Rotary Head Different

Many rotary heads on the market fail early because of poor sealing, misaligned spray arms, or low‑grade internal materials. The Whirl A Way rotary head is built differently to deliver reliable, long-lasting performance. This house was built in-house, and we stand behind it.

• Balanced spray arm design – Precise balance across the spray bar reduces vibration, protects the swivel assembly, and keeps the head spinning freely under pressure. It uses a high-speed rotating spray bar underneath a protective deck, ensuring even coverage across the entire cleaning path. Every component is engineered to work together.

• High‑quality sealing system – The internal seal stack uses robust face materials that resist water ingress and abrasive grit during use. This prevents premature bearing damage and extends the working life of the rotary head, even in heavy daily use. We know what it takes to handle the toughest conditions.

• Service‑friendly construction – The rotary head can be disassembled with standard workshop tools for seal, bearing, or nozzle replacement. Repair kits are available so you can restore internal components - seals, shaft, bearings - without replacing the full assembly. This keeps your whirl a way surface cleaner running without unnecessary downtime or cost. We believe in that kind of longevity.

How the Whirl A Way Rotary Head Works with Your Pressure Washer

Water flows from your pressure washer through the inlet, into the rotary head's internal swivel, out through the spinning spray arm, and onto the surface below. The entire process happens inside the deck housing, so debris and overspray stay contained. Here's the step-by-step breakdown of how we make it happen:

1. High‑pressure water enters the swivel - The rotary head connects to the surface cleaner's main water inlet. It receives high-pressure flow from the pump - typically between 2,500 and 4,000 PSI for commercial models - and channels it into the central shaft of the swivel.

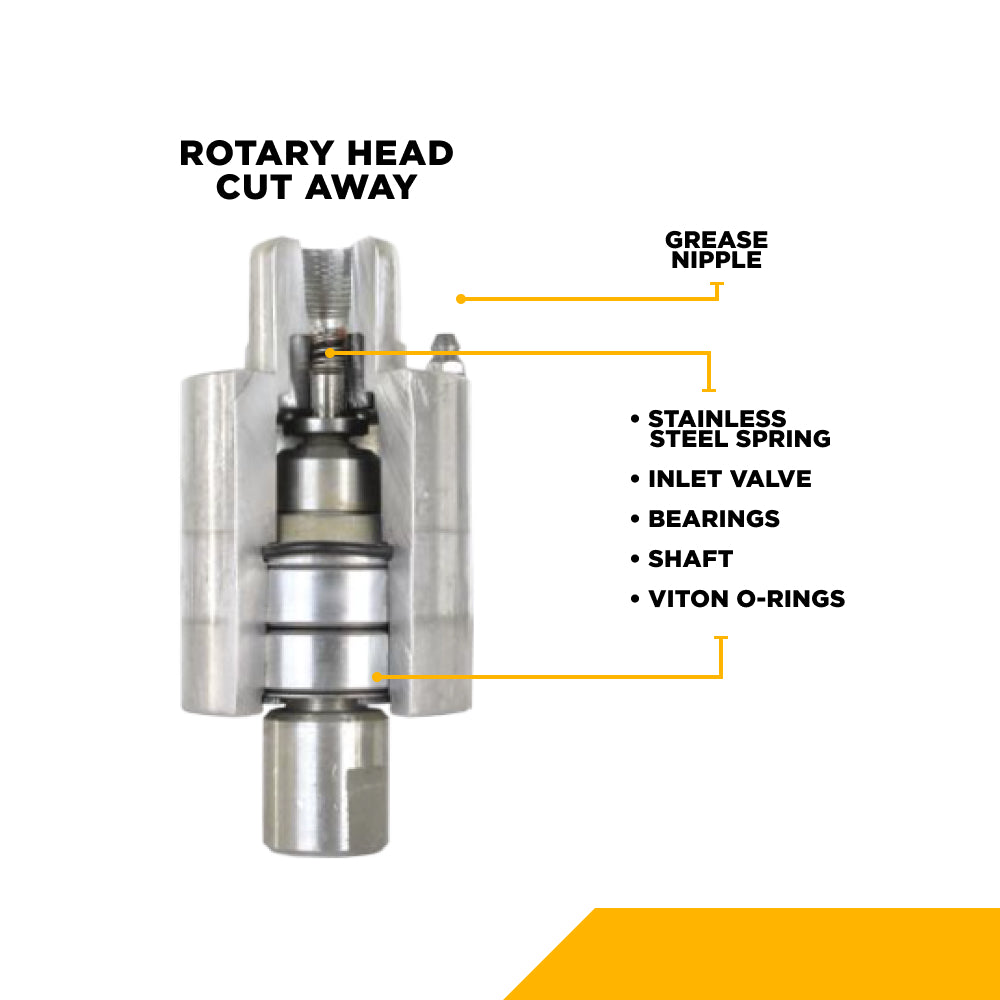

2. Swivel transfers flow to the rotating arm - Inside the head, sealed bearings and a hardened shaft allow the spray arm to rotate continuously without twisting or binding the supply hose. This rotary union is what separates a surface cleaner from a simple wand nozzle. It's what makes the Whirl A Way name what it is.

3. Nozzles spin to create a uniform cleaning path - The jets at the tips of the spray arm are angled to generate rotation. As they spin, they cover a circular cleaning pattern under the deck. Nozzle orifice size - such as 015, 020, or 025 - determines rotation speed and coverage width, and can be matched to your pressure washer's output.

4. Debris is washed away under the shroud - The bristle skirt helps contain water and debris within the cleaning area. The combination of rotation and enclosure ejects dirty water from beneath the deck while controlling overspray, keeping surrounding areas clean. When you reach the end of the cleaning path, you know it's been done right.

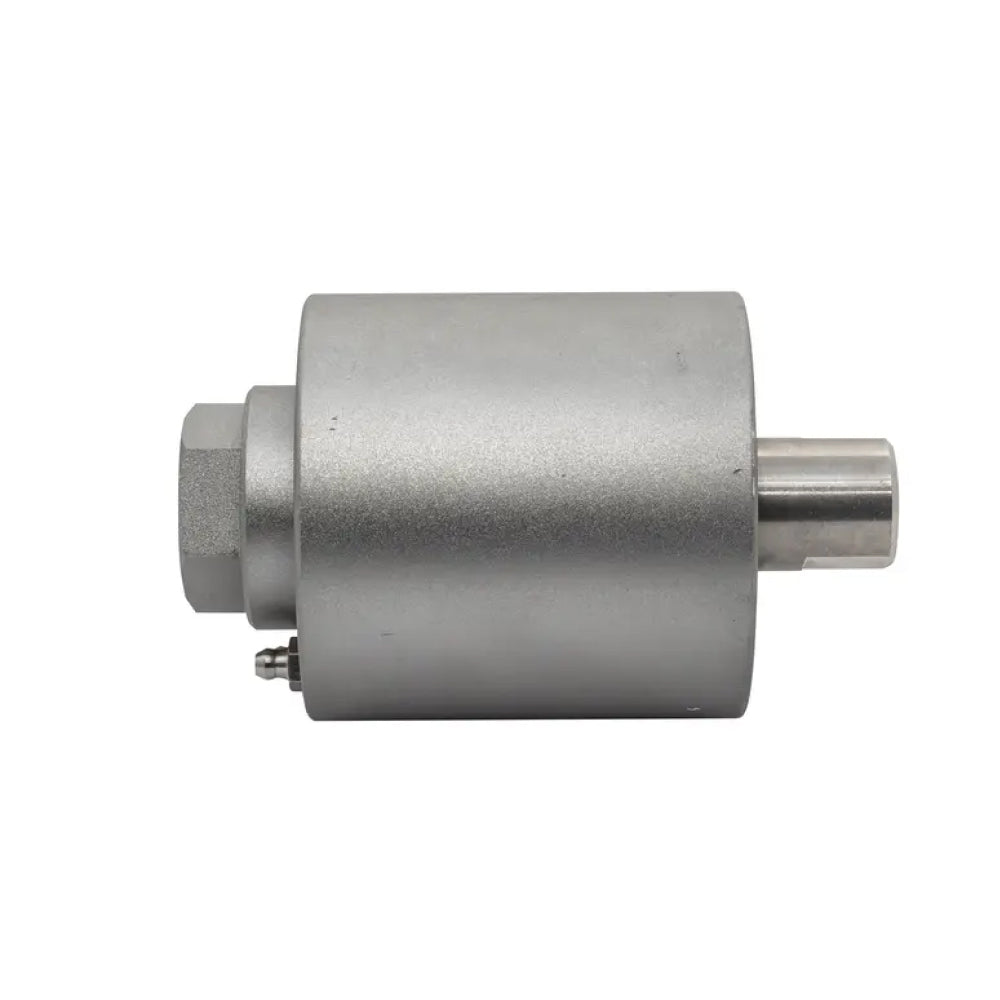

Product Details: Whirl A Way Rotary Head

Here are the technical specifications at a glance for the rotary head used across multiple Whirl A Way sizes. These are the numbers that matter:

• Material / Body – Whirl-A-Way surface cleaners have a lightweight ABS polymer housing, while the rotary head body itself is manufactured from corrosion‑resistant metal suitable for frequent contact with water and detergents.

• Internal components – High‑strength steel shaft, sealed or greaseable ball bearings, and pressure‑rated seals designed for professional‑grade products. Metal stampers, welders, assemblers - everything that goes into making this component strong.

• Pressure and flow capability – Maximum pressure for Whirl-A-Way rotary heads is 4,000 PSI. Whirl-A-Way rotary heads can handle flow rates up to 8 GPM. The 20" Whirl-A-Way Surface Cleaner operates at 3,000–4,500 PSI. Temperature rated up to 180°F (82°C) on most commercial models.

• Connection type – Standard quick‑connect inlet (typically 1/4") for easy attachment to the surface cleaner arm or handle assembly.

• Nozzle ports – Available in 2‑jet or 3‑jet configurations. Orifice sizes can be selected to match your pressure washer's flow and pressure output.

• Compatibility – Whirl-A-Way rotary heads fit 16", 18", 20", and 24" cleaners. The 14" model uses its own dedicated rotary head variant. The 24" Whirl-A-Way Surface Cleaner is available to order for those needing maximum coverage.

• Weight – The 16-inch Whirl-A-Way cleaner weighs 20 lbs (full unit with deck); the rotary head assembly alone is considerably lighter for easy handling during service.

• Included in the box – Assembled rotary head with pre‑installed spray arm, nozzle tips (sized to the model), and installation instructions. Everything you need to get started.

• Warranty / support – Covered by a limited manufacturer's warranty against defects. Service parts and repair kits are available to keep your item running season after season. We put our name on the line with every unit.

Who the Whirl A Way Rotary Head Is For

Whether you're tackling driveways, courtyards, loading bays, workshop floors, or pool surrounds, the rotary head is the component that determines how well the work gets done. When the job's extreme, you need equipment ready for it.

• Professional contract cleaners – If you clean building exteriors, car parks, and commercial paving day in and day out, a properly functioning rotary head means faster turnaround, cleaner results, and fewer callbacks. Common applications include cleaning driveways, sidewalks, and patios. Not all jobs are mild - some require the fiercest machine.

• Facility and grounds maintenance teams – Warehouses, schools, hospitals, and municipal properties need reliable equipment that performs on schedule. The Whirl A Way rotary head delivers that consistency across large surface areas. We've been doing this long enough to know what works.

• Property managers and detail‑oriented homeowners – Apartment complexes, holiday parks, and private properties with large paved areas benefit from the even, professional‑grade finish that only a well‑maintained rotary head can provide. When you put your name on a property, you want it looking its best.

• Existing Whirl A Way owners needing replacement heads – If your current swivel is leaking, stiff, or causing streaking, replacing the rotary head is the fastest way to restore cleaning quality without buying an entirely new unit. Most stories of worn equipment end here, but you're the kind of innovator who rebuilds instead of replaces.

If you want faster, cleaner, more consistent flat‑surface results from your whirl a way, the rotary head is the key component to add to your cart.

How to Install and Set Up Your Rotary Head

Correct installation and setup directly affect the lifespan and cleaning performance of your rotary head. Take the time to do it right, and the head will reward you with smooth, even rotation for many working hours. Because we believe in doing things the right way from the start.

1. Prepare the surface cleaner - Disconnect from the pressure washer, depressurize the system, and place the unit upside down on a clean, protected surface. Wear appropriate PPE - gloves and eye protection at minimum.

2. Remove the existing rotary head - Loosen the mounting fasteners, disconnect the spray arm, and carefully withdraw the old head. Inspect the deck interior and mounting hardware for wear, corrosion, or debris. This is the moment that matters.

3. Install the new rotary head - Align the head with the mounting point, seat it firmly, and tighten fixings to the manufacturer's recommended torque. Connect the spray arm and secure the inlet hose according to the layout in the supplied instructions. It's all done with precision.

4. Set nozzle size and angle - Fit nozzles that match your machine's pressure and flow. Ensure both (or all three) nozzle tips are the same orifice size and are correctly oriented for balanced rotation. Mismatched nozzles will cause vibration and uneven cleaning. Every component has to work together.

5. Test at low pressure - Reconnect to your pressure washer and start with a short trigger pull. Check for leaks around the swivel, listen for unusual noise, and confirm that the arm spins freely and evenly. Never run the head dry - always ensure water is flowing before engaging pressure. When a machine reaches this testing stage, we know it's ready to bear our name.

Maintenance Tips for Longer Rotary Head Life

A small amount of routine care can dramatically extend the life of the swivel, seals, and bearings inside your rotary head. Treat it well and you'll avoid mid-job failures. We've built it to last, but it still needs your attention.

• Rinse after every use – Flush away grit, chemicals, and detergent residue from the deck and rotary head body before storage. This prevents buildup on seal faces and corrosion on metal surfaces. Clean equipment is reliable equipment.

• Check for leaks and stiffness – With the unit off, spin the spray arm by hand. It should rotate smoothly with no tight spots. Look for visible water leakage around the swivel - any dripping from weep holes signals seal wear.

• Inspect nozzles regularly – Worn or clogged nozzles change the spray pattern and can unbalance the rotary head, leading to vibration and accelerated bearing wear. Replace mismatched or damaged nozzles immediately. Every component matters.

• Protect seals from dry running – Never run the pressure washer with no water supply or with blocked inlet filters. Dry running generates heat and friction that quickly destroys seals and bearings. It's a casualty that's easily prevented.

• Lubricate greaseable swivel heads – If your model features a grease fitting, apply high‑temperature lithium grease every 30 to 40 hours of use to keep bearings running smoothly. Regular maintenance is how you protect your investment.

• Schedule periodic service – After a busy season or a set number of operating hours, inspect and replace seals, bearings, or the complete rotary head as needed. Proactive service prevents expensive mid-job failures. This is how long-term performance is born.

Troubleshooting Common Rotary Head Issues

Many surface cleaner problems can be traced directly back to the rotary head. Most are easy to diagnose and fix before they become costly. When something goes wrong, here's how you fix it:

Head not spinning or spinning slowly - The most common causes are blocked nozzles, uneven nozzle sizes, or internal bearing damage. Remove and inspect each nozzle for debris. Confirm that all orifices are the same size. If nozzles are clean and matched but rotation is still sluggish, the bearings may be seized or heavily worn.

Vibration or "wobble" during use - This typically indicates an unbalanced or bent spray arm, or worn bearings inside the rotary head. Check the arm for straightness and ensure nozzle tips are identical. If the arm is straight and nozzles are matched, the bearings likely need replacement. Precision matters.

Water leaking from the swivel area - Leaking from the swivel body or weep holes points to seal wear. Continued use with leaking seals allows water into the bearing area, accelerating internal damage. Replace the seal kit promptly to avoid a full rotary head replacement. We stand behind our components, but you have to maintain them.

Streaks or missed strips on the surface - Before assuming deck damage, check for clogged, misaligned, or worn nozzles. Even a single partially blocked jet will cause the rotation speed and cleaning coverage to become uneven. Compatibility with hot and cold water is available in many commercial models, but using water temperatures beyond the rated 180°F (82°C) can soften seals and contribute to streaking over time.

When to replace vs repair - If leaking is the only issue and bearings still feel tight with no play, a seal kit repair may be sufficient. If you feel lateral or vertical play in the rotor shaft, hear grinding, or find the arm won't spin freely even with new seals, a full rotary head replacement is the right call. Age and total operating hours should also factor into the decision - heavy daily use over several months may justify a proactive rebuild. Like so many machines, sometimes the best choice is starting fresh.

Frequently Asked Questions

Below are the most common questions about Whirl A Way rotary heads, compatibility, and use. Here's what you need to know:

Which Whirl A Way sizes does this rotary head fit?

Whirl-A-Way rotary heads fit 16", 18", 20", and 24" cleaners. The 14" model uses a dedicated rotary head variant. The 30" Whirl-A-Way Surface Cleaner is also available and uses its own head assembly sized to that deck.

Can I fit this rotary head to a non‑Whirl A Way surface cleaner?

The rotary head is engineered specifically for whirl a way surface cleaner models. Cross‑brand use is not recommended without precise technical verification of mounting, thread type, and flow/pressure compatibility. We design these for Whirl A Way, and that's where they belong.

How do I know when my rotary head needs replacement?

Key signs include persistent leaks from the swivel area, stiff or grinding rotation, noticeable play in the rotor shaft, or consistent streaking despite clean and correctly sized nozzles. When you know, you know.

Do I need special tools to install it?

Standard workshop hand tools are usually sufficient. A correctly sized spanner and a torque wrench are particularly helpful for securing the mounting fasteners to the right tightness without over‑tightening. It's all done with what you've already got in the shop.

Is it suitable for both hot and cold water machines?

Most Whirl A Way rotary heads are rated for water temperatures up to 180°F (82°C). Compatibility with hot and cold water is available in many commercial models, but exceeding the rated temperature risks damaging seals and internal components. Stay within the specs we've engineered.

Can I upgrade from a 2‑nozzle arm to a 3‑nozzle arm on this head?

Some rotary heads support swapping from a 2‑jet arm to a 3‑jet arm. This depends on whether your pressure washer has sufficient GPM to feed the additional nozzle without dropping pressure. The arms must also be properly balanced to avoid vibration. Check your machine's flow and pressure specs before making the switch. Every component has to work in harmony.

Ready to Restore Your Whirl A Way Performance?

A healthy rotary head is the heart of every whirl a way surface cleaner, directly affecting speed, finish quality, and operator comfort. Replace worn swivels before the busy season to avoid downtime on driveways, patios, and commercial flatwork. Because putting our name on something means everything.

View the detailed Whirl A Way rotary head product page, check compatibility with your existing cleaner size, and contact support for any technical fitment questions. Once your new rotary head is installed, you'll experience faster, more even cleaning results - the kind of performance that keeps clients happy and keeps your work on schedule. We've put everything we've got into this component, and we don't just put our family name on machines, we put our family name on the line.

Add to cart and get your Whirl A Way back to full power.
