(50) DISQUE DE RUPTURE 7000 PSI 225 DEG F. ENTRÉE 1/2 MPT
Impossible de charger la disponibilité de la réception

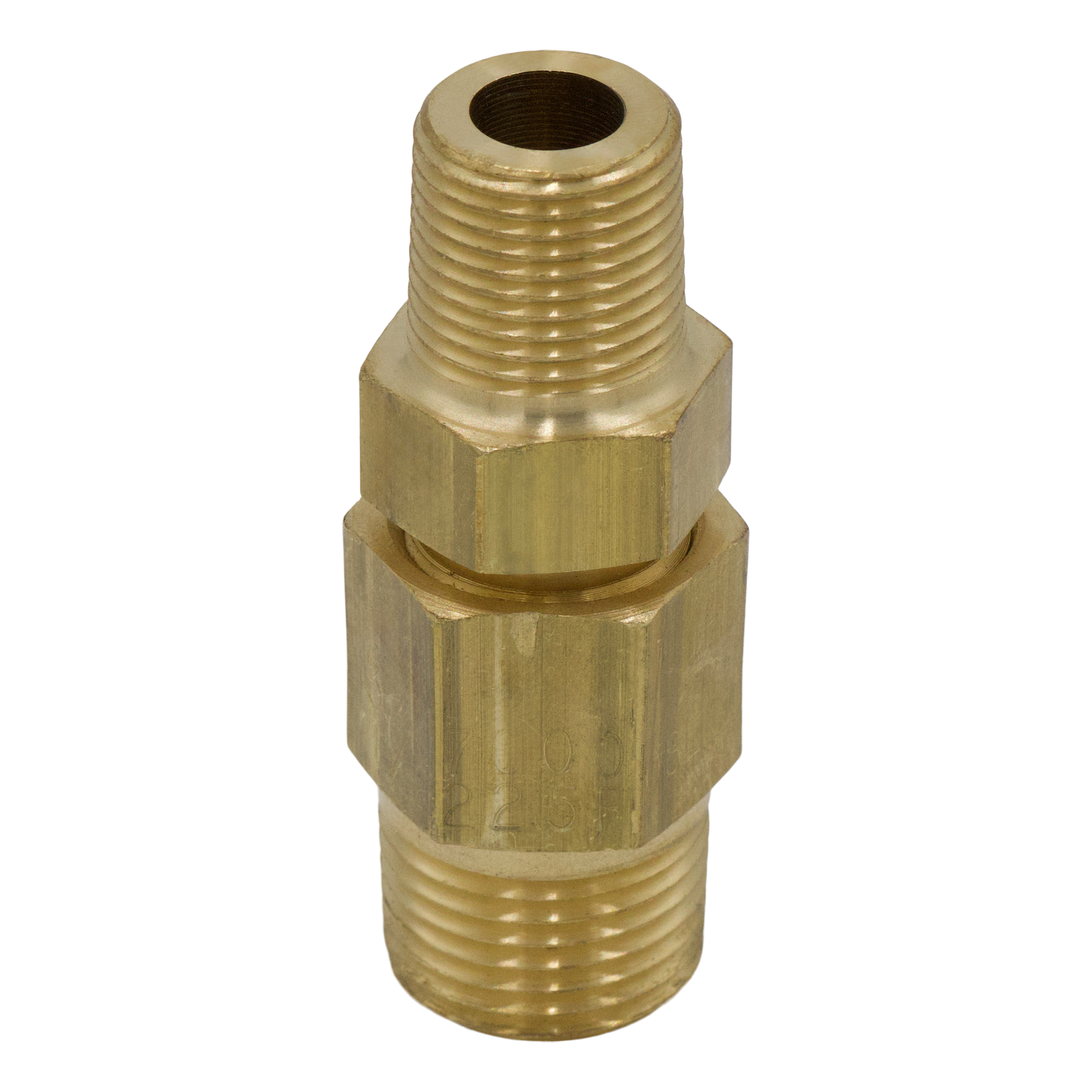

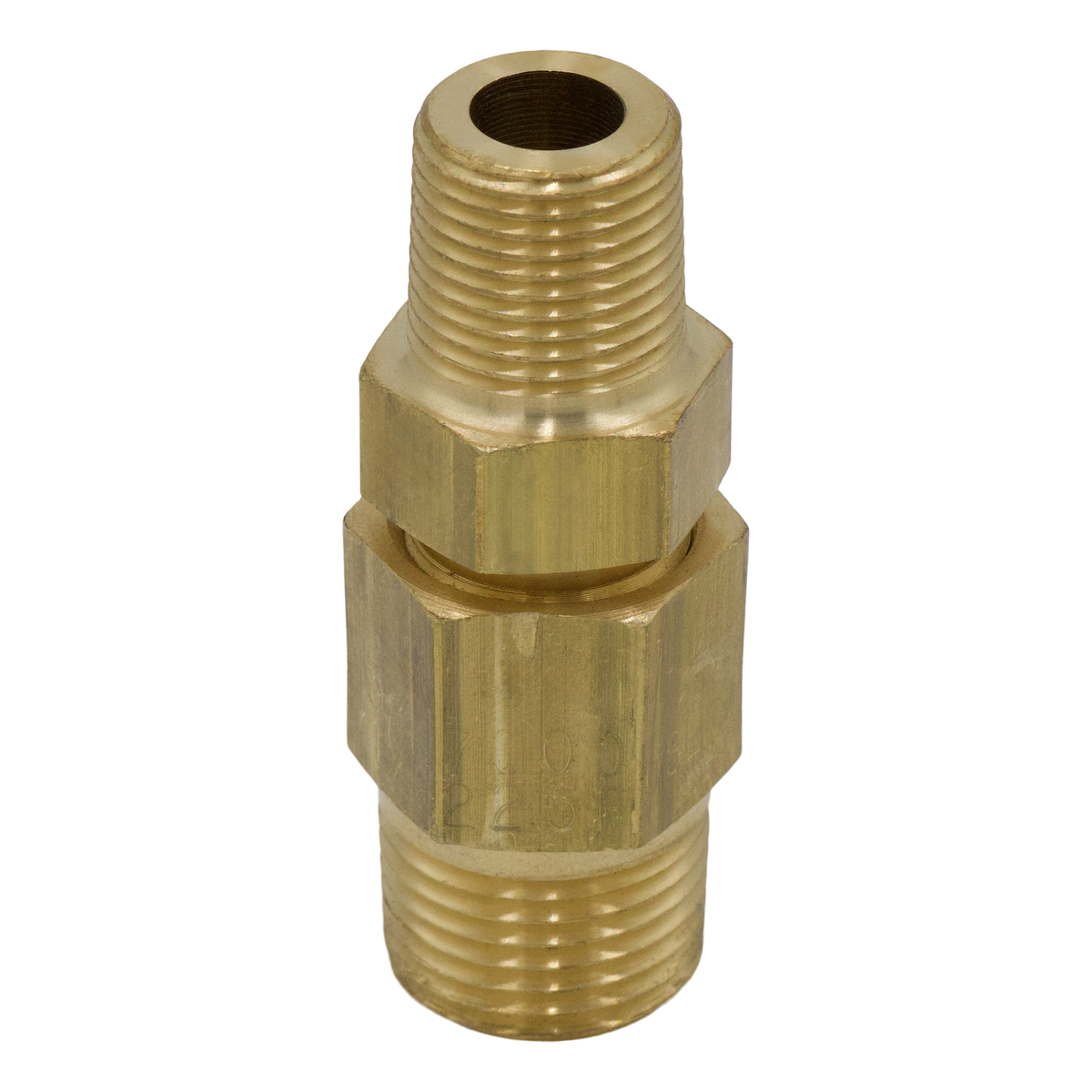

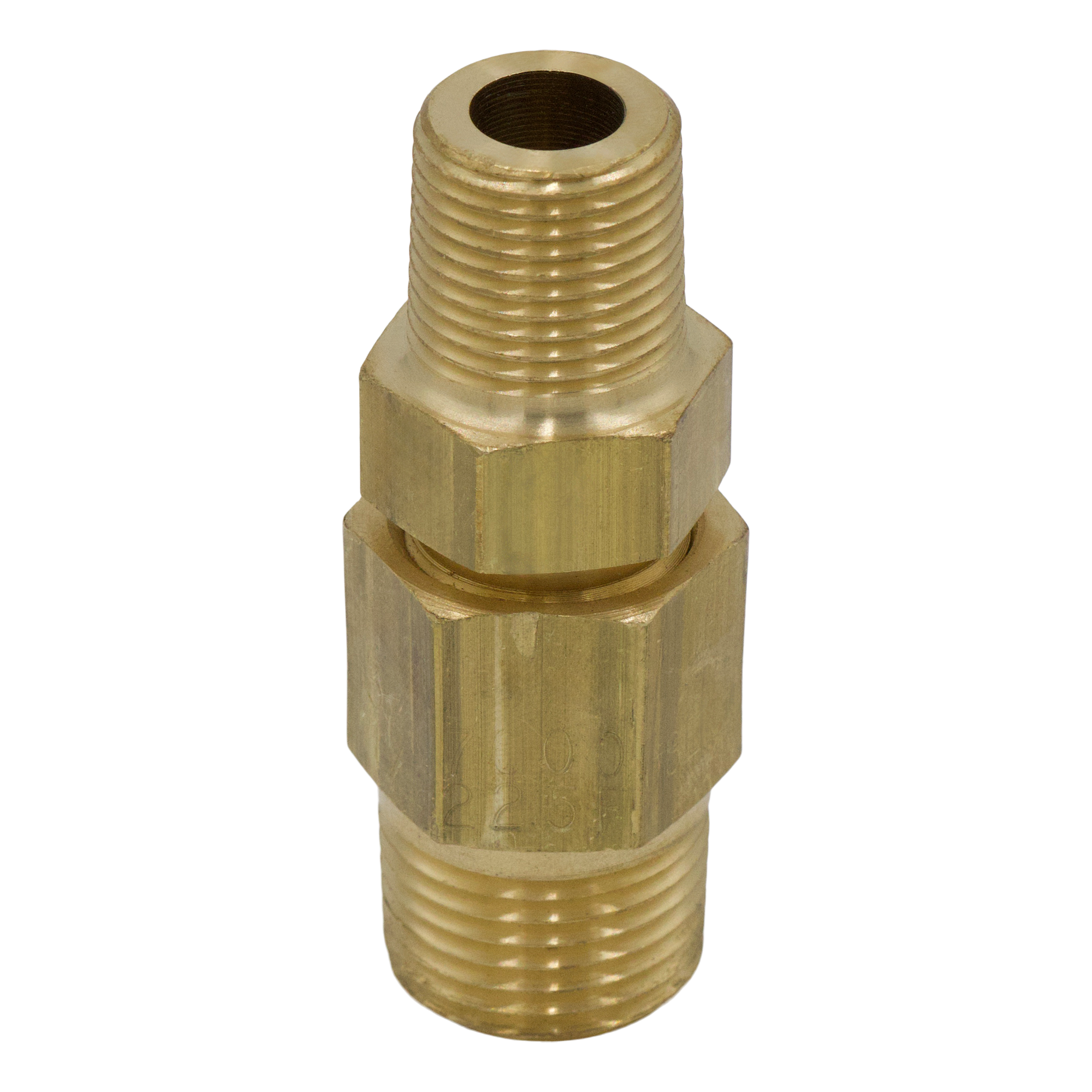

The 7000 PSI Rupture Disk - a vital piece of kit that protects your equipment from getting hammered by over-pressure or potentially nasty vacuum conditions. Its the kind of non-reclosing pressure safety device that gets the job done when you really need it. Makes by Suttner, a top name in high-pressure safety components, this is a high-spec product that acts as the ultimate fail-safe for your pressure washer system. Unlike a standard relief valve that opens and closes, this rupture disk is designed to blow its top at a precise point and give you a full-bore discharge path - and fast - to prevent equipment failure on a catastrophic scale.
This safety component is built to last in some pretty extreme industrial conditions, rated for a MAX PSI of 7000. Thats makes it an absolute must-have for ultra-high-pressure pumps and heating coils where a secondary level of protection is a must - beyond the standard unloader or relief valve. By taking the hit in the event of an over-pressure event, the disk saves the pump head, high-pressure hoses or expensive heater coils from going up in smoke, and that means a much safer and longer-lasting industrial cleaning setup in the long run.
Product Benefits and Design Features
The Suttner Rupture Disk is top-grade for high-temperature resilience and fail-safe reliability in some of the toughest commercial cleaning routines around.
Surviving Extreme Pressure and Heat: This thing is rated for a MAX TEMPERATURE of 225°F - so its perfect for hot water pressure washers and steam cleaners. At those temperatures, water expansion and steam spikes can create some pretty nasty pressure levels - and having a disk rated for 7000 PSI makes sure your system stays well within its limits. Its really really important to have this level of protection when youre running high-performance machinery, let me tell you.
Non-Reclosing Fail-Safe: Because this is a Non-reclosing pressure safety device, you get a clear, physical indication that an over-pressurization event has gone down. Once the internal disk has blown, its got to be replaced before the system can be pressurized again. And that "one-time-use" design? That's top-level safety engineering right there - its all about getting to the root cause of the problem and sorting it out before you put the machine back into use.
Tough-as-Nails Connections: The unit has got robust threading to keep it securely installed into high-pressure manifolds. The INLET is a 1/2" MPT (Male Pipe Thread) connection, while the Outlet is a 3/8" MPT connection. That standardized sizing makes it easy to plug this into existing industrial pump frames and heating coil discharge lines.
Key Features and Specifications
This is a top-class Suttner safety component:
-
Product Name: Rupture Disk
-
Manufacturer: Suttner
-
Max PSI: 7000 PSI
-
Max Temperature: 225°F
-
Inlet: 1/2" MPT
-
Outlet: 3/8" MPT
-
Safety Feature: Non-reclosing pressure safety device protects equipment from over pressurization or potentially damaging vacuum conditions
This Suttner product is a great addition to make your pressure washer system run more smoothly than ever before and last longer too.
