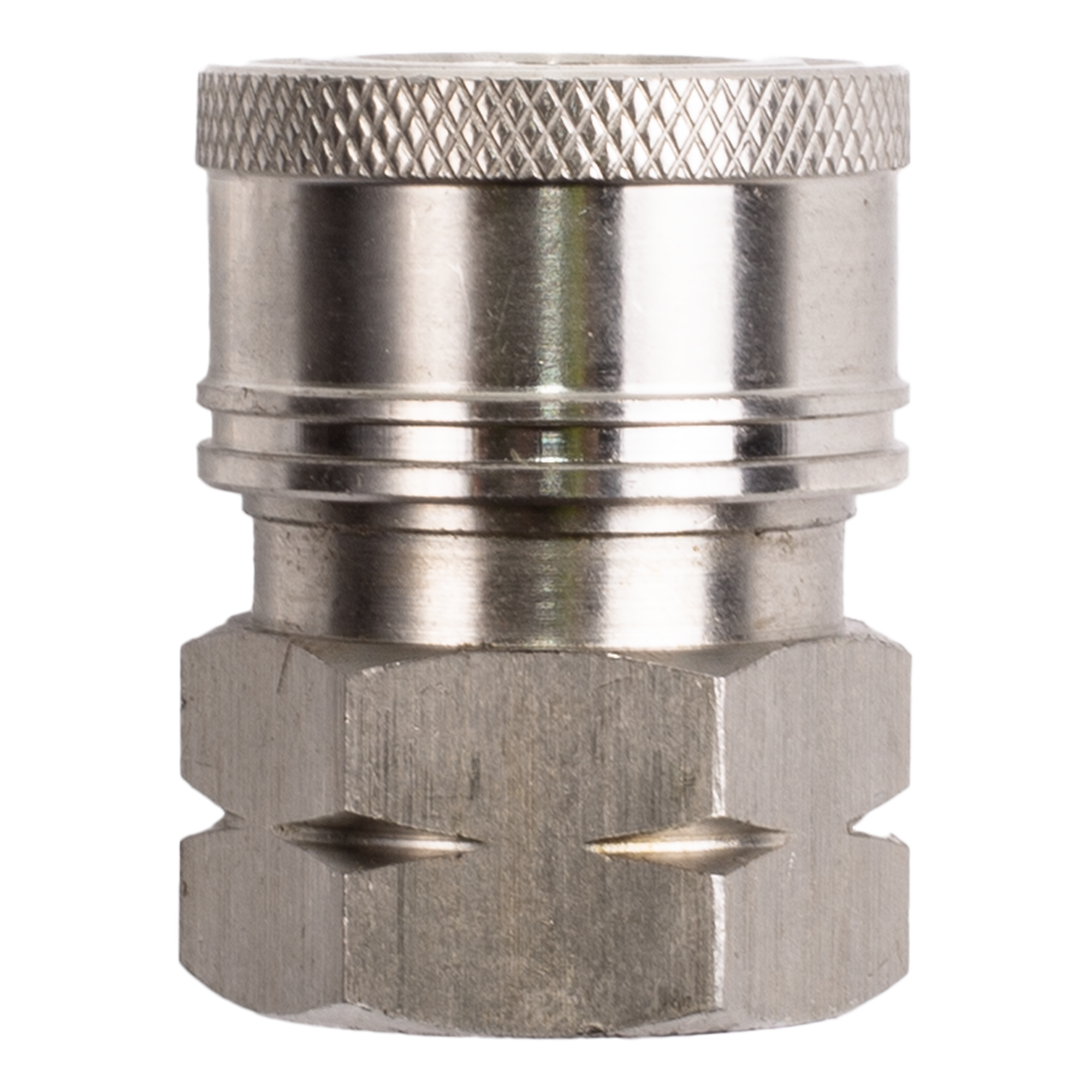

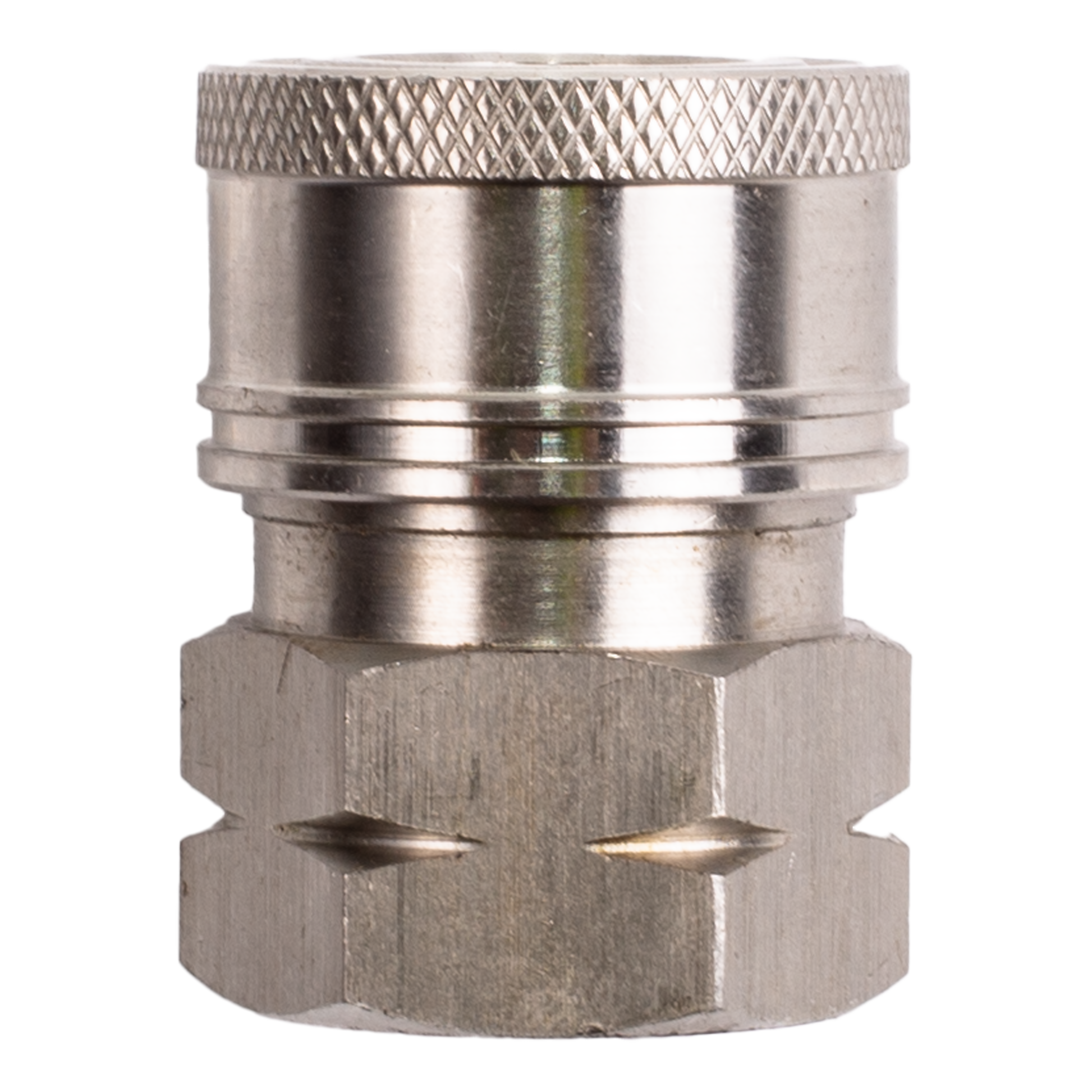

DOUILLE QC 3/8" FNPT ACIER INOXYDABLE

Instantly Upgrade Your 3/8" FNPT Connections for Pressure Washer Hoses

A 3/8" FNPT quick connect socket is the fastest way to join and separate high-pressure water or fluid lines without wrenches, thread damage, or downtime. Built for pressure washers, industrial cleaning rigs, and hydraulic systems, this socket threads onto any standard 3/8" male NPT fitting on one end and accepts a matching quick connect plug on the other.

Connect and disconnect 3/8" FNPT lines in seconds without tools, while maintaining a secure, leak-tight seal rated for thousands of PSI. Read on to learn what sets a quality 3/8" FNPT socket apart, how to choose the right material and pressure rating, and how to install and maintain it for years of reliable service.

Why You'll Love a 3/8" FNPT Quick Connect Socket

The real value of a quick connect socket is measured in speed, reliability, and safety - not spec sheets. Here is what that looks like in practice:

• Fast hose and tool changes – Quick connect sockets enable fast tool and hose changes without needing wrenches. Swap spray guns, nozzles, lances, or pressure washer hoses in seconds on any 3/8" NPT line.

• Reduced downtime – Commercial cleaners, fleet shops, and maintenance crews stay productive when accessory changes take moments instead of minutes. Quick-connect couplings allow fast assembly and disassembly, keeping every bay and crew member efficient.

• Leak-resistant performance – Many quick-connect fittings include features that prevent leaking and ensure secure connections during operation. Internal O-ring or cone seals maintain a tight barrier at working pressure ratings of 3,000–5,000 PSI.

• Clean, organized setups – Fewer permanently fixed couplings mean neater hose routing, simpler storage, and faster system teardown at multiple locations.

• Tool-free operation – Quick-connect sockets typically feature a spring-loaded sleeve that locks onto a matching plug securely. A simple pull-back collar is all it takes - no wrenches needed for daily use.

• Versatility across systems – A 3/8 FNPT socket can connect to male threaded pipes or fittings across manifolds, pumps, extension hoses, garden hose adapters, and industrial equipment, making it ideal for building a modular setup.

What Makes This 3/8" FNPT Quick Connect Socket Different

Generic couplers often suffer from sticking sleeves, early corrosion, and weak locking mechanisms that fail under vibration. A purpose-built 3/8" FNPT quick connect socket is engineered to eliminate those problems:

• Optimized for high-pressure duty – Quick-connect fittings can withstand pressures up to 5000 PSI. Many quality 3/8" sockets are rated for 4,000 PSI working pressure with burst margins exceeding 14,500 PSI - well suited for continuous use on pressure washer fittings and industrial wash-down systems.

• Precision 3/8" FNPT threads – 3/8 FNPT specifies a 3/8-inch Female National Pipe Thread for secure connections. Tight manufacturing tolerances ensure easy, repeatable sealing with any standard male NPT fitting, following the ASME/ANSI B1.20.1 taper thread standard (18 TPI, 1:16 taper, ~17.15 mm major diameter).

• Durable body material – Common materials for quick-connect fittings include stainless steel and brass. Brass delivers excellent machinability and corrosion resistance for water service; stainless steel (316 grade) handles aggressive detergents, saltwater, and high-temperature fluids without degradation.

• Smooth, reliable locking mechanism – Hardened locking balls and a robust spring maintain a secure grip even under pressure pulsation and vibration. The collar travels smoothly for thousands of connect/disconnect cycles.

• Designed for demanding environments – Durability of quick connect sockets allows them to withstand high pressures and harsh environments, including temperature swings, chemical exposure, and outdoor weather.

How a 3/8" FNPT Quick Connect Socket Works

A quick connect system typically consists of a plug and a socket. The socket's rear end carries a 3/8" FNPT thread that screws onto a male NPT adapter, hose end, manifold, or gun inlet. The front end is the quick-connect receive side - it accepts a matching 3/8" quick connect plug. Quick-connect sockets often feature an internal shut-off valve to prevent fluid loss when disconnected, keeping the workspace clean and the system primed.

Step-by-Step Connection Process

1. Prepare the threaded joint – Turn the system off and depressurize the line completely. Using PTFE tape or liquid thread sealant is recommended for securing threads before installation. Wrap tape in the direction of the thread so it does not unwind during threading.

2. Install the socket on the 3/8" male NPT – Hand-tighten the female socket onto the male NPT end, then snug with a correctly sized wrench. Avoid over-torque - excessive force can distort brass or thin-walled pieces and compromise the tapered seal.

3. Align and insert the matching plug – Pull back the socket collar, fully insert the 3/8" quick connect plug until it clicks, then release the collar to lock.

4. Verify lock and seal – Gently pull on the plug to confirm engagement. Slowly pressurize the line and check for leaks at both the threaded joint and the quick connect interface.

5. Disconnect safely – Always depressurize the line before pulling back the collar to release the plug. This prevents sudden fluid release and protects the O-ring seal.

Product Details for a 3/8" FNPT Stainless Steel Quick Connect Socket

• Connection type: 3/8" FNPT female thread on the rear; 3/8" quick connect socket on the front

• Thread type: NPT tapered thread per ASME/ANSI B1.20.1 - 18 TPI, major OD 0.675 in (17.15 mm), 1:16 taper. Threaded connectors use BSP, NPT, or Metric threads; confirm your system uses NPT before ordering

• Typical body materials: Brass for standard pressure washer and garden water use; stainless steel for aggressive chemicals, saltwater, or industrial fluids. Quick-connect fittings are available in 1/4" and 3/8" sizes in both materials

• Sealing elements: NBR (Buna-N) O-rings for general cold and warm water; FKM (Viton) for higher temperature or chemical resistance; EPDM for hot water and steam service

• Working pressure: Many 3/8" sockets handle 3,000–5,000 PSI working pressure; specialty stainless options can reach 10,000 PSI. Pressure rating varies based on the application and design, and should suit intended use

• Temperature range: Brass with NBR seals: approximately −40 °F to +200 °F (−40 °C to ~93 °C). Stainless with FKM seals: up to approximately 400 °F (~204 °C)

• Flow capacity: 3/8-inch size is suitable for medium to high flow applications in fluid systems, typically 4–8 GPM for pressure washer setups. Undersizing creates pressure drop and heat

• Finish & corrosion resistance: Options include nickel-plated brass, polished stainless steel, or zinc-nickel plating to extend service life in outdoor or chemical-rich environments

• Orientation & use: FNPT sockets are typically installed on fixed equipment outlet ports, hose ends, or inlet fittings that receive a male quick connect plug

Who a 3/8" FNPT Quick Connect Socket Is For

The 3/8" FNPT thread is one of the most common interfaces across professional and advanced DIY fluid systems. Quick connect sockets are commonly used in pressure washers and pneumatic systems, but the applications go further:

• Commercial pressure washing contractors – For surface cleaners, hose reels, guns, and interchangeable lance setups on 3/8" lines where time between jobs matters

• Industrial maintenance teams – For process wash-down skids, equipment cleaning, and fluid transfer lines using 3/8" NPT pipework at multiple locations

• Automotive and fleet shops – For bay pressure washer systems, undercarriage cleaners, and rotating accessory sets that need convenient, tool-free swaps

• Equipment OEMs and system builders – For integrating service-friendly quick disconnect points into pumps, skids, and manifolds with 3/8" NPT ports

• Advanced DIY users – For upgrading a consumer pressure washer or custom rig from fixed threaded joints to a modular quick connect setup with interchangeable nozzles, hoses, and adapters

If you want faster accessory changes, fewer leaks, and a more organized system, this fitting is ideal for your setup.

Selecting the Right 3/8" FNPT Quick Connect Socket for Your System

Not all 3/8" sockets are equal. The correct pressure rating, material, and seal choice must match your application to deliver safe, long-lasting performance.

• Match the pressure rating – Check your pump's maximum PSI or the system's design pressure and choose a socket that meets or exceeds it with a safety margin. Quick-connect fittings can withstand pressures up to 5000 PSI in many standard configurations, but higher-rated options exist for hydraulic and chemical service.

• Confirm 3/8" FNPT thread compatibility – 3/8 FNPT fittings must match the appropriate plug and socket standards for compatibility. FNPT must mate with MNPT. Never mix NPT with other thread standards such as BSPT or Metric without proper adapters. The M22 connector is a common type of quick-connect fitting found on many pressure washers - M22 connectors have external thread specifications of M22 × 1.5 and require an adapter to connect to NPT fittings.

• Choose the right material – Brass for standard cold and warm water use; stainless steel for high-corrosion or chemical exposure; plated carbon steel where impact resistance is critical.

• Consider seal material – Standard NBR O-rings handle household and light commercial water. For hotter water and specific detergents, select FKM or EPDM seals to prevent premature failure.

• Align with flow requirements – For pumps delivering around 4–8 GPM, a 3/8" quick connect is the standard size. Very high flow demands may need larger bodies to avoid restriction and pressure drop.

• Plan future expansion – Standardize your guns, wands, and accessories around compatible quick connect pieces to build a truly modular, efficient system. Quick-connect fittings allow for easy assembly and disassembly, so expanding later is convenient.

Quick Connect Installation and Use Tips

Always depressurize the line before connecting or disconnecting any fitting, and wear appropriate PPE around high-pressure water systems.

• Prepare threads correctly – Wrap PTFE tape clockwise (looking at the male end) for 3–5 wraps, or apply liquid sealant evenly. This prevents leaks at the 3/8" FNPT joint and protects the tapered threads from galling.

• Use proper tools and torque – Support the socket body with one wrench while tightening with another. Over-tightening can crack brass fittings or deform the taper, while under-tightening causes leaks.

• Keep the quick connect clean – Cover unused sockets with dust caps. Flush debris before connecting. Sand, grit, and chemical residue damage O-rings and locking balls, shortening service life.

• Inspect regularly – Check O-rings for cracks or swelling, verify smooth collar movement, and look for signs of corrosion or weeping at the connection. Quick connect sockets are beneficial for reducing wear on threaded connections and allowing rapid changes, but only when maintained properly.

• Replace worn components promptly – If the socket begins to drip under pressure, the plug does not lock with a crisp click, or the release collar feels rough, service or replace the fitting immediately to avoid a failure under load.

Frequently Asked Questions

Can I use a 3/8" FNPT quick connect socket on a 1/4" line?

The threads must match in size and thread type. You cannot thread a 3/8" FNPT socket directly onto a 1/4" male NPT fitting. You can use a 1/4" to 3/8" NPT adapter, but be aware that the smaller line may restrict flow and create pressure drop. Quick-connect fittings are available in 1/4" and 3/8" sizes - choose the size that matches your system.

Will a 3/8" quick connect socket fit all 3/8" plugs?

Most 3/8" industrial quick connects follow common coupling profiles, but slight differences between manufacturers can cause compatibility issues. Stay within the same series and standard to ensure a secure, leak-free connection. M22 connectors are common in high-pressure washers and require their own matching end - they are not interchangeable with standard NPT quick connects without adapters.

How do I stop a small drip at the socket?

Check and replace the internal O-ring first. Verify that the sealing surfaces on both the plug and socket are clean and free of nicks. Finally, confirm the plug is fully seated and the locking collar has snapped into position. Compression connectors use a nut to create a seal - quick connects rely on the O-ring, so a damaged seal is the most common cause.

Can I leave the socket pressurized continuously?

Quality quick connect sockets are designed for continuous working pressure within their rated limits. Long-term reliability depends on staying within the rated PSI, maintaining clean and filtered water, and inspecting seals periodically. Quick connect socket allows rapid attachment and detachment of hoses or tools, but static pressure over time can accelerate seal wear if conditions are not maintained.

Ready to Improve Your 3/8" FNPT Connections?

A durable 3/8" FNPT quick connect socket delivers faster accessory changes, reliable leak-resistant performance, and a cleaner, more convenient setup across every use - from daily pressure washer operation to industrial fluid transfer.

Standardize your 3/8" NPT connections around high-quality quick connects and you gain a modular, efficient system that is simple to maintain, expand, and service at any time. Choose the correct pressure rating, body material, and seal combination for your pressure washer, wash-down, or industrial application, and experience the difference a proper quick connect makes.
