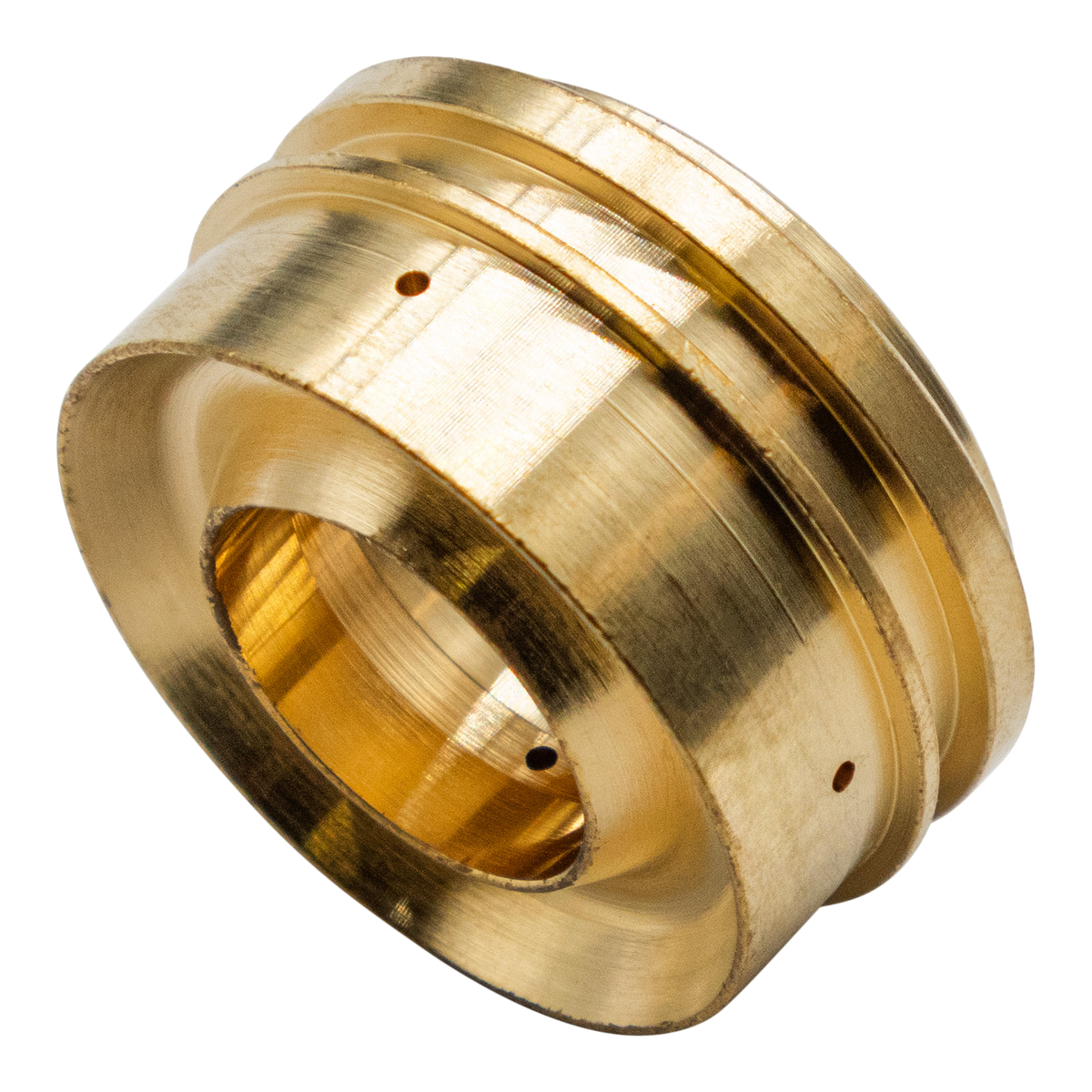

AR 1260151 Brass Piston Guide 15mm XT/XTA/XTV - 3384

What This Part Does for Your Pump

The AR 1260151 is a 15mm brass piston guide that keeps piston rods aligned inside Annovi Reverberi high-pressure pump heads, reducing seal wear and maintaining consistent output pressure across every stroke.

Why You'll Love the AR1260151 Piston Guide

A piston guide is one of the least expensive parts in a triplex pump, yet a worn one can destroy seals, score ceramic pistons, and drop system pressure. The AR 1260151 is a replacement part in high-pressure pump maintenance that earns its place in your parts inventory for several concrete reasons.

• Longer seal life – The guide eliminates piston wobble by holding the rod on-axis; seals contact the piston surface evenly instead of wearing through on one side.

• Stable spray pattern – Consistent piston alignment means consistent pressure delivery, which keeps nozzle output uniform during professional cleaning work.

• Corrosion-resistant brass – The AR 1260151 is made of heavy-duty brass for durability and corrosion resistance, holding up in water-saturated pump heads where plated steel alternatives can rust and gall.

• Exact 15mm bore – Sized to match AR's 15mm piston platform, so reassembly after a seal or piston repair produces the same clearances every time.

• Quick to replace – Swap all three guides during routine maintenance without special tooling, keeping your unit back in service the same day.

What Makes AR1260151 Different

Generic piston guides often use lower-grade bronze alloys or looser machining tolerances. A bore that is even a fraction of a millimeter off-spec introduces lateral loading on the piston rod, which accelerates seal failure and can groove ceramic pistons.

• Solid brass body, machined by Annovi Reverberi – The AR 1260151 matches factory bore concentricity and surface finish standards; aftermarket guides may vary in both dimensions.

• OEM part number integration – Listed as AR 1260151 (also referenced as 1260151) in every official Annovi Reverberi pump parts diagram for 15mm models, so there is no guesswork about fit.

• Direct impact on piston protection – Correct guide geometry prevents side-loading on the piston rod, which is the primary way ceramic pistons chip or develop dull wear tracks. Using the correct OEM guide avoids repeat tear-downs caused by premature seal failure.

How It Works

Inside an Annovi Reverberi pump head, each piston rod travels from the crankcase through a set of oil seals, past the piston guide, and into the high-pressure water side of the manifold. The guide sits between those seals and the pressurized chamber.

Piston guides help maintain proper alignment of pistons by centering the rod so it moves in a straight reciprocating path. When alignment is correct, the water seal lip contacts the piston surface uniformly, and the piston face meets the valve seat squarely. The component is essential for preventing fluid leakage and ensuring pump performance. Without the guide (or with a worn one), the rod can oscillate laterally, causing uneven seal compression, pressure drops, and accelerated wear on every mating surface in the pump head.

Product Details

Below are the key specifications for this part.

• Part Number: AR1260151 (also listed as 1260151)

• Material: Brass

• Size: 15mm internal bore, matching AR's 15mm piston/plunger platform

• Compatible pump families: The AR 1260151 fits specific AR pump series including XT, XTA, and XTV. It also appears in parts diagrams for the AR620, AR650, and Proliner models. Use the correct size piston guides for your engine model; confirm compatibility via your pump's exploded diagram or nameplate.

• Application: The AR 1260151 is used in pressure washer pumps and misting systems, covering cold and warm water high-pressure cleaning, car washes, agricultural spraying, and industrial wash-down setups.

• Quantity per pump: Most AR triplex heads require three (3) guides; this listing is for a single unit.

• Identification tip: Locate your pump's model tag and cross-reference the parts breakdown in Annovi Reverberi documentation before ordering. An older alternate reference number, APU-5113, appears in some legacy catalogs.

Who It's For

The AR 1260151 is a maintenance and repair component, not a standalone tool. It belongs in the hands of people who service AR pumps regularly.

• Pressure washer service technicians who rebuild Annovi Reverberi pump heads and need OEM parts that match factory clearances.

• Equipment owners running mobile wash rigs, fleet maintenance bays, or agricultural spray systems who handle their own pump repair to control downtime.

• OEM system builders who standardize on Annovi Reverberi components and need spec-correct guides for new assemblies.

If your 15mm AR pump shows recurring seal failures, scoring on pistons, or unstable pressure under load, a worn piston guide is a likely contributor. Proper installation prevents piston wear and damage.

How to Install the AR1260151 Piston Guide

Before starting, depressurize the system, disconnect power, and relieve all water pressure. Drain residual water from the pump head.

1. Remove the manifold head. Reverse the bolt-tightening sequence (typically criss-cross) to avoid distorting the manifold. Place bolts and hardware in order for reassembly.

2. Extract the existing piston guides. Note their orientation and inspect them for grooves, scoring, or oval wear. Compare them side-by-side with the new AR 1260151 to confirm the replacement matches.

3. Clean the guide bores. Remove any deposits, corrosion, or debris from the bore surfaces and surrounding seal seats. Scoring or pitting in the bore itself can affect alignment even with a new guide.

4. Install the new guide. Lubricate seals and O-rings as recommended in AR service literature. Insert the 15mm brass piston guide with correct orientation, applying even pressure to seat it squarely.

5. Reassemble pistons, seals, and manifold. Add seals and pistons back into place, then tighten manifold bolts in a criss-cross pattern to factory torque values specified in your pump's service manual.

6. Test at low pressure. Run the pump briefly at reduced pressure to confirm smooth operation and the absence of leaks before returning the unit to full service.

AR publishes pump-specific service procedures; searching YouTube for your exact pump model can provide visual walkthroughs that complement the written manual.

Maintenance Tips for Longer Guide Life

Replacing a piston guide costs a fraction of what a scored ceramic piston or a full seal kit costs. A few habits extend the interval between replacements.

• Inspect guides during every seal or piston service. Look for grooves, scoring, or any oval deformation of the bore. If you can feel a ridge with a fingernail, replace the guide.

• Keep inlet filtration clean. A 100-mesh or finer inlet filter prevents sand, rust, and grit from reaching the pump head. Abrasive particles trapped between the piston and guide are the primary way brass bores wear prematurely.

• Maintain correct pump oil level and viscosity. Proper lubrication on the crankcase side reduces vibration and lateral forces that transmit through the piston rod to the guide.

• Use matched AR parts together. Mixing an OEM guide with aftermarket pistons or seals introduces tolerance mismatches. Annovi Reverberi designs its guides, seals (e.g., water seal 1866), and pistons as a system.

Frequently Asked Questions

Is AR1260151 the right piston guide for my pump?

AR 1260151 is designed for Annovi Reverberi pump models that use 15mm pistons, including the XT, XTA, XTV, AR620, AR650, and Proliner series. Confirm compatibility by locating your pump's model and serial tag, then cross-referencing the exploded parts diagram in AR documentation. If you see "Piston Guide Ø 15" with part number 1260151 in your diagram, this is the correct part.

Can I mix AR1260151 with non-OEM pistons or seals?

It may physically fit, but mixed-manufacturer tolerances can cause uneven wear, leaks, or vibration. Best practice is to replace guides, pistons, and seals together using genuine Annovi Reverberi parts so that all mating surfaces maintain factory clearances.

How do I know when my piston guide needs replacement?

Common indicators: frequent water seal failures, visible scoring or grooves on the piston surface, unstable pressure under load, or detectable play when you rock the piston rod in the guide bore. Any deformation or wear marks visible on the guide's inner surface warrant replacement.

Do I need special tools to install AR1260151?

Most installations require standard hand tools, a torque wrench for manifold bolts, and basic pullers if the old guide is press-fit. Follow AR's pump-specific service manual for torque values and bolt sequences.

Restore Your Pump's Alignment

A worn piston guide turns a small maintenance task into a cascade of seal failures, piston damage, and lost uptime. The AR 1260151 puts each piston rod back on-axis for the cost of a single brass part.

Confirm your Annovi Reverberi pump model, verify part number 1260151 in the exploded diagram, and add this guide to your next service order. Replacing all three guides during a routine seal or piston repair is the lowest-cost way to protect the rest of your pump investment.
