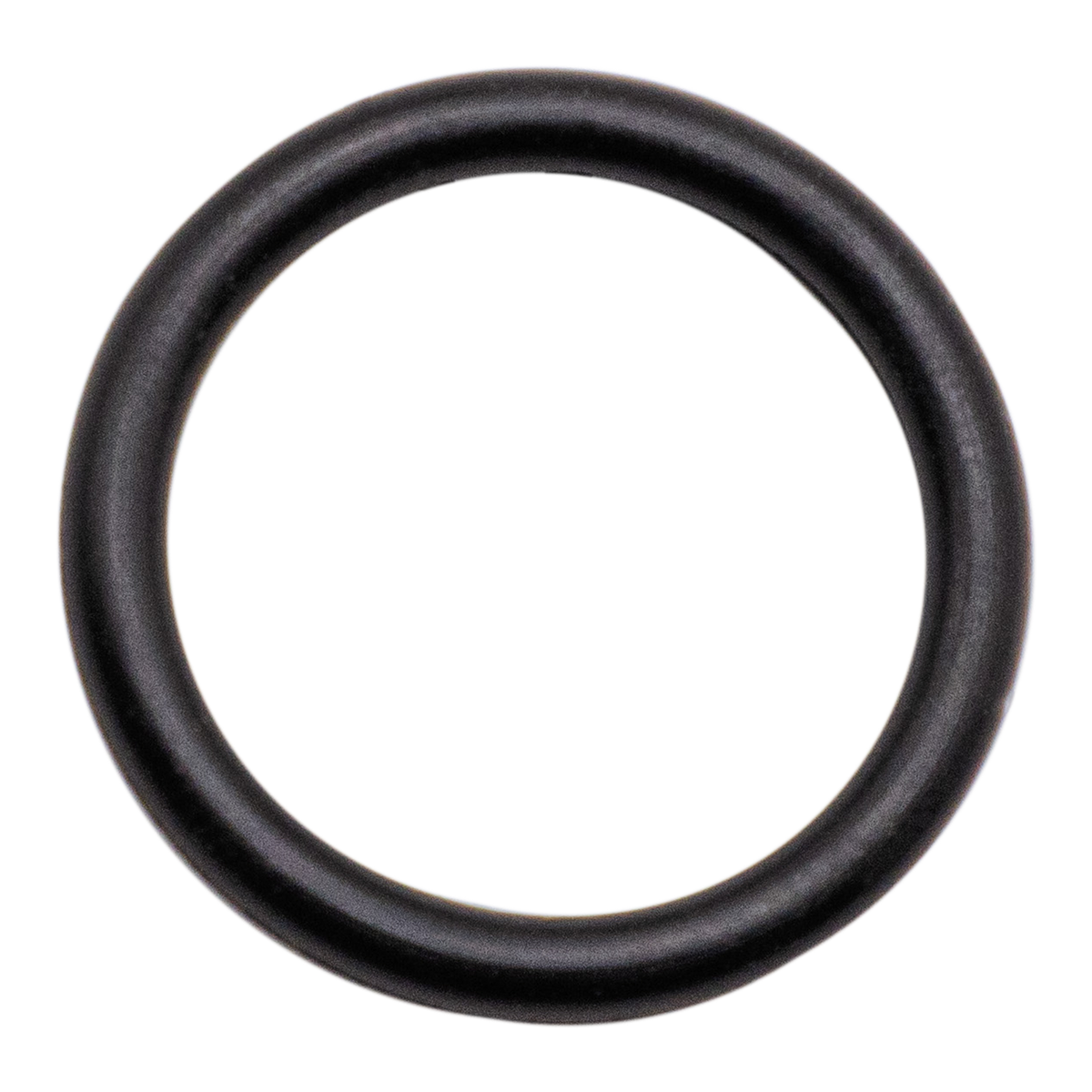

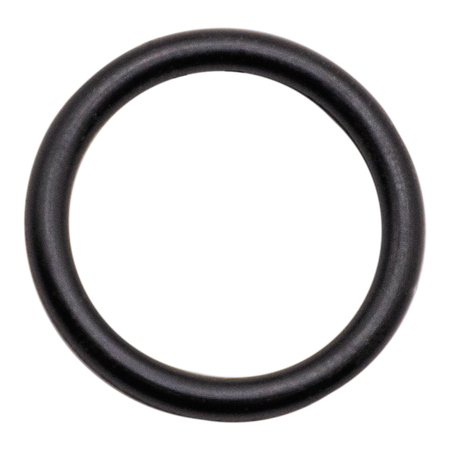

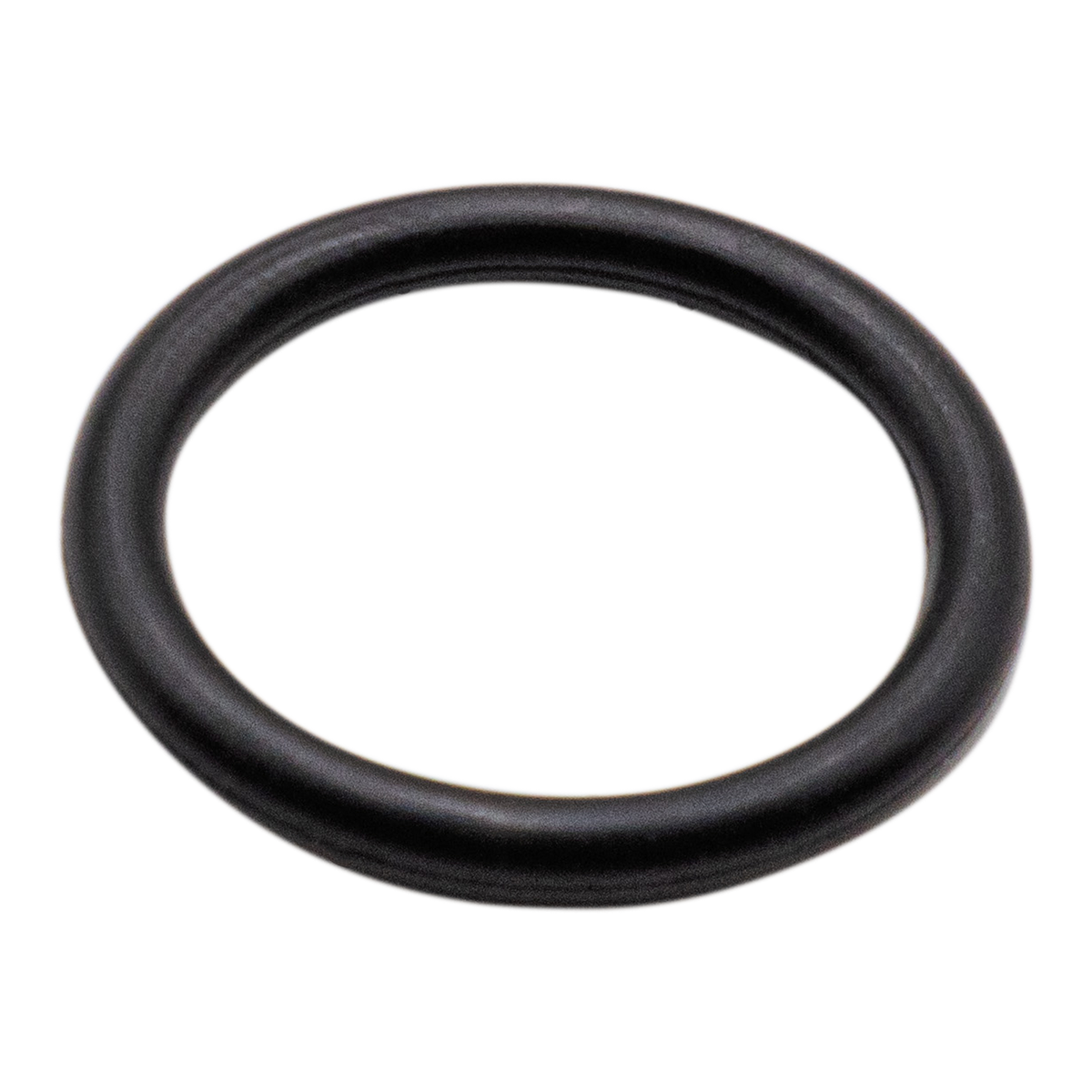

AR960160 Buna-N O-Ring XR Valve Cap 2.5x18mm - 3380

AR960160 O-Ring Overview

The AR North America AR960160 is a genuine OEM replacement seal for water pumps, engineered to maintain reliable sealing in high-pressure pump applications across multiple Annovi Reverberi pump lineups. This small but essential O-ring prevents leaks at valve caps, manifold ports, and other critical connection points where metal parts mate under operating pressure.

Whether you're troubleshooting a drip at a fitting or performing scheduled maintenance, the AR960160 is the part number you need to check against your pump's schematic. This guide covers everything from exact specifications and compatibility to failure symptoms, step-by-step replacement, and best practices that keep your pump running leak-free season after season.

Why This AR960160 O-Ring Matters in Your AR Pump System

O-rings are the first line of defense in maintaining safe operating pressure inside any high-pressure pump assembly. Without a properly seated seal at every joint, your system simply cannot perform as designed.

The AR960160 O-ring provides pressure retention in high-pressure applications by creating a tight barrier between mating surfaces-valve caps, plugs, and manifold interfaces. When this seal is intact, the pump maintains consistent flow and pressure output. When it fails, water escapes at joints, pressure drops, and the entire system works harder than it should.

That added strain accelerates wear on ceramic pistons, valves, water seals, and internal fittings. A compromised O-ring can also create safety hazards: high-pressure spray escaping at fittings poses a real injury risk. Water seals hold spray pressure in the manifold, but if an O-ring upstream is leaking, the whole sealing chain is compromised.

The bottom line is simple: replacing a small O-ring before it fails completely can prevent unnecessary pump rebuilds. Most AR pumps need a seal kit, not replacement-and keeping O-rings in good condition is a major reason why.

Key Benefits of Choosing the Genuine AR960160 O-Ring

Choosing the correct O-ring isn't just about stopping a leak-it's about protecting your entire pump investment. Here's what the genuine AR960160 delivers in real-world use:

• Reliable Sealing Under High Pressure – The AR960160 O-ring helps prevent high-pressure fluids from leaking out of pumps rated for working pressures commonly reaching 2,400–3,500 PSI. It holds firm where generic seals often weep or blow out.

• Correct Fit for AR Components – With an inner diameter of approximately 17.86 mm and a thickness of approximately 2.62 mm, this O-ring matches the precise groove dimensions machined into AR pump heads and valve caps. No guesswork, no forcing it to fit.

• Resistance to Water and Detergents – The AR960160 O-ring is made from Buna-N (Nitrile) material, which resists degradation from water, common pressure washer detergents, and mild cleaning chemicals encountered in everyday use.

• Extended Service Life – With a durometer hardness rating of 70A, this O-ring balances flexibility and firmness. It compresses reliably without deforming prematurely, reducing how often you need to replace seals.

• Easy to Replace – No specialized tools required. A plastic pick, basic hand tools, and a few minutes are all it takes to swap out an old ring for new seals that restore full system integrity.

What Makes the AR960160 O-Ring Different from Generic Rings

Not all O-rings are interchangeable-even when they look close in size. A fraction of a millimeter matters at operating pressures measured in thousands of PSI.

Generic O-rings sourced from a hardware store often differ slightly in diameter or cross-section. An undersized ring won't compress enough to seal, leading to weeping leaks under pressure. An oversized ring can pinch, extrude into gaps, and fail rapidly. The AR960160's exact dimensions-17.86 × 2.62 mm-are engineered to match AR's machining tolerances precisely.

Material quality is another critical difference. The AR960160 uses Buna-N (Nitrile) with a consistent 70A durometer hardness. Unbranded O-rings frequently use unknown compounds with variable hardness and chemical resistance, which means unpredictable performance at working pressure and temperature. Some swell in hot water, others crack from detergent exposure-problems you won't identify until the machine is already leaking.

Using the correct part number also simplifies troubleshooting and future maintenance documentation. When you can check your parts list and confirm every seal by its AR numbers, diagnosing the next issue becomes far more straightforward.

How the AR960160 O-Ring Works in Your System

The AR960160 functions by creating a pressure-tight barrier between two mating surfaces inside your pump assembly. It sits in a precision-machined groove-typically in valve caps, plugs, or manifold interfaces-and is compressed when parts are threaded together.

This compression is what creates the seal. As the valve cap or plug is tightened, the O-ring deforms slightly to fill the space between surfaces, blocking any path for water to escape. Once the pump is running, discharge pressure actually helps energize the seal further, pushing the O-ring against the groove walls and mating face with even greater force.

AR960160 serves as a valve cap O-ring designed for high-pressure pumps. In the RK-1450 series, for example, six AR960160 O-rings are used-one per valve cap-to seal each valve face in the pump head assembly. The AR620 and AR630 series use the same quantity in similar positions.

For this system to work properly, the groove must be clean and free of mineral buildup, corrosion, or debris. A light coat of silicone lubricant on the new O-ring helps it seat without twisting or pinching during assembly. Without proper groove cleanliness and lubrication, even a perfect O-ring can't do its job.

AR960160 Product Details & Technical Specifications

Here are the key facts you need when ordering or cross-referencing this part:

• Part Number: AR North America AR960160

• Function: High-pressure sealing O-ring for valve caps, plugs, and manifold connections in AR pump assemblies

• Material: Buna-N (Nitrile rubber / NBR), suitable for water and detergent solutions commonly used in pressure washing

• Durometer Hardness: 70A - balancing compressibility with resistance to permanent deformation

• Inner Diameter: Approximately 17.86 mm

• Cross-Section Thickness: Approximately 2.62 mm

• Temperature Range: Rated for operating conditions typical of AR water pumps, including inlet water near freezing up to approximately 140°F (60°C) - not suitable for steam applications

• Pressure Capability: Designed to handle the rated working pressures of compatible AR pumps, which commonly operate in the 2,400–3,500 PSI range

• Origin / Brand: Genuine AR North America OEM replacement part

• Sold As: Available individually and also includes in certain AR valve cap or seal repair kits

• Quantity Per Pump: Many AR pump assemblies require six AR960160 O-rings (one per valve cap position)

Compatibility: Where the AR960160 O-Ring Is Commonly Used

The AR960160 O-ring is primarily used in high-pressure triplex plunger and piston pumps manufactured by Annovi Reverberi. AR960160 is compatible with select Annovi Reverberi pump lineups, including XMV and RKA series. Additional models that list this O-ring in their parts breakdowns include the RK-1450 RPM series, HYD-RK-1450, AR620, AR630, and certain AR diaphragm pumps such as the AR1064.

The best way to confirm compatibility is to check your pump's official parts breakdown or AR North America exploded view schematic. Model plates provide essential information for part selection-locate the plate on your machine, note the model and serial numbers, and cross-reference against the official diagram. Look for the AR960160 designation (often showing as "O-Ring 17.86×2.62") at the position corresponding to your leak or maintenance point.

Piston diameter and bolt pattern help identify AR pumps when the model plate is missing or illegible. However, never assume compatibility based solely on appearance. An O-ring that looks like the right size can be off by fractions of a millimeter-enough to cause a seal failure under pressure.

How to Identify If You Need the AR960160 O-Ring

Knowing when to replace this O-ring starts with recognizing what a failing seal looks like in practice.

Common leak locations that point to a worn AR960160:

• A slow drip or fine spray at valve cap faces on the pump head

• Moisture collecting at manifold plug interfaces

• Water weeping around threaded joints on the outside of the pump assembly

Visual signs you'll notice when you remove the fitting and inspect the O-ring:

• Flat spots where the ring no longer springs back to its original shape

• Cracks, especially at the edges or compressed contact areas

• Swelling with a shiny or gummy surface (indicating chemical degradation)

• Nicks, cuts, or missing pieces

• Hardened, brittle texture that has lost all flexibility

Performance symptoms that may drive you to check:

• Loss of rated pressure under load

• Reduced flow output

• Inability to hold prime or difficulty priming

• Pulsation or cavitation sounds caused by air entering through an imperfect seal

O-rings should be replaced if they are worn, flattened, or cracked. To confirm that AR960160 is the specified replacement, consult the exploded view diagram for your pump model and identify the part number at the leaking position. Water seals fail by dripping under the manifold-if you see dripping there, the issue may be water seals rather than O-rings, so accurate identification matters.

Step-by-Step: Replacing an AR960160 O-Ring

Replacing an O-ring is a basic maintenance task most pump owners can handle with simple hand tools. The steps below are a general guide-always consult your specific AR service manual for model-specific torque specs and assembly details.

1. Depressurize and Disconnect Shut off the machine, squeeze the trigger to relieve all trapped pressure, and disconnect the power source and water supply. Never work on a pressurized system.

2. Access the O-Ring Location Using the appropriate wrench or socket, loosen the valve cap, plug, or fitting where the AR960160 is seated. Remove it carefully without damaging threads.

3. Remove the Old O-Ring Use a plastic pick or blunt nylon tool to pry the old O-ring from its groove. Avoid metal tools-they can gouge the sealing surface and cause future leaks. Inspect pistons every time the manifold is removed, as this is an opportunity to check for wear on other components.

4. Clean the Groove and Mating Surfaces Wipe away all debris, mineral buildup, and old lubricant from the groove and the mating face of the cap or plug. A smooth, clean surface is essential for the new seal.

5. Lightly Lubricate the New O-Ring Apply a thin coat of pump-safe silicone grease to the AR960160. Proper installation involves cleaning the seating groove and lubricating the O-ring to prevent twisting or pinching during assembly.

6. Install the AR960160 O-Ring Gently roll the O-ring into the groove without stretching it excessively. Ensure it sits flat and even-no twists, no bulges. Do not force it past threads.

7. Reassemble and Tighten Thread the valve cap or plug back on by hand first to avoid cross-threading, then tighten evenly and snugly following the manufacturer's torque guidance where available.

8. Test for Leaks Reconnect water and power. Pressurize the system at low pressure first, then bring it to full operating pressure. Observe the joint carefully-you're looking for a completely dry, tight seal with no weeping.

Best Practices to Extend the Life of Your AR960160 O-Ring

A few simple habits can dramatically extend O-ring service life and reduce unplanned downtime:

• Never run the pump dry. Water seals are affected by heat and dry running. Without water flowing through the pump, internal temperatures spike and elastomers degrade rapidly. Even brief dry-run episodes can damage O-rings and seals throughout the system.

• Flush chemicals after every use. Residual detergents and cleaning solutions left in the pump can attack Buna-N material over time. Run clean water through the system for at least 30 seconds after each chemical application.

• Change crankcase oil every 50 hours with real pump oil. Milky oil indicates water intrusion; reseal the pump immediately. Oil seals prevent oil from mixing with water in the crankcase, and monitoring oil condition gives early warning of seal issues elsewhere.

• Inspect fittings and O-rings during routine maintenance. Every time you change oil, swap filters, or service valves, take a moment to check accessible O-rings for wear.

• Store equipment out of direct sunlight. UV exposure and ozone accelerate cracking and hardening in elastomers. Keep your pump and hoses inside or under cover when not in use.

• Start threads carefully. Cross-threading a valve cap or plug distorts the groove and can cut the O-ring before the machine ever runs. Always start fittings by hand before reaching for a wrench.

Frequently Asked Questions About the AR960160 O-Ring

Is the AR960160 O-ring easy to install?

Yes. Installation is straightforward for anyone with basic mechanical comfort. Refer to the step-by-step replacement section above-fully depressurize the system, remove the old ring with a plastic pick, clean the groove, lubricate, and seat the new AR960160. No specialized tools are required beyond basic hand tools and a suitable non-metallic pick.

How often should I replace the AR960160 O-ring?

Replacement frequency depends on usage intensity, water quality, and chemical exposure. Inspect O-rings during regular pump service-for example, when changing pump oil or cleaning inlet filters. If you notice any cracking, flattening, or leakage, replace the O-ring proactively rather than waiting for a complete failure. Oil seals leak at the shaft or turn oil milky, which is a separate issue-but during any inspection that involves opening the pump, it's worth checking all accessible seals.

Can I use a hardware-store O-ring instead of AR960160?

While a generic O-ring might physically fit in the groove, its dimensions and material compound may not meet AR's specifications. A ring that's even 0.2 mm off in cross-section can cause weeping leaks or blow out under pressure. The AR960160's Buna-N construction at 70A durometer is selected for consistent performance in AR groove geometries. For reliable sealing and to maintain pump performance, use the genuine part.

What if I'm not sure AR960160 is the right O-ring for my pump?

Start by locating your pump's model plate-it provides the model identifier you need. Use that to look up the official AR North America parts breakdown or exploded view diagram. Find the position at the leak point and check whether part number 960160 is listed there. Oil seals prevent water from contaminating crankcase oil and are separate components-make sure you're identifying the correct seal type. If you're still unsure, contact Barens technical support with your model number and the location showing the leak.

Does replacing the AR960160 O-ring affect pump performance?

Replacing a worn or damaged O-ring with a new AR960160 can restore full sealing and stabilize operating pressure. The O-ring itself doesn't increase rated pressure-it simply allows the pump to maintain its design performance without leaks. If you've installed new seals and the pump still isn't holding pressure, look at other components: worn valves, damaged water seals, crankshaft-driven piston wear, or unloader issues may be the root cause. Water seals fail due to heat and running dry, and oil seals keep crankcase oil contained and prevent water entry-each has its own failure mode distinct from O-ring wear.

Keep Your AR Pump Leak-Free with the Correct AR960160 O-Ring

The AR960160 is a small, inexpensive part that plays an outsized role in protecting your pump's pressure, flow, and operational uptime. When this genuine AR North America O-ring is properly seated and maintained, it forms a reliable barrier against leaks at some of the most critical joints in your pump assembly.
