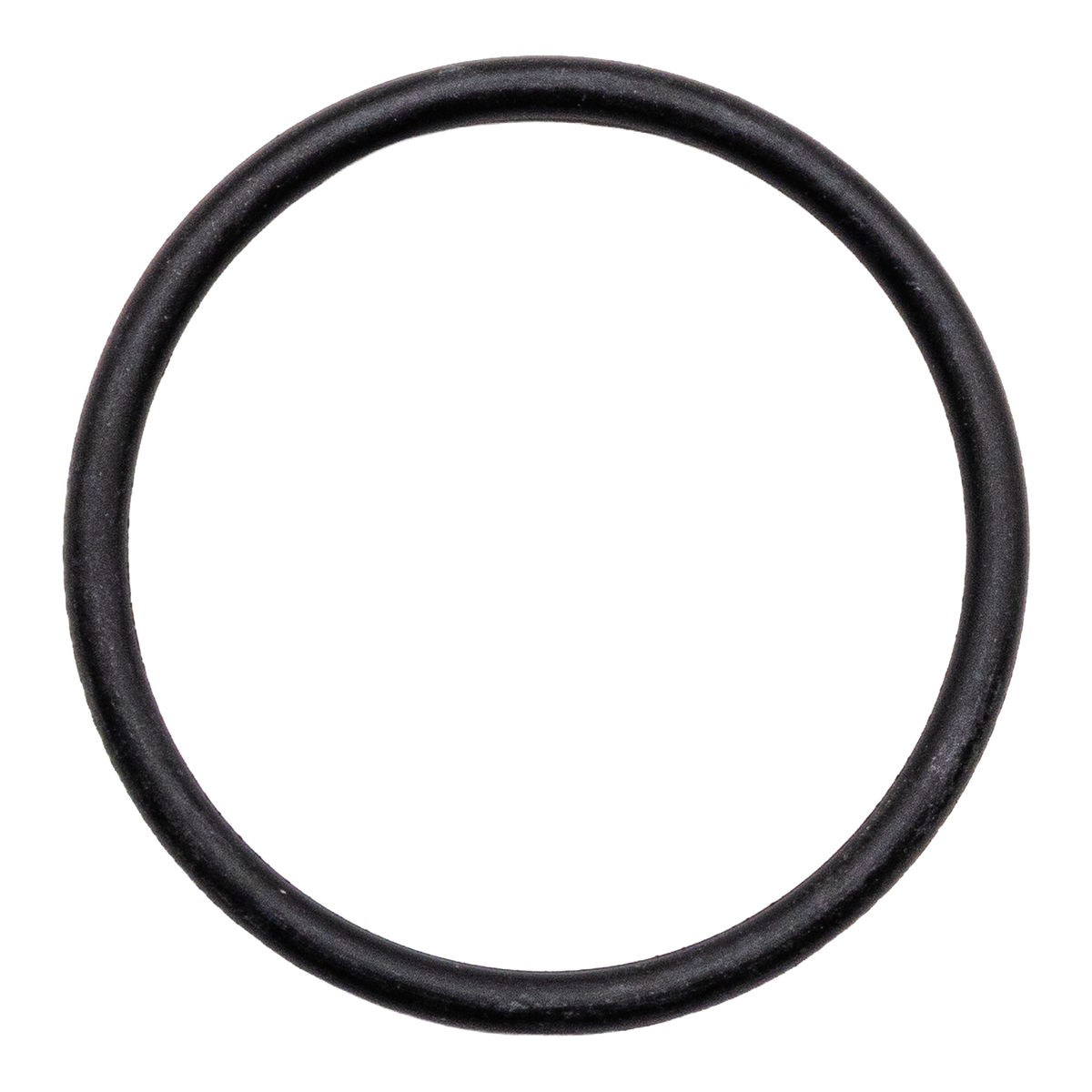

Comet 1210.0333.00 Oil Sight Gauge O-Ring 1.78x23.52mm - 2967

Reliable Oil Sight Glass Sealing for Comet Pressure Washer Pumps

The Comet 1210.0333.00 is a specialized replacement O-ring for Comet pumps, engineered to seal the oil sight glass (oil sight gauge) on the pump crankcase housing. It prevents oil from seeping out and blocks water, spray, and debris from entering the crankcase oil supply.

The dimensions of the Comet 1210.0333.00 O-ring are 1.78 mm by 23.52 mm (cross-section by inner diameter). The Comet 1210.0333.00 O-ring is typically made from Buna-N (Nitrile rubber) with 70 Shore durometer, a compound selected for its resistance to mineral oils and petroleum-based lubricants. Barens stocks this part and can help confirm whether it matches your pump model's parts breakdown.

Why You'll Value the Comet 1210.0333.00 O-Ring

Proper replacement of the O-ring is essential to achieve a leak-free seal at the sight glass port. When this seal works correctly, you get stable oil levels, a clean pump exterior, and reliable visibility into crankcase oil condition.

• Leak-Free Oil Sight Glass – The 1.78 mm cross-section compresses evenly in the machined groove behind the sight glass, eliminating oil seepage around the viewing window. No drips on the pump body or mounting surface.

• Protects Pump Internals – O-rings are primarily utilized for static sealing in mechanical devices, and this one serves that role at a vulnerable entry point. A tight seal keeps dirt, water spray, and abrasive particles out of the crankcase, reducing wear on bearings and the crankshaft.

• Reduces Downtime – A leaking sight glass means oil loss, frequent top-offs, and potential emergency shutdowns. One correctly seated O-ring removes that failure chain.

• Built for Oil and Vibration – Common material for O-rings includes NBR or Buna-N, suitable for hydraulic sealing applications. Buna-N resists swelling and degradation from contact with typical pump crankcase oils and holds its shape under the continuous vibration a running pump produces.

• Clear Oil Level Visibility – When the seal is intact, oil stays inside the crankcase instead of filming the inside of the sight glass. Oil checks take seconds instead of minutes spent cleaning and re-inspecting.

What Makes This Oil Sight Gauge O-Ring Different

Generic O-rings of approximate size exist, but O-rings should not be replaced solely by outside diameter; internal dimensions and material are critical for compatibility. A cross-section that is 0.5 mm too thick over-compresses the seal, accelerating hardening and compression set. A cross-section that is too thin leaves a gap.

• Exact 1.78 mm x 23.52 mm Fit – These dimensions match the groove cut into Comet pump crankcases that call out part number 1210.0333.00. The compatibility of O-ring material must match the fluids, temperature, and pressure in use; this O-ring satisfies all three for standard Comet operating conditions.

• Buna-N Formulated for Pump Oil – Nitrile rubber performs well in continuous contact with mineral oils at operating temperatures up to approximately 100–110°C (212–230°F) and remains flexible down to about –40°C (–40°F). EPDM, by contrast, resists water and UV well but degrades in contact with petroleum-based oils.

• Purpose-Built for the Sight Glass Location – This is not a general-purpose pump seal. It is sized and compounded for the static joint between the clear oil sight window and the crankcase casting. For comparison, a different Comet part, the Comet 1210.0055.00 O-ring, measures 1.78 mm x 6.07 mm and fits LWD-K, LWS, ZWD, ZWD-K, and ZWDK series pumps in a separate location. Same cross-section, different inner diameter, different application.

• Backed by Barens Application Knowledge – The Barens Team can cross-reference your pump model number against the Comet parts breakdown to confirm that 1210.0333.00 is the correct part before you order.

How It Works in Your Comet Pump

The O-ring sits inside the oil sight gauge assembly on the crankcase housing. Its job is simple: fill the gap between two rigid surfaces (the crankcase and the sight glass) so oil stays in and contaminants stay out.

1. O-Ring Seated Behind the Sight Glass – The O-ring drops into a machined groove or recess around the sight glass port in the crankcase casting. O-rings ensure material compatibility and proper fit in pumps when the groove dimensions and O-ring dimensions are matched, as they are here.

2. Sight Glass Compresses the Seal – When the sight glass is threaded or snapped into position and tightened, it presses the Buna-N ring into the groove walls. The rubber deforms to fill micro-imperfections in both surfaces. Failure to properly seat an O-ring can result in twisting and failure under pressure, so even compression matters.

3. Oil-Tight, Contamination-Resistant Joint – The compressed ring blocks oil from migrating outward and prevents moisture or grit from reaching the crankcase oil. The result: a dry pump exterior, a clear viewing window, and a stable oil level between changes.

Product Details

Use these specifications to verify fit before ordering.

• Application: Oil sight glass / oil sight gauge seal for selected Comet pressure washer pump crankcases, including ZWD, EWD, AXD, and BXD series models that list part 1210.0333.00 in their parts breakdown.

• Dimensions: 1.78 mm cross-section x 23.52 mm inner diameter, conforming to the Comet sight glass groove profile.

• Material: Buna-N / Nitrile rubber; oil-resistant, abrasion-resistant, suitable for continuous service temperatures from approximately –40°C to +100–110°C.

• Function: Static seal between the pump crankcase and the clear oil sight glass / gauge, maintaining oil level integrity.

• Replaces / Part Number: Comet 1210.0333.00 O-ring (OEM reference).

• What's Included: One replacement O-ring. Sight glass and hardware are sold separately.

Who This O-Ring Is For

This part is for anyone responsible for keeping Comet pressure washer pumps running without oil leaks at the sight glass.

• Pressure Washer Service Shops – Technicians who rebuild or service Comet pumps and need a verified, OEM-spec seal for the oil sight glass.

• Equipment Rental Fleets – Fleet managers running multiple Comet-equipped units where consistent crankcase sealing across machines prevents unplanned service calls.

• Contract Cleaners and Facilities Teams – Operators who handle their own pump maintenance and want fast, reliable oil level checks without cleaning oil film off the sight window first.

• OEM and Reseller Partners – Organizations supporting Comet-based equipment that need correct sealing components on the shelf.

If the area around the oil sight gauge on your pump is damp, oily, or the sight glass is fogged from the inside, this O-ring is the first part to replace.

Frequently Asked Questions

How do I know if I need to replace the Comet 1210.0333.00 O-ring? Look for oil seepage or a wet film around the base of the sight glass when the pump is running or shortly after shutdown. If the crankcase housing around the sight window stays damp, or the existing O-ring appears hardened, cracked, or flattened when you remove the sight glass, it is time to replace it.

Is this O-ring compatible with all Comet pressure washer pumps? It fits Comet pumps that list part number 1210.0333.00 in their parts breakdown, including models in the ZWD, EWD, AXD, and BXD series. Check your pump's data plate and service manual. If you are unsure, contact the Barens Team with your model number for confirmation.

What material is it made from, and why? Buna-N (Nitrile rubber) at approximately 70 Shore A durometer. This compound resists mineral oils and common crankcase lubricants without swelling or hardening under normal operating temperatures. It is the standard material Comet specifies for oil-contact seals in these pumps.

How should I install the new oil sight glass O-ring? Drain or lower the oil level below the sight glass port. Remove the sight glass. Clean any debris or old seal residue from the groove. It is important to lubricate O-rings during installation to prevent damage; apply a light coat of clean pump oil to the new O-ring, then seat it evenly in the groove without twisting. Reinstall the sight glass and tighten snugly. Do not overtighten, as this can crack the sight glass or deform the O-ring beyond its intended compression.

How often should I replace the sight glass O-ring? Replacement intervals depend on operating hours, ambient conditions, and oil type. Inspect the O-ring each time you change the pump oil. Replace it when it shows compression set (stays flat instead of springing back), becomes brittle, or starts leaking.

Can I use a different size or material if I have it on hand? Using an O-ring with a different cross-section or inner diameter risks either over-compression (leading to early hardening) or under-compression (leading to leaks). O-rings should not be replaced solely by outside diameter; internal dimensions and material are critical for compatibility. Stick to the OEM 1.78 mm x 23.52 mm Buna-N specification to avoid seal failure.

Ready to Secure Your Comet Pump Sight Glass?

A single correctly sized, oil-resistant O-ring keeps the Comet pump crankcase sealed and the oil level visible at a glance. Verify your pump model and part number against the Comet parts breakdown before ordering.

Contact the Barens Team for help confirming compatibility with your specific pump, selecting related Comet pump service parts, or planning preventive maintenance. The team can walk through symptoms like sight glass leaks or oil loss and confirm whether the Comet 1210.0333.00 O-ring is the right fix.

Add to cart and keep your pumps sealed.
