CAT Pumps 45891 Copper Gasket 12.5mm Plunger Retainer - 2784

High-Pressure Seal You Can Trust in Seconds

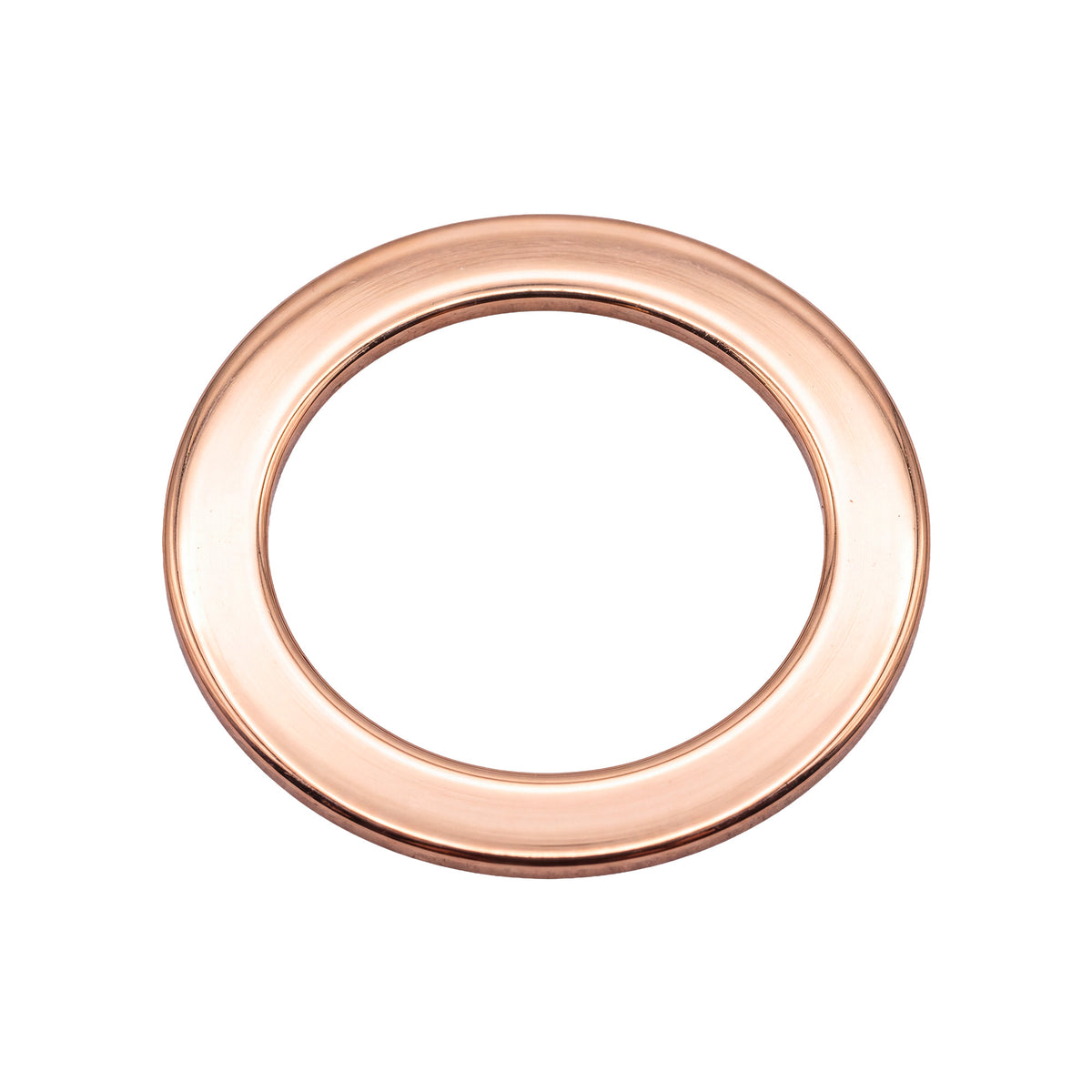

The Cat Pumps 45891 copper gasket is a genuine OEM crush-seal washer engineered to prevent leaks at the plunger retainer interface on popular CAT triplex plunger pumps. This is not a generic rubber seal or universal flat washer - it is a purpose-built copper gasket (material code "CU") that seats between the plunger retainer and the solid ceramic plungers inside the pump, forming a metal-to-metal barrier against high-pressure fluid escape.

A Cat Pump is a high-pressure positive-displacement pump, and maintaining consistent pressure across every sealing point is critical. The 45891 gasket functions specifically as a plunger retainer gasket, keeping water, chemicals, and cleaning solutions contained during demanding wash and industrial operations. Below, you'll find exactly what this part does, where it fits, the key specs you need, and how to select and install it correctly on your system.

Why You'll Rely on the CAT 45891 Copper Gasket

This section is built for the technicians, maintenance managers, and serious DIY operators who need to understand what this small component delivers in real-world service.

• Leak-free performance under pressure – The copper gasket takes on a malleable property when torqued down to create a leak-proof seal. Copper gaskets can create a watertight seal that withstands thousands of PSI, conforming to microscopic imperfections on both mating surfaces for a repeatable, high-integrity crush seal.

• Protects pump internals – By sealing the plunger retainer joint completely, this gasket prevents moisture intrusion and pressure loss that can damage valves, o rings, backup rings, and the solid ceramic plungers themselves. Copper gaskets do not degrade under high-pressure conditions unlike standard rubber gaskets.

• Reduces unplanned downtime – A single failed gasket can spray fluid from the back of the pump, forcing emergency shutdowns. Proper sealing with the OEM 45891 gasket minimizes these interruptions and keeps maintenance costs predictable.

• Durable copper construction – Copper has excellent thermal conductivity and high tensile strength, allowing this gasket to resist crushing, thermal cycling, and the common cleaning chemicals used with Cat Pumps in wash and industrial environments. Copper gaskets resist chemical degradation and corrosion in harsh applications.

• Consistent OEM fit – The Cat Pumps 45891 copper gasket is a genuine OEM part, dimensioned to match CAT's original tolerances so it seats correctly the first time without trimming, shimming, or guesswork.

Whether you're running a car wash bay, a mobile pressure washing rig, or a process plant skid, these benefits translate directly into reliable shifts and lower total maintenance costs.

What Makes the CAT 45891 Gasket Different

Most generic copper washers are stamped to approximate sizes and sold without regard for specific pump interfaces. The CAT 45891 copper gasket is built differently:

• Engineered for CAT pump interfaces – Thickness, inner diameter, outer diameter, and hardness are tuned for the specific sealing surfaces and torque values found in CAT triplex plunger pumps. Correct torque specifications are important to avoid over-tightening or under-tightening, and this gasket is designed to crush properly at the recommended ~90 in-lbs (~7.5 ft-lbs) without distortion.

• Better sealing under repeated service – Quality copper and precise stamping reduce gouging, distortion, and cold flow compared to low-cost alternatives. Generic washers often use inferior alloy or imprecise cutting, causing uneven compression and premature failure.

• Reliable performance with high-temperature wash water – Cat Pumps are used in pressure washing and vehicle wash bays where the pump operates at a maximum temperature of 160 degrees F. The 45891 gasket maintains integrity through start/stop cycling and varying fluid temperatures common in these systems.

• Traceable OEM part number (45891) – This part number appears consistently across CAT data sheets and service manuals, making it easy to find in a parts list, document in maintenance records, and reorder accurately. Cat Pumps require specific gaskets designed for individual models, and the 45891 removes guesswork from that selection.

Using the correct OEM copper gasket also helps maintain pump warranty compliance where applicable - a detail that matters for fleet operators and OEMs alike.

How the CAT 45891 Copper Gasket Works in Your Pump

Here's the basic sealing action in three steps - no engineering degree required.

1. Positioning on the sealing surface – During plunger service, the 45891 copper gasket is placed onto the plunger retainer's mating face, sitting beneath the retainer alongside the o rings and backup ring. Proper cleaning of mating surfaces is crucial before installing a new gasket - any debris or mineral scale on the ceramic or retainer surface will compromise the seal.

2. Compression under torque – As the plunger retainer is threaded onto the plunger rod and tightened to spec, the soft copper compresses and conforms to minute surface irregularities on both the retainer and the ceramic plunger end. This crush action creates a complete metal-to-metal barrier.

3. Maintaining a stable seal in operation – Once crushed to its final thickness, the gasket holds a continuous, high strength seal that keeps high-pressure fluid from escaping past the plunger retainer - even under the thousands of PSI that CAT pumps routinely generate.

Note that the 45891 is a one-time crush seal. Copper gaskets must be replaced after each use as they deform during installation. Reusing a copper gasket increases the risk of high-pressure leaks because the material will not spring back to reliably reseal the joint.

Product Details: CAT Pumps 45891 Copper Gasket

• Material: Solid copper (code "CU"), designed specifically for crush-seal applications on CAT high-pressure pumps.

• General dimensions: Flat ring-style washer with a thin profile, sized to match CAT plunger retainer ports and sealing faces. Some model listings reference an M12.5 size designation for the inner bore.

• Compatibility: Used on select CAT triplex plunger pump models across multiple frame sizes, including 3-frame models (e.g., CAT 230, 240, 270), 5-frame models (e.g., CAT 35, 45), 7-frame models, and larger pumps such as the 7CP and 1580 series. CAT Pumps offers over 1000 models of pumps, so always confirm via the pump's exploded parts diagram or service manual before ordering. CAT Pumps manufactures over 1000 models of pumps, and the 45891 appears across many of them.

• Typical location in pump: Between the plunger retainer and the ceramic plunger end, forming part of a three-component sealing stack alongside the O-ring and backup ring.

• Quantity per pump: Three gaskets per triplex pump (one per plunger assembly). Cat Pumps utilize a triplex design with three plungers or pistons.

• Temperature and pressure environment: Suitable for the high-pressure and hot-water ranges common to CAT industrial pumps. For reference, the CAT 270 pump has a maximum flow rate of 3.5 GPM and a maximum pressure of 1500 PSI, operating at a max temperature of 160 degrees F. The CAT 270 features a brass manifold and stainless steel valves, and the 45891 gasket is fully compatible with these materials.

• Related model specs: The CAT 270 has a crankcase capacity of 15 oz of oil and weighs 15.00 lbs. Common spare parts include plungers, shafts, and gaskets - the 45891 is among the most frequently replaced items during routine service.

• Sold as: Individual OEM replacement gasket. Purchasing multiples for maintenance spares is recommended so they are on hand before the next service interval.

Always verify the part number on packaging or in CAT documentation before installation.

Who the CAT 45891 Copper Gasket Is For

A small component with outsized importance - the 45891 copper gasket matters most to these user groups:

• Car wash and truck wash operators – Cat Pumps are used in pressure washing and vehicle wash bays where pumps run nearly continuously in wet, chemical-laden environments. A single leaking gasket at the plunger retainer can cause pressure drop and water damage.

• Pressure washing contractors – Rely on CAT pump assemblies in trailers or skids where a failed gasket can shut down a job site. Cat Pumps are also utilized in reverse osmosis and water treatment applications, expanding the range of contractors who depend on this part.

• Industrial maintenance teams – Cat Pumps are commonly used in industrial cleaning systems, CIP circuits, and chemical feed lines. These teams need predictable sealing performance after every service to keep the system running without unplanned interruptions.

• OEMs and system builders – Integrators assembling new high-pressure products want proven, standard CAT components with full traceability. The 45891's consistent appearance across CAT data sheets makes it easy to spec and stock.

If your pump's parts list calls out part number 45891, this is the gasket you should be using - no substitutes.

Frequently Asked Questions About the CAT 45891 Copper Gasket

How do I know if my CAT pump uses the 45891 copper gasket? Check the model plate on your pump, then reference the official CAT parts breakdown or service manual. If you find item #98 listed as "Gasket, Plunger Retainer" with part number 45891, your pump uses this gasket. The CAT 270 model is available for purchase at multiple retailers, and its parts diagram confirms the 45891.

Can I reuse a 45891 copper gasket after disassembly? No. This is a crush-style seal that deforms permanently under torque. Once removed, it will not conform reliably to the mating surfaces again. Reusing a copper gasket increases the risk of high-pressure leaks. Replace it every time you remove the plunger retainer.

Is this gasket compatible with hot water and cleaning chemicals? Yes. Copper handles typical wash-system temperatures and many common detergents and cleaning chemicals. However, strongly oxidizing fluids, concentrated acids, or very high pH solutions over extended periods may accelerate corrosion. Verify compatibility with any unusually aggressive fluids through CAT's documentation.

Do I need sealant or tape with this gasket? No. The 45891 is designed to seal on its own as a crush washer. CAT service manuals do not call for sealant between the gasket and mating faces. Thread sealant may be specified elsewhere on the pump (such as manifold screws with stainless steel fittings), but that is a separate application.

What happens if I use a non-OEM or wrong-size washer instead? Risks include misalignment, improper crush depth, persistent leaks under pressure, and potential damage to ceramic plunger ends or retainer threads. A wrong-gauge washer may require incorrect torque to seat, leading to either under-tightened joints that leak or over-tightened joints that crack components.

Ready to Secure Your CAT Pump Seal?

The CAT 45891 copper gasket delivers leak-free, high strength sealing performance on compatible CAT triplex plunger pumps - protecting your solid ceramic plungers, o rings, and the complete plunger retainer assembly from pressure loss and fluid damage.

Don't wait for a leak or pressure drop to add this part to your cart. Proactive replacement during scheduled maintenance keeps your pump running at max performance and avoids costly emergency shutdowns.

• Check your pump model's parts diagram to confirm 45891 compatibility.

• Contact our support team for help identifying the correct gasket and related CAT pump components.

• Order genuine CAT 45891 copper gaskets along with other critical pump service parts so they are on hand before the next maintenance interval.

Contact the Barens team today for quick turnaround and expert assistance - we're here to keep your system sealed and running.
