CAT Pumps 45685 Brass Seal Case 56/57/59/60 - 2778

Reliable Seal Support for 7-Frame Brass Plunger Pumps

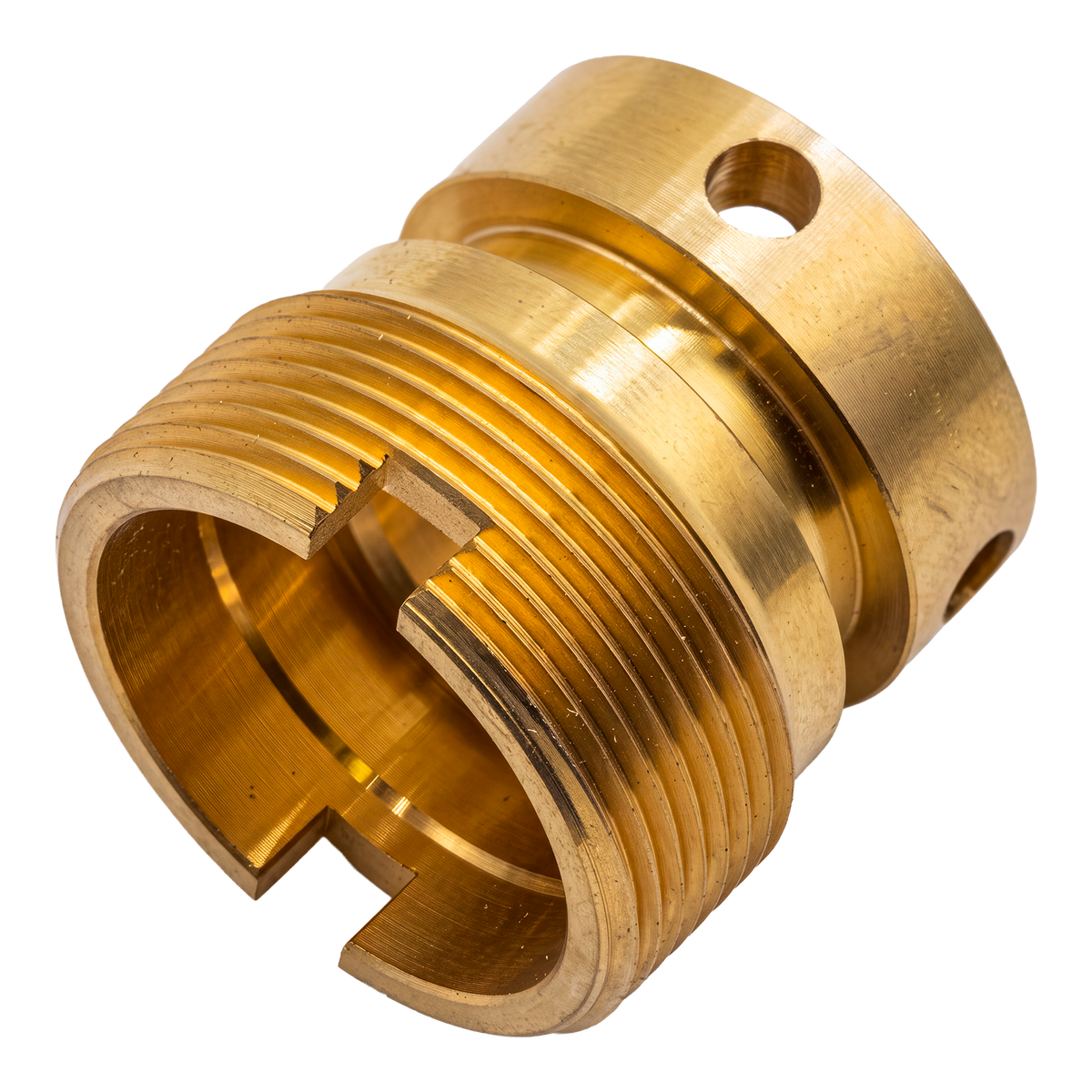

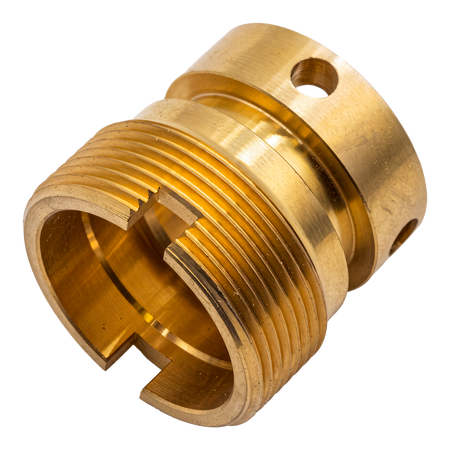

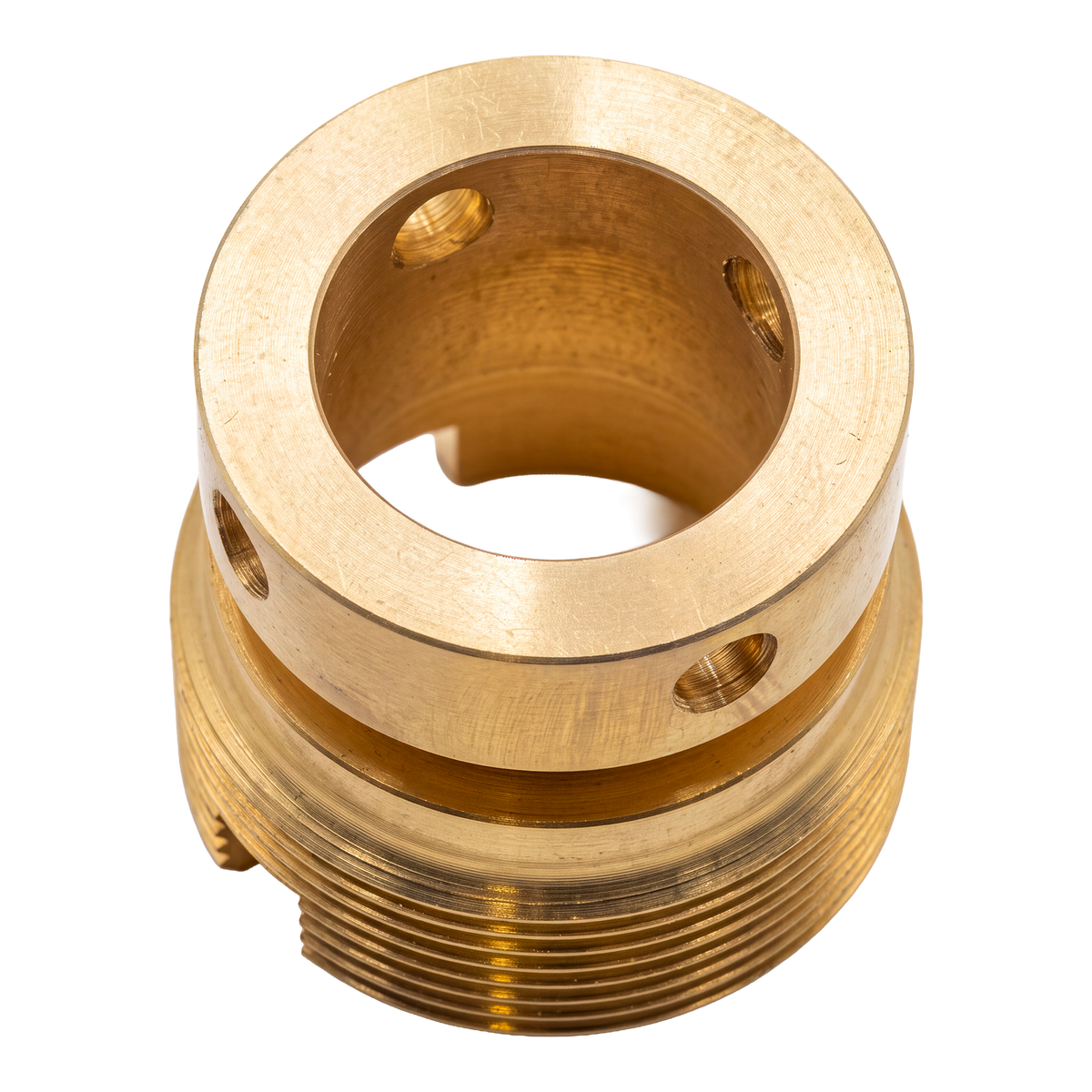

The Cat Pumps 45685 seal case is a precision-machined brass component designed to house and align the low pressure seals and high pressure seals inside 7-frame triplex plunger pumps. Cat Pumps Model 45685 is compatible with 7-frame plunger pumps including models 56, 57, 59, and 60, all built with brass manifold construction. A seal case is a rigid structural component that houses and aligns seals and O-rings around plungers, serving as the critical interface between plunger, seal stack, and manifold bore.

This description will help you identify whether your cat pump uses the 45685 seal case, understand how it functions during operation, diagnose when it needs replacing, and walk through the correct replacement procedure to keep your system running at full pressure.

Why You'll Want the 45685 Seal Case in Top Condition

Maintaining a properly fitted 45685 delivers measurable benefits in system performance, uptime, and overall pump service life.

• Leak Control and Protection – A correctly seated seal case prevents water from bypassing the low pressure seals and leaking externally around the plungers. Seal cases are critical components that prevent fluids from leaking backward into the pump and crankcase oil seals area. When the case is worn or misaligned, the low pressure seal loses its proper seating, allowing leakage past the manifold and potentially into the crankcase.

• Consistent System Pressure – The high pressure seal depends on alignment provided by the seal case. High-pressure sealing systems help maintain pressure and flow while reducing fluid leakage. If the case geometry is damaged, the high pressure seal becomes misloaded, resulting in pressure drop, pulsation, or premature failure to reach target output.

• Longer Seal Life – Smooth, undamaged surfaces inside the seal case reduce abrasive wear to both low and high pressure seals. Scratches, pitting, or corrosion on the case dramatically increase seal wear. Cat Pumps seals can last 3-4 times longer than competitor pumps when properly supported by an intact seal case.

• Reduced Downtime – If seals fail often and unexpectedly, the entire system must be shut down for emergency maintenance. A healthy seal case keeps failures predictable and lets you schedule servicing during planned windows rather than reacting to breakdowns.

• Protects Pump Investment – Ignoring a damaged 45685 leads to deeper, more expensive issues: plunger scoring, manifold bore erosion (commonly called "wash-out"), and damage to contact surfaces that are far more costly to replace than a single seal case.

What Makes the Cat Pumps 45685 Seal Case Stand Out

Generic or improvised seal carriers rarely match the precision and materials of genuine Cat Pumps components. When selecting a replacement seal case, the difference in engineering and quality control is significant.

• Precision-Machined Fit – The 45685 is machined to tight tolerances that match the bore of the manifold and the plunger diameter for 7-frame brass models. This ensures concentric alignment and correct compression of every seal element in the stack.

• Engineered Materials – OEM brass seal cases are designed to meet factory specifications and prevent premature wear. Brass seal cases resist water pressure, mechanical stress, and corrosion, making them ideal for typical pressure washing fluids and common cleaning chemicals. Using a genuine seal case prevents galvanic corrosion and ensures optimal material compatibility with other pump materials.

• Optimized Seal Geometry – The case includes internal shoulders and recesses built to properly position and back the low pressure seal, its spring or wick, and associated o rings. A mating face on the opposite end aligns the high pressure seal that presses into the manifold bore.

• Compatibility with OEM Seal Kits – The 45685 is listed in official exploded parts diagrams for its pump families. CAT Pump seal kits include low and high pressure seals, and the associated seal case o rings are included in standard kits. This makes routine rebuilds straightforward - no guesswork on parts compatibility.

• Backed by Cat Pumps Engineering – In Technical Bulletin TB-054, Cat Pumps transitioned from older snap-ring retainers to a two-piece seal retainer design for the 5PFR through 7PFR pump families. The 45685 is part of that improved, tested engineering, reflecting decades of design refinement.

How the 45685 Seal Case Functions Inside Your Pump

The seal case sits inside the manifold (pump head) surrounding each plunger. It positions the low pressure seal stack between the plunger and manifold while the high pressure seal seats in the manifold itself. Seal cases maintain proper alignment of seals and prevent fluid leakage at every point in the sealing area.

1. Step 1 – Supports Low-Pressure Seals The front side of the 45685 captures the low pressure seal, which may include a spring, garter spring, wick, and o rings. The internal recess provides a solid shoulder against which these components are held, blocking leakage from the inlet or crankcase side toward the manifold.

2. Step 2 – Aligns High-Pressure Seals On the opposite end, the high pressure seal resists discharge manifold pressure and seats against the machined face of the manifold bore. The seal case ensures this seal is precisely located relative to the plunger and manifold geometry, forming the main high pressure barrier during pump operation.

3. Step 3 – Directs Flow and Protects the Manifold The assembled seal stack and case channel pumped water forward through the high pressure seal into the manifold's discharge passages. Simultaneously, the assembly keeps water away from drive-end components and crankcase oil seals. The case also buffers the manifold bore from direct contact with abrasive or corrosive flow near the plungers.

Product Details: Cat Pumps 45685 Seal Case

Quick-reference specs for this component in a scannable format:

• Component Type: Seal case (also called seal carrier or seal retainer) - a rigid structural component used in triplex plunger pumps. Seal cases serve as housing for seals, O-rings, and other related components in pumps.

• Common Pump Families: 7-frame brass models - Cat Pumps 56, 57, 59, and 60. Remember to verify your pump model number against the official parts list or data sheet before selecting this part.

• Material: Brass body (material code "BB"). Associated o rings are typically NBR (70D hardness) as standard. Special seal configurations can modify standard pumps with Buna seals, and alternative materials such as Teflon® and Viton® are options for CAT Pump seals when temperature or chemical demands require them. Silicone-free low and high pressure seals are also available for CAT Pumps.

• Location in Pump: Installed in the manifold bore around the plunger, directly supporting the entire sealing stack.

• Associated Components: Low pressure seals, high pressure seals, seal case o rings, retaining hardware (two-piece retainer per TB-054 design), wick or spring, plunger washers, and manifold hardware.

• Packaging: Supplied as a single component. The 45685 is not typically included in a separate seal kit - it is commonly replaced alongside a seal kit during planned pump service. Seal cases are replaced during seal rebuilds if damaged or worn, ensuring leak-free operation.

Identifying When to Service or Replace the 45685 Seal Case

Even when you replace seals with a fresh seal kit, a worn or damaged seal case can prevent a proper seal and cause new parts to fail quickly. A seal case can become damaged due to wear or cavitation, leading to leaks and pressure loss. Here is what to inspect:

• Visible Scoring or Pitting – Check the inner bore surface where the low pressure seal rides, and the outer surfaces where o rings seat. Deep grooves, sharp scratches, or corroded metal observed under good lighting mean the case should be replaced.

• Persistent Leaks After New Seals – If the pump still leaks at or around the manifold after installing fresh low and high pressure seals, the issue likely points to seal case or manifold damage rather than the seals themselves.

• Loose Fit in Manifold Bore – If the case no longer fits snugly, seal compression and alignment are compromised. A loose case can shift under pressure cycling - note that this condition will only worsen with continued operation.

• Uneven Seal Wear Patterns – Seals that wear on one side first or fail prematurely relative to other seals indicate case misalignment or surface damage. Plunger scoring or discontinuity is another sign the case is not holding seals in proper contact.

• Routine Inspection Interval – Evaluate CAT Pump seals every 1500 operating hours. Check seals again at 2000 hours if no wear is detected. The 45685 seal case should be inspected every time the manifold is opened for seal servicing. Replace low pressure seals if pump leaks near the crank case. Replace high pressure seals if pump does not create enough pressure.

Step‑by‑Step: Replacing the Cat Pumps 45685 Seal Case

Before you start, depressurize the pump, lock out motor power, and allow the system to cool. High pressure water and hot manifold surfaces are serious hazards. Wear appropriate protective gear throughout servicing.

1. Step 1 – Prepare the Work Area Shut down all machinery, close inlet and discharge valves, and relieve internal pressure. Disconnect power connections at the source. Clean around the pump head to prevent contamination from entering the manifold during disassembly.

2. Step 2 – Remove the Manifold Remove manifold mounting bolts in a crisscross pattern to relieve stress evenly. Carefully slide the manifold off the plungers, supporting them to avoid chipping or scratching ceramic or steel surfaces.

3. Step 3 – Extract the Old Seal Cases On 7-frame brass pumps, the 45685 is press-fit or inserted into the manifold bore. Use reverse pliers or a dedicated seal case puller to withdraw the existing units. Cat Pumps publishes model-specific seal case socket-drive tools designed for removal without scratching the manifold bore. Avoid improvised tools that could damage critical sealing surfaces.

4. Step 4 – Inspect Components Examine each plunger for scoring, cracks, or scale buildup. Inspect the manifold bore around each case seat for erosion or pitting. Discard all worn seals and o rings. Evaluate whether all three seal cases in the head should be replaced as a matched set to maintain even wear across cylinders.

5. Step 5 – Install New Seal Cases and Seals Lightly lubricate new seals and o rings with a compatible fluid. Assemble the low pressure seal, spring, and wick onto the new 45685. Press the assembly squarely into the manifold to the specified depth and correct orientation. If using the two-piece retainer design from TB-054, ensure the wick faces forward and all slots are correctly aligned.

6. Step 6 – Reassemble the Pump Reinstall the manifold over the plungers. Tighten manifold bolts in a crisscross pattern to the manufacturer's recommended torque specification. Reconnect all line connections, inlet, and discharge plumbing. Secure all hardware before proceeding.

7. Step 7 – Test the System Refill the pump and slowly bring it up to operating pressure. Monitor for leaks at every manifold seal case junction. Check that pressure reaches target and remains stable. Listen for unusual noises and watch for any temperature rise near the pump head or crankcase area.

With proper tools and preparation, an experienced technician can complete a full seal and 45685 seal case replacement in a single maintenance window for 7-frame pumps.

Best Practices for Maximizing Seal Case and Seal Life

The 45685 seal case will deliver its longest service life when the overall pump system is operated and maintained correctly. Seal cases are commonly utilized in high-pressure washing and vehicle cleaning systems, and these best practices apply across all applications.

• Always Run with Adequate Water Supply – Starving the inlet causes cavitation, dry spots at the seal contact surfaces, and excessive heat. These conditions dramatically accelerate wear at the interface between the seal case and plungers. Never run the pump without confirmed inlet flow.

• Use Recommended Filtration – Remove grit, debris, and scale from inlet water before it reaches the pump. These abrasive particles damage the seal case bore, plunger surfaces, and seals themselves. Hard water can cause wash-out - pitting and erosion of sealing surfaces in both the seal case and manifold.

• Maintain Proper Inlet Conditions – Check inlet pressure, temperature, and chemical compatibility against pump specifications. Standard NBR elastomers have operating temperature limits. Hot liquids or incompatible chemicals degrade seal case o rings and seal materials. Cat Pumps offers alternative elastomer options in seal kits for harsh environments.

• Follow a Regular Inspection Schedule – Perform daily visual checks for water leaks around the seal case area. Clean inlet filters every few hundred hours. At each seal kit change, inspect case surfaces carefully. Plan full seal and case replacement around the 1,500-hour mark under typical service conditions.

• Use OEM-Quality Components – Match material codes and part numbers exactly. Inferior substitutes with incorrect dimensions or softer metals allow distortion and faster wear. Using genuine Cat Pumps 45685 parts ensures proper fit and material consistency across the entire sealing system.

Who Relies on the Cat Pumps 45685 Seal Case

Seal cases are used in high-pressure commercial and industrial fluid systems across a wide range of industries. Applications for high-pressure pumps include industrial cleaning, pressure washing, and hydro-testing.

• Commercial Pressure Washing – Car washes, fleet washing operations, building exterior cleaning, and surface preparation systems all rely on Cat triplex pumps with 7-frame brass manifolds. Operators in these environments need leak-free, reliable performance shift after shift.

• Industrial Process and Manufacturing – High pressure rinsing, product washdowns, cutting fluid delivery, and precision cleaning applications demand stable sealing at pressures up to the rated capacity of 7-frame pumps. The 45685 supports that consistency across long production runs.

• Municipal and Facility Maintenance – Public works departments, wastewater facilities, and building maintenance teams often run pumps many hours per week. Reducing unplanned maintenance by replacing worn seal cases on schedule helps control costs and keep operations on time.

• OEM Equipment Builders – Companies manufacturing pressure washer units, water blasting equipment, and drain cleaning machines that integrate 7-frame triplex pumps specify the 45685 in their standard parts lists and service manuals for field-replaceable spares.

Frequently Asked Questions About the 45685 Seal Case

Common questions from pump owners and technicians about this component:

How do I confirm that 45685 is the correct seal case for my pump? Check the nameplate or stamped markings on your pump to confirm your model number is one of the 7-frame brass models (56, 57, 59, or 60). Then refer to your pump's data sheet or exploded view - the seal case is typically listed as item 120 in those diagrams. Always verify before selecting and ordering parts.

Should I replace the seal case every time I change seals? Not necessarily. Seals are replaced more frequently than the case itself. However, you should replace the 45685 if it shows any scoring, pitting, corrosion, or if leaks persist after installing fresh seals and o rings. When in doubt, inspect carefully under good lighting.

Can I reuse an old 45685 if it looks clean? Yes, provided the surfaces are smooth, undamaged, and dimensionally consistent - meaning the case has not become deformed or enlarged from repeated pressure cycling. Clean thoroughly and inspect before reinstalling.

Do I need special tools to remove and install the 45685? Dedicated seal case socket-drive tools and reverse pliers make the job faster and significantly reduce the risk of damaging the manifold bore. Cat Pumps offers model-specific tools for this purpose. Improvised tools can scratch sealing surfaces, leading to future leaks.

What happens if I install the seal case or seals backwards? Incorrect orientation - such as a wick or spring positioned backwards, or seal faces reversed - causes immediate symptoms: leaks, low pressure output, and rapid seal failure. Always follow the orientation shown in your pump's service manual. TB-054 specifies the correct wick and retainer orientation for the two-piece design.

How often should I inspect my seal cases? Inspect every time the manifold is removed for seal servicing, which typically falls around 1,500 operating hours under normal conditions. Also inspect whenever leaks pass the manifold area, when pressure output drops, or when plunger wear is observed during routine maintenance.

Ready to Refresh Your Pump Sealing System?

Leaking seals and declining pressure are not problems that improve on their own. Delaying maintenance only leads to plunger damage, manifold erosion, and more costly repairs down the line.

Installing a properly specified Cat Pumps 45685 seal case along with fresh low and high pressure seals can restore full pressure, eliminate leaks, and extend the overall life of your pump. It is one of the most cost-effective steps you can take to protect your equipment investment.

Gather your pump model number, pick a maintenance window, and plan a complete seal and seal case service. Your pump - and your uptime - will reflect the effort.
