CAT Pumps 44666 Domed Oil Filler Cap HS 3/5/7/15/25 - 2766

OEM Domed Oil Filler Cap for CAT Model 3, 5, 7, 15, and 25 Pumps

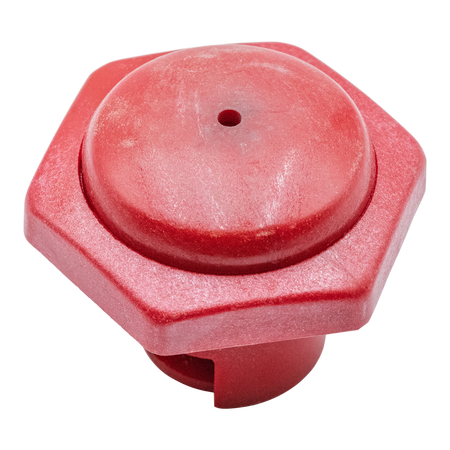

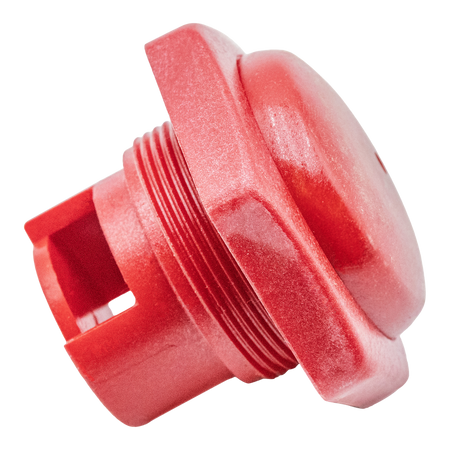

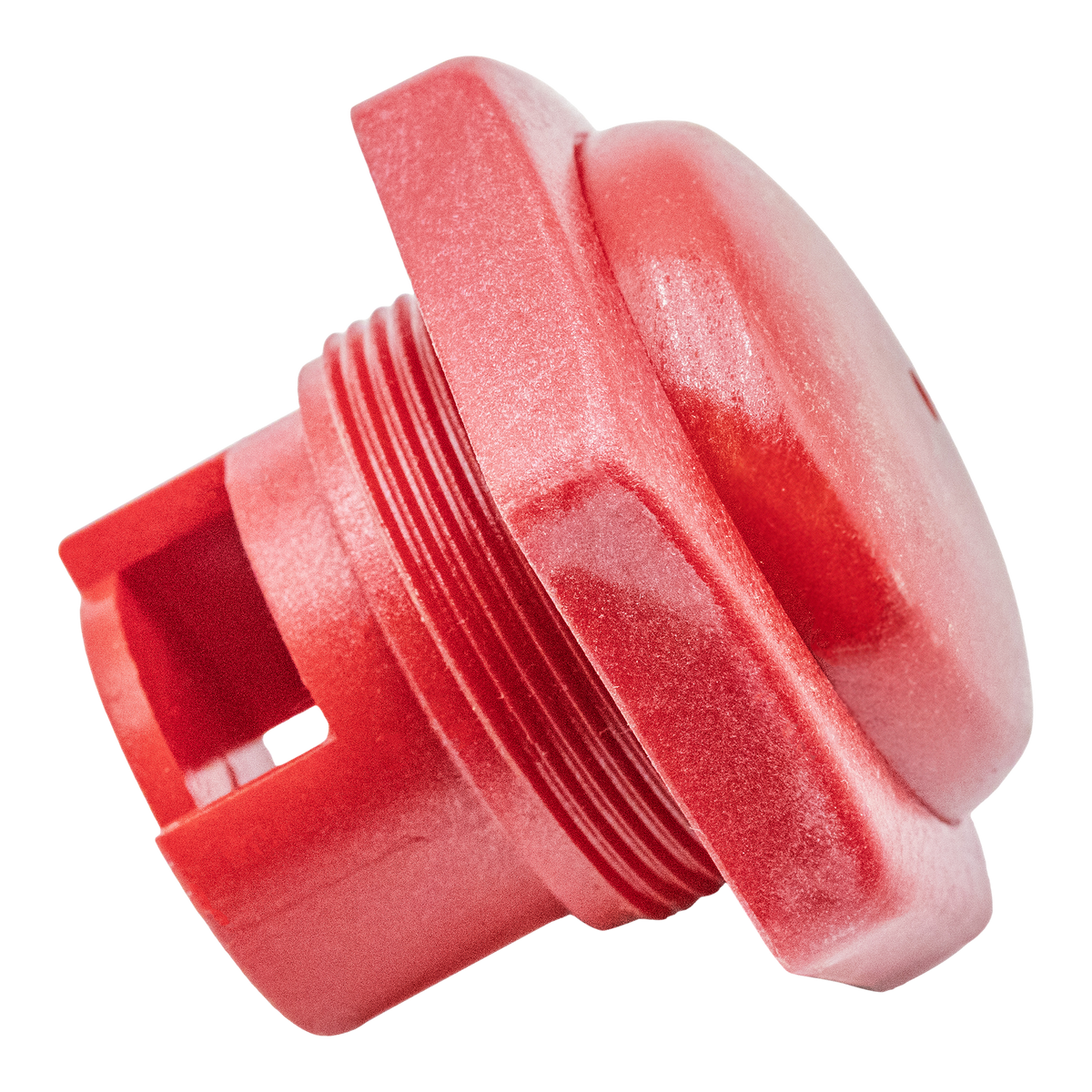

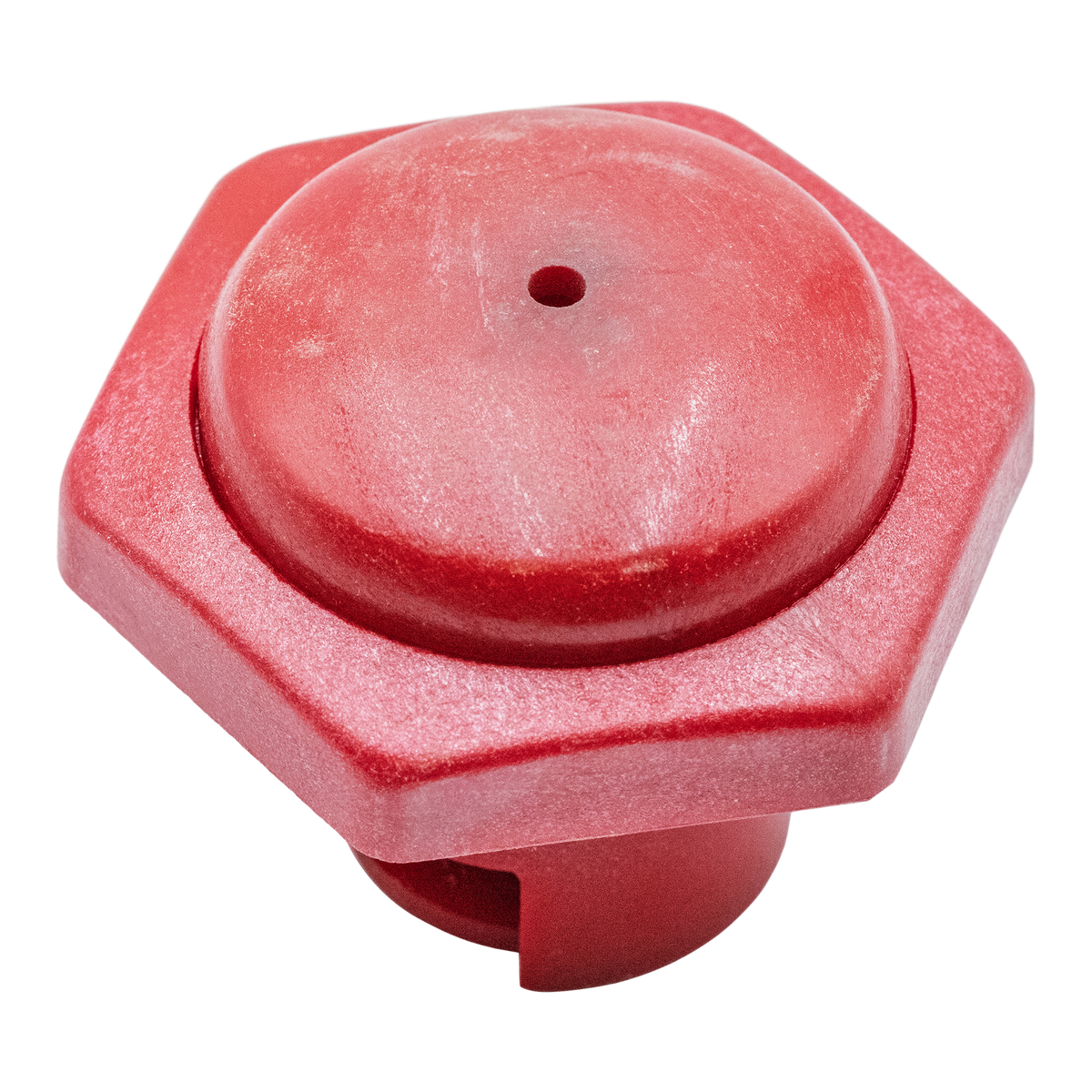

The CAT Pumps 44666 is an OEM replacement domed oil filler cap built from heat-resistant reinforced composite. It threads directly into the crankcase cover on HS model and gearbox-style CAT pumps, sealing the oil fill port against contamination and leakage. One cap is required per pump, and it fits CAT model 3, 5, 7, 15, and 25 frame sizes.

This guide covers the cap's construction, compatibility across pump families, installation steps, and maintenance practices that keep your crankcase sealed and your oil clean.

Why You'll Appreciate the CAT 44666 Oil Filler Cap

The 44666 oil filler cap has a domed top design that separates it from flat-profile alternatives. Here is what that means in daily operation:

• Reliable crankcase sealing – The cap includes an O-ring (part number 14177) that seats against the crankcase cover, blocking dust, moisture, and abrasive particles from reaching the oil reservoir. In pressure washer bays, car wash tunnels, and industrial washdown areas, that barrier matters.

• Protection for internal components – Dirt or water in crankcase oil accelerates wear on bearings, connecting rods, and crankshaft surfaces. The 44666 keeps the oil environment closed, so lubrication does its work without interference.

• Heat-resistant composite construction – The reinforced composite body tolerates elevated crankcase temperatures during extended pumping cycles without warping, softening, or cracking. The oil filler cap is specifically designed for high-pressure plunger and piston pumps.

• OEM thread and seal match – CAT Pumps engineered this cap for the exact thread pitch, shoulder height, and sealing geometry used on 3, 5, 7, 15, and 25 frame crankcase covers. That eliminates the guesswork that comes with generic parts.

• Tool-free replacement – The 44666 features a threaded design for direct installation into the pump crankcase. It screws in and out by hand, so a technician can swap a damaged cap during a routine oil change in under a minute.

What Sets the 44666 Apart From Generic Oil Caps

Not every oil cap works the same way once bolted onto a high-duty pump. Using a generic or improvised plug on a CAT crankcase introduces risks that the 44666 is specifically built to avoid.

Thread and sealing geometry. The 44666 matches the female threads on CAT HS and gearbox crankcase covers for frame sizes 3, 5, 7, 15, and 25. Generic caps often differ in thread diameter, pitch, or shoulder depth; those mismatches lead to cross-threading, loose fit, or inability to seal. The cat pump oil cap seats flush because CAT designed both halves of the connection.

Domed profile. The domed top adds structural rigidity compared to flat caps. It resists impact from tools or hose couplings bumping against the pump housing in tight installations. The dome also helps shed water and debris, so less contamination sits on the sealing surface when you remove the cap for an oil fill.

Material performance under heat. Generic oil caps are frequently molded from unreinforced resin. Under the sustained crankcase temperatures of a continuously running CAT pump, unreinforced plastic softens and distorts. The 44666's reinforced composite resists thermal deformation across normal operating conditions, which keeps the seal intact and the threads engaged.

Consistent venting behavior. The OEM cap is designed to work with how CAT crankcases manage internal pressure. Solid improvised plugs can trap pressure or fail to release oil vapor, leading to oil being forced past seals. The 44666 maintains the pressure balance CAT engineers intended.

How the CAT 44666 Oil Filler Cap Functions in Your Pump

The oil filler cap plays a small but critical role in the lubrication circuit of every CAT HS or gearbox pump.

1. Seals the crankcase opening – The 44666 threads into the oil fill port on the crankcase cover. Its O-ring compresses against the sealing surface, creating a barrier that prevents lubricating oil leaks and maintains crankcase pressure integrity.

2. Maintains a clean oil environment – Once installed, the domed cap and its O-ring keep airborne contaminants out while the pump operates in wet, dusty, or chemical-laden surroundings. Clean oil means less abrasive wear on internal components.

3. Supports long-term lubrication – By keeping contaminants out and oil in, the cap indirectly extends the service life of rods, bearings, and crankshaft journals. A missing or cracked cap exposes these parts to accelerated degradation.

Product Details

Quick reference for installers and parts buyers:

• Manufacturer / Part Number: CAT Pumps, OEM item 44666

• Description: Cap, Oil Filler, Domed

• Material: Heat-resistant reinforced composite (designated "RTP" in CAT parts literature)

• O-Ring: Medium nitrile (Buna-N), part number 14177, 70D hardness; the cat pump oil cap includes an O-ring to prevent leakage

• Weight: The oil filler cap weighs approximately 0.06 lbs

• Quantity per pump: 1 oil fill cap required per crankcase

• Pump type: HS model / gearbox-style CAT pumps, frame sizes 3, 5, 7, 15, and 25

• Typical applications: Pressure washer systems, car wash installations, industrial washdown, and fluid handling equipment built on compatible CAT pump frames

Compatibility: Which CAT Pumps Use the 44666 Oil Filler Cap?

Ordering the correct part number prevents seal failures and fit problems. The 44666 oil filler cap is compatible with Cat model 3, 5, 7, 15, and 25 pumps in their HS or gearbox-drive configurations:

• CAT 3 frame pumps – Found in compact commercial and light industrial systems where space is limited but reliable sealing is still required.

• CAT 5 frame pumps – Common in light- to medium-duty pressure washer rigs and process applications.

• CAT 7 frame pumps – Used in more demanding industrial cleaning and fluid transfer setups; listed as item 32 in the 7 Frame gearbox parts diagram.

• CAT 15 frame pumps – Built for higher flow or pressure in continuous-duty installations.

• CAT 25 frame pumps – Larger industrial units where crankcase security and consistent oil containment are essential to uptime.

Other CAT pump oil caps for reference. Not all CAT pumps use the 44666. The Cat pump oil fill cap 46798 measures 1.8 x 1.2 inches, is made from impact-resistant ABS plastic, and fits Cat pump models 4HP, 5DX, 6DX, and 66DX. The 46798 oil fill cap includes an O-ring seal to prevent leakage. Separately, the 547961 red oil cap is compatible with 2SF, 2DX, 3DX, and 3SP pumps; the Cat 2SF, 2DX, 3DX, and 3SP pumps use a red oil cap. Always confirm the part number against your pump's nameplate or parts list before placing an order.

How to Replace the CAT 44666 Oil Filler Cap

Replacing the cap takes a few minutes and requires no special tools. The cap should not be over-tightened to avoid damaging its composite structure.

1. Shut down and secure the pump. Turn off power, close inlet and outlet valves, and let the pump cool. Never remove the oil cap from a hot, pressurized crankcase.

2. Remove the old cap. Wipe the area around the filler cap with a clean cloth to clear away grime. Unscrew the old cap by hand. Inspect it for cracks, thread damage, or a flattened O-ring; these indicate why it failed and whether additional parts need attention.

3. Inspect the crankcase opening. Check the female threads and sealing surface on the crankcase cover. Remove any debris or oil residue with a lint-free cloth. If threads are stripped or the sealing surface is gouged, the crankcase cover itself may need service.

4. Install the new 44666 cap. Confirm the O-ring (part number 14177) is seated in the cap's groove. Thread the cap into the crankcase cover by hand until snug. Do not use pliers, wrenches, or any other tool; the composite body can crack or the threads can strip under excessive torque.

5. Run and inspect. Start the pump and observe the cap area for oil seepage during the first few minutes of operation. If oil appears around the cap, shut down and verify the O-ring is intact and the cap is threaded straight.

Maintaining Your CAT Pump Oil Filler Cap

A two-minute inspection during each oil change keeps this small part from causing larger problems.

Check condition at every oil service. When you drain and refill ISO-68 crankcase oil, unscrew the 44666 and look for hairline cracks, thread distortion, or discoloration. A cap showing any of these signs should be replaced before the next run cycle.

Wipe the domed top before removal. The dome sheds water and debris during operation, but residue still accumulates. Cleaning the top surface before unscrewing the cap prevents dirt from falling into the crankcase.

Replace if signs of overheating appear. If the cap is soft to the touch, visibly warped, or has changed color, the pump may be running hotter than normal. Replace the cap and investigate the root cause; overheating often points to low oil level, wrong oil viscosity, or insufficient ventilation around the pump.

Stock at least one spare. For installations where delivery time matters (remote job sites, 24/7 car washes), keeping a spare 44666 in your parts inventory avoids unplanned downtime. A cracked or missing cap lets contaminants into the oil within minutes of operation.

Never substitute improvised plugs. Duct tape, rubber stoppers, or generic flat caps from other pump brands do not replicate the thread engagement, O-ring seal, or venting behavior of the OEM cap. Use the 44666 or a CAT-approved equivalent.

Who Should Use the CAT 44666 Oil Filler Cap?

This product is for anyone operating or servicing a CAT pump on a compatible frame:

• Pressure washing contractors running trailer-mounted or skid-mounted systems built around CAT 3, 5, 7, 15, or 25 frame HS/gearbox pumps.

• Car wash operators managing multi-pump installations where each minute of downtime costs revenue.

• Industrial maintenance teams responsible for fixed-installation CAT pumps on production lines, food processing plants, or facility washdown circuits.

• Equipment OEMs and rebuild shops assembling or refurbishing pumping systems that require correct OEM crankcase hardware for warranty compliance and reliability.

If you work with any compatible CAT pump, the 44666 belongs in your standard spare parts kit.

Frequently Asked Questions About the CAT 44666 Oil Filler Cap

Does the 44666 cap fit my CAT pump? It fits HS model and gearbox-drive versions of CAT model 3, 5, 7, 15, and 25 frame pumps. If your pump uses a different frame (such as the 4HP, 5DX, 6DX, or 66DX, which take the 46798 cap), the 44666 will not fit. Check your pump's nameplate or the exploded parts diagram in the service manual.

Is the 44666 cap made of metal or plastic? The construction material is heat-resistant reinforced composite, designated "RTP" in CAT parts lists. It is not metal. The composite includes reinforcing fibers or fillers that raise its strength and thermal stability above unreinforced plastics. For comparison, the 46798 oil fill cap is made from impact-resistant ABS plastic.

How often should I replace the oil filler cap? There is no fixed replacement interval. Replace the cap whenever you find cracks, softened material, damaged threads, or a leaking seal. Inspect it during every oil change. Many customers get years of service from a single cap under normal conditions.

Can I reuse the cap after an oil change? Yes. The cap is a durable, reusable component under normal circumstances. Inspect it and the O-ring before reinstalling. If the ring is flattened, hardened, or nicked, replace it (part number 14177) even if the cap body looks fine.

What happens if I run the pump with a missing or damaged cap? Oil contamination begins immediately. Dust and water enter the crankcase, degrading the lubricant. Oil can also splash or seep out, lowering the oil level. Both conditions accelerate wear on bearings, rods, and the crankshaft. Continued operation without a functional oil cap risks a pump failure that costs far more than the cap itself.

Secure Your Pump's Crankcase

A worn or missing oil fill cap puts your entire pump at risk. The CAT Pumps 44666 restores the factory seal on 3, 5, 7, 15, and 25 frame HS and gearbox pumps with a heat-resistant reinforced composite cap built to handle continuous-duty conditions.

Add the 44666 oil filler cap to your cart and keep a spare on hand. For customers running critical systems, that one small item can prevent the kind of contamination or oil loss that leads to expensive repairs and lost time.
