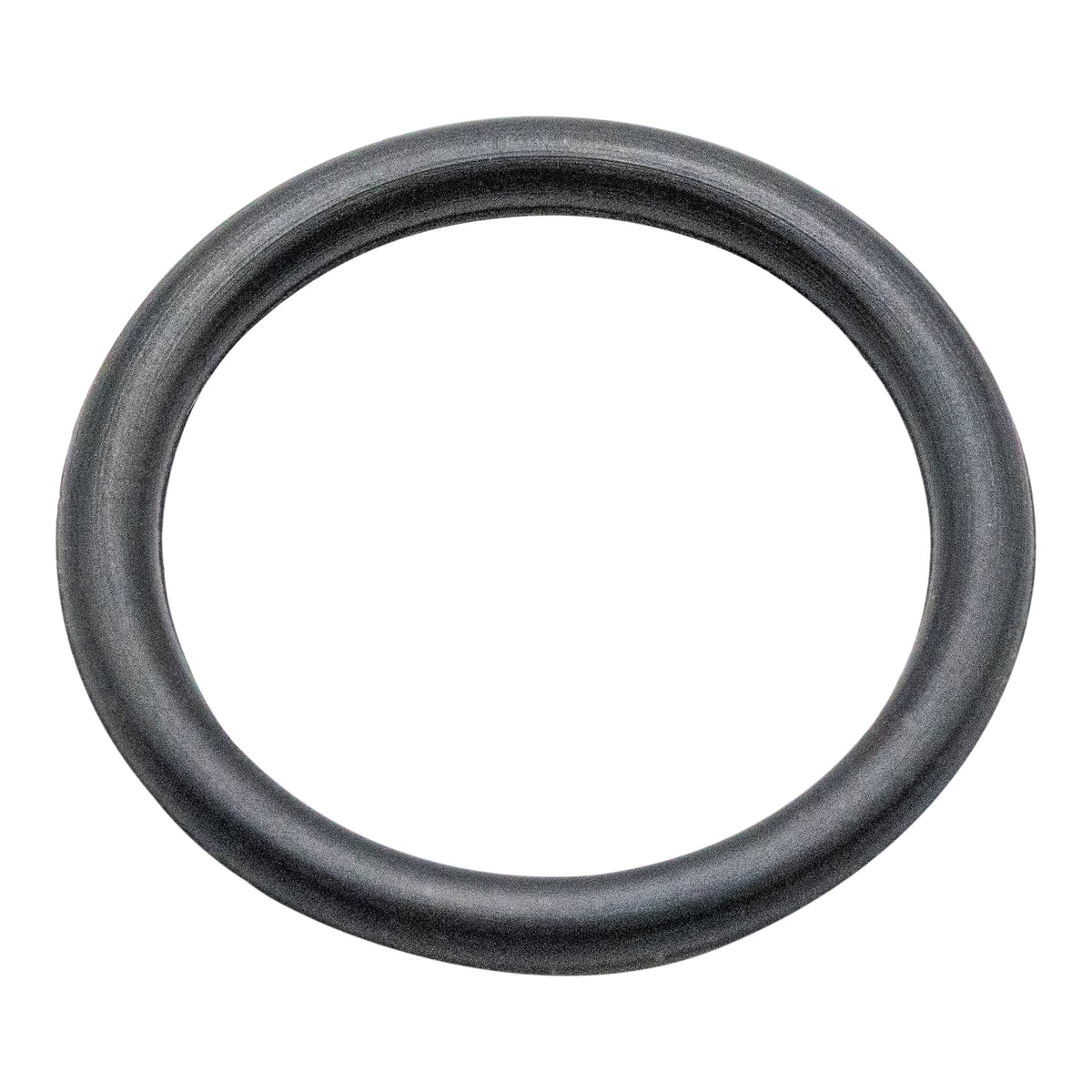

CAT Pumps 43358 Buna-N Valve Seat O-Ring 5FR - 2742

Reliable Buna N Valve Seat O-Ring for Demanding Valve Service

A Buna N valve seat o ring is one of those parts that doesn't get much attention—until it fails. Made from nitrile rubber (also called NBR), this acrylonitrile-butadiene elastomer sits quiet in a machined groove behind or around the valve seat, doing one job and doing it right: forming a bubble-tight static seal between the seat and the valve body. When the valve shuts, the o ring compresses hard against metal surfaces to keep fluid from sneaking through gaps you can't even see—keeping your system tight, your pressure where it belongs, and your equipment doing what you built it to do.

This o ring is built for valve seat sealing in pumps, ball valves, check valves, and control valves—the kind you'll find across industrial floors, farm operations, and pressure-washing rigs. Buna-N is widely used across various industries for its sealing applications because it shows up when it matters: proven resistance to petroleum-based oils and fuels, steady performance when pressure's climbing and falling, and a service life that keeps you running instead of fixing. Buna-N can operate effectively in temperatures from –40°F to 250°F, and it provides excellent resistance to petroleum-based oils and fuels—making it the go-to for any valve moving hydraulic fluid, diesel, kerosene, mineral oil, compressed air, or water.

Whether you're tearing down a triplex pump, swapping a beat-up seat seal on a ball valve, or stocking parts so you're ready when something goes wrong, this Buna N valve seat o ring delivers tight, leak-free operation across the temperature and pressure ranges that matter for real-world industrial work.

Why You'll Love This Buna N Valve Seat O-Ring

Spec sheets don't stop leaks—performance does. Here's what this o ring actually brings when it's seated in your valve assembly.

• Leak-free sealing around the valve seat – The ring squeezes between the valve seat and body to lock down a bubble-tight seal that won't give up even when pressure's pulsing and cycling. O-rings create static seals in valve applications by being compressed into grooves between stationary parts, and Buna N's give lets it fill micro-gaps that would otherwise have you chasing drips for days. Valve seats create a bubble-tight seal in ball valves, and this o ring is what makes that seal hold.

• Excellent resistance to oils, fuels, and hydraulic fluids – Buna-N provides excellent resistance to petroleum-based oils and fuels—exactly what's running through pump systems, compressors, unloader valves, and pressure washers day in and day out. It won't bloat, go soft, or come apart like cheap materials do when they're swimming in oil shift after shift. Buna-N is commonly used in hydraulic and pneumatic systems because it was made for this.

• Stable performance at typical industrial temperatures – Running from about –40°F to 250°F (–40°C to 121°C), this o ring covers just about every water, oil, and air valve application without reaching for exotic compounds or specialty materials. Buna-N maintains shape and elasticity under compression throughout its lifespan, so the seal you get on installation day is the seal that sticks around.

• Long service life with repeated cycling – Valve seats absorb and distribute mechanical stress during operation, and the seat takes the hit because it's in constant contact. Buna-N exhibits high tensile strength and abrasion resistance, plus good compression set resistance over time after being compressed. That means your seal stays solid through thousands of open-close cycles, pressure spikes, and vibration without flattening out or tearing to pieces. Properly engineered seats ensure durability over thousands of cycles—and this o ring is designed to keep up.

• Easy, intuitive installation and replacement – The ring drops into standard AS568 or ISO 3601 grooves without special tools or tricks. A clean groove, an o ring pick, compatible lubricant, and a few minutes—that's the whole story. No hunting down proprietary parts, no fighting with complicated assemblies. When it's time for a fresh one, you pull the worn ring, drop in the new one, and get back to it.

What Makes This Buna N Valve Seat O-Ring Different

Most valve leaks aren't dramatic failures—they're caused by the wrong o ring. A random ring pulled from a bin might be the wrong hardness, the wrong compound, or sized wrong. It might seal for a week, then quit under pressure, send you hunting for a leak, or tear up the seat surface. That's what happens when "close enough" meets valve seat sealing.

• Optimized hardness (durometer) for valve seat sealing – This o ring is made in the 70–80 Shore A durometer range—the zone where valve seat applications live. That hardness is firm enough to fight off extrusion when differential pressure hits across the seat, but soft enough to bend and seal without chewing up metal mating surfaces. Generic rings at 50–60 Shore A are too mushy and will squeeze out or nibble under load; 90 Shore A rings are too rigid for most seat shapes and won't seal when pressure's low.

• Formulated Buna N compound for oil- and fuel-rich environments – Not all NBR compounds were created equal. This ring uses a formula with dialed-in acrylonitrile content (usually 30–40% ACN) to hold back swell, resist going hard, and keep tensile strength when it's soaking in lubricants, fuels, and hydraulic fluids nonstop. That means no cracking, no mushrooming, no mystery pressure drops halfway through the season.

• Precision sizing for common valve seat grooves – Every ring is made to AS568 (inch) or ISO 3601 (metric) dimensional standards, so you get predictable stretch and compression when it's dropped into a properly cut groove. You get the 1–5% ID stretch and 15–30% cross-section squeeze that valve seat sealing demands—not a coin flip, not close enough.

• Reduced downtime and rework – When you drop in a valve seat o ring that's the right hardness, the right compound, and the right size, you wipe out the usual suspects behind unplanned downtime: slow leaks, pressure bleeding off, and seals giving up too soon. Buna-N is cost-effective compared to specialty elastomers like Viton, so you get dependable performance without torching your maintenance budget. Keep a handful of spares on the shelf and you'll never be stuck waiting on a shipment when a seal lets go.

How It Works in a Valve Seat Assembly

The way the valve seat, body, and o ring work together is simple to understand but precise in practice. Here's what happens at each step when this ring goes to work under pressure.

Step 1 – Installed in the Valve Seat Groove

The o ring sits in a machined groove behind or around the metal seat insert—whether that's in a ball valve, check valve, or control valve assembly. The groove is cut so the ring stretches a bit (usually 1–5% past the groove's inside diameter) to keep it planted without wobbling, and the cross-section lets it compress 15–30% when the valve's bolted together. Before you drop it in, make sure the groove and all surfaces touching it are clean—no metal chips, no burrs, nothing sharp. Put a thin coat of lubricant that works with your process fluid on the ring to keep it from twisting, pinching, or getting cut as it seats. A clean, straight fit is what separates a perfect seal from a ring that starts weeping on the first pressure hit.

Step 2 – Compression Under Assembly and Line Pressure

When you crank down the valve body or seat the closure member (ball, plug, or disc) against the seat, the o ring gets squeezed between the metal surfaces. That initial squeeze makes the static seal. But here's where it gets good: when line pressure shows up, the fluid pushes the o ring toward the low-pressure side of the groove, jamming it tighter against the surfaces and closing whatever tiny gaps are left. O-rings prevent fluid from escaping through microscopic gaps, and Buna N's spring-back means the ring recovers and re-seats after every pressure spike, temperature shift, or vibration hit. Buna-N exhibits good sealing performance in dynamic applications, so even a little movement at the seat interface won't blow the seal.

Step 3 – Maintaining a Long-Term Seal

Over time, a little wear shows up on the seat face, the valve body, and the closure member. Heat makes things expand and cold makes them shrink by thousandths of an inch. Vibration from the engine, pump, or process line works on every connection. A properly fitted Buna N valve seat o ring takes care of all of it. Buna-N has good compression set resistance over time after being compressed, meaning the ring bounces back to its shape instead of going flat and losing squeeze. The right hardness (70–80 Shore A) stops extrusion when pressure climbs, while the compound formula fights off whatever's running inside the valve. The payoff: shutoff integrity and zero leaks on the outside across years of service—not weeks, not months.

Product Details: Buna N Valve Seat O-Ring Specifications

Here are the specs you need for planning and ordering:

• Material: Buna N (Nitrile Rubber / NBR), an acrylonitrile-butadiene elastomer built specifically for oil, fuel, and water service. Buna-N is also known as nitrile rubber or NBR.

• Hardness: Typically 70–80 Shore A durometer; this range fits valve seats in pumps, ball valves, and check valves up to standard industrial pressures. Lower or higher durometers available when applications call for it.

• Temperature range: About –40°F to 250°F (–40°C to 121°C) for continuous service. Certain grades of Buna-N are FDA-compliant for food and dairy processing applications. Performance at the edges should be tested for critical jobs.

• Pressure capability: Built for static valve seat sealing in systems running in the hundreds to low-thousands of PSI, depending on groove design, clearance, and backup. Backup rings can push pressure ratings higher.

• Chemical compatibility: Works with mineral oils, diesel, kerosene, many hydraulic fluids, compressed air with oil, and water. Don't use it for strong oxidizers, ozone-heavy environments, aromatic solvents, ketones, or steam. Buna-N is susceptible to degradation from ozone, sunlight, and steam.

• Standards and sizing: Available in AS568 (inch) and ISO 3601 (metric) sizes used in valve seat grooves. Match cross-section and ID to the original seat design for the right stretch and squeeze.

• What's included: Individual Buna N valve seat o ring(s) only. Valve body, seat inserts, spring, stem, and hardware come separately from the valve or pump manufacturer. O-rings are made from various elastomers like NBR and FKM—if your job needs different material, seats are also available in materials like PTFE, RPTFE, or PEEK.

Who This Buna N Valve Seat O-Ring Is For

This o ring is made for anyone maintaining, rebuilding, or assembling valves handling oils, fuels, air, and water at moderate temperatures. If your valve seat needs a solid static seal and you want proven materials instead of exotic elastomers for standard-duty work, this is your part.

• Pressure washer and pump technicians – You're keeping high-pressure triplex pumps, unloader valves, and check valves running where a shot seat seal means lost pressure and wasted hours. A fresh Buna N valve seat o ring brings back full shutoff and keeps your pump doing what it's supposed to. Keep a few on hand so a blown seal doesn't leave you stranded on a job site.

• Industrial maintenance teams – You're working on oil, air, and water valves in factories, wash bays, and process lines. These parts need solid static seals around the valve seat to keep production rolling and stop leaks that turn into safety and environmental headaches. Standardizing on Buna N for standard-duty valves makes ordering simpler, cuts down inventory mess, and saves money.

• Agricultural and mobile equipment operators – Hydraulic valves, fuel system valves, and sprayer controls take a pounding in the field—dirt, vibration, temperature swings, and nonstop cycling. Buna-N exhibits high tensile strength and abrasion resistance, which is exactly what you need when your gear lives outside and runs hard. When a head gasket or valve seal starts giving up out in the field, having the right replacement ready means the difference between a quick fix and a lost day.

• Valve manufacturers and OEMs – For standard-duty work, Buna N hits the sweet spot for cost, performance, and availability. Only when conditions push into higher heat resistance, chemical aggressiveness, or fire-safe requirements do you need to step up to FKM, HNBR, or PTFE-based solutions.

Frequently Asked Questions About Buna N Valve Seat O-Rings

Is Buna N the right choice for my valve seat O-ring?

For most valves moving petroleum oils, hydraulic fluids, diesel, compressed air, and water at moderate temperatures, Buna N is the right call and the most cost-effective choice. That said, if your valve runs nonstop above about 250°F (121°C), sees steam, strong oxidizers, or high-ozone environments, Buna N will break down—it'll go hard, crack, and quit sealing. When that's your world, look at FKM (Viton), EPDM, or PTFE-based solutions. O-rings can lose elasticity over time, causing leaks, so matching the material to your operating conditions is the most important call you'll make.

How do I size a replacement Buna N valve seat O-ring?

Start by matching the original part number if you've got it. If not, use calipers to measure the groove inside diameter and the cross-section of the old ring. Line up your numbers with the closest AS568 (inch) or ISO 3601 (metric) size that gives you proper stretch (1–5% over groove ID) and squeeze (15–30% cross-section compression). If your measurements land between standard sizes, pick the size that gets you enough compression without over-squeezing. If the old ring was sized wrong—too loose, too tight, or squeezed out—that's probably why it gave up.

How long will a Buna N valve seat O-ring last in service?

Life depends on pressure level, how often it cycles, temperature, what's flowing through it, and how well it was installed. In well-designed systems running inside Buna N's rated window, you can expect multi-year service intervals. Typical ways these fail early include compression set (the ring goes flat and stops sealing), chemical swelling or hardening (from fluids it wasn't made for), abrasive wear (from dirt in the media), and extrusion (from a groove that can't support it at high pressure). If you're burning through rings too fast, check your operating conditions and groove dimensions before blaming the material.

Can I use this O-ring for dynamic sealing on the moving valve element?

A valve seat o ring is engineered as a static seal between the seat and the valve body—it's not the primary seal against the moving ball, plug, or disc. That dynamic interface usually uses engineered seat faces (PTFE, RPTFE, or metal-to-metal) or valve stem packing. While Buna-N exhibits good sealing performance in dynamic applications and can handle a little back-and-forth movement, it's not built for sealing against a spinning ball or a valve stem cycling fast. For those jobs, PTFE or purpose-built dynamic seals are what you want.

Do I need special tools to install a Buna N valve seat O-ring?

No. Most installations need nothing more than basic hand tools, an o ring pick or tweezers, and a lubricant that works with your process fluid. Don't use sharp metal tools that can nick or slice the elastomer—even a tiny cut on the sealing surface can let the ring pass fluid under pressure. Make sure the groove and all surfaces it touches are clean and burr-free before you set the new ring in place. A clean, careful installation takes a few minutes and stops the kind of damage that leads to early failure and do-overs.

Ready to Upgrade Your Valve Seat Sealing?

Stop chasing leaks from beat-up, wrong-size, or wrong-compound o rings. A correctly specified Buna N valve seat o ring cuts out the guesswork, locks down your system pressure, and stretches the working life of your valve assembly. It's a small part that fixes a big problem—and at a fraction of what specialty elastomers cost.

Standardize on properly sized Buna N seat o rings for your oil, fuel, air, and water valves running inside the –40°F to 250°F range. Buy the right size, the right hardness, the right compound—and keep spares on hand so you're never waiting on a shipment when a seal gives out.

Take a few minutes to look over your current valve seals. Swap out any ring that's worn, gone hard, cracked, or swollen. Write down the correct AS568 or ISO 3601 sizes and compounds for every valve in your system. That simple step will save you time, money, and headaches for years to come.
