SMC 6903390 VANNE À BILLE POLY 3 VOIES 1/4" CANNELÉE

Détails du produit

  • Unité de gestion de stock 2292

Specifications

PRODUCT

Barbillon 1/4"

Don’t see it? We can get it!

Not sure if this product is right for you? Speak to our knowledgeable technical team now.

Call: 1 (800) 676-0607

Email: orders@barens.com

Description

This valve is perfect for soft wash systems, chemical injection units, and other fluid setups

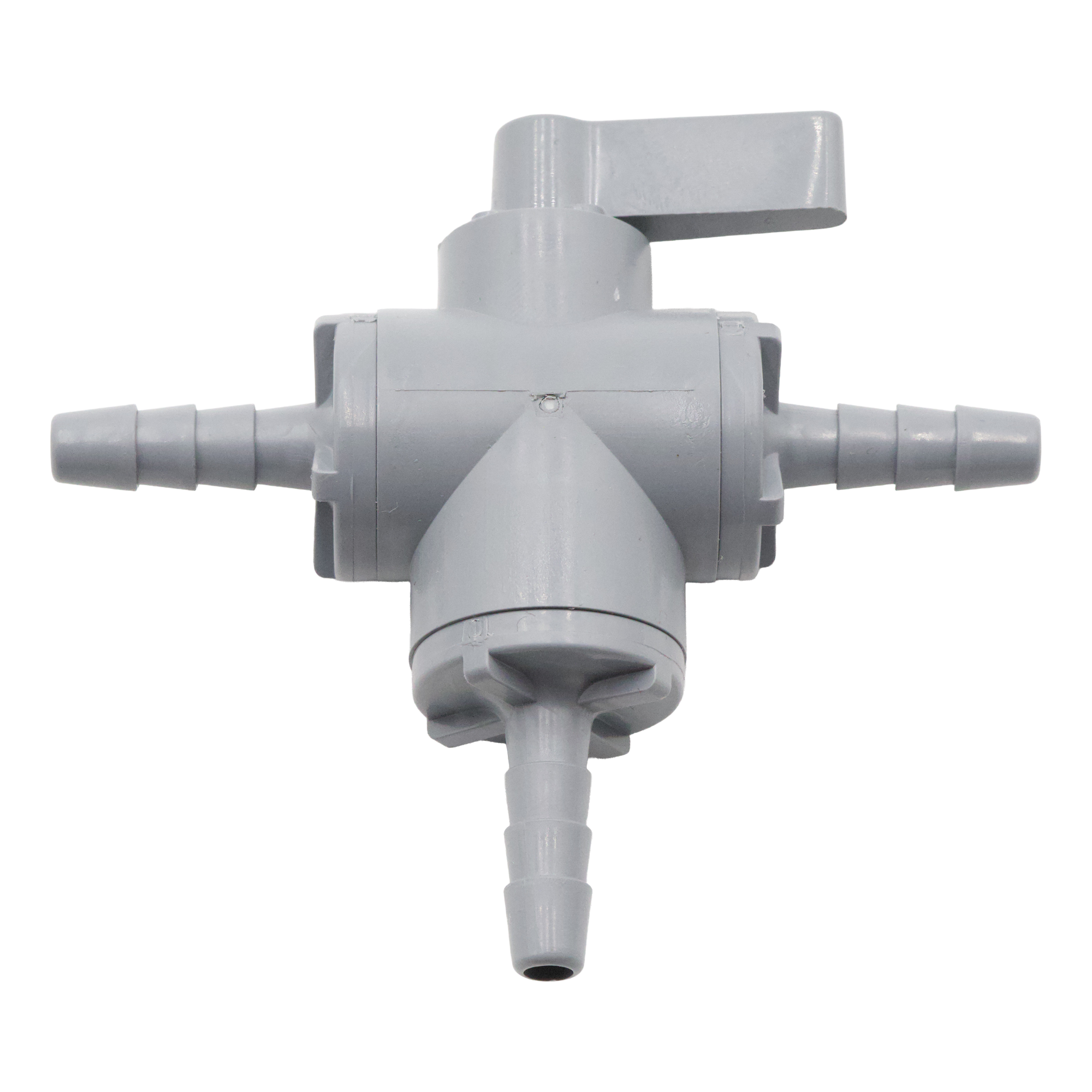

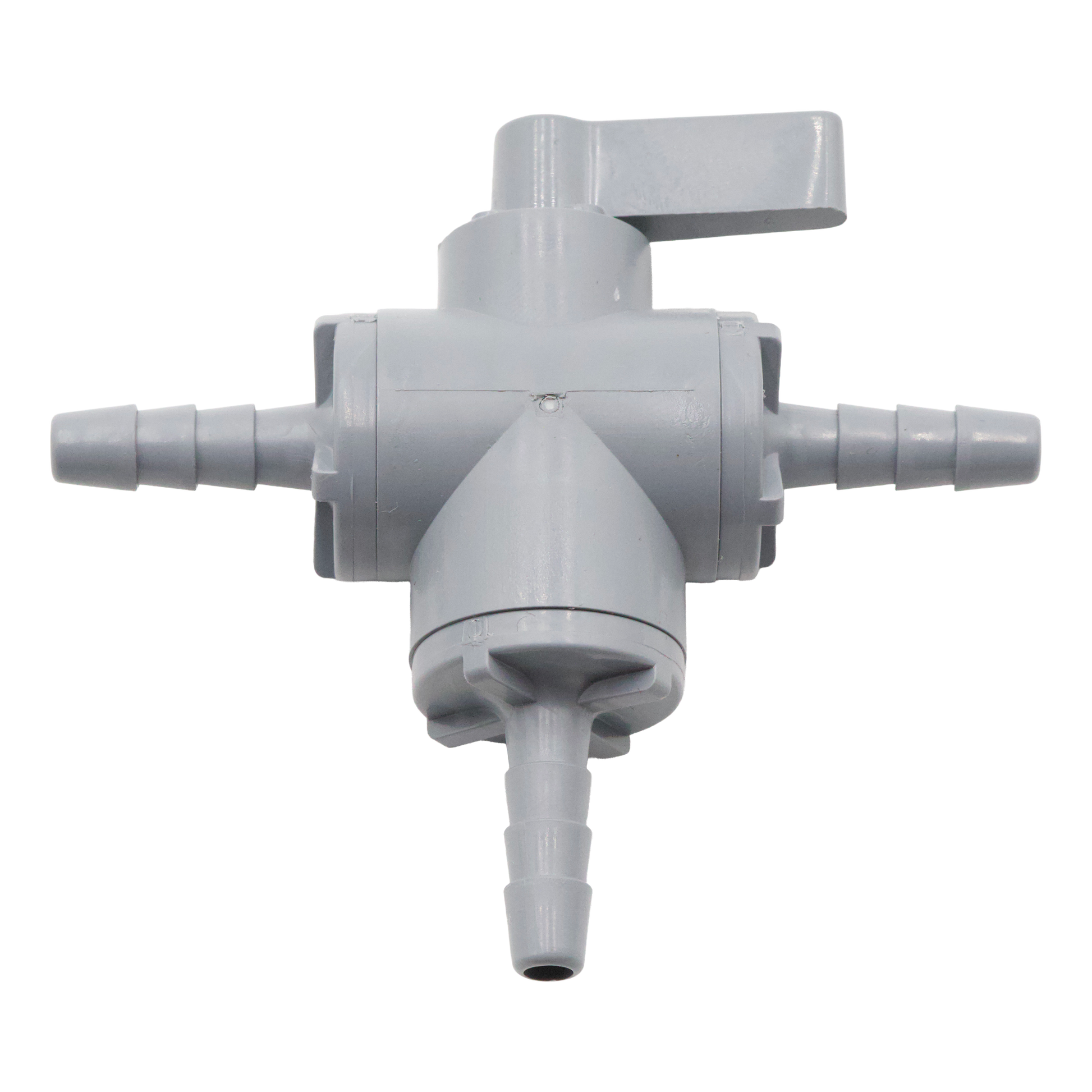

The SMC 6903390 3-Way Poly Ball Valve is a pretty crucial part of getting the flow right - especially when you're working with chemicals or water. This thing is just right for a soft wash system, or for a chemical injection unit - or really any time you need to easily switch or divert the flow between two different lines.

This valve comes from the Manual Ball Valve Product Group and its built to last - super durable and resistant to chemicals. The Body Material is PVC and the Ball Material is also PVC, and the seals are just as resilient with Viton Seal Material and Viton Seat Material. The 1-piece design and self-lubricating PVC Stem Material make for smooth operation and a long life.

It's a 3-Way Body Style, lets you select one of two different lines with just a quick twist of the handle. The Flag style Handle Material (also PVC) is pretty straightforward. The Full Port design lets through as much liquid as possible with minimal pressure drop.

This one's built on Barb x Barb x Barb Connection Type on all three ports, with barbs sized for 1/4" Hose I.D. (inside diameter) tubing - that's what you'll often find on siphon lines and small feed lines. The Pipe Size is 1/4" - this thing's rated for a Max. Pressure of 125 psi WOG (Water, Oil, Gas) and will work fine in a Temp. Range of 20 - 140 degrees Fahrenheit. This kind of reliability and durability makes it a no-brainer for upgrading your cleaning routine - this item can ship right away - add to cart and you're good to go.

Specifications

This is a top-quality SMC valve:

  • Product Name: 3-Way Poly Ball Valve

  • Manufacturer: SMC

  • Ball Valve Product Group: Manual

  • Valve Structure: 1-Piece

  • Body Style: 3-Way

  • Port: Full

  • Pipe Size: 1/4"

  • Connection Type: Barb x Barb x Barb

  • Hose I.D.: 1/4"

  • Max. Pressure: 125 psi WOG

  • Temp. Range: 20 Degrees to 140 Degrees F

  • Body Material: PVC

  • Ball Material: PVC

  • Stem Material: PVC

  • Stem Type: Self-Lubricating

  • Handle Material: PVC

  • Handle Type: Flag

  • Seal Material: Viton

This SMC product is the perfect pick-up to give your fluid control system a serious efficiency boost & make it last longer than ever before.
