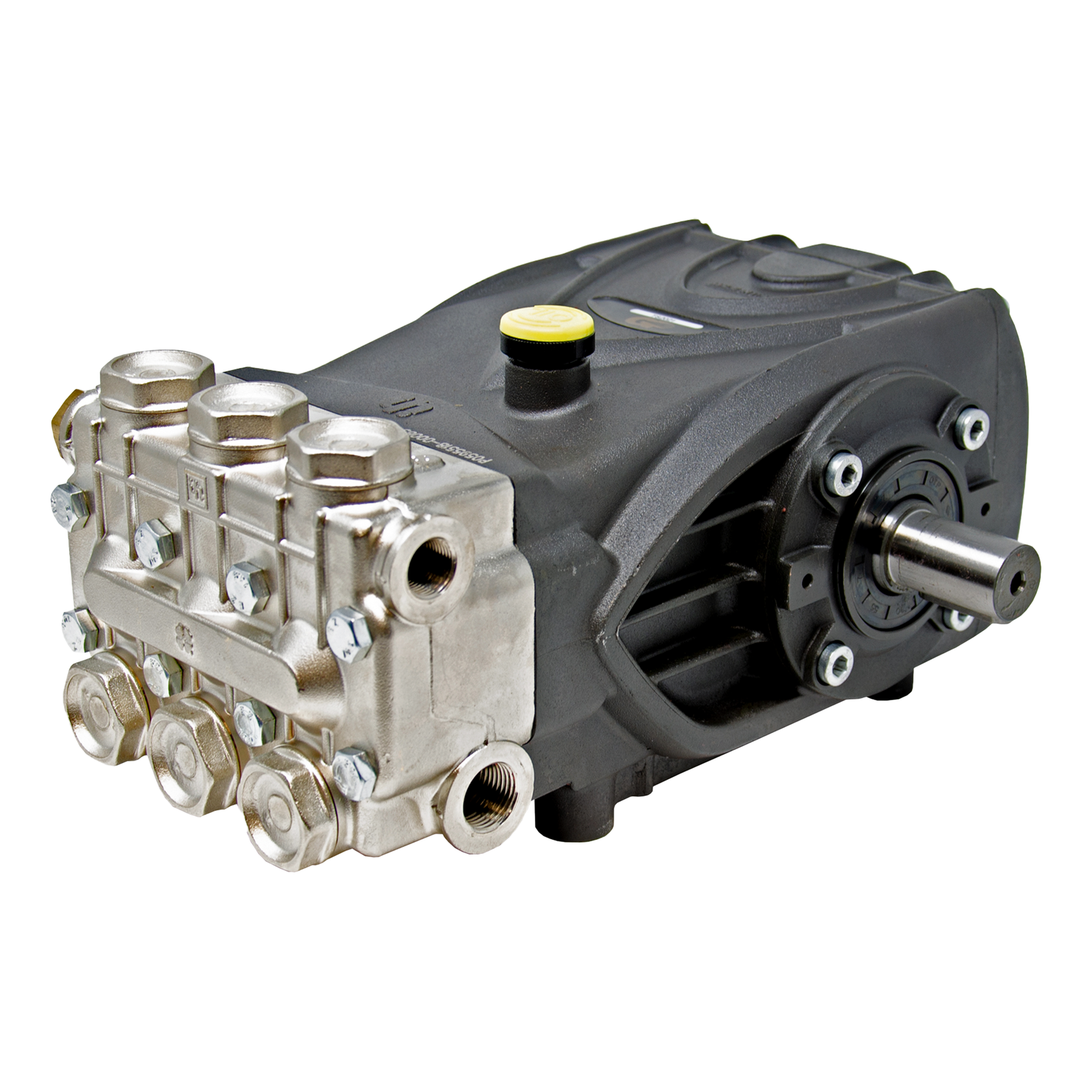

Pompes General Pumps TS2021 NICKEL PLT HEAD 5,6 GPM 3500 PSI 1450 TR/MIN

In Stock Quantity Available: 155

Specifications

SKU: 2012

SHAFT

24 mm solid shaft

GHP

17.5

INLET

1/2" BSP-F

MFG

General Pump

MFG MODEL NO

TS2021

BHP

13.5

WT

33 livres

Outlet

3/8" BSP-F

PSI

3500

GPM

5,6/4,5

RPM

1 450/1 125

MAX TEMPERATURE

165°F (74°C)

Downloads

DON'T SEE IT? We can get it! Not sure if this product is right for you, or if there are alternatives? Speak to our sales department:

Call: 1 (800) 676-0607 Email: orders@barens.com

General Pump TS2021 at a Glance

The General Pump TS2021 is a heavy-duty triplex plunger pump built for pressure washers and industrial cleaning systems that demand consistent, high-output performance. It is a triplex series 47 pressure washer pump recognized as industry-standard equipment for pressure cleaning, delivering up to 3500 PSI with flow rates of 4.5 GPM at 1125 RPM or 5.6 GPM at 1450 RPM. The pump is designed for demanding cleaning applications in various industries, from professional pressure washing and fleet washing to facility maintenance, agriculture, and industrial cleaning lines - and its Series 47 platform with a 24 mm solid shaft has a long history of dependable service in the field.

Why You'll Rely on the General Pump TS2021

These are the real-world benefits that contractors, facility managers, and system builders experience when they run a TS2021 day in and day out:

  • Consistent high pressure – The TS2021 has a maximum pressure of 3500 PSI at both lower and higher RPM settings. High pressure provided by the TS2021 helps remove stubborn contaminants - grease, oil, caked-on mud, and industrial residue - without requiring multiple passes.

  • Strong flow options – The TS2021 pump has flow rates of 4.5 or 5.6 GPM, letting you match output to the task. The 4.5 GPM setting at 1125 RPM is ideal for long spray lines or more controlled wash work, while 5.6 GPM at 1450 RPM delivers faster rinsing and broader surface coverage. The TS2021 can efficiently clean large surfaces due to its flow rate and pressure combined.

  • Reduced downtime – A forged brass manifold (nickel-plated on the TS2021N), heavy-duty tapered roller bearings, oversized connecting rods, and solid ceramic plungers designed for extended wear life all work together to minimize unexpected failures. The pump incorporates unitized stainless steel valves for reliable flow control, further reducing service interruptions.

  • Long service life – The manifold of the TS2021 is made of nickel-plated brass for corrosion resistance, standing up to moisture, mild chemicals, and oxidation far better than uncoated alternatives. This durability is one reason the pump holds its reputation across the market.

  • Easy to service – Routine maintenance is straightforward due to its design and component access. Visual oil sight windows, accessible oil fill and drain, and unitized valves that can be replaced as groups mean you spend less time wrenching and more time working. Packings, valves, and other parts are widely available.

  • Flexible integration – With a 24 mm solid shaft, standard Series 47 bolt pattern, and common BSPP port threads, the TS2021 fits many belt-drive and direct-drive pressure washer frames, giving builders and technicians freedom to match the pump to their power source and desired output.

What Makes the TS2021 Different

Many high-pressure pumps on the market share a common problem: frequent seal or packing failure, hard-to-find parts, and noticeable performance drop at lower RPM. The TS2021 is engineered specifically to avoid these issues.

The General Pump TS2021 is built differently:

  • Proven Series 47 design – The 47 frame has a long history in the pressure washing industry with minimal design changes over the years. That consistency means broad cross-compatibility of parts and strong aftermarket support - you won't find yourself searching for weeks to source a replacement component.

  • Flexible RPM performance – Flow rate depends on the pump's RPM settings. The TS2021 is rated for both 1125 RPM (4.5 GPM) and 1450 RPM (5.6 GPM), allowing system designers to prioritize torque and cooler operation or higher flow depending on the machine's engine or motor capability. Some TS2021 units advertise flow rates up to 5.7 GPM, though the standard rating holds at 5.6 GPM. The maximum PSI of 3500 stays constant across both speed points.

  • Nickel-plated manifold option (TS2021N) – The nickel plating adds meaningful corrosion resistance in environments where moisture, mild detergents, or occasional exposure to salt and acidic wash water would degrade a plain brass head over time.

  • Wide parts availability – Because this GP product shares its platform with other Series 47 pumps and has been in production for years, packings, valves, seals, and repair kits are easy to find. That availability is a major reason commercial operators choose this pump.

  • Solid power handling – The TS2021 requires a power input of approximately 10.8 to 13.4 EBHP, depending on speed and flow. That range is well suited to mid- to large-frame gas engines or robust electric motors, giving you confidence the pump can handle sustained, demanding work.

How the General Pump TS2021 Works

The TS2021 is a triplex plunger positive displacement pump. Unlike centrifugal or diaphragm pumps, it delivers a fixed volume of water per stroke, producing steady pressure with minimal pulsation and high mechanical efficiency - exactly what professional pressure washing demands.

  1. Water inlet – Water enters through the inlet port and fills the pump chambers behind each plunger during the intake stroke. The pump can handle inlet pressures up to 125 PSI and tolerate limited vacuum conditions when a flooded supply isn't available.

  2. Plunger action – Three solid ceramic plungers, driven by a crankshaft and connecting rods, compress the water on each forward stroke. Inlet and discharge valves - unitized stainless steel - open and close to control flow direction. The ceramic plungers and continuously lubricated packings manage heat and friction for reliable, repeatable output.

  3. High-pressure outlet – Pressurized water exits through the discharge port and travels through hoses, guns, and nozzles. Pressure remains consistent within design limits, while flow scales with drive RPM. An unloader valve and safety relief protect the pump when the trigger gun is closed or system pressure exceeds safe levels.

Key Specifications and Technical Details

Here are the verified specs you need to check compatibility, size your drive system, and evaluate fit:

  • Pump type: Triplex plunger, General Pump Series 47

  • Max pressure: 3500 PSI across standard configurations

  • Flow rate: 4.5 GPM at ~1125 RPM; 5.6 GPM at ~1450 RPM. The TS2021 operates at 1450 RPM for optimal performance and maximum flow. Output scales proportionally with speed.

  • Shaft: The TS2021 has a shaft diameter of 24 mm (solid), standard for Series 47 belt-drive and direct-drive setups

  • Power requirement: Approximately 10.8 EBHP at 4.5 GPM / 1125 RPM; approximately 13.4 EBHP at 5.6 GPM / 1450 RPM - suitable for mid- to large-frame gas engines or strong electric motors

  • Bore and stroke: 20 mm bore (.787 in); 16 mm stroke (.630 in)

  • Manifold materials: Brass (standard TS2021) or nickel-plated brass (TS2021N) for added corrosion resistance

  • Weight: The TS2021 can weigh approximately 32 lbs, well suited to heavy-duty washer frames

  • Dimensions: Approximately 12.2 × 9.2 × 6.9 inches

  • Oil capacity: The pump's oil capacity ranges from 33.8 to 40.6 oz, depending on manifold version

  • Maximum fluid temperature: The pump has a maximum fluid temperature rating of 165°F (74°C)

  • Connections: Inlet is 1/2-14 BSPP (female); discharge is 3/8-19 BSPP (female)

  • Maximum inlet pressure: 125 PSI; maximum inlet vacuum approximately 9 feet of water

Included Components and Compatible Setups

When you order a TS2021, here's what to expect in the box and how it integrates into your existing system.

What's typically included:

  • Fully assembled TS2021 pump unit with crankcase oil fill plug and sight glass for visual oil level check. The crankcase is anodized aluminum.

  • Mounting holes compatible with the Series 47 standard frame footprint, fitting many aftermarket base plates and frames.

  • Basic documentation including installation guidelines, maintenance recommendations, oil type specifications, and a parts list.

Common compatible setups:

  • Belt-drive systems running the pump at 1450 RPM for maximum 5.6 GPM output, often combined with gas engines or electric motors using pulleys to manage speed. Belt-drive configurations help isolate vibration and reduce component fatigue.

  • Lower-RPM configurations (around 1125 RPM) prioritizing longevity, cooler operation, and a 4.5 GPM flow rate - ideal for fixed wash bays or applications where volume is less critical than sustained pressure.

  • Replacement pump use for older units like the TS1021 or TSF-series in machines sized for the Series 47 footprint. Before making your purchase, double-check frame dimensions, shaft hand (left or right), inlet/outlet orientation, and engine power to avoid any error in fitment.

Installation Basics for the General Pump TS2021

Safety first: Before beginning installation, disconnect all power (electrical or engine), relieve all system pressure through the trigger gun and unloader, and follow General Pump's published guidelines.

  • Mounting – Align the Series 47 footprint with your frame or base plate. Ensure the pump sits level and is securely bolted down. Misalignment can stress the shaft, bearings, and seals.

  • Shaft connection – Install the pulley or coupling on the 24 mm solid shaft with proper alignment. Poor alignment increases vibration, accelerates wear, and raises the risk of bearing or seal failure. Confirm shaft hand (left or right) matches your drive system.

  • Plumbing – Connect the water inlet with an adequately sized supply line and a pre-filter to remove debris. Attach the high-pressure outlet to the hose and unloader valve. Use correct thread fittings (1/2-14 BSPP for inlet, 3/8-19 BSPP for discharge) to prevent leaks.

  • Lubrication – Fill the crankcase with the recommended oil (typically non-detergent SAE 30) to the sight glass or fill mark. Verify the oil level before every first start.

  • Priming and first start – Open the trigger gun to purge air, ensure water flows freely into the pump, then start the drive engine or motor. Monitor for leaks, listen for unusual noise or vibration, and check the oil level again after warm-up.

Complex or commercial setups - especially hot-water systems - should be installed or reviewed by a qualified technician.

Maintenance and Longevity Tips

Proper maintenance is the single biggest factor in how long your TS2021 will run. Follow these guidelines to protect your investment:

  • Check oil regularly – During the break-in period (first ~40 hours), check more frequently. Change crankcase oil after initial break-in, then at consistent operating-hour intervals (e.g., every 500 hours or every few months under heavy use). Monitor oil for discoloration or signs of overheating.

  • Inspect for leaks – Even small seepage around the manifold or crankcase can lead to internal corrosion or seal erosion. Address any problem early before it becomes a larger, more expensive repair.

  • Replace packings and valves proactively – If the pump runs daily in commercial service, schedule preventive replacement. Worn packings reduce efficiency and allow leakage that can damage other parts.

  • Keep inlet filters clean – Ensure adequate water supply at all times. Running dry or starving the pump causes cavitation, which severely degrades plungers, valves, and manifold surfaces.

  • Avoid running with a closed trigger gun – Extended operation without flow can overheat water and damage seals or valves. Use a proper bypass or unloader to manage recirculation.

  • Nickel-plated heads (TS2021N) – The nickel coating offers strong resistance to moisture and mild chemicals, but it can erode under abrasion or aggressive chemical exposure. Keep surfaces clean and avoid direct contact with highly acidic or abrasive solutions.

Common Questions About the General Pump TS2021

Is the TS2021 easy to use? Yes. Once installed with clean water supply, proper power, and an unloader, the pump operates largely hands-off through your pressure washer's controls. Regular tasks are limited to checking oil, inspecting hoses, and opening the trigger gun before each use. Minimal direct interaction with the pump itself is required during normal work.

How long can a TS2021 last? With proper oil changes, clean water supply, and timely seal and packing replacement, thousands of operating hours are realistic. User experience varies widely based on conditions. Another user praised the pump's quality after 12 years of use, demonstrating what's possible with consistent care. However, one user reported the pump failed after a few weeks - reinforcing that installation quality, water supply, and maintenance discipline all play a role.

What's the difference between TS2021 and TS2021N? The "N" version uses a nickel-plated forged brass manifold (head) for improved corrosion resistance versus standard raw brass. All other mechanical specs - bore, stroke, shaft size, flow, and pressure - are generally the same. The nickel plating adds cost but pays off where moisture, acid, or chemical exposure is a concern.

Can I swap a TS2021 into an older pressure washer? In many cases, yes - but check carefully before you order. Verify that the frame can accommodate the Series 47 footprint, that drive shaft length and shaft hand match, that your engine or motor has enough EBHP (you'll need at least 10.8 EBHP for 4.5 GPM, and around 13.4 EBHP for 5.6 GPM), and that inlet and outlet fittings match or can be adapted without restriction.

Does the pump pressure change with RPM? Flow (GPM) scales roughly linearly with RPM - the TS2021 can also operate at 4.5 GPM at lower RPM (1125), while the TS2021 offers a flow rate of 5.6 GPM at 1450 RPM. The maximum pressure rating of 3500 PSI stays constant, provided your drive can sustain it and your inlet supply, unloader, and overall system support it. If power drops or RPM is reduced below spec, flow decreases and pressure may fall under load. Some users noted discrepancies in advertised GPM ratings - always confirm your actual RPM to set realistic expectations. A review claimed the pump was poorly made and misleadingly advertised, but the majority of feedback from long-term users supports the pump's performance when properly installed and maintained.

Why Choose the General Pump TS2021

The General Pump TS2021 is a proven, durable choice for anyone building or maintaining a professional pressure washer system in the 2500–3500 PSI, 4.5–5.6 GPM range. Its combination of flexible RPM performance, heavy-duty construction with solid ceramic plungers and a nickel-plated brass manifold, and easy serviceability make it a pump you can rely on across thousands of hours. Common applications for the TS2021 include commercial pressure washing and industrial cleaning - and it is recognized as industry-standard equipment for pressure cleaning for good reason.

If you're looking for a replacement pump or planning a new build, review the Series 47 specifications against your frame, engine, and plumbing to confirm compatibility. Whether you choose the standard TS2021 or the corrosion-resistant TS2021N, this pump is built to work hard and last.
