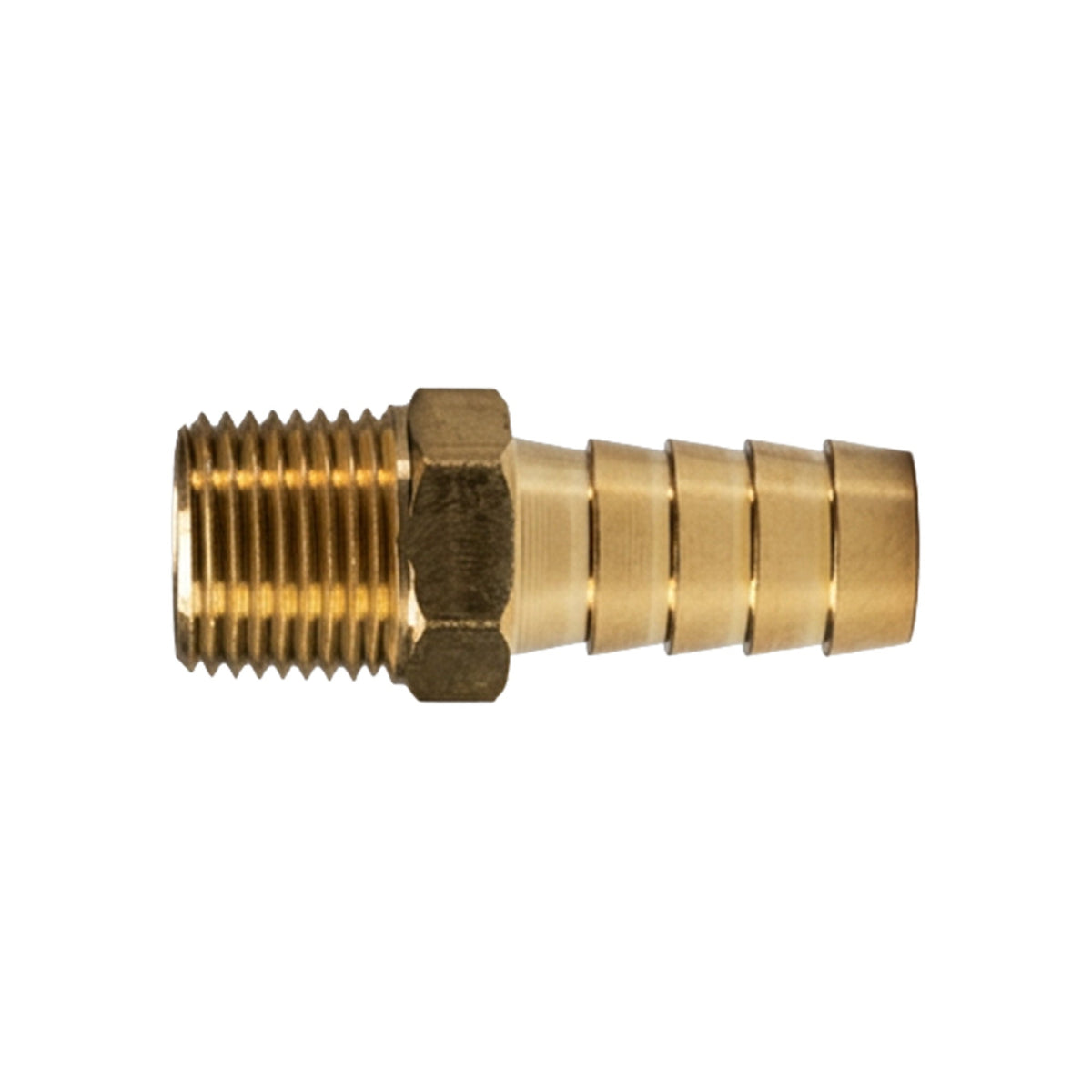

Brass Hose Barb 3/8" MPT x 5/8" 5/32" - 1730

Targeted Flow Control in a Compact Fitting

The orificed hose barb 3/8" MPT x 5/8" is a purpose-built fitting that combines a 3/8-inch male pipe thread connection, a 5/8-inch hose barb, and a fixed internal orifice into a single component for controlled fluid or air delivery. The fitting contains a small opening that limits the amount of fluid passing through it, giving you predictable, repeatable flow restriction without the bulk or complexity of separate valves or regulators.

An orifice creates a restriction in the flow path of a pump, and this fitting puts that restriction exactly where you need it-right at the connection point. Orifice hose barbs are used for fluid metering and flow restriction across a wide range of systems. You'll find this specific size at work in pump bypass lines, chemical dosing setups, coolant lines, compressed air circuits, spray and mist systems, and pressure washing applications. An orificed hose barb is commonly used in pressure washing applications where consistent flow to downstream nozzles is essential.

Why You'll Rely on This Orificed Hose Barb

Choosing the right orificed barb directly affects how stable, efficient, and maintenance-friendly your system performs over thousands of operating hours. Here's why this fitting earns its place in your bill of materials.

• Consistent Flow Rate – The built-in orifice delivers a predictable flow volume at a given pressure, reducing the risk of over-feeding fluids, chemicals, or compressed air to downstream components. A fitting with a larger orifice allows more flow under the same conditions, so selecting the correct restriction diameter keeps your system dialed in.

• Improved System Stability – The orifice helps dampen pressure surges, spikes, and pulsing from diaphragm or piston pumps. Orificed hose barbs are designed to create suction on the pump's inlet side, stabilizing pump operation and protecting sensitive downstream equipment. However, note that excessive inlet restriction can cause cavitation and pump damage-proper orifice sizing is critical.

• Space-Saving Design – By combining flow restriction and hose connection in one fitting, you eliminate separate inline restrictors, needle valves, or orifice plates. Fewer components mean a cleaner layout and less plumbing to design around.

• Reduced Maintenance – Fewer leak points, fewer threaded joints, and no operator-adjustable parts mean less chance of mis-adjustment, drift, or seal failure. Hose barbs connect hoses to pipes or fittings in a straightforward, reliable way that field technicians appreciate.

• Versatile Integration – A 3/8-inch MPT can screw into female-threaded ports or valves on common pump heads, manifolds, regulators, and tank fittings. Meanwhile, a 5/8-inch barb is designed to fit flexible hoses with a 5/8-inch inner diameter, making hose selection simple.

• Durability Under Real-World Use – Built for continuous-duty environments-industrial washdown, agriculture, coolant loops, and fluid transfer lines-where fittings must handle vibration, temperature cycling, and repeated pressurization without degradation.

What Makes This 3/8" MPT x 5/8" Orificed Barb Different

Standard hose barb fittings are commonly used in plumbing applications and general fluid transfer, but they offer no internal flow restriction. If you need to limit flow, a generic barb forces you to add separate orifice plates, needle valves, or inline restrictors-each adding joints, leak paths, and assembly time. The orificed hose barb 3/8" MPT x 5/8" eliminates that complexity by engineering the restriction directly into the fitting body.

• Integrated Orifice Geometry – The orifice is factory-machined into the fitting, not drilled in the field. The standard orifice size on these fittings is typically 5/32 inch, providing a well-characterized restriction for common flow-control scenarios. Controlled edge geometry reduces turbulence and improves discharge coefficient consistency from piece to piece.

• Optimized Barb Profile for 5/8" Hose – Multiple barb ridges with appropriate spacing and taper grip 5/8" ID hose securely. The barb length ensures the hose covers all ridges, creating a strong mechanical hold when paired with a proper clamp.

• Machined 3/8" MPT Threads – Clean, tapered NPT threads (3/8-18 TPI) provide strong, consistent engagement with pump heads, manifolds, and valves. Chamfered entry simplifies hand-starting and reduces the chance of cross-threading.

• Engineered for System Efficiency – Combining barb and restriction in one body minimizes total pressure losses compared to improvised multi-fitting arrangements, keeping energy costs lower and system performance tighter.

• Quality-Controlled Orifice Sizing – Orifice diameter is held to tight tolerances so that every fitting in a production batch delivers the same flow rate at the same pressure, ensuring repeatable system setup across multiple units or replacement cycles.

How It Works in Your System

This fitting does three jobs at once: it connects to a threaded port, attaches to a flexible hose, and limits flow through a fixed internal restriction. Installation is straightforward.

Step 1 – Install the 3/8" MPT End

Thread the 3/8" MPT side into your pump outlet, manifold, regulator, or tank port. Apply PTFE tape or an appropriate thread sealant to the male threads before installation. Hand-tighten, then use a wrench for 1.5 to 2 additional turns past hand tight-avoid over-torquing, especially when threading into softer housings like aluminum or polymer manifolds, which can crack under excessive force. Orient the barb so the hose path exits smoothly without sharp bends or kinks.

Step 2 – Attach the 5/8" Hose

Slide a 5/8" ID hose fully over all barb ridges until the hose end sits past the last barb. Secure it with an appropriate clamp-worm gear, Oetiker, or constant-tension types-positioned just behind the last barb ridge. Ensure the hose is rated for the fluid, temperature, and pressure of your specific system. Hose barbs can be made from brass or PVC materials, and matching hose material to the fitting material and media is essential for long service life.

Step 3 – Let the Orifice Do the Flow Control

Once installed, the internal orifice creates a controlled restriction that limits how much fluid passes at your operating pressure. The system upstream may see slightly higher pressure while the downstream side experiences moderated, stable flow. Sizing the orifice correctly allows predictable flow rates for tasks like chemical injection, cooling loops, spray nozzles, or pump bypass. The standard 5/32-inch orifice handles many common applications; for different flow requirements, an orificed barb can be drilled to customize the orifice size for specific system needs-though factory-sized options are always preferred for accuracy.

Product Details and Key Specifications

Use this overview to verify fit, compatibility, and performance for your installation.

• Connection Type: 3/8" NPT male pipe thread on one end; 5/8" hose barb on the other

• Orifice Feature: Fixed internal orifice; the standard orifice size on these fittings is 5/32 inch.

• Outer Body Material: Brass

• Operating Pressure Range: 150 psi

• Temperature Range: Generally -40°F to +200°F for brass fittings; actual limits depend on hose material, fluid type, and system conditions

• Media Compatibility: Water, light oils, coolants, compatible chemicals, and compressed air. Avoid strong acids, oxidizers, halogens, or chlorinated compounds with brass bodies

• Installation Requirements: Compatible hose clamp, PTFE thread tape or pipe sealant, and adequate straight hose length on each side of the fitting for smooth flow and minimal stress

• Included Components: Fitting sold as a single piece; clamps and sealant sold separately

Who This 3/8" MPT x 5/8" Orificed Hose Barb Is For

Matching the right fitting to your application, system size, and maintenance expectations saves time upfront and prevents callbacks down the line. This specific size and style is especially useful for the following users and environments.

• Pump and Fluid System Designers – Those building small to mid-size pump skids, wash systems, coolant loops, and transfer systems that need fixed flow limits without adding separate restriction components.

• Maintenance and Reliability Teams – Staff tasked with standardizing fittings, taming pressure spikes, and simplifying field service. A fixed orifice means no adjustment drift and no operator guesswork.

• OEM Equipment Builders – Manufacturers integrating fixed-flow lines for lubrication, dosing, or cooling in repeatable production equipment where every unit must perform identically.

• Contractors and Installers – Field technicians who prefer compact, multi-purpose fittings instead of multiple components per connection point. Hose barb fittings are commonly used in plumbing applications, and the orificed version adds flow control without added complexity.

If you agree that cleaner installations, fewer callbacks, and more predictable system behavior matter to your operation, this fitting belongs in your standard parts inventory.

Frequently Asked Questions

Below are the most common selection, installation, and performance questions about the orificed hose barb 3/8" MPT x 5/8".

Do I still need a valve if I use an orificed hose barb?

The orifice sets a fixed flow limit-it does not provide on/off or adjustable control. Many systems use the orificed barb as a passive limiter and still keep upstream or downstream shutoff valves for isolation, servicing, or emergency stop. If you need both flow limiting and shutoff, plan for both components.

How do I choose the correct orifice size for my application?

Consider your desired flow rate (GPM or L/min), fluid type, viscosity, and available line pressure. The standard orifice size is typically 5/32 inch, but other sizes are available. Consulting manufacturer flow charts or using orifice flow calculators helps you find the size that matches your target flow at your operating pressure.

Can I drill out or modify the orifice myself?

An orificed barb can be drilled to customize the orifice size for specific system needs, but field-modifying the orifice risks creating burrs, inconsistent flow, and metal debris that can damage downstream components. It is better to select a fitting manufactured to the needed orifice diameter to preserve accuracy, surface finish, and flow integrity.

Is the 5/8" hose barb compatible with reinforced or braided hose?

Yes. The 5/8" barb is generally compatible with standard 5/8" ID reinforced or braided hose designed for barbed connections. Proper clamp selection and installation are critical when using stiffer, reinforced hoses-worm gear or Oetiker clamps compress the hose wall firmly into the barb grooves for a secure seal.

Where should this orificed barb be placed in the line?

It is typically placed close to the point that needs flow limiting-at the pump outlet, near a dosing injection point, or upstream of a nozzle manifold. Avoid installing it at locations prone to debris accumulation. Upstream filtration is recommended where fluids may carry solids that could clog the small orifice opening.

Ready to Improve Your Flow Control?

The orificed hose barb 3/8" MPT x 5/8" combines connection, restriction, and reliability in one compact part-delivering predictable flow, cleaner installations, and fewer components to source and maintain. Whether you're building new systems or retrofitting existing lines, this fitting simplifies your fluid control without compromising performance.
