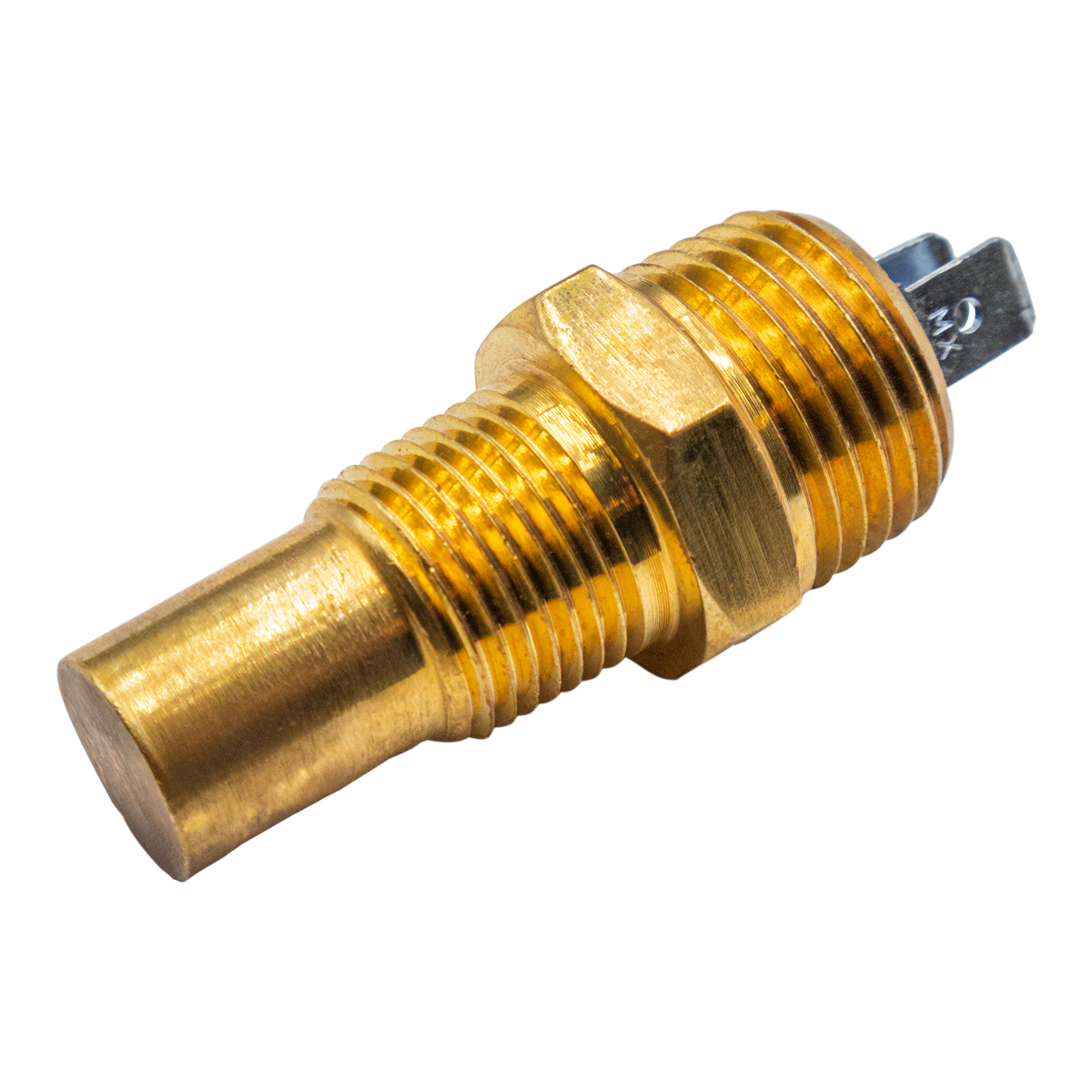

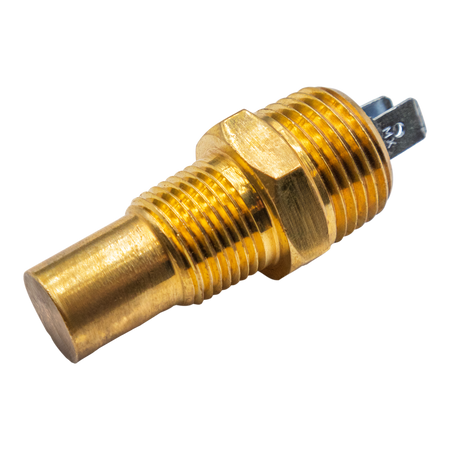

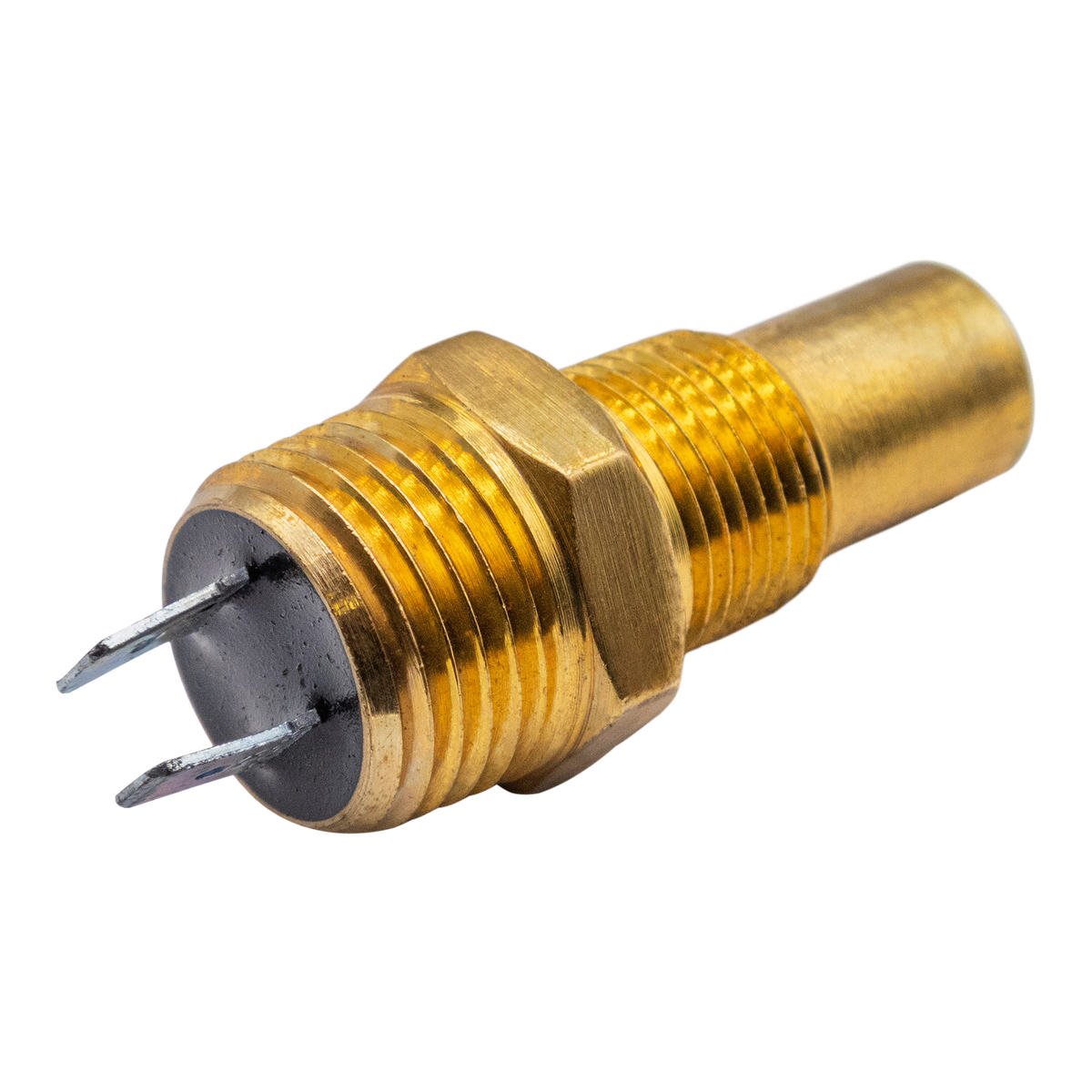

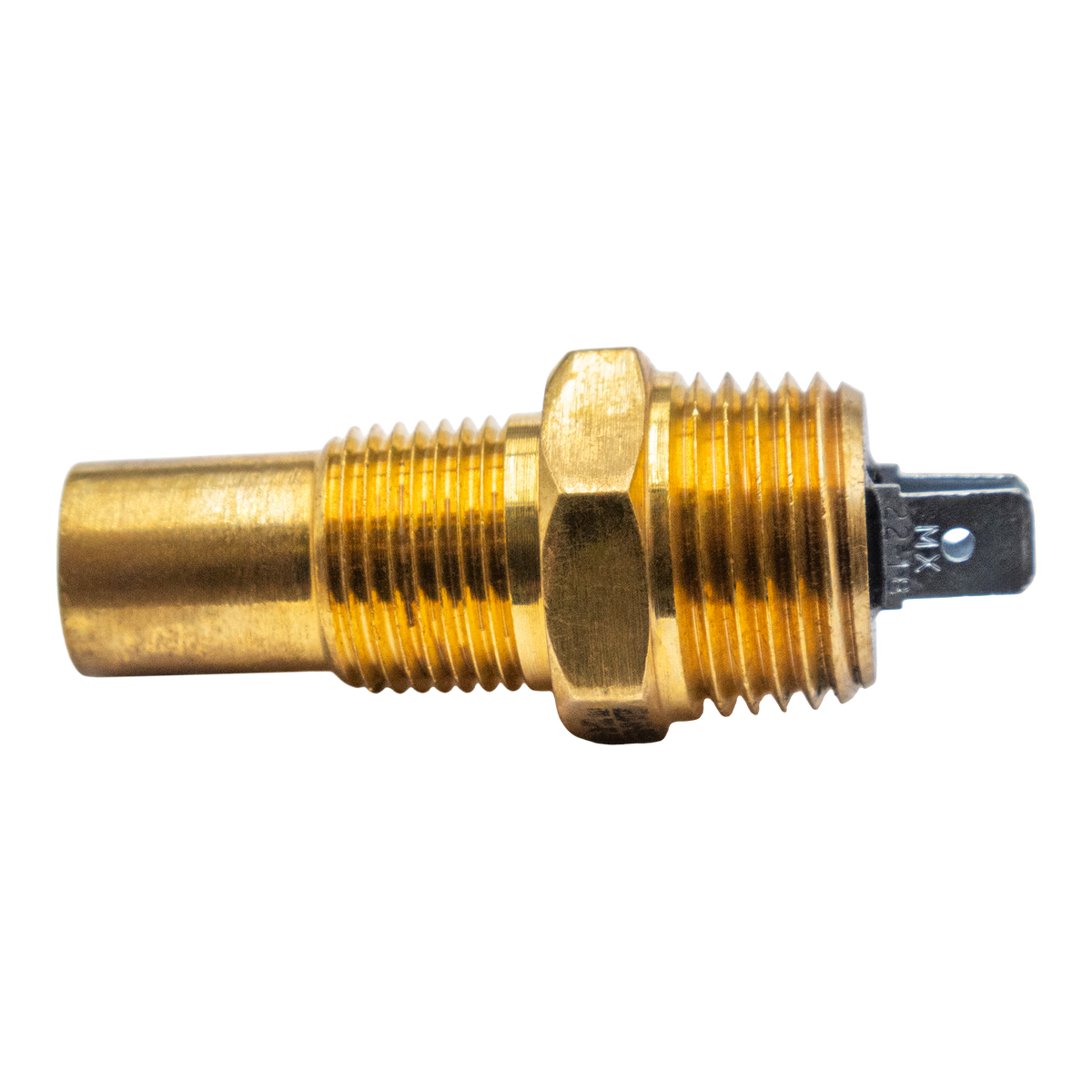

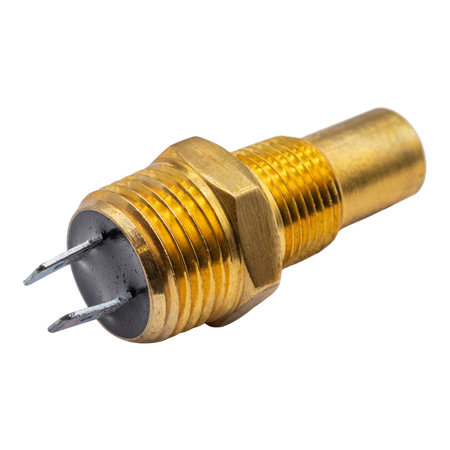

High Limit Switch 3/8" MNPT 230°F - 1444

High Limit Switch 230°F: What It Does in One Sentence

A 230°F high limit switch is a non-adjustable safety thermostat that instantly cuts burner power in hot water pressure washers when outlet water temperature exceeds 230°F (110°C), preventing dangerous overheating, steam flashing, and component damage.

This specific model features a 3/8" Male Pipe Thread (MPT) connection designed to thread directly into standard coil manifolds. It is typically rated for 110–120V AC at up to 25 amps-sufficient to control burner circuits, fuel solenoids, and ignition systems in most commercial and industrial pressure washer setups. A high limit switch is a critical safety control device in heating systems, and the 230°F setting indicates an abnormal or unsafe operating condition, triggering only when primary controls have failed to maintain safe water temperature.

Why You'll Rely On a 230°F High Limit Switch

Every hot water pressure washer system needs layered safety controls. A properly rated high temperature limit switch delivers equipment protection, operator safety, and regulatory compliance in a single, rugged device.

Prevents dangerous overheating – When water temperature increases beyond the 230°F threshold, the switch opens the circuit and shuts off the burner. High limit switches prevent water from overheating in pressure washers by automatically shutting off the burner at preset temperatures. This stops heat rise before flash steam can form inside coils, eliminating the risk of internal pressure surges and coil rupture.

Protects coils, hoses, and pumps – Sustained exposure to excessive heat accelerates scale buildup, degrades seals, and causes premature failure in downstream components. By capping the maximum outlet temperature, this limit switch reduces thermal stress across the entire water path and extends the service life of your pressure washer's most expensive parts.

Safeguards operators and bystanders – On job sites such as fleet washing bays, construction zones, and food processing facilities, uncontrolled hot water or steam creates serious burn hazards. The 230°F cutoff keeps discharge temperatures within a manageable safety envelope even when primary controls fail.

Maintains consistent cleaning performance – Precise temperature control matters for detergent activation and soil removal. A high limit switch that trips only at an actual over-temperature condition-rather than during normal operation-keeps your cleaning temperatures stable without nuisance shutdowns.

Minimal maintenance, long-term reliability – A bi-metallic sensor in the switch breaks the circuit at high temperatures using simple, proven mechanical action. There are no electronics to fail, no calibration to drift. These switches are designed for thousands of thermal cycles in environments subject to vibration, moisture, and temperature extremes typical of mobile and trailer-mounted washers.

What Makes This 230°F High Limit Switch Different

Many generic thermal switches are either electrically under-rated for pressure washer burner circuits or set at trip points that cause nuisance shutdowns during normal hot water operation. Others lack the environmental durability required in mobile rigs and outdoor wash bays.

This 230°F high limit switch is specified for demanding hot water pressure washer applications:

• Correct 230°F / 110°C trip point – Hot water pressure washers typically operate between 180–210°F. The 230°F cutoff sits well above normal working temperature to prevent false trips, yet low enough to stop steam flashing and coil damage before conditions become hazardous. The high limit switch's activation temperature is determined by the equipment manufacturer's specifications, and 230°F is the standard safety ceiling for most commercial hot water units.

• 3/8" MPT connection size – The 3/8" Male Pipe Thread fits directly into standard coil outlet manifolds and plumbing tees found on the majority of commercial hot water pressure washers, eliminating the need for thread adapters or custom fittings.

• 110–120V, 25 Amp electrical rating – This switch handles the full current draw of burner control circuits, fuel solenoids, and ignition components without contact welding or failure. It is sized for control circuit loads-not main motor current-matching how burners are wired in most 110–120V commercial systems.

• Built for harsh environments – Corrosion-resistant materials (brass threads, plated steel body, sealed housing) protect internal contacts from moisture, vibration, and the relentless thermal cycling found in daily-use mobile washers and trailer rigs.

How a 230°F High Limit Switch Works in Your System

High limit switches operate independently of the thermostat in a heating system. While your thermostat handles precise temperature control during normal operation, the high limit switch functions as a failsafe backup that operates without external controller logic. Here is how the cycle works:

Step 1 – Sensing Water Temperature

The switch's bi-metal sensing element is threaded into the coil outlet or manifold via the 3/8" MPT connection, placing it in direct contact with the hottest water leaving the heat exchanger. As water flows past the sensor, the bi-metal strip responds to the actual fluid temperature in real time. Proper mounting-typically upright and fully immersed-ensures the sensor always reads accurately.

Step 2 – Breaking the Burner Circuit at 230°F

When the outlet water temperature reaches approximately 230°F, the bi-metal element deflects and snaps the switch contacts open, breaking the electrical circuit. This immediately cuts power to the fuel solenoid, burner control, or ignition system, turning off the heat source and stopping further temperature rise. High limit switches can have preset temperatures up to 230°F (110°C), and the 110–120V, 25 Amp rating ensures the switch handles the control circuit load without damage.

Step 3 – Automatic Reset After Cooling

They require cooling before resetting the burner circuit. Once the water temperature drops below the reset threshold-often approximately 50°F below the trip point-the bi-metal element snaps back, closing the contacts and restoring the circuit. The burner can then restart via the thermostat or flow/pressure control, resuming normal operation. This automatic reset cycling is a safety fallback, not a primary temperature control function.

Key Product Details for the 230°F High Limit Switch

Quick-reference specifications for technicians and buyers:

• Connection size: 3/8" Male Pipe Thread (MPT) for standard pressure washer coils and manifolds

• Temperature rating: Opens at 230°F (110°C) to prevent overheating in hot water applications

• Electrical rating: Typically 110–120V AC, up to 25 Amp, sized for burner and control circuits-not main motor loads

• Switch type: Non-adjustable, automatic reset high limit safety switch with snap-action bi-metal sensing element

• Typical use: Hot water pressure washers, boiler-fed wash systems, and industrial cleaning units. Common applications of high limit switches also include boilers, furnaces, and heating equipment

• Mounting orientation: Install upright into manifold to keep the sensing area fully wetted by outlet water; air pockets reduce response accuracy

• Lead connections: Depending on configuration, units may use screw terminals, spade terminals, or pigtail leads-always use secure, insulated, moisture-protected connections

Who Needs a 230°F, 3/8" MPT High Limit Switch?

This switch is a direct-fit or suitable replacement for many commercial hot water pressure washers manufactured over the past two decades. If your system uses a 3/8" MPT port and a 110–120V burner control circuit, this is likely the correct match.

Ideal for:

• Pressure washer service technicians – For replacing failed, broken, or out-of-spec high limit switches during scheduled maintenance or emergency repair

• Contract cleaners and fleet washers – Operators running hot water rigs daily who need dependable over-temperature protection to keep crews safe and equipment running

• Rental yards and equipment dealerships – Maintaining safety compliance on rental hot water units with frequent turnover and varied operator experience

• Small industrial wash bays – Facilities cleaning parts, vehicles, or equipment with 110–120V burners that require reliable thermal cutoff protection

Always match thread size, temperature rating, and amp rating to the original manufacturer specifications before replacing any high limit switch. Common causes for tripping a high limit switch include insufficient airflow or blocked vents, clogged nozzles, or failed primary thermostats-diagnose root causes before simply replacing the switch.

Frequently Asked Questions About 230°F High Limit Switches

These FAQs are tailored to hot water pressure washers and similar heated cleaning systems.

Is a 230°F high limit switch the same as a thermostat?

No. A thermostat actively controls normal operating temperature by cycling burners on and off to maintain a set point. A high limit switch is a safety-only device that trips at an over-temperature threshold-230°F in this case-when the thermostat or other primary controls fail. Most hot water pressure washers use both: a thermostat for precise temperature control and a 230°F high limit for backup protection. It is also worth noting that furnace limit switches regulate temperature in forced-air furnaces in a parallel way: they turn on the blower once desired heat is reached, and limit switches shut off burners if the furnace overheats-a malfunctioning blower can cause furnace overheating. Furnace limit switches help increase furnace efficiency by preventing thermal waste during fault conditions.

Can I install a higher or lower temperature limit than 230°F?

You should always match the original temperature rating recommended by the equipment manufacturer. Installing a switch with a higher trip point reduces the safety margin and increases the risk of overheating, steam flashing, and coil damage. A lower trip point creates nuisance shutdowns that interrupt cleaning operations and reduce efficiency, even when the system is functioning normally within its designed range.

How do I know if my high limit switch is failing?

Common symptoms include: the burner won't fire even when all other controls call for heat; intermittent shutdown at seemingly normal temperatures; or visible damage, corrosion, or broken connections on the switch body. Test continuity with a multimeter at room temperature-the contacts should be closed (normally closed circuit). If continuity is absent at safe temperatures, the switch has likely failed. For in-circuit diagnosis, have a qualified technician evaluate the full burner control circuit.

Is it safe to bypass a high limit switch temporarily?

A high limit switch should never be bypassed for normal operation. It is a critical safety device designed to prevent catastrophic overheating when all other controls fail. Any temporary diagnostic bypass must be performed only by qualified personnel who can monitor the system continuously, and the safety device must be restored immediately after testing. Operating without a functioning high limit switch puts operators, equipment, and bystanders at serious risk.

Will this switch work with my 120V, 25A burner circuit?

A 230°F high limit switch typically rated for 110–120V and up to 25 amps is designed for exactly this type of application. Before installation, confirm the actual voltage, current draw, and wiring configuration against your pressure washer's manual. The switch controls the burner circuit-not the pump motor-so verify that the load being switched falls within the 25 amp rating.

Ready to Upgrade Your Over-Temperature Protection?

A correctly rated 230°F, 3/8" MPT high limit switch is one of the most important safety components in any hot water pressure washer system. It protects your operators from scalding, your equipment from thermal damage, and your productivity from unplanned downtime. If your current switch is worn, broken, bypassed, or missing entirely, the time to replace it is now-not after a failure.

Contact Barens today to find the right 230°F high limit switch for your specific pressure washer make and model. Our team can help you match the correct thread size, temperature rating, and electrical rating, and provide guidance on compatible accessories for a safe, reliable installation.

Add to cart and get your system back to full safety compliance.
