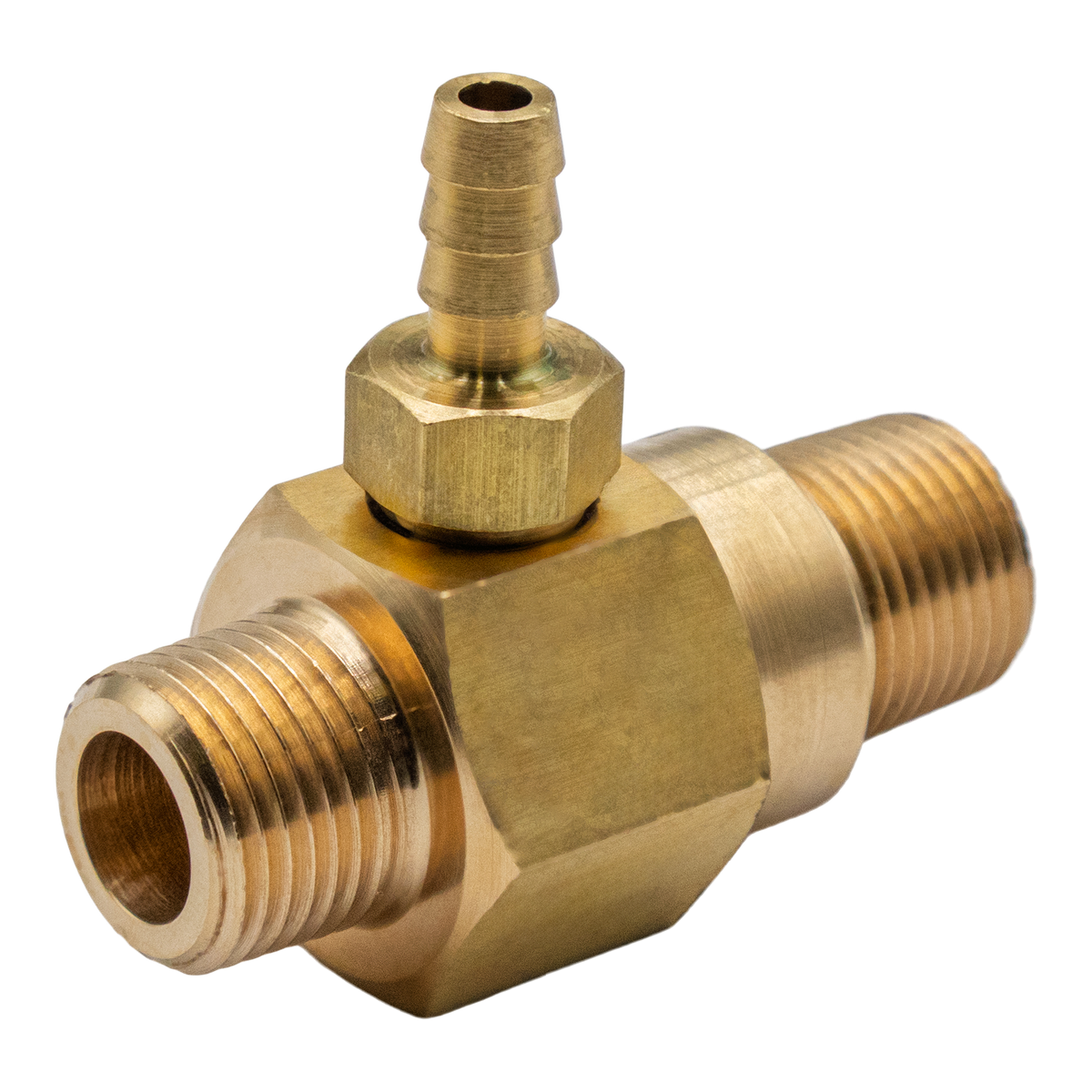

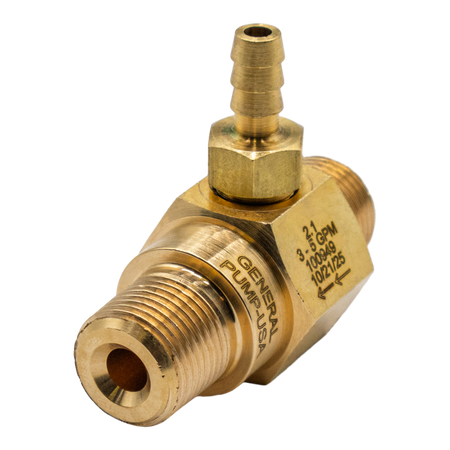

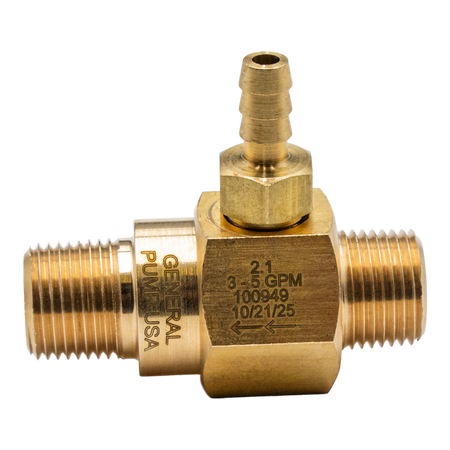

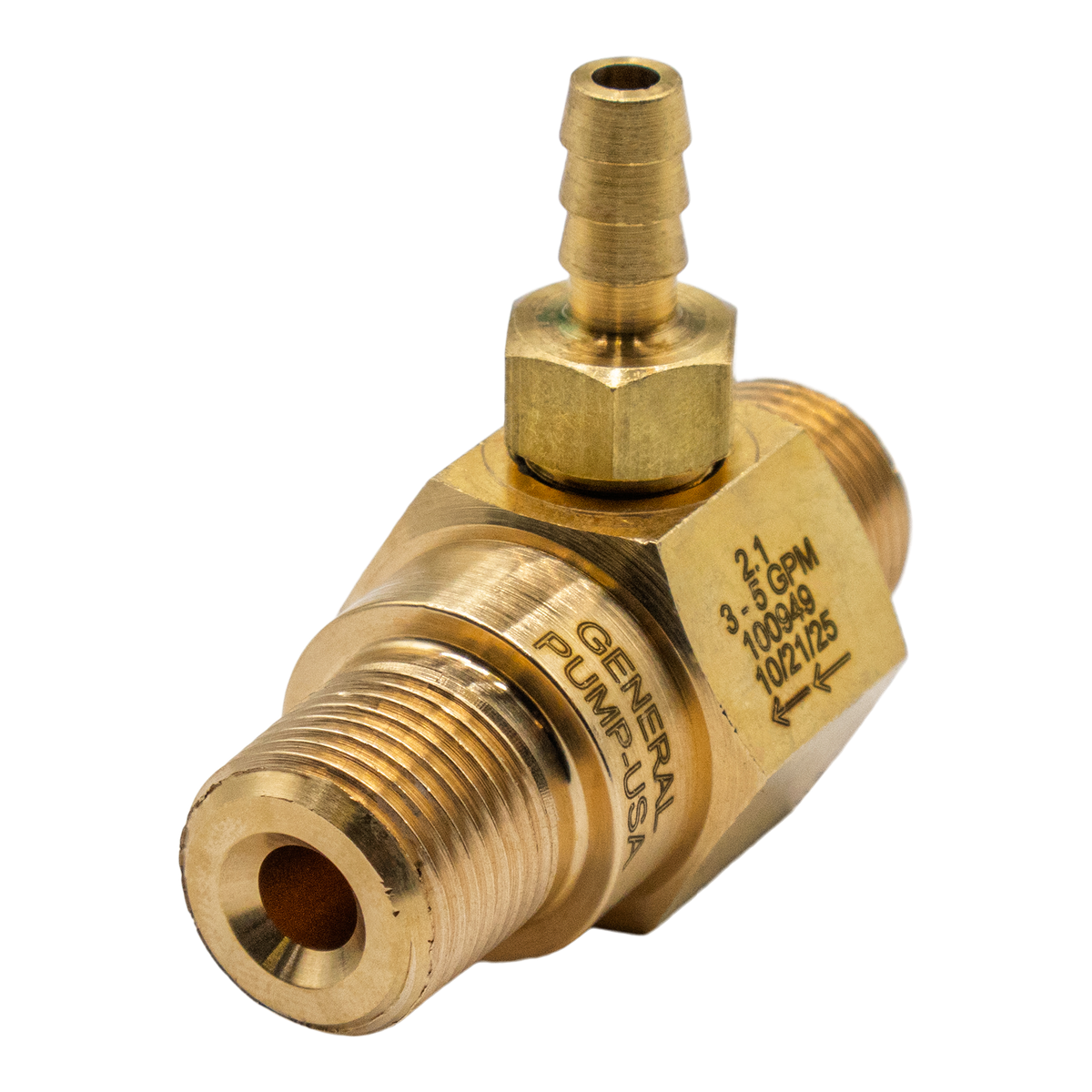

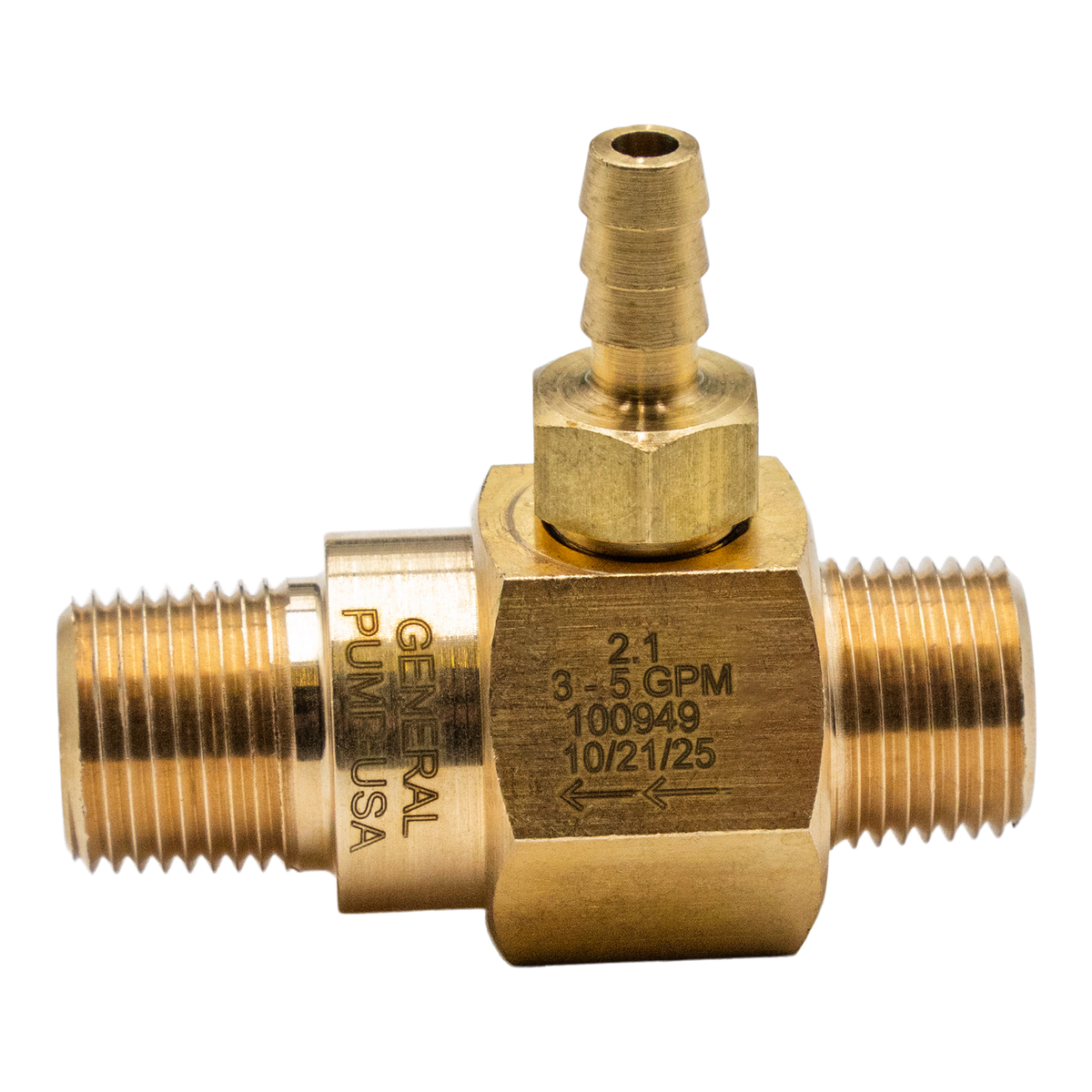

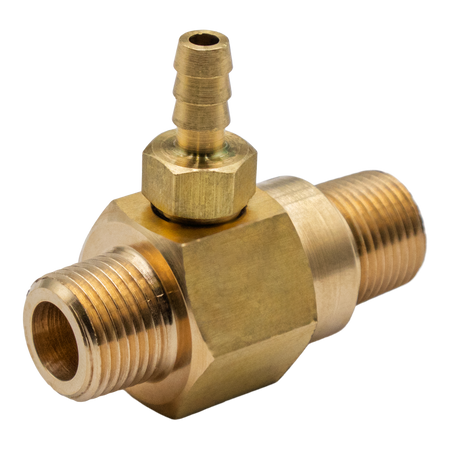

HD Fixed Chemical Injector 3/8" MNPT 2.1mm 4500PSI - 1056

Powerful, Consistent Chemical Draw for Heavy-Duty Pressure Washing

The HD fixed chemical injector is a purpose-built downstream injection unit designed for 3–5 GPM pressure washers rated up to 4500 PSI. An HD fixed chemical injector uses the Venturi effect to draw cleaning chemicals into water, delivering a fixed high-draw dilution ratio - anywhere from 10% to 20% - so you can apply soaps, degreasers, and sodium hypochlorite without ever sending corrosive chemicals through your pressure washer pump. If you're a pro who needs reliable, repeatable chemical application on concrete, fleet vehicles, and building exteriors, this is the injector that stops the guesswork and keeps your rig protected job after job.

Fixed chemical injectors operate at 3-5 GPM flow rates, which puts this unit squarely in the sweet spot for the rigs most contractors are running. Fixed chemical injectors supply chemicals without needing a separate dosing pump, simplifying the system and letting you focus on cleaning instead of fiddling with equipment. Whether you're running sodium hypochlorite for house wash, hitting a roof, or post-treating a driveway, the high draw capacity of HD fixed injectors allows effective chemical application over long hose runs - and that matters when you're working large properties or commercial sites.

Why You'll Love This HD Fixed Chemical Injector

Results on the job site matter more than numbers on a spec sheet. Here's what this injector actually does for you and your work:

• Consistent high chemical draw – HD fixed injectors rely on a precise internal orifice to pull chemicals at a fixed draw rate, tuned specifically for 3 5 GPM rigs. That means you get a strong, repeatable mix every single time - ideal for sodium hypochlorite house wash, roof wash, and heavy degreasing. High draw injectors can achieve up to 20% injection rate, so your soap and chemical hit the surface at the concentration you need without constantly adjusting or second-guessing the mix.

• Protects your pressure washer pump – Because HD fixed injectors are placed downstream, they protect pump components from corrosive chemicals. Bleach, caustic detergents, and acids never touch your pump head or seals. Downstream injectors protect the pump from harsh chemicals, period. That protects your investment and saves you from expensive seal and manifold repairs.

• Speeds up large cleaning jobs – Stronger chemical draw means better dwell time coverage and less re-application. Whether you're washing long driveways, parking lots, or fleet trucks, you save time on every pass and move through jobs faster.

• Built for harsh chemicals and daily use – HD fixed chemical injectors are constructed from durable materials such as stainless steel or heavy brass, with ceramic or stainless check components and chemical-resistant Viton-type seals. The robust spring and ball assembly handles frequent use with sodium hypochlorite and detergents without the rapid degradation you see in cheap units.

• Simple to set up and operate – The unit installs in minutes with standard 3 8 inch NPT fittings or quick connect adapters. It works automatically: switch to your low-pressure soap nozzle and it starts pulling chemical. Switch back to a high-pressure tip and it stops. No buttons, no adjustments, no drama.

What Makes This Injector Different

Most "universal" chemical injectors you'll find in stock at big-box stores or budget suppliers are built with weak bodies, oversized orifice ranges, and materials that can't handle bleach or caustic chemicals for more than a few uses. They draw soap inconsistently, clog fast, and end up in the trash before the season's over. An HD fixed chemical injector is a different item entirely.

• Optimized for 3–5 GPM systems – The internal orifice size - around 2.1 mm - and the venturi profile are engineered specifically for 3 5 GPM flow rates. Selecting the appropriate orifice size for an HD fixed chemical injector is critical for system compatibility, and this unit is built to match the pumps most pros are running. No guesswork, no mismatched draw.

• High-draw design for strong mixes – The high draw model allows up to 20% injection rate under ideal conditions. In the real world, with typical hose lengths and nozzle setups, you're looking at a strong 12–18% draw - still far above what budget adjustable injectors deliver. That means you can run strong SH mixes for roofs and post-treat concrete effectively, without bypass mixing or adding a separate dosing pump.

• Heavy-duty, serviceable construction – The fixed design of HD injectors ensures consistent chemical metering without operator adjustments. Fewer moving parts in fixed injectors result in lower maintenance needs compared to adjustable types. And when it does eventually need attention, chemical injectors can be rebuilt with repair kits - a new check ball, spring, and O-rings - instead of throwing the whole unit away and buying a replacement. Operator error is reduced as workers cannot manually adjust the chemical dosage on a fixed injector, which keeps your mix consistent across your whole crew.

How the HD Fixed Chemical Injector Works

This is a downstream venturi injector. When you switch to a low-pressure nozzle, the pressure drop across the internal orifice lifts the check valve and automatically pulls chemical into the water stream. When you switch back to a high-pressure tip, the check valve closes and chemical draw stops instantly. Fixed injectors deliver a repeatable dilution ratio based on fluid flow and orifice restriction - no electronics, no dosing pumps, no complexity.

1. Install on the discharge side – Mount the injector on the outlet side of your pump, after the unloader. Make sure to align the directional flow arrow on the body. Use a 13mm wrench to tighten the injector properly and ensure leak-free connections at the 3 8 inch NPT ports.

2. Connect the chemical feed line – Attach reinforced PVC or silicone tubing from the 1 4 inch barb fitting on the injector body to your chemical pail or mix tank. Drop a weighted slotted PVC filter or strainer into the bottom of your chemical container to keep debris out of the line.

3. Switch to a low-pressure nozzle to start drawing – Use a low pressure soap nozzle to draw soap effectively. A black "soap" tip or a dual-lance set to low-pressure mode creates the pressure drop the venturi needs to pull chemical into the water stream. High-pressure nozzles (0°, 15°, 25°) will stop the draw by design - that's a feature, not a problem.

4. Rinse the injector after every job – Rinse injectors after every use to prevent failure. Place the chemical hose into a bucket of clean water, run the machine on low pressure for several minutes until the line is completely flushed and there's no chemical smell. This step alone dramatically extends injector life, especially when you're running sodium hypochlorite.

Product Details

Here are the key specs for easy reference and planning:

• Flow and pressure range – Injector body designed for 3-5 GPM pressure washers. Maximum rated pressure is 4500 PSI. General Pump injectors are rated for up to 4500 PSI, making this unit compatible with the vast majority of pro-grade cold-water pressure washers.

• Fixed dilution ratio – Fixed dilution ratio of 10% for downstream injectors under standard conditions, with the high draw model capable of up to 20% injection rate under ideal setup. Actual ratio depends on hose length, nozzle size, and chemical viscosity - shorter hoses and larger-orifice soap tips push you closer to the maximum.

• Orifice and check assembly – Approximately 2.1 mm orifice, paired with a chemical-resistant check valve (spring + ball) that prevents backflow into the chemical line. The check ball may get stuck after extended use; gently push it to restore function.

• Materials – Brass with ceramic internals and Viton-type seals for chlorine, detergent, and caustic resistance. The injector's construction must be compatible with aggressive cleaning chemicals to prevent failure, and these materials deliver.

• Connections – 3/8 inch MNPT inlet and outlet, plus a 1 4 inch barbed hose fitting for the chemical feed line. Quick connect versions are available for plug-and-play installation.

• What's included – Injector body, downstream barb fitting, chemical hose section, and suction filter/strainer. Injectors can be rebuilt with specific repair kits that include replacement ball, spring, and O-rings.

• Compatibility notes – This unit pairs perfectly with a 4 GPM, 4000 PSI triplex pump and most pro-grade cold-water washers in the 3–5 GPM class. Flow rates for injectors range from 3 to 5 GPM, so match it to your machine's output for best results.

Who This HD Fixed Chemical Injector Is For

This injector is made for anyone who needs reliable, high-performance chemical delivery and won't settle for inconsistent, low-quality units that give out after a few jobs.

• Professional pressure washing contractors – House washing, roof washing, driveway and patio post-treatment, commercial flatwork - if you're running a 3–5 GPM rig and using sodium hypochlorite or strong detergents, this is the injector that keeps your chemical delivery consistent from the first job to the last. HD fixed injectors are often used in commercial vehicle washes and industrial cleaning applications for exactly this reason.

• Fleet and facilities maintenance teams – Washing box trucks, tractors, trailers, and equipment at wash bays requires a consistent soap and degreaser feed. A fixed injector eliminates the variability that slows down turnaround and wastes chemicals. High-pressure pressure washers commonly use fixed chemical injectors for cleaning applications like these.

• Agricultural and industrial operations – From barn and pen sanitation to plant wash systems, using the injector downstream of a 4 GPM pressure pump protects equipment from corrosive sanitizers and cleaners. The durable construction handles the chemicals that come with ag work without breaking down.

• Users upgrading from basic injectors – If you're frustrated with weak or inconsistent draw from budget injectors - the kind that clog, corrode, or just stop pulling soap after a few weeks - this HD fixed unit is your upgrade. More durability, stronger draw, and fewer headaches.

How to Choose and Set Up an HD Fixed Chemical Injector

Getting this right the first time means you get maximum chemical draw, minimum hassle, and a long service life. Here's how to do it:

• Match the injector to your GPM – Confirm your pressure washer flow rate - whether it's 3, 4, or 5 GPM. An undersized or oversized orifice will ruin draw performance. This unit is tuned for the 3–5 GPM band, and a 4 GPM pump is the sweet spot.

• Confirm pressure and chemical compatibility – Check the max PSI of the injector against your machine's output. At 4500 PSI, this injector handles the vast majority of pro rigs. Make sure the materials are suitable for the chemicals you use - sodium hypochlorite, caustics, or acids. The brass or stainless body, ceramic internals, and Viton seals cover the most common aggressive cleaning chemicals.

• Install in the correct location – Best practice is to mount the injector after the unloader and before the hose reel. Keep it accessible for service and minimize unnecessary restrictions in the plumbing. Incorrect orientation or upstream installation defeats the purpose of downstream injection.

• Use the right nozzles and hose length – A black low-pressure soap nozzle or dual-lance in low-pressure mode triggers the draw. Very long hose runs decrease quantity of chemical reaching the surface and may require closer placement of the chemical supply or a slightly larger orifice. Keep chemical supply hose short and use the largest internal diameter tubing you can.

• Test and fine-tune your mix – Do a simple bucket test: run for one minute and measure how much chemical disappears from the pail versus water used. This gives you a real-world dilution number you can trust - not just a spec sheet figure.

Keeping Your HD Fixed Chemical Injector Working for Years

Regular care is what separates an injector that lasts a season from one that runs for years. When you're pushing harsh chemicals like sodium hypochlorite through any unit, a few minutes of maintenance after each job pays for itself many times over.

• Rinse after every use – Place the chemical hose into clean water and run the machine on low pressure for several minutes until the line is completely flushed. Sodium hypochlorite left sitting in the injector will crystallize and damage seals and internals.

• Inspect the check valve and orifice – Periodically check for crusted soap, SH crystals, or debris around the ball, spring, and orifice. Clean gently to restore performance. If the check ball may get stuck, gently push it to free the mechanism and test draw again.

• Replace seals and check components as needed – Keep a repair kit on hand - ball, spring, O-rings - and rebuild the injector if draw weakens even after cleaning. Chemical injectors can be rebuilt with repair kits, which is far cheaper than buying a new unit every time performance drops. This is one of the biggest advantages of a serviceable HD injector.

• Protect from freezing and UV – Drain or blow out chemical lines before winter storage. Keep the injector shaded or covered on outdoor rigs to reduce weathering and UV degradation of seals.

• Check upstream filters – Use and maintain inlet water filtration and a suction-side chemical strainer. Grit and particulate in your chemical or water supply will damage the orifice and check valve internals over time.

Frequently Asked Questions

Here are the questions technicians and contractors ask most about HD fixed chemical injectors:

Will a fixed chemical injector work with my 4 GPM, 4000 PSI pump? Absolutely. A 3–5 GPM rated HD injector is ideal for a 4 GPM pump, offering strong, reliable draw when paired with the correct low-pressure tip. This is the flow rate range the orifice is specifically tuned for.

Can I adjust the dilution ratio on a fixed injector? The orifice is fixed, but you can influence effective strength by changing nozzle size, hose length, chemical concentration in the tank, and the height of the chemical container relative to the injector. You won't be able to dial a knob, but you have real control over your final mix.

Will it pull soap at high pressure? No - and that's by design. Downstream injectors stop drawing at high pressure because the check valve stays closed. Chemical feed resumes only when you switch to a low-pressure soap nozzle or low-pressure lance setting. This prevents wasting chemicals during rinse passes.

Is it safe for sodium hypochlorite (bleach) and strong detergents? Yes. An HD injector built with brass or stainless body, chemical-resistant seals, and ceramic or stainless ball is suitable for typical SH house wash mixes. Always rinse after use to maximize the life of your seals and internals.

How do I know if my injector is clogged or failing? Tell-tale signs include significantly weaker draw, no visible suds at the nozzle, or needing to raise the chemical bucket higher than usual to get any pull. If cleaning and flushing don't restore performance, it's time to rebuild or replace the check valve components.

For warranty information, review the documentation included with your specific injector or contact the supplier directly.

Ready to Upgrade Your Chemical Application?

Stop settling for weak, inconsistent chemical draw from budget injectors that give out after a handful of jobs. An HD fixed chemical injector, matched to a 3–5 GPM pump, delivers reliable high-draw performance and protects your expensive pressure washer pump from corrosive chemicals - every single day.

If you're already running a 4 GPM, 4000 PSI triplex pump or a similar machine, pair it with an HD fixed chemical injector for consistent soap and sodium hypochlorite delivery on every job. Add one to your cart and equip your rig with a properly sized, durable injector that keeps your chemical application strong and your pump safe - instead of burning through low-quality units that can't keep up with your orders and your workload.
