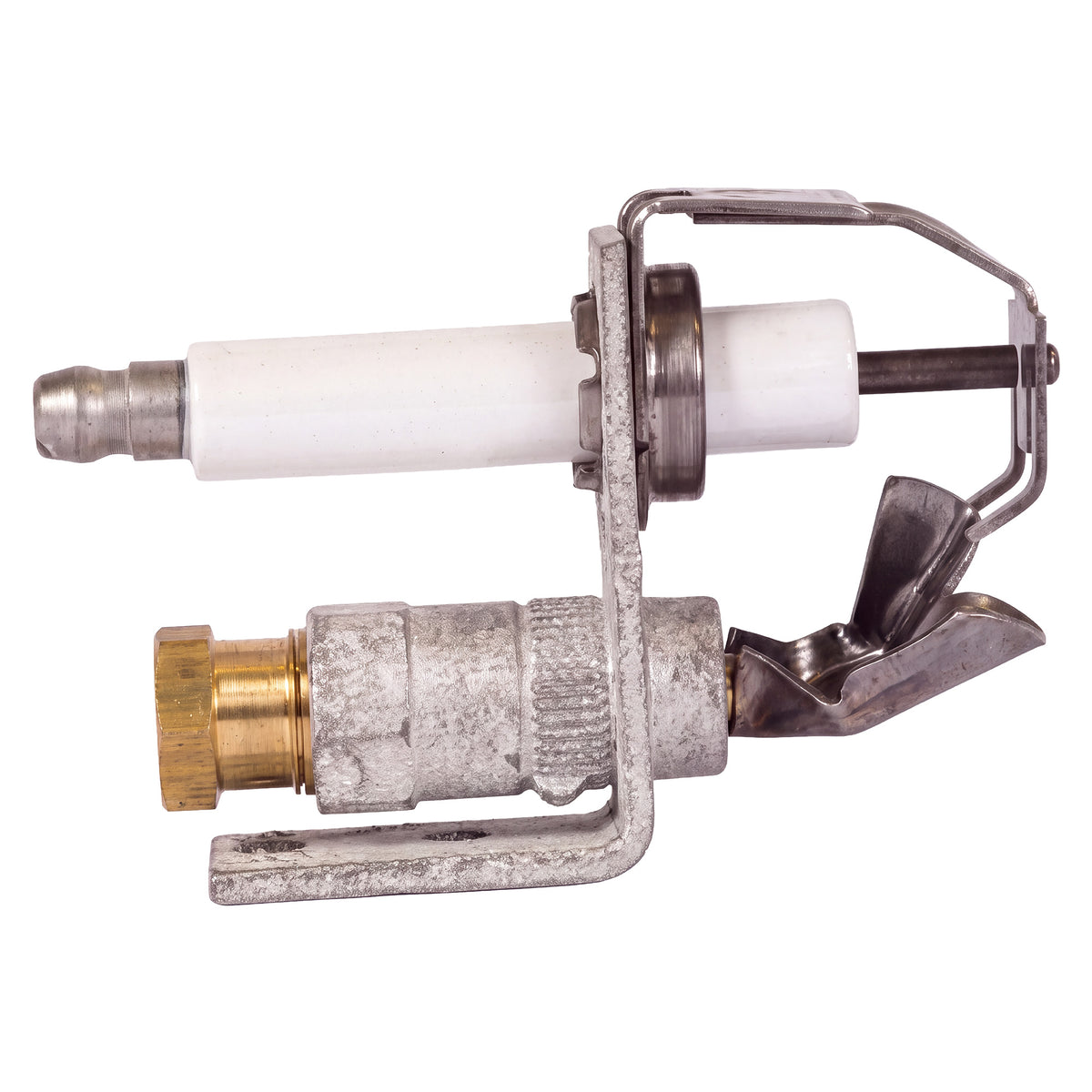

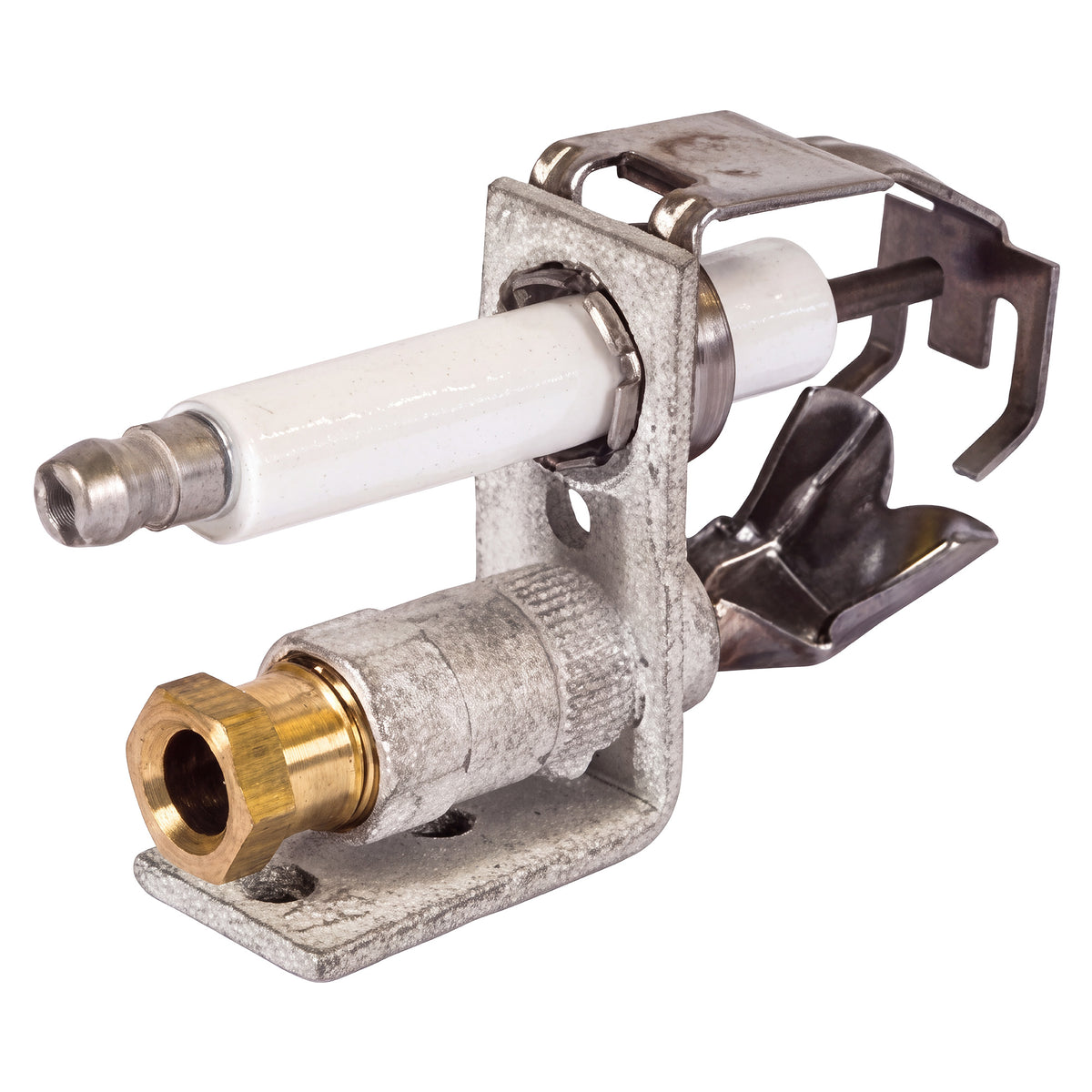

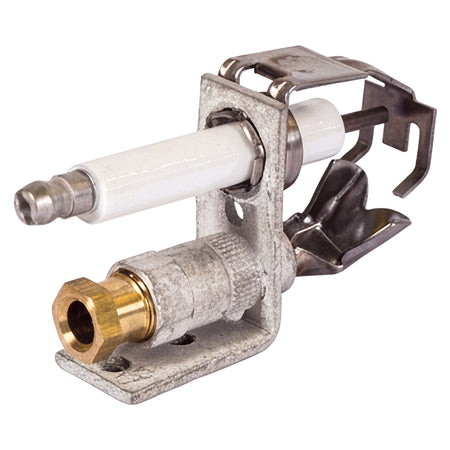

Honeywell NG Pilot Ignitor Assembly 1/4" Compression 9.803-610.0 - 1007

Reliable Ignition for Natural Gas Pressure Washer Burners in One Simple Upgrade

A natural gas pilot assembly creates and maintains a controlled pilot flame that serves as the reliable ignition source for the main burner on industrial hot water pressure washers. Without a properly functioning pilot, your burner cannot safely fire, your heating coil stays cold, and your operation grinds to a halt.

This pilot assembly (Part 9.803-610.0) is an OEM-style electronic ignition pilot engineered for natural gas fired burners on industrial pressure washers and cleaning equipment. It generates the spark and pilot flame that safely ignites the main burner wrapped around the heating coil, bringing water up to temperature fast. The assembly commonly fits select Shark, Hotsy, and allied NG-fired pressure washer burner systems that call for replacement part number 9.803-610.0 in their parts manuals.

The core benefit is simple: fast, consistent burner ignition that keeps water temperatures stable and jobs on schedule. If your current pilot light is unreliable-failing to ignite, producing a weak or yellow flame, or triggering repeated lockouts-this assembly is designed to restore dependable operation from the first spark.

Why You'll Love This Natural Gas Pilot Assembly

This section focuses on what the assembly does for your workflow, not the engineering behind it.

• Consistent Hot Water on Demand – A dependable pilot flame means the main burner fires every time the thermostat calls for heat. No more nuisance outages that interrupt washing cycles or force your crew to stop and manually relight the pilot in the middle of a job.

• Less Downtime and Fewer Service Calls – Gas valves and pilot assemblies are common malfunctioning parts on hot water pressure washers. Replacing a worn or unreliable pilot assembly cuts time lost to troubleshooting, manual relighting, and waiting for a service technician. That decrease in downtime translates directly to more billable hours.

• Safer Burner Ignition – The pilot assembly acts as a safety mechanism to prevent gas leaks. A properly shaped blue flame must envelop the thermocouple for proper operation; if the pilot flame blows out, the thermocouple cools and stops generating voltage, shutting down gas flow before unburned gas can accumulate. This safety sequence protects your equipment and your people.

• Built for Harsh Wash Bay Environments – Industrial wash bays subject burner components to vibration, moisture, soot, and repeated heating and cooling cycles. This assembly uses a metal pilot burner body, brass nut and orifice fittings, and a ceramic-insulated ignition electrode rated for high-temperature combustion chambers-components chosen to withstand the punishment of daily commercial use.

• Straightforward Replacement – Because the bracket geometry, pilot tube connection, and flame position are matched to machines that specify 9.803-610.0, easy installation is built into the design. The assembly ships ready to mount, minimizing adjustments and getting your burner back in service quickly.

What Makes This Pilot Assembly Different

Many operators hear frustration stories about generic or "universal fit" pilot assemblies that require bracket bending, orifice swapping, or sensor repositioning just to get a marginal flame. Those compromises lead to weak ignition, repeated lockouts, and accelerated wear on components that should last years.

• Engineered for Natural Gas Fired Coils – The pilot orifice is sized specifically for NG pressures, typically around 3–4 inches of water column. This produces the correct flame characteristics-a stable, hot blue flame-that fully envelops the sensor tip. Using a pilot tuned for the wrong gas supply (such as liquefied petroleum gas) creates unsafe burning conditions; this assembly eliminates that risk by being purpose-built for natural gas.

• Purpose-Built for Popular Brands – This is not a one-size-fits-all part. It is dimensioned to replace OEM-style pilot assemblies on select Shark, Hotsy, and compatible units that call for part 9.803-610.0. The bracket, pilot tubing connections, and electrode positioning are identical to factory specifications, so the difference between a frustrating retrofit and a clean swap is built right in.

• Designed Around Real-World Service Conditions – Modern appliances may use an intermittent pilot system instead of a continuous flame, and this assembly follows that approach. Rather than keeping a standing pilot burning around the clock-wasting gas and exposing the thermocouple to constant heat-it fires on demand with each cycle. Components are rated for repeated start–stop thermal shock, sooting resistance, and stable operation even in drafty wash bays where strong air currents can blow out the pilot flame.

How It Works on Your Industrial Pressure Washer

The ignition sequence on a natural gas fired pressure washer burner is a carefully controlled process with built-in safety checks at every stage.

1. Pilot Receives Gas and Spark When the control system calls for heat, natural gas flows through the pilot tube to the pilot burner head. Simultaneously, the ignition system-consisting of an ignition transformer and electrode-produces a spark at the pilot hood. The gas ignites at the electrode tip, creating the pilot flame.

2. Stable Pilot Flame Proves Ignition The pilot flame must envelop the thermocouple or flame rod to confirm safe ignition. The thermocouple maintains communication with the gas valve by generating a small voltage-proof that a real flame is present, not just residual gas. If the sensor doesn't detect flame within seconds, the control locks out the system to prevent unsafe gas accumulation.

3. Main Burner Lights the Heating Coil Once flame is proven, the main gas valve opens when the thermostat calls for heat. Gas flows to the main burner, which ignites around the heating coil. Water temperature rises to setpoint, and the burner assembly continues to operate until the thermostat is satisfied. The entire sequence typically takes just seconds from spark to full heat.

Product Details

• Material / Construction – Metal pilot burner body (plated steel or stainless), brass pilot orifice and brass nut, ceramic-insulated ignition electrode rated for high-temperature combustion, and durable thermocouple or thermopile suited for repeated ignition cycles.

• Assembly Components – A pilot assembly includes a pilot burner head/hood, injector/orifice, thermocouple or thermopile, spark electrode (single-tip style ignitor), pilot tubing connection, ground strap, and mounting bracket configured for NG burners. Pilot assembly components also include ignition wire and pilot tubing connections.

• Dimensions / Fitment Notes – Compression fitting size is ¼ inch, with a fitting length of approximately ¾ inch. Bracket geometry, pilot tube connection size, and flame position are matched to replace burners that specify part 9.803-610.0 without major modification.

• Fuel Type and Application – Designed for natural gas fired burners on industrial pressure washers and cleaning equipment. Not for LP/propane systems unless the unit is specifically rated and configured for fuel conversion. Pilot burners can be gas-fired, LPG-fired, or multi-gas types, but this particular assembly is NG-specific.

• Compatibility – Confirm your model number and serial number against your parts manual to verify the 9.803-610.0 call-out.

• What's Included – Shipped as a complete pilot assembly ready to mount to the burner frame, with connections prepared for existing pilot tube and wiring. Premixed pilot burners mix gas and air before combustion for consistent flame quality.

• Warranty / Support – Typically covered under a parts warranty. Technical support is available to confirm compatibility before you purchase, so you can be certain the assembly matches your machine.

Who This Natural Gas Pilot Assembly Is For

This section helps you quickly determine if this part suits your machine and your operation.

• Pressure Washing Contractors and Fleet Wash Operations – If you rely on consistent hot water for daily cleaning jobs and cannot afford burner downtime, a reliable pilot assembly is crucial. Pilot failure occurs most frequently during winter months-exactly when you need hot water most.

• Facilities and Maintenance Managers – Manufacturing plants, transportation depots, and warehouses running NG-fired stationary pressure washers for equipment and floor cleaning need components they can stock and replace quickly. Replacing the entire pilot assembly is often necessary for older units where individual components have reached end of life.

• Service Technicians and Repair Shops – HVAC and burner techs, as well as pressure washer specialists, widely use this part when servicing Shark, Hotsy, and compatible hot water units. Having the correct OEM-matched assembly in stock eliminates guesswork and callbacks.

If your burner is natural gas fired and the manual specifies a pilot assembly with part number 9.803-610.0, this product is designed for your application.

Frequently Asked Questions

Below are common questions about selecting, installing, and maintaining a natural gas pilot assembly on industrial pressure washers.

Is this pilot assembly compatible with my Shark or Hotsy pressure washer?

Confirm that your parts list or schematic calls for pilot assembly 9.803-610.0. It is commonly used on natural gas fired hot water models from Shark, Hotsy, and allied brands. To confirm exact compatibility, check your machine's model and serial number against the parts manual, or contact support for a quick verification before ordering.

Can I use this on a propane (LP) fired burner?

This assembly is engineered for natural gas systems. The pilot orifice, flame geometry, and sensor positioning produce flame characteristics tuned specifically for NG pressures and combustion behavior. Using NG-specific components on a liquefied petroleum gas system can create unsafe flame conditions-LP burns hotter with a different flame speed-and is not recommended unless the manufacturer explicitly approves it with a proper conversion kit.

What are signs that my existing pilot assembly needs replacement?

Common symptoms include intermittent ignition, a pilot that won't stay lit, a yellow or lazy pilot flame instead of a crisp blue flame, frequent burner lockouts, or visible damage and sooting on the pilot head or electrode. Thermocouples in pilot assemblies can wear out from daily use, and a dirty thermocouple can prevent proper millivolt generation. A clogged pilot orifice restricts gas flow and can cause a weak flame. These issues often show up as inconsistent water temperature or burners shutting down mid-job.

Can I install the pilot assembly myself?

Pilot assembly replacement requires handling the gas valve directly and working with natural gas lines and combustion components. Installation should follow manufacturer instructions and local safety codes. The gas supply must be fully shut off before work begins, and all connections must be leak-checked (soap bubble test or equivalent) after the assembly is installed. Only qualified technicians or experienced users comfortable with gas-fired equipment should perform the replacement. After installation, test the ignition sequence to confirm proper flame shape and sensor function before returning the machine to service.

How long should a natural gas pilot assembly last on an industrial pressure washer?

Pilot assemblies can last over 5 years with regular use, and many units see 5+ years of reliable service. However, lifespan depends on run hours, environmental conditions (dust, moisture, vibration), and maintenance frequency. Thermocouples in pilot assemblies can wear out from constant ignition, and pilot assemblies often fail within the first year of use if installed in extremely harsh conditions without regular upkeep. Cleaning the pilot orifice periodically-never with wire, use compressed air or gentle brushing-and inspecting flame quality can significantly extend service life. Continuous pilots remain lit during operation while intermittent pilots do not, which also affects component wear over time.

Ready to Restore Reliable Burner Ignition?

Dependable natural gas ignition is the foundation of every productive hot water pressure washer. The 9.803-610.0 pilot assembly delivers the consistent pilot flame, proven safety sequence, and durable construction that industrial burner systems demand so your crew spends time washing, not troubleshooting.

Before ordering, confirm your model and part number against your pressure washer's manual or data plate to verify that your unit specifies the 9.803-610.0 pilot assembly.
