TPR Turbo Nozzle Repair Kit Size 10.0 - 7279

Restore Your TPR Turbo Nozzle to Full Power in Minutes

The Barens TPR turbo nozzle repair kit replaces every internal wear component inside your TPR-series rotating nozzle, restoring it to like-new cleaning performance without the cost of a full nozzle replacement. Each kit includes a matched rotor, seat, O-rings, and retaining hardware sized to TPR turbo nozzle passageways and flow characteristics. The result: a tight, consistent circular cleaning pattern, full rotating impact, and an extended service life for nozzles that run daily on concrete, equipment, and building exteriors.

Why You'll Love This TPR Turbo Nozzle Repair Kit

A worn turbo nozzle is the first thing that slows down a pressure washing rig. Before you spend on a new nozzle, a rebuild with the right repair kit gets you back to full output for a fraction of the price.

• Save the cost of a new turbo nozzle. Turbo nozzle repair kits restore nozzles to like-new condition. A TPR repair kit typically contains wear components like ceramic tips and O-rings; the parts that actually erode under pressure. Replacing just those parts extends the life of your existing nozzle body, which is built from brass and engineered to be opened and serviced multiple times as long as the shell stays structurally sound.

• Restore full rotating impact. Common issues with TPR turbo nozzles include clogging, wear, and leaks. When the rotor nose or seat surface scores or erodes, you lose rotation speed and spray symmetry. The cleaning pattern narrows, streaks, or dead-spots. A fresh rotor and seat bring back the original cone geometry and cutting power that a TPR turbo nozzle produces: a concentrated circular cleaning pattern tuned for high-impact surface stripping.

• Minimize downtime on the job. End-user repairs to turbo nozzles can restore full operational efficiency. A rebuild takes under an hour with basic hand tools; a pick set, a soft-jaw vise, and a lint-free cloth. That keeps your rig in the field instead of sitting in the shop waiting for a replacement nozzle to ship.

• Protect your pump and hose system. A properly rebuilt turbo nozzle maintains the correct orifice size and back-pressure. If the orifice is too large, system pressure drops and your spray loses bite. If it is too small, your pump pushes into bypass or recirculation, increasing wear and heat. The right kit restores the original flow-to-pressure balance your washer was designed around.

• Built for repeated rebuilds. The TPR nozzle body and housing accept new wear components as many times as you need, provided threads are intact and the shell is not cracked or warped. Stock a few kits, and one nozzle body can last through years of heavy use.

What Makes This Kit Different

Generic rotary nozzle parts and "universal" rebuild kits claim one-size-fits-all compatibility, but TPR turbo nozzles use specific internal dimensions. A rotor that is off by fractions of a millimeter in diameter or seat angle will spin off-center, leak, or fail to maintain proper cutting pressure. TPR turbo nozzles require specific repair kits matched to the exact model and orifice size.

• Exact-fit components for TPR turbo nozzles. Every rotor, seat, and seal in this kit is manufactured to the same tolerances as the original TPR internals. Proper assembly of a turbo nozzle involves ensuring all components are seated correctly; matched geometry eliminates the guesswork that comes with generic parts.

• Matched to common TPR performance ranges. The kit is engineered for TPR operating envelopes used in commercial and industrial cleaning. TPR-series nozzles operate at pressures from 3,700 PSI up to 5,075 PSI and handle flows that professional contractors and fleet managers rely on daily for flatwork and equipment washing.

• Simplified rebuild process. Parts are organized for step-by-step installation. Old parts out, new assemblies in, correct orientation marked or keyed so you do not have to reference a manual mid-rebuild.

How It Works

A TPR turbo nozzle converts straight high-pressure water into a spinning impact stream. A rotor assembly spins against a fixed seat, deflecting the jet into a rotating cone pattern. As the rotor nose and seat wear from pressure, grit, and chemical exposure, rotation slows, the cone narrows, and cleaning efficiency drops. The repair kit replaces every part in that wear path.

1. Disassemble the TPR turbo nozzle body. Depressurize your washer, release the trigger, and disconnect the nozzle from the wand. Secure the brass body in a soft-jaw vise and carefully unscrew the housing to expose the internal cartridge. Cleaning the interior of a turbo nozzle is essential to prevent performance issues, so flush out any scale or debris before proceeding.

2. Replace core wear parts with the kit. Remove the worn rotor, seat, and all O-rings. Inspecting internal components for wear is crucial before using a repair kit; check for cracks, chips, or deep grooves in the seat surface, and look for warping on the rotor nose. Install the new seat (O-ring end toward discharge), place the rotor assembly, and lightly lubricate all O-rings before seating them into their recesses.

3. Reassemble, test, and fine-tune. Tighten the housing evenly without over-torquing, which can crack the body or distort internal alignment. Reconnect to the wand and run a controlled test spray on concrete at normal operating pressure. Watch for smooth, consistent rotation, a uniform cone pattern, and zero leaks at the housing.

Product Details and Part Number Information

• Material / Components: Hardened rotor with ceramic tip, precision-machined seat (ceramic or tungsten carbide depending on the nozzle model), high-temperature elastomer O-rings, and brass or stainless retaining hardware. Repair kits include internal parts like rotor and O-ring.

• Pressure and Flow Compatibility: Supports working pressures across the TPR range. Select the kit that matches your nozzle's rated PSI and GPM. The repair kit for the TPR HE 250 Rotating Nozzle, for example, is available in 10.0 GPM and 36 GPM flow rate configurations.

• TPR Nozzle Compatibility: Sized for specific TPR turbo nozzle series. Verify your nozzle's part number, orifice size, and GPM rating before ordering. Orifice sizes range from 02 through 080 depending on flow requirement; each number corresponds to a specific flow at a given pressure.

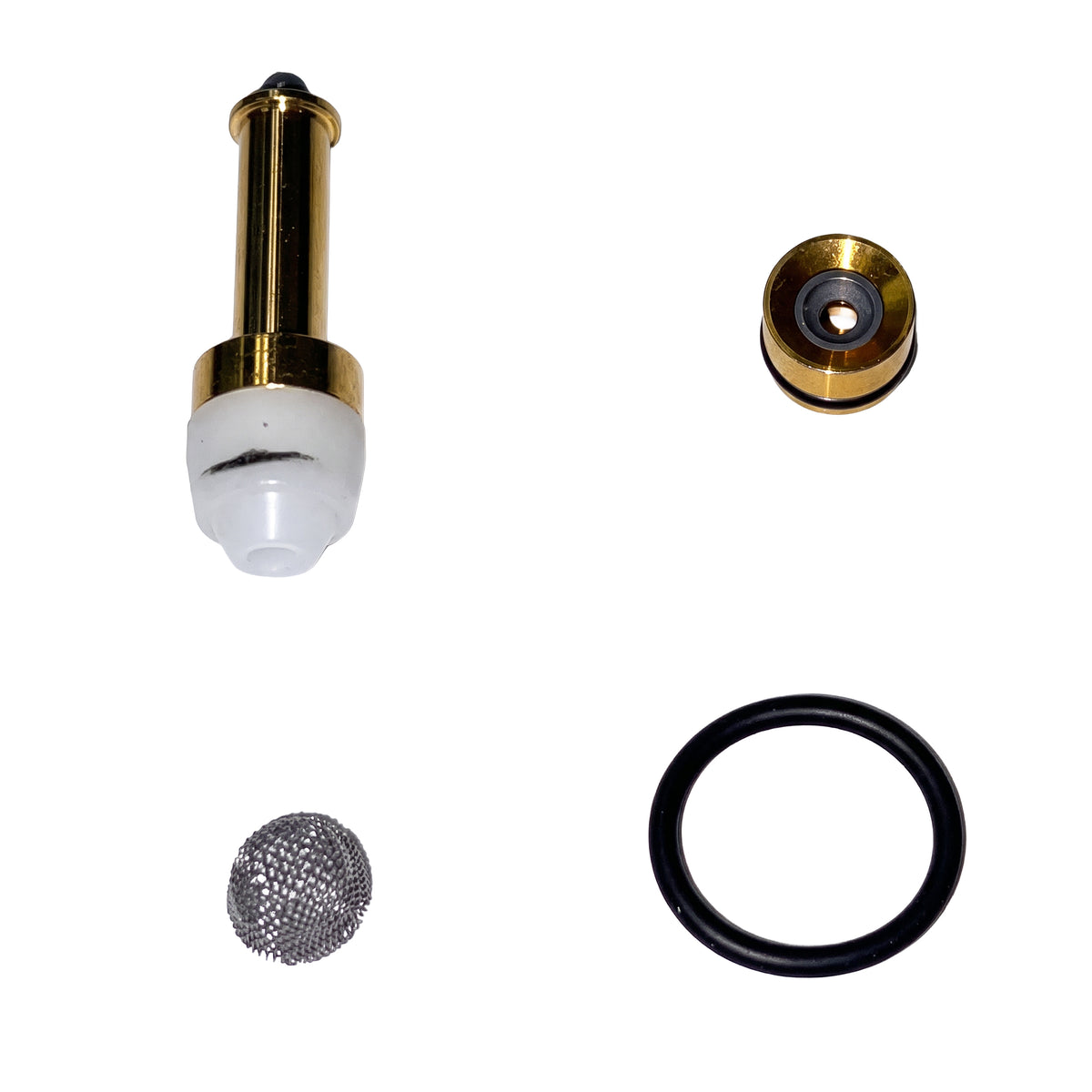

• Included in the Kit: Rotor, seat, O-rings, retaining hardware, and any shims or spacers required for proper rotor alignment. Using an inlet screen can reduce the risk of debris entering the turbo nozzle; check that your existing screen is intact during the rebuild.

• Storage and Shelf Life: Store elastomer seals in a cool, dry place away from UV and chemical exposure until installation. O-rings that have hardened or cracked from improper storage will not seal correctly.

Who This TPR Turbo Nozzle Repair Kit Is For

This is a professional-grade solution built for operators who run turbo nozzles hard enough to wear through internal components on a regular cycle.

• Pressure washing contractors. If you clean concrete driveways, commercial building exteriors, or run graffiti removal crews, your turbo nozzles accumulate hundreds of operating hours per season. Turbo nozzles may need repair due to grit or old age; keeping kits in the truck means a worn nozzle gets rebuilt on-site instead of sidelining a crew.

• Facilities and fleet managers. Wash bays for trucks, buses, and heavy machinery run turbo nozzles daily. A spare repair kit on the shelf prevents a full shift of downtime while waiting for a replacement nozzle to arrive. Rebuild during scheduled maintenance windows and keep every bay operational.

• Agricultural and industrial operations. Dairies, feedlots, and manufacturing plants rely on turbo nozzles for fast sanitation and equipment cleaning. Hot water and chemical exposure accelerate seal wear in these environments. The kit replaces only the parts that degrade from heat, abrasion, and chemical contact.

How to Choose the Right TPR Turbo Nozzle Repair Kit

Ordering the wrong kit wastes time and money. Two minutes of checking your nozzle specs before you add to cart prevents a compatibility mismatch.

Match the flow size (GPM or nozzle size). Look at the number stamped on your TPR nozzle body or reference the original SKU. A nozzle stamped "03" uses a different orifice and rotor geometry than one stamped "05." The repair kit for the TPR HE 250, for example, includes specific parts for its rated flow. Select the kit whose orifice designation matches your nozzle exactly.

Confirm operating pressure range. Verify that the repair kit is rated for the same maximum PSI as your TPR turbo nozzle and your washer system. Running a kit rated for 3,700 PSI inside a nozzle body operating at 5,075 PSI will cause premature failure.

Inspect the nozzle body before rebuilding. Check for cracks in the brass shell, stripped or cross-threaded inlet connections, and any external damage that could compromise the housing under pressure. If the body is compromised, a new nozzle is the safer path. A rebuild only works when the shell is structurally sound.

Plan for multiple units. If your crew runs several TPR turbo nozzles, order in quantity. Rebuilding all units on the same schedule keeps every wand performing consistently and avoids the surprise of a nozzle dying mid-job.

Step-by-Step: Nozzle Repair and Rebuilding Your TPR Turbo Nozzle

Before starting, depressurize your system, disconnect the power source, and wear eye and hand protection. High-pressure components can release stored energy unexpectedly.

1. Prepare your work area. Set up a clean bench with small pick tools, a soft-jaw vise, lint-free cloths, and a light lubricant suitable for elastomer seals. Have a container ready to catch old O-rings and debris.

2. Remove and open the TPR turbo nozzle. Detach the nozzle from the wand. Secure the body in the vise using soft jaws to avoid marring the brass. Unscrew the housing carefully; do not force threads that resist. If the housing is stuck, apply penetrating oil and wait.

3. Extract old internal components. Pull the worn rotor, seat, and all O-rings. Use a wooden dowel or plastic punch to push out the seat if it is press-fit. Flush the internal chamber with clean water to remove scale and grit. Inspect every surface: the bore, the O-ring grooves, and the thread roots.

4. Install new parts from the repair kit. Seat the new fixed seat with the correct orientation (O-ring groove toward discharge). Place the rotor assembly so it moves freely against the seat. Apply a thin film of lubricant to each O-ring before rolling it into its groove; do not stretch O-rings over sharp edges.

5. Reassemble and torque appropriately. Thread the housing back onto the body by hand first, then tighten evenly. Over-tightening can crack the brass body or distort the internal bore, causing the rotor to bind. If the manufacturer specifies a torque value, follow it.

6. Test under controlled conditions. Reconnect to the wand, pressurize the system, and spray onto a concrete surface at normal operating PSI. Listen for smooth, even rotation. Watch for a consistent cone pattern with no streaks or dead-spots. Check every joint for leaks. If rotation is rough or the pattern is uneven, disassemble and verify that all components are fully seated.

Maintenance Tips to Extend TPR Turbo Nozzle Life

Every hour of preventive care adds multiple hours of runtime between rebuilds. These practices keep your rotor and seat surfaces intact longer.

• Flush after using detergents or hot water. Cleaning chemicals left stagnant inside the nozzle degrade elastomer seals and can crystallize on rotor surfaces. Run clean water through the nozzle for 30 seconds after every chemical application.

• Use filtered water when possible. Sand, sediment, and mineral scale in the supply line erode ceramic rotor tips and seat surfaces. An inline filter or inlet screen traps particles before they reach the nozzle's internal flow path. Low-quality water is the fastest way to shorten rebuild intervals.

• Avoid dry firing and excessive bypass time. Running the washer without flow through the nozzle or holding the trigger closed for extended periods overheats internal parts. Seals harden, and rotor-to-seat contact surfaces can score from thermal expansion.

• Inspect spray pattern regularly. Watch for changes in rotation speed, pattern width, or streaking. A rotor that sounds rough, grinds, or produces a narrow cone is telling you a nozzle repair is due. Catching wear early prevents damage to the nozzle body itself.

• Schedule periodic rebuilds. For heavy users running TPR turbo nozzles daily, rebuild on a set interval (every few hundred operating hours) instead of waiting for failure. Planned rebuilds take less time, and you avoid the cost of emergency nozzle replacement when a unit dies mid-job.

Frequently Asked Questions

Do I really need a TPR-specific repair kit? Yes. TPR turbo nozzles use specific internal dimensions for the rotor, seat, and O-ring grooves. A generic or mismatched part causes poor rotation, pressure leaks, or rotor binding. Other manufacturers like Kränzle make kits specific to each nozzle model for the same reason; internal geometry is not interchangeable across brands.

How do I know my TPR turbo nozzle needs rebuilding? Reduced cleaning impact, an uneven or narrow cone pattern, loud or rough rotation noise, and visible leaks at the housing are all signs. A clogged inlet screen can mimic some of these symptoms, so check the filter first. If cleaning the screen does not restore performance, the rotor and seat are worn.

Can I rebuild the same TPR turbo nozzle more than once? As long as the body, threads, and internal bore are intact, you can rebuild multiple times. Severe corrosion, cracking, or thread damage means the body should be replaced. Dirt Killer nozzles, for reference, can be rebuilt easily using their matched kits; the same principle applies to TPR bodies designed for repeated service.

Will rebuilding change the pressure of my washer? A proper rebuild restores the original orifice sizing and seat geometry. That maintains the intended system pressure and flow balance. If you install an orifice size that does not match your machine's GPM, you will either starve flow or push the pump into bypass.

How long does it take to rebuild a turbo nozzle? Under an hour for someone with basic hand tools and familiarity with the process. The first rebuild takes the longest; subsequent ones go faster once you know the part orientation and assembly sequence.

Ready to Bring Your TPR Turbo Nozzle Back to Life?

The Barens TPR turbo nozzle repair kit puts like-new cutting power back into your existing nozzle body for a fraction of what a replacement costs. Swap the rotor, seat, and seals; test the spray; and get back to work. Keep at least one kit in your shop or service truck so a worn TPR turbo nozzle never takes a rig out of service.
