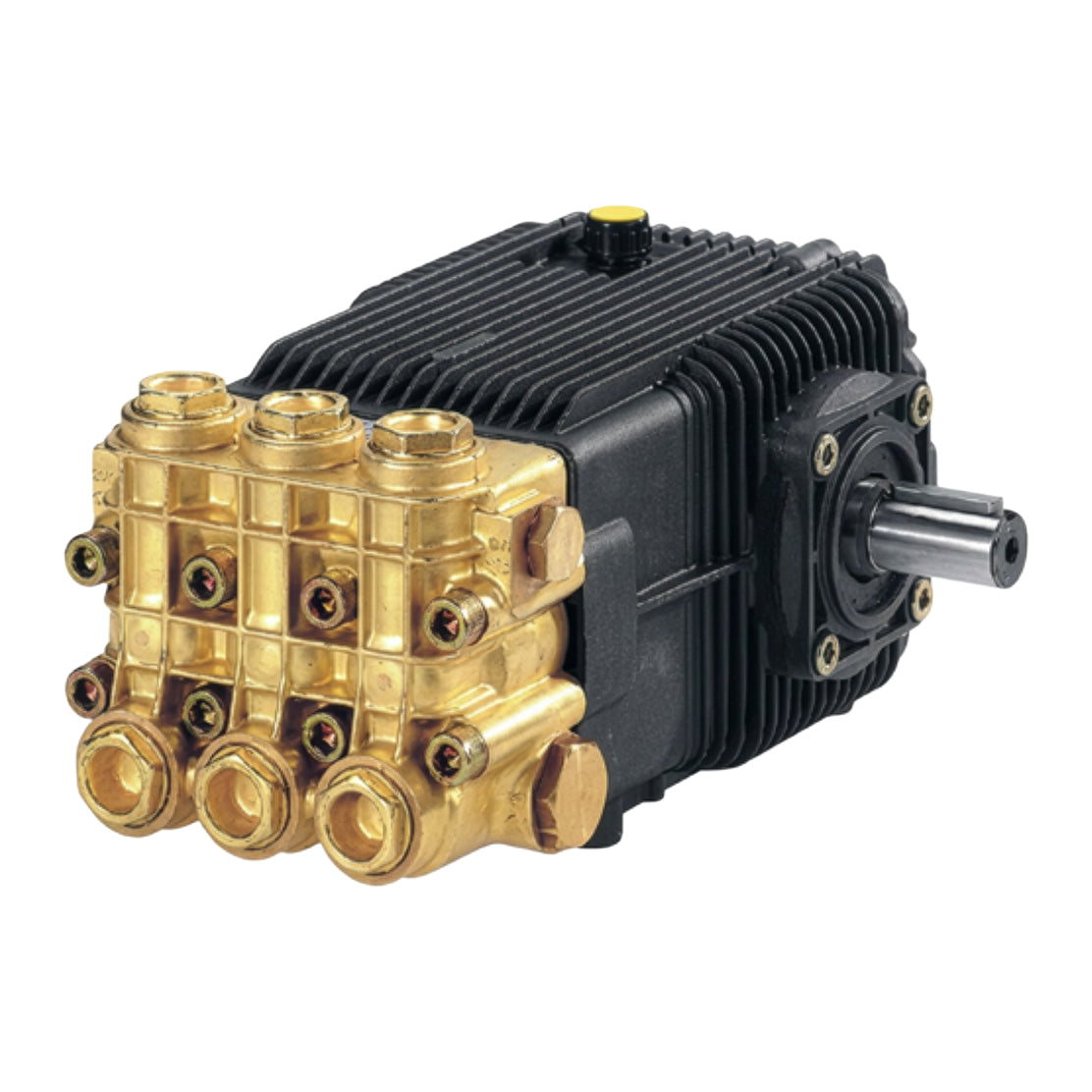

AR SXW21.35 24mm Pump 5.5GPM 5100PSI - 6000

The AR SXW21.35 Pump - Industrial Cleaning Power that Just Keeps Going and Going

The AR SXW21.35 is a seriously heavy-duty triplex plunger pump engineered for industrial cleaning, delivering 5.5 gallons per minute at 5,100 pounds per square inch with a low-speed 1,450 RPM belt-drive setup built for sustained, consistent high-pressure output. For pressure washing contractors, fleet and facilities maintenance teams, industrial plants, and agricultural or heavy equipment operators, it’s the kind of pump you spec when ordinary units won’t hold up to long hours, hard use, and demanding wash bays or job sites.

It’s built for the kind of work where you need to blast away grease, mud, and grime from heavy-duty machinery, strip coatings from concrete, or sanitise processing equipment for hours on end. This page breaks down the AR SXW21.35 pump’s key features, specs, installation and operation basics, maintenance needs, and where its design and materials make it a strong fit for tough industrial cleaning jobs.

With a low, steady 1,450 RPM operation and a consistent output, it delivers faster, better cleaning with a whole lot less downtime, which matters when lost pressure, pump failures, and service interruptions slow crews down and cut into productivity. Most pressure washers are running somewhere between 2-10 gallons per minute at 500 to 5,000 pounds per square inch. This one sits right at the top of that range and stays there even when you’re running it shift after shift.

Why You'll Fall in Love with the AR SXW21.35 Pump

The AR SXW21.35 is a beast of a pump that can deliver over 28,000 cleaning units (PSI x GPM). And that translates direct to productivity you can measure: cleaning bigger areas in less time, fewer slow passes over stubborn grime, and getting the job done while other pumps would have long since been sent off for overhaul.

• Serious cleaning power - At 5,100 PSI and 5.5 GPM, this pump packs a punch that can handle thick grease, baked on grime and heavy industrial soils on concrete, steel and machinery. It can clear away grease, mud and grime from heavy machinery without needing to make multiple slow passes.

• Built to keep going all day - The AR SXW21.35 has an operating speed of 1,450 RPM via belt-drive, which makes a huge difference in keeping the heat buildup, vibration and wear down during multi-hour shifts. The pump's design means less friction and wear during prolonged operation - a major plus when you're running all day.

• Smooth pressure all the time - The triplex plunger design keeps the pressure at the gun steady even when you've got long hose runs, restricted tips or fluctuating loads. No nasty surprises, no pressure drops mid-job.

• Lower lifetime cost too - High return performance combined with durability means the pump lasts a lot longer. Hardened components, serviceable internals and extended maintenance intervals mean fewer rebuilds and less money spent replacing parts compared to low-duty pumps that just can't hack it.

• Easy to integrate into pro rigs - The pump's got a 24 mm solid shaft that fits with all sorts of drive systems, standard plumbing sizes and compatibility with popular belt-drive frames, skids and trailers. The pump itself is compact and lightweight so it can be fitted into your existing setup without needing a complete redesign.

What Makes the AR SXW21.35 Pump Different

Everybody else might be trying to get by with a light-duty pump that's been "stretched" to hit the specs on paper. Not this one. The SXW21.35 is a premium pump built for real-world industrial use - and its got the cooling, materials and drive shaft size to prove it.

• Engineered for everyday 5,000 PSI use - This pump is designed to go the distance day after day without breaking a sweat. Every single internal component is designed with high-pressure industrial work in mind - not just thrown together for the sake of hitting a spec sheet.

• Top-notch triplex construction - The pump's built with a forged brass manifold, ceramic plungers, a precision-ground crankshaft, and stainless steel poppet-style valves with hardened seats. The forged brass head means no porosity worries, while the forged brass manifold and ceramic plungers improve corrosion resistance. The ceramic plungers also handle heat and wear with the kind of resistance that helps fight pitting over long industrial use. This is what separates a pump that lasts from one that's leaking in a matter of months.

• Low-Vibration Belt-Drive Design - By running the pump at a steady 1,450 RPM via belts, we spread out the mechanical load, keep the pump's heat away from the engine, and reduce the thermal stress that can kill seals and valves in high-speed direct-drive rigs. Running at lower RPM also means lower wear, longer seal life, and better efficiency over the life of your machine.

• Barens Application Expertise - We support the SXW21.35 with all the right accessories, mounting hardware and technical know-how to help you build or upgrade industrial pressure washer systems. Don't worry about working out pulley ratios and unloader selection - our team has hands-on experience to help you configure a complete system that gets the job done.

How the AR SXW21.35 Pump Works

The AR SXW21.35 is a positive-displacement AR triplex plunger pump design. In a nutshell, it works by three ceramic plungers moving up and down inside precision-machined bores, sucking water in through inlet valves and blasting it out through discharge valves under some serious pressure. It's a pretty simple concept that relies on precise execution - and our triplex arrangement delivers the smoothest, most stable flow possible compared to single or dual piston designs.

Step 1 - Get Your Pump Mounted and Running

Mount the AR SXW21.35 to your gas or electric motor via belt-drive, making sure your pulleys are sized just right to hit that 1,450 RPM mark. Getting the belt tension and alignment just right is crucial - anything less and you can bet your bearings will be wearing out fast and your pump will have a short life. With a 24mm solid shaft on the pump, you can hook it up to standard belt-drive configurations with ease. Next, hook up a decent-sized inlet supply line (at least half-inch with a filter to catch sediment and debris), and a three-eighths high-pressure outlet line that can handle 5,100 PSI with plenty to spare. Don't forget to install an unloader valve, pressure gauge and thermal relief device - you really need an unloader, by the way, especially since AR documentation pretty much insists you use one as well as a secondary safety relief valve to avoid getting slammed with overpressure.

Step 2 - Get Your System Primed and Up to Speed

Fill up your inlet line with clean water, purge all the air out of the system and then slowly bring your engine or motor up to speed without slamming it into high gear. You don't want to shock the pump and kill it. Once you hit your operating speed, the three plungers will be working in sync to draw water through stainless steel inlet valves and blast it out through discharge valves to the outlet. With the right nozzles and unloaders in place, your pump should be holding steady at around 5,100 PSI.

Step 3 - Keep Your Pump in Good Working Order

When you release the trigger, the unloader valve kicks in to divert flow back to bypass, stopping any nasty pressure spikes that might otherwise blow your hoses and fittings. Don't leave the pump in bypass too long without giving it some cooling flow or you'll end up overheating your seals and valves. To shut down, just release the trigger, let the unloader depressurize the system and then bring the engine down slowly. After using chemicals, you'll need to flush out the entire system with clean water, let the pump cool down and in cold weather, run some pump saver or antifreeze through the internal passages to keep the freeze from getting in.

Product Details: AR SXW21.35 Pump Flow Rate and Specifications for Easy Reference

Here are the key specs for easy planning:

• Model : Our industrial AR SXW21.35 triplex plunger pump - a tool we use and support for high-pressure washer builds

• Flow rate : 5.5 GPM (about 21 L/min) at the rated pressure and speed

• Pressure rating : Up to 5,100 PSI working pressure for the toughest cleaning jobs

• Speed : Belt-drive at 1,450 RPM to keep wear and heat generation to a minimum

• Drive configuration : Belt-drive with a 24mm solid shaft - not for direct-bolt to small engines but perfect for belt-driven frames and the like

• Power requirement : Approximately 20 EBHP at full output

• Construction materials : Forged brass, ceramic plungers, hardened stainless steel valves, oversized tapered roller bearings and a strong crankcase for industrial duty

• Port configuration : 1/2 inch female inlet, 3/8 inch female high-pressure outlet

• Internal dimensions : 18mm plunger bore and 21mm stroke length

• Oil capacity : The crankcase can hold about 32 oz (0.95 litres) - check the bayonet sight glass for easy oil level inspection

• Fluid and temperature limits : The AR SXW21.35 model goes up to 140°F (60°C) but we also have a high-temperature variant that can handle up to 185°F if you need it. Just make sure to use clean water and standard pressure washer detergents - if you need any special chemical compatibility, just give the Barens team a shout.

• Weight: around 34–35 pounds - a bit on the heavy side

• What ships: The pump comes out of the box as just a bare pump head and assembly. You're pretty much on your own when it comes to adding pulleys, belts, unloader, plumbing and all that other good stuff - except that Barens will probably send you a bunch of "typical" accessories to keep you from having to design the whole thing from scratch. The good news is that the pump has replaceable seals and some pretty handy maintenance features that'll make service a whole lot easier.

Who the AR SXW21.35 Pressure Washer Pump Is For

Don't go thinking that this pump is for some part-time home-owner who only uses it on the weekends to blast the dirt off the driveway. The AR SXW21.35 is built to last in a world of high-pressure, high-flow, 24/7 commercial and industrial use - the kind of world where equipment is expected to run forever without giving you any grief.

• Professional pressure washing contractors - If you're running a commercial rig that handles concrete restoration, building exteriors, heavy equipment cleaning or surface prep that needs a minimum of 5,000 PSI, then this is probably your pump. The 5.5 GPM flow rate will work with big surface cleaners and high-restriction nozzles to get the job done in a hurry.

• Fleet and facilities maintenance teams - These guys are running multiple hours a day on truck, bus and heavy-equipment wash bays where high pressure and high flow are a must. The AR SXW21.35 is commonly used in places like that - and it'll keep running long after cheaper equipment has given up the ghost.

• Industrial, refinery and plant operations - Degreasing production floors, machinery, tanks and infrastructure needs serious pressure and reliability - and that's exactly what the AR SXW21.35 delivers. It's even used in USDA-compliant food processing plants for sanitation applications.

• Agricultural and heavy equipment operations - This pump is used by farms, quarries, ranches and construction yards to clean up mud, oil and grime from heavy machinery and concrete pads. It's also used in livestock sanitation for hot water washdowns and for handling all the chemicals that go along with agricultural work.

Barens can help all of these users pick out the right accessories and configure complete hydraulic systems around the AR SXW21.35 to match up with specific application requirements.

Frequently Asked Questions

Here are some real answers to the sorts of questions that people tend to ask about choosing, installing and living with the AR SXW21.35 pump.

Is the AR SXW21.35 Pump easy to install?

If you've got some experience with mechanics or pressure washer building, then yeah, installation is pretty straightforward. The standard 24 mm shaft and belt-drive layout will have you up and running in no time - assuming you do the basics like sizing your pulleys, aligning your belts and setting up your unloader just right. But do pay attention to those details - or else you may be in for a world of hurt. Barens can give you some good advice on system design and component selection to keep you out of trouble.

What kind of engine or motor do I need?

The AR SXW21.35 needs about 20 shaft horsepower at 1,450 RPM to deliver its full output. If you're using a gas motor, you'll probably need one in the 25-30 HP range to account for motor losses and all that. If you're running electric, just make sure it's got the right voltage and current to support the pump's torque at the right pulley-belt ratio. If you end up running the engine at 3,600 RPM, you'll need to slow it down a bit - roughly 2.5:1 is a good place to start. Underpowering will cut back on performance - and overspeeding the pump will just shorten its lifespan.

Can the AR SXW21.35 handle hot water and detergents?

The standard setup is designed to handle water up to 140°F (60°C) and all the usual pressure washer detergents. But if you need to run hotter water or use something a bit more aggressive, consult with Barens to make sure the seals and manifold are compatible - you may need to upgrade the seals for certain chemical environments.

How long will the pump last?

Service life depends on a bunch of factors - like water quality, duty cycle and just how much maintenance you're willing to do. But the AR SXW21.35 is built to last for years with a little TLC - it's got ceramic plungers, forged brass manifold, hardened stainless steel valves and all the rest that adds up to a pretty long lifespan. Do keep an eye on the oil level, change it regularly and keep an eye out for leaks - and you'll be golden.

What maintenance does the AR SXW21.35 require?

Routine stuff like oil checks via the bayonet sight glass and an initial oil change after about 50 hours of break-in - then oil changes about every 500 hours. Inspect for leaks at seals and fittings pretty regularly and replace them as needed. Watch for pressure loss or pulsation as early warning signs that something's gone wrong - and change the seals and valves before it gets any worse. Keep the inlet water filtered - sand, silt and sediment will kill the pump faster than just about anything else. Barens will be happy to provide parts and service support to keep you up and running - so be sure to stock up on spare seal and valve kits in case something goes wrong, and share your experience once you've had the pump in service.

Ready to Build a Belt-Drive System that Can Really Handle the Heat?

Tired of throwing good money after bad on light-duty pumps that just can't hack it when it comes to 5,000 PSI in the real world? Sick of constantly replacing gear that was never meant to take on the kind of workload you're throwing at it? The AR SXW21.35 is a game-changer - it comes with a 5.5 GPM flow rate and 5,100 PSI of pressure, all wrapped up in a rugged AR construction that's been specified and supported by Barens for guys who need serious reliability and performance day in and day out. Plug this pump into your next skid, trailer or wash bay build and you'll get faster cleaning, longer pump life and a whole lot more uptime on the road. Whether you're building a new rig from the ground up or simply trying to beef up an existing system, the AR SXW21.35's got the muscle and the staying power to keep up.

Give Barens a shout to start discussing how to set up your next high-pressure system around the AR SXW21.35.
