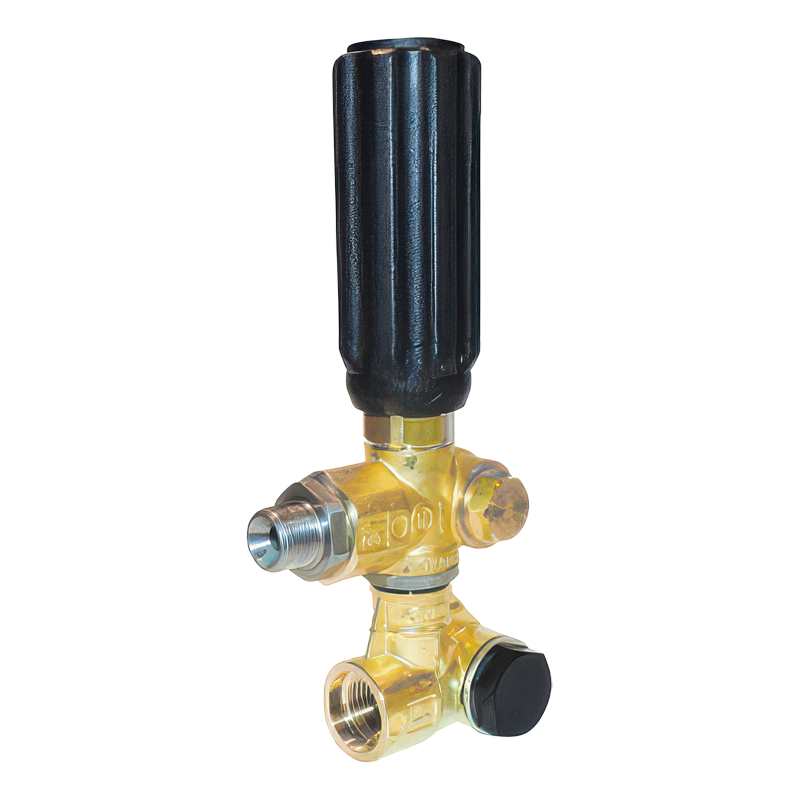

AR20242G Gymatic Bolt-On Unloader 3/4" GHT 3650PSI - 5547

AR20242G Gymatic Unloader in One Sentence

The AR20242G Gymatic 3/B is a commercial-grade bolt-on unloader valve designed for Annovi Reverberi XM, RK, and RR series pumps, rated to a max PSI of 3650 and engineered to deliver automatic pressure relief and bypass the moment you release the trigger gun. It protects your pump from dead-heading - the damaging buildup of pressure that occurs when flow is blocked - while giving you smoother, more predictable trigger response on every pull.

Whether you're running a truck-mounted commercial pressure washer, an industrial cleaning rig, or a mobile wash setup, the AR20242G fits directly into your system. It is compatible with RR, XM, and RK series pumps, including a perfect fit on the Annovi Reverberi RKV4G36 pump model, making it a straightforward upgrade or replacement for operators who depend on AR pumps daily.

Why You'll Want the AR20242G Gymatic Unloader on Your Pump

Pump overheating, hose bursts, erratic pressure swings, and premature wear are not abstract risks - they're the everyday problems that cost contractors time and money. The AR20242G addresses each of them directly.

• Better pump protection – When the trigger is released and flow is blocked, pressure can spike dangerously inside the pump head. The AR20242G provides protection against over-pressurization when the trigger is released by instantly opening a bypass path, keeping water moving through the system at low pressure. This prevents dead-heading on your XM, RK, and RR units and dramatically extends pump life.

• Smoother trigger-gun operation – The calibrated spring and piston assembly inside the unloader valve reacts quickly to changes in flow demand. That means fewer jarring pressure spikes when you pull or release the trigger, reducing hose jerk and strain on fittings. Properly adjusted unloaders help manage pressure transitions for consistent operation, and the AR20242G is tuned to deliver exactly that.

• More consistent cleaning performance – Stable operating pressure means predictable spray pattern width, intensity, and water throughput. You get uniform cleaning results across an entire job without nozzle stalling, touchups, or guessing whether your system is delivering rated pressure.

• Durable brass construction – The housing is constructed from durable brass material, with internal stainless steel components and quality elastomer seals. This combination resists corrosion, handles cold water and moderate-temperature applications (up to approximately 165°F), and stands up to the demands of frequent commercial use.

• Fast bolt-on replacement – The AR20242G is designed to bolt directly onto AR pump manifolds with minimal plumbing changes. It simplifies installation with its bolt-on design, so you spend less time wrenching and more time washing.

What Makes the AR20242G Gymatic Unloader Different

Generic universal unloaders often require adapters, deliver unstable bypass performance, and come with poorly calibrated adjustment mechanisms. They can oscillate under load, leak at connection points, and leave you guessing whether your pump is actually protected.

The AR20242G is built differently:

• Engineered for AR XM, RR, and RK pumps – The flow range of 3.0 to 5.5 GPM and max PSI of 3650 are matched precisely to the output of these pump series. You're not forcing a universal part to work - this unloader was designed for the pumps it mounts to.

• Integrated bypass design – The internal bypass design eliminates the need for external bypass plumbing. The brass bypass circuit is built into the body, reducing leak points, simplifying the plumbing layout, and cutting down on potential failure modes that come with external lines.

• Bolt-on convenience – The mounting pattern and port layout align with AR pump manifold bolt holes. The 3/4" F Garden Hose Thread inlet and 3/8" M outlet are sized for direct connection to common supply and high-pressure hoses without stacking adapters and elbows.

• Stable pressure response – The spring and valve assembly are tuned for quick reaction to trigger changes, limiting pressure spikes compared with cheaper units. The molded adjustment knob allows precise pressure setpoint control with a gauge in place.

• Backed by a major OEM – This is an original AR North America / Annovi Reverberi component, not an unbranded aftermarket copy. That means verified compatibility data, available repair kits (AR2611), exploded diagrams, and a manufacturer that stands behind the product.

How the AR20242G Gymatic Unloader Works in Your System

Understanding the flow path helps you install, adjust, and troubleshoot the AR20242G with confidence.

1. Water enters the unloader – Pressurized water leaves the AR pump (XM, RK, or RR series) and enters the AR20242G through its 3/4" F GHT inlet. A built-in filter screen at the inlet catches debris before it can reach the internal valve components.

2. Full flow to the nozzle – With the trigger gun open, the valve directs nearly all flow out through the 3 8" M NPT outlet to the high-pressure hose and nozzle. The internal spring and piston keep the bypass passage closed while system pressure remains below the set threshold.

3. Bypass activates on trigger release – When the operator releases the trigger, downstream flow stops and pressure begins to increase inside the discharge line. Once it exceeds the set point, the spring-loaded piston shifts and opens the bypass circuit.

4. Flow returns to the supply side – Water is diverted through the brass bypass port back to the pump inlet, float tank, or supply line, keeping fluid circulating at low pressure. This prevents overheating and mechanical stress on the pump.

5. Instant return to full pressure – As soon as the trigger is pulled again, pressure in the bypass circuit drops, the valve resets, and full flow returns to the outlet for cleaning. The transition is smooth and nearly instantaneous.

Product Details and Technical Specs

Here are the key specifications for the AR20242G Gymatic bolt-on unloader, formatted for quick reference:

• Model: AR North America / Annovi Reverberi AR20242G Gymatic 3/B bolt-on unloader

• Maximum working pressure: 3650 PSI for continuous duty in high-pressure cleaning applications

• Maximum flow rate: Max GPM of 5.5, with a flow capacity that ranges from 4 to 5.5 GPM (full operating range is 3.0 to 5.5 GPM)

• Inlet port: 3/4" female Garden Hose Thread (F GHT) with integrated filter to protect the valve assembly from debris

• Outlet port: 3/8" male NPT connection sized for common high-pressure hoses and fittings

• Bypass connection: Brass internal bypass port - no external bypass hose required; return flow routes back to pump inlet or supply tank

• Body material: Brass housing with internal stainless steel and elastomer components, suitable for cold water and moderate-temperature applications up to approximately 165°F

• Intended pump compatibility: Designed for AR RR, XM, and RK series pressure washer pumps; fits the Annovi Reverberi RKV4G36 perfectly

• Injector: This model does not include a chemical injector; for injector variants, see AR20081, AR20082, AR20399, or AR20400

• Operating media: Clean water or approved detergents compatible with brass and seals; not designed for highly corrosive chemicals

• Included items: AR20242G valve assembly with built-in inlet filter; no injector or trigger gun included

• Repair kit: AR2611 soft-part kit (O-rings and seals) available separately for field rebuilds

Who the AR20242G Gymatic Unloader Is Best For

The AR20242G is built for operators running AR XM, RR, or RK series pumps in environments where reliability, consistent pressure, and minimal downtime matter.

• Commercial pressure wash contractors – Truck and trailer-mounted rigs using AR pumps for daily cleaning routes benefit from the bolt-on installation, stable bypass, and OEM-grade durability that keeps jobs on schedule.

• Facility maintenance teams – Warehouses, food processing plants, and fleet yards that rely on AR-equipped cold-water units need an unloader that delivers consistent flow and pressure across long shifts and varying nozzle configurations.

• Equipment rental companies – Reliable, OEM-spec unloaders minimize downtime and repair callbacks on AR-powered washers cycling through multiple operators with different skill levels.

• DIY users upgrading OEM setups – Owners of AR-pump prosumer or home machines who want a bolt-on, OEM-grade replacement for a failing unloader without re-engineering their plumbing.

If you're running an AR XM, RR, or RK pump and want consistent pressure with built-in protection, the AR20242G is the unloader you spec.

Installation Overview (Bolt-On Setup)

This is a high-level overview of the installation process. Always follow AR's official instructions, safety guidelines, and torque specifications for your specific pump model.

1. Prepare the machine safely – Shut off the engine or motor, relieve all line pressure by squeezing the trigger gun until flow stops, disconnect the power source, and allow the pump to cool before touching any fittings.

2. Remove the old unloader – Unbolt the existing bolt-on unloader from the pump manifold. Disconnect the inlet, outlet, and bypass lines, noting their orientation and routing for reference during reassembly.

3. Inspect sealing surfaces – Check all O-rings, threads, and the pump manifold face for wear, scoring, or debris. Replace any damaged seals before proceeding.

4. Mount the AR20242G – Align the unloader with the designated bolt holes on your XM, RR, or RK pump. Tighten fasteners evenly to the manufacturer's specified torque values to ensure a uniform seal.

5. Reconnect plumbing – Attach the 3/4" GHT inlet supply line, the 3/8" M NPT outlet to the high-pressure hose, and route the bypass return line to the pump inlet or supply tank. Use appropriate thread sealant where specified by AR.

6. Set initial adjustment – Start from the factory setting on the adjustment knob. Slowly run the pump with the trigger gun open and make small, incremental adjustments while watching a pressure gauge until the desired operating pressure is reached.

7. Test trigger response and bypass – Confirm that pressure rises smoothly when the trigger is pulled and drops into bypass without extreme spikes when released. Cycle the trigger several times while monitoring the gauge.

Safety note: Never exceed the 3650 PSI rating of the AR20242G or the lower rating of any other component in your system - whichever is less is your true system limit.

Operation Tips and Best Practices

Getting the most life and best performance from the AR20242G comes down to a handful of habits that take seconds but save hours of downtime.

• Avoid long periods in bypass – When the trigger is released, water recirculates at low pressure but still absorbs heat from the pump. Extended bypass operation can increase fluid temperature toward the seal damage threshold. Pull the trigger periodically to pass cool supply water through the system, or shut down the machine during longer pauses.

• Use a properly sized nozzle – Nozzle orifice size should match your pump's rated flow and pressure output. Over-tightening the unloader adjustment knob to compensate for an undersized nozzle is not the way to get more power - it stresses seals, shortens component life, and creates dangerous pressure spikes.

• Watch for pressure spikes – Monitor with a test gauge when commissioning the system or after any changes to nozzles, hoses, or fittings. Spikes approaching double the normal system rating indicate misadjustment or a downstream restriction.

• Keep inlet water clean – The built-in GHT filter helps, but pre-filtering supply water with an additional inline screen reduces the load on the unloader's internal components and protects pump check valves.

• Match settings to pump rating – Even though the AR20242G supports up to 3650 PSI, never dial the unloader above your pump's or hose's rated pressure. The weakest component in the system sets the ceiling.

Maintenance and Troubleshooting

Regular inspections prevent most unloader failures. A few minutes of checking between jobs can save costly downtime and protect the rest of your pressure washer system.

• Routine inspections – Every few weeks of active use, check for external leaks at fittings, cracks in the brass body, and smooth operation of the adjustment knob. Any stiffness or grinding feel during adjustment warrants further investigation.

• Cleaning the inlet filter – Remove and rinse the built-in GHT screen regularly. A clogged filter restricts flow into the unloader, which can cause cavitation, erratic pressure, and premature wear on internal parts.

• Signs the AR20242G needs service – Watch for fluctuating pressure under steady trigger use, delayed pressure drop when releasing the trigger, excessive bypass overheating, or constant bypass even with the trigger open. Any of these symptoms indicate the unloader is not functioning correctly.

• Basic corrective actions – Before assuming the unloader has failed, verify nozzle condition, check for kinked or collapsed hoses, confirm proper adjustment with a gauge, and reseat or replace worn O-rings from the AR2611 repair kit as a first step.

• When to rebuild or replace – If you find internal scoring, a stuck piston, or a cracked body during inspection, a full rebuild or replacement is necessary. High-hour commercial units should receive particular scrutiny, as cumulative wear compounds over thousands of trigger cycles.

• Refer to AR documentation – For part numbers, exploded diagrams, and detailed rebuild procedures, consult the official AR North America service manuals specific to the Gymatic 3/B line.

Frequently Asked Questions

Is the AR20242G compatible with my pressure washer? The AR20242G is designed for AR RR, XM, and RK series pumps. It fits the Annovi Reverberi RKV4G36 perfectly and is compatible across the broader RR, XM, and RK lineup. Check your pump nameplate and AR's compatibility charts before ordering to confirm fitment.

Can I use the AR20242G above 3650 PSI? No. The unloader is rated to a max PSI of 3650 and should never be adjusted beyond that threshold or beyond the lowest-rated component in your system. Exceeding this limit risks catastrophic failure.

Does the AR20242G include a chemical injector? This model does not have an integrated injector. If you need chemical injection capability, consider the AR20081, AR20082, AR20399, or AR20400 variants, which include fixed or adjustable injector options. Alternatively, use a separate downstream injector with the AR20242G.

How often should I service the unloader? For commercial users, inspect the unloader every 100–200 operating hours. In dirty or demanding environments, increase the frequency. Clean the inlet filter regularly and replace O-rings (AR2611 kit) at the first sign of leakage or erratic performance.

Can I install the AR20242G myself? Experienced technicians can typically install and adjust it with basic hand tools and a pressure gauge. However, if you are unfamiliar with high-pressure systems, consult a qualified service center. Incorrect installation or adjustment can create dangerous operating conditions.

What happens if the unloader fails? Failure modes include continuous bypass (no pressure at the gun), no bypass (dangerous over-pressurization when the trigger is released), or erratic cycling between the two states. Shut down the machine immediately if you suspect a failure and diagnose the cause before resuming operation.

Ready to Upgrade Your AR Pump's Pressure Control?

The AR20242G Gymatic unloader delivers what matters most on the job: OEM-engineered pump protection for AR XM, RR, and RK series pumps, smoother trigger response, and dependable 3650 PSI control - all in a single bolt-on unit. The AR20242G is marketed as a commercial-grade component for pressure washers, and its integrated brass bypass, stainless internals, and matched flow capacity back that claim with real performance.
