Brass Adapter M20-1.5mm x 3/8" FNPT - 5481

High-Reliability Brass Adapter

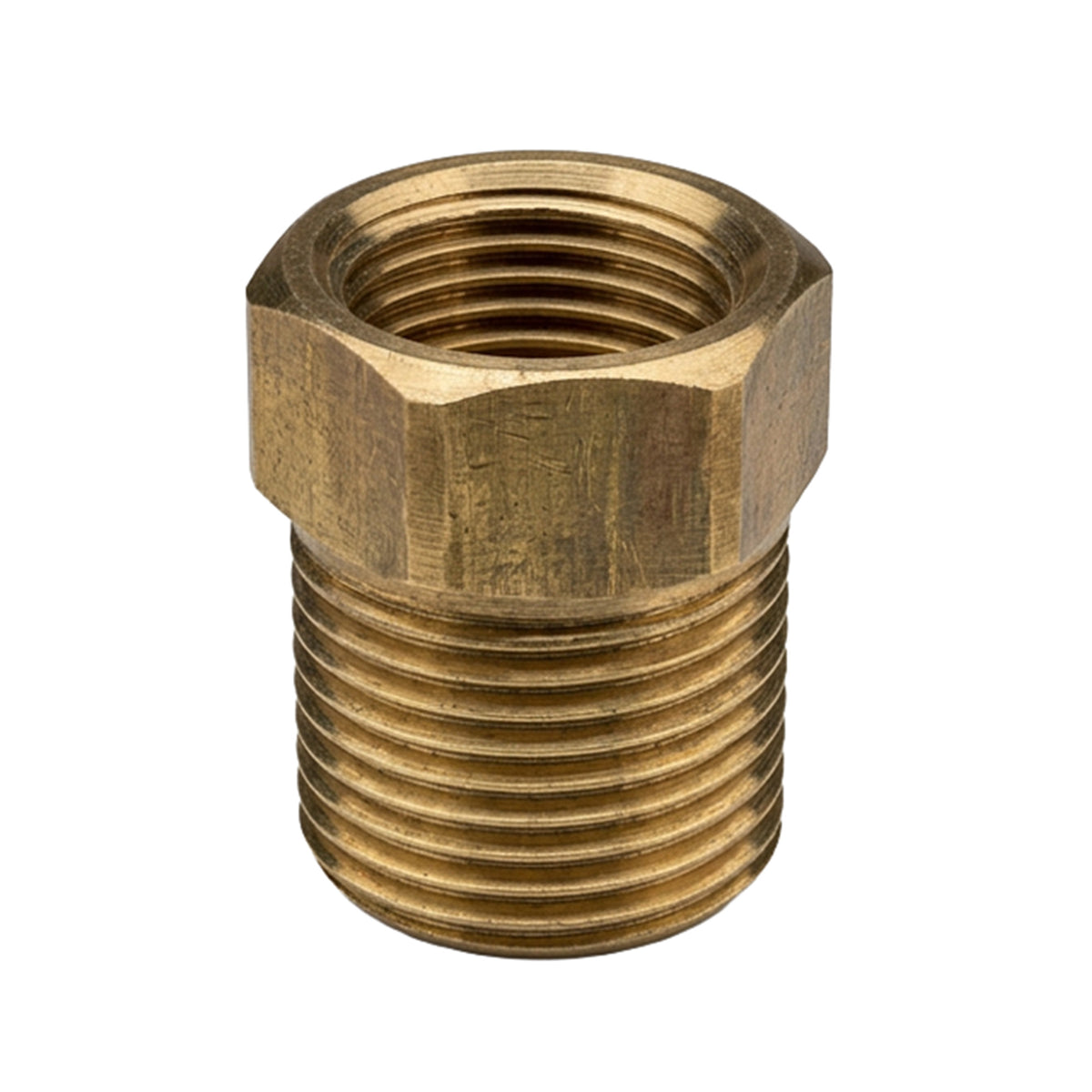

The brass adapter M20 to 3/8" NPT is a precision-machined fitting that converts an M20 x 1.5 metric thread to a 3/8" NPT tapered pipe thread, giving you a fast, leak-tight way to join European metric ports to North American NPT systems. This adapter delivers a secure, corrosion-resistant connection between two mismatched thread standards across pressure washing, pneumatic, hydraulic, and fluid handling setups. It's engineered for demanding environments where reliability and repeatability matter - the kind of fitting you install once and forget about, because it just keeps working.

M20 x 1.5 is a common metric thread size found on pumps, valves, manifolds, and cable glands sourced from European and international manufacturers. Meanwhile, 3/8 NPT is a tapered pipe thread standard in the US, showing up in everything from plumbing and instrumentation to compressed air lines and pressure washer hoses. When your equipment uses one standard and your accessories use the other, this adapter bridges the gap without forcing you to re-plumb your entire system or hunt down specialty parts.

The M20 to 3/8 NPT adapter has a male to female configuration, meaning the M20 x 1.5 male thread screws into your metric port while the 3/8" NPT female thread accepts your American pipe fitting. It's the correct way to solve the metric-to-imperial thread problem without compromising on seal integrity or flow.

Why You'll Love This Brass Adapter M20 to 3/8" NPT

If you've ever needed to connect a metric M20 port on a European pump, regulator, or manifold to a 3/8" NPT hose, quick-coupler, or gauge, you know the frustration. Mismatched threads can leave you dead in the water on a job site, scrambling through bins of random parts that don't quite fit. This adapter solves that problem in seconds and gives you a connection you can trust.

• Instant metric-to-NPT compatibility – Adapters provide cross-standard compatibility between metric and imperial threads. You can connect M20 x 1.5 threaded ports on imported equipment to standard 3/8" NPT lines without remanufacturing your manifold, buying special hoses, or swapping out expensive components. Just thread it in, and your systems talk to each other.

• Reduces downtime and rework – Time is money, and people who work with mixed-standard equipment know how much time gets wasted trying to match things up. This adapter lets you install a connection in minutes instead of hours. It's ideal for field repairs, upgrades, and retrofits where you needed the fix yesterday.

• Reliable, leak-resistant sealing – Precision-machined threads with proper NPT taper and flat, concentric faces maintain seal integrity under vibration and pressure cycling. Adapters often use sealants like PTFE tape for leak-free connections on the NPT side, and the sealing method for M20 threads may use O-rings or crush washers on the metric side, depending on your mating component. That dual approach keeps things tight.

• Durable brass construction – Brass fittings are resistant to corrosion and high temperatures, which means this adapter handles water, mild chemicals, outdoor exposure, and frequent connect/disconnect cycles without galling or degrading. Brass fittings are suitable for high-temperature applications and are used in hydraulic systems, making this adapter a serious workhorse.

• Simple, tool-friendly installation – You don't need specialty equipment - just a wrench, some PTFE tape, and a few minutes. Thread sizes are clearly marked so there's no guessing.

What Makes This M20 to 3/8" NPT Adapter Different

Most generic adapters you'll find at big-box stores or random online sellers are built to a price, not a standard. Inconsistent thread cuts, soft brass that deforms under torque, and sloppy tolerances lead to cross-threading, leaks, and frustration. This adapter is a different animal - it's a precision component designed for professional use.

• Tight machining tolerances – The M20 x 1.5 metric threads are cut to ISO 261/262 standards and the 3/8" NPT threads conform to ANSI/ASME B1.20.1, with tight pitch diameter control that reduces cross-threading risk and ensures repeatable sealing. That matters a lot when you're dealing with high-pressure pumps, compressed air lines, or hydraulic systems where even a small leak is a big problem.

• Optimized brass alloy for strength – Not all brass is created equal. The alloy chosen for this adapter balances machinability with higher tensile strength and resistance to cracking under torque or vibration. You won't see the deformation and thread stripping that plague cheap, soft-brass fittings when you apply the torque needed for a proper seal.

• Application-driven design cues – The hex profile is sized for common wrenches (typically 22–30 mm across the flats), chamfered thread starts on both sides make engagement easier and reduce the chance of cross-threading, and clear markings (e.g., "M20 x 1.5 ↔ 3/8 NPT") eliminate guesswork on the job site. Some users have asked about using these for electrical conduit applications, and one review noted the inside diameter is roomy for electrical conduit - a nice bonus that speaks to the adapter's versatile bore sizing.

How It Works in Your System

This adapter serves as a simple but precise intermediary between a metric port and a 3/8" NPT fitting. It's commonly used on pressure washer pumps, air tools, fluid manifolds, cable gland assemblies, and anywhere else metric and NPT threads need to meet. Here's the way to get it installed right.

1. Step 1 – Identify your threads. Before you add anything to your cart, confirm that one side of your equipment has an M20 x 1.5 thread (common on European pumps, valves, manifolds, and imported machinery) and that the mating line or accessory uses 3/8" NPT (standard in US plumbing, instrumentation, and pressure washing). Use a thread gauge or caliper to check - don't guess. Remember, NPT threads are tapered while M20 threads are straight (parallel), so they look and feel different even at a glance.

2. Step 2 – Install the adapter. Apply PTFE tape or thread sealant to the NPT tapered side - this is where the seal forms through thread compression and sealant working together. The M20 metric side, being a straight thread, may rely on a gasket, O-ring, or sealing washer depending on the mating port's design. Hand-thread the adapter into position first, then tighten with a wrench to snug without over-tightening. Because the NPT side is tapered, each additional turn increases stress on the brass body - overdoing it risks deformation or cracking.

3. Step 3 – Connect your line or accessory. Attach the corresponding 3/8" NPT component - hose, quick-connect, gauge, manifold, or whatever your system calls for. Tighten, then pressure-test the entire assembly for leaks before putting the system into full operation. A quick visual and tactile inspection saves you from dealing with failures under load.

Product Details: Brass Adapter M20 to 3/8" NPT Specifications

Here are the key specs for easy reference and planning. This section is built to be scannable - almost like a mini spec sheet - so you can confirm this is the right product for your specific application.

• Material / Finish: Machined brass body; Brass fittings are resistant to corrosion and high temperatures, making them a strong choice for industrial and commercial use.

• Thread Types: One side is M20 x 1.5 metric male; the other side is 3/8" NPT female. The NPT side conforms to the ANSI/ASME B1.20.1 taper standard (18 TPI, 1:16 taper, 60° flank angle). The metric side follows ISO 261/262 for a straight parallel thread with 1.5 mm pitch.

• Pressure and temperature range: M20 to 3/8 NPT adapters are suitable for moderate hydraulic pressures - typical working ratings for brass adapters in this size range run up to approximately 2,900 psi (200 bar), depending on system design, mating components, and temperature. The operating temperature range is -53 to 121 degrees C, making this adapter suitable for a wide range of environments from cold-weather outdoor work to heated industrial fluid systems.

• Dimensions and hex size: Overall length typically runs 25–30 mm. Thread engagement depth is approximately 10–15 mm per side. Hex flats measure 22–30 mm across for wrench gripping, so standard metric or adjustable wrenches will do the job. Weight is minimal - comparable adapters come in around 23 grams for nickel-plated brass versions.

• Compatibility notes: Suitable for use with water, hydraulic oil, light chemicals, compressed air, and general industrial fluids. Brass adapters can connect different thread types in plumbing and hydraulic applications. However, lead content in brass fittings restricts potable water use in the U.S. - brass fittings are not allowed for drinking water in the U.S. unless they meet low-lead or lead-free certifications (e.g., NSF-61 compliance). If you're working on a potable water system, choose certified lead-free fittings instead.

• What's included: The package contains one brass adapter (single piece). No hoses, sealant, O-rings, or additional parts are included - so make sure you have your PTFE tape and any required gaskets or sealing washers on hand before you start the job.

Who This Adapter Is For

This adapter is built for professionals and advanced DIY users who need reliable metric-to-NPT integration in demanding environments - not just occasional light-duty hookups where a close-enough fit might slide by.

• Pressure washing and cleaning pros – Contractors and facilities teams use the M20 to 3/8" NPT adapter to connect European or OEM pump manifolds to standard 3/8" NPT hoses, guns, and surface cleaners. If you've ever purchased a European-made pump and wanted to run it with your existing North American accessories, this is the part that makes the swap possible without custom fabrication.

• Industrial maintenance and OEMs – Plant maintenance teams and equipment manufacturers integrate metric components - pumps, cylinders, regulators, cable glands - into existing 3/8" NPT piping or manifolds without redesigning hardware. When your engine-driven equipment or transmission-cooler plumbing uses metric ports but your shop runs NPT, this adapter closes the gap.

• Automotive, fabrication, and workshop users – Shops running air tools, test benches, exhaust analyzers, or custom rigs often need to marry imported metric parts to 3/8" NPT shop air or fluid lines. Whether you're setting up a drive shaft test fixture, running wiring through metric cable glands into NPT junction boxes, or plumbing a gear oil cooler, this adapter gives you a clean, reliable connection.

• Electrical and instrumentation installers – Cable gland assemblies frequently use metric thread bodies that need to connect to NPT conduit or enclosures. The roomy internal bore accommodates wiring and conduit runs in fields where metric and NPT standards collide.

If you need a compact, rugged way to bridge M20 x 1.5 and 3/8" NPT threads in high-duty environments, this adapter is built for exactly that.

Frequently Asked Questions

Does this adapter change flow or pressure? Any fitting introduces minor restriction, but the internal bore is sized to keep pressure loss minimal in typical 3/8" NPT and M20 applications. Your actual system pressure is determined by the pump, regulator, or compressor - not the adapter. As long as the bore diameter isn't substantially smaller than your line size, the impact on flow is negligible at normal operating conditions.

Can I use it with hot water or steam? Brass fittings are suitable for high-temperature applications within their rated range. This adapter handles hot water within its operating temperature range of -53 to 121°C. However, saturated steam or temperatures beyond the published limits require specialized fittings with upgraded seals and materials. For hot-water pressure washing within these limits, you're good to go.

Is thread sealant required? Yes, on the NPT side. 3/8 NPT threads are tapered and seal through thread compression combined with PTFE tape or pipe thread sealant - always apply sealant on that side. The M20 metric side is a straight (parallel) thread that does not seal by threads alone. Depending on your mating component, you may need a gasket, O-ring, or sealing washer on the metric side. Check your port design and choose the correct sealing method.

Is it safe for drinking water? Unless certified otherwise, standard brass adapters with typical lead content are not suitable for potable water lines governed by modern drinking water regulations in the U.S. If you need a fitting for a drinking water system, look for certified low-lead or lead-free brass fittings that comply with NSF-61 or equivalent standards. This is not just advice - it's a regulatory requirement.

How do I avoid cross-threading? Start both sides by hand every time. Verify alignment before applying any wrench torque. If you feel unusual resistance, back off and inspect both thread forms for damage, burrs, or contamination. The chamfered thread starts on this adapter help engagement, but forcing a misaligned connection will damage the threads. Some users experienced leaking issues with their adapters - and in most cases, the root cause was cross-threading or insufficient sealant application, not a product defect.

What about quality concerns? The product carries a 4.5 out of 5 star rating, and most customers report excellent fit and long-term performance. One customer reported a broken adapter upon arrival - which is uncommon but a reminder to inspect any precision fitting before installation. If something doesn't look right, contact the seller before you install it. A lot of questions people have asked come down to proper installation technique rather than product issues.

Ready to Upgrade Your Metric-to-NPT Connections?

Stop wasting time wrestling with mismatched threads when you're trying to install pumps, hoses, and accessories. A dedicated M20 to 3/8" NPT brass adapter eliminates that frustration and gives you a connection you can bet on - job after job, season after season.

With this adapter, you can quickly turn any M20 x 1.5 port into a dependable 3/8" NPT connection using pro-grade brass, tight tolerances, and long-term corrosion resistance. Whether you're outfitting a pressure washer rig, plumbing an air compressor, or integrating imported equipment into your shop's existing NPT infrastructure, this is the part that makes it all work together.

Add one to your order and standardize your setups so metric and NPT components share the same system seamlessly. Stock a few extras in your parts bin - because once you've used one, you'll find a lot more places where you need them. Thanks to a compact, durable design and proven performance in the field, this adapter is the simplest upgrade you can make to keep your equipment running without compromise.
