AR 880130 16mm Oil Fill Cap Dipstick RSV/RRV/RCV - 3388

Quick, Accurate Oil Checks for Your High-Pressure Triplex Pump

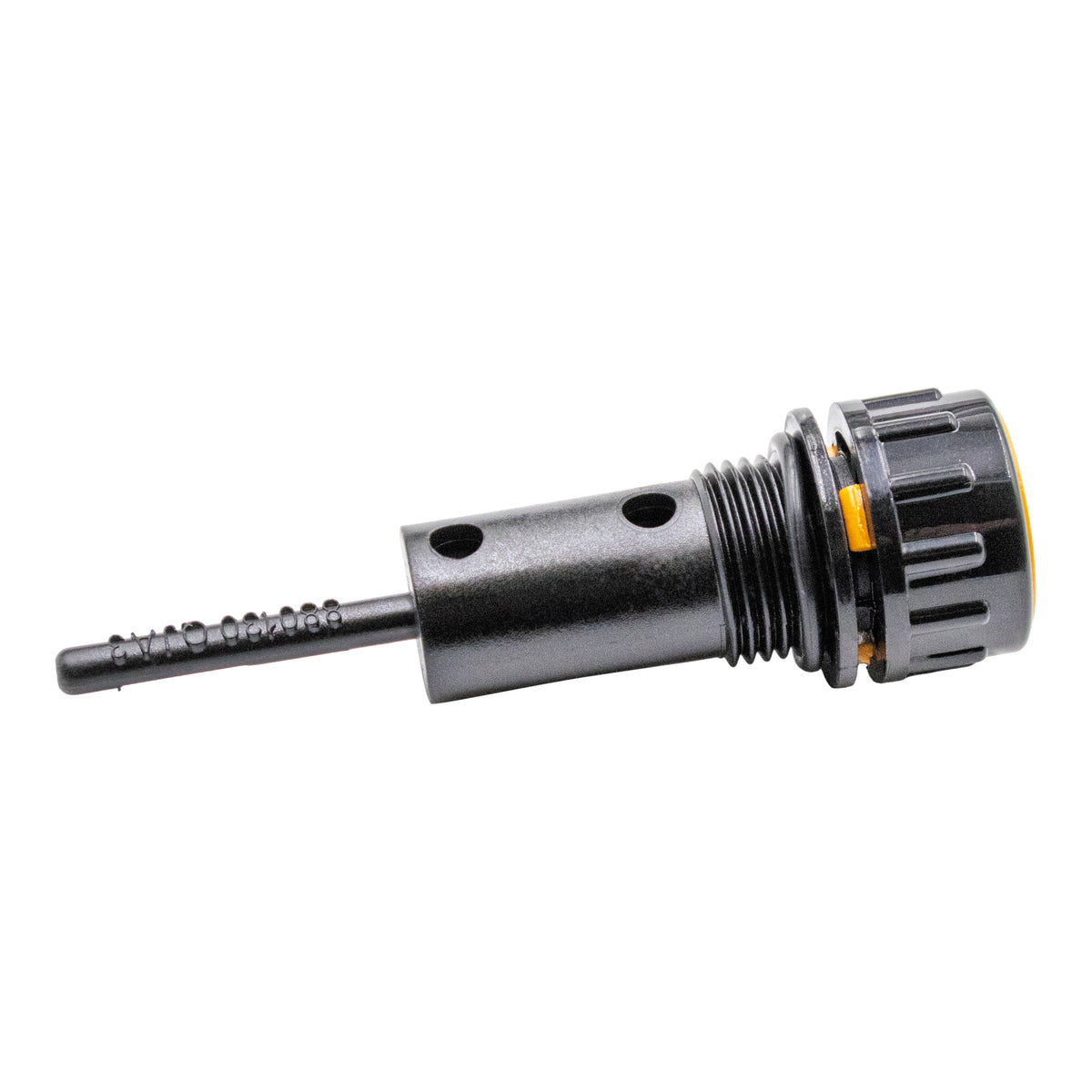

The AR880130 is an oil fill cap with an integrated dipstick, designed for Annovi Reverberi triplex plunger pumps. It threads into the oil fill port on AR RSV, RRV, RMV, and RCV pump heads, giving you a way to check the pump's crankcase oil level in seconds without removing any other components. The dipstick checks oil specific to the pump and not engine oil.

• Fits AR pump models including the RSV 3G30, 4G30, 3G35, 4G35, 3.5G35, and 4G40

• Replaces a lost, cracked, or non-vented oil fill cap with a single part that seals, vents, and measures

One-Sentence Summary

The 880130 oil dipstick lets you pull, wipe, and read your pump's oil level and condition in under 30 seconds, so you catch low oil or contamination before it costs you a pump rebuild.

Why You'll Love the Pump Oil Dip Stick 880130

A triplex pump crankcase on an RSV 4G30 or 4G40 holds roughly 12 to 16 fluid ounces of oil. That's a small volume where even a few ounces of loss can mean the difference between smooth operation and bearing damage. The 880130 dipstick makes monitoring that level a matter of seconds, not minutes.

• Prevents costly pump damage – Using too little oil can lead to overheating and pump damage. Proper maintenance of the oil level is crucial for pump operation, and a quick dipstick reading before each job keeps your bearings and crank lubricated under load.

• Saves you time on every service – The pull-wipe-read method takes less time than finding a flashlight to peer into a fill port. The dipstick must be wiped clean before taking a reading, just like a car engine oil dipstick; one wipe, one re-insert, and you have your answer.

• Helps you monitor oil health – Oil should look smooth and glossy on the dipstick. Dark, gritty, or milky oil tells you something is wrong with seals, bearings, or cooling before the problem escalates to a full failure.

• Keeps contaminants out – Sealing the oil fill port prevents contamination of crankcase oil. The cap sits flush with an O-ring or gasket to block dust, grit, and wash bay moisture from entering the crankcase while your pump vibrates through a long work day.

• Vents internal pressure safely – The cap provides a venting function to equalize internal pressure inside the crankcase during operation. Without proper venting, pressure buildup from heat and plunger cycling can force oil past seals or blow gaskets. A non-vented generic plug creates exactly that problem.

• Simple for any operator – No training required. If you can check oil in a car, you can check oil with the 880130. Hand-tighten it into the fill port, and any member of your crew can run a pre-shift check.

What Makes the 880130 Dipstick Different

Most generic oil caps and plugs for pressure washer pumps are simple threaded plugs with no dipstick tube and no vent. Some operators improvise with cut-down bolts or universal plastic caps. Those work as plugs but fail at two things: they give you no way to measure oil level, and they trap crankcase pressure that causes leaks under vibration.

• Precision-matched stem length – The AR880130 has a thread diameter of approximately 16 mm and a length of about 100 mm, calibrated to the crankcase depth of AR RSV/RRV/RCV pump heads. That means the oil level should be within designated minimum and maximum marks on the dipstick when the crankcase is filled correctly. A generic cap with a longer or shorter stem gives a false reading that leads to overfilling or underfilling.

• Integrated venting – The breather built into the cap design allows air exchange without letting water or debris in. Generic non-vented caps trap heat and pressure; vented caps without proper gaskets let moisture in. The 880130 handles both.

• Oil-resistant polymer construction – The cap and stem are built from a polymer rated for continuous contact with non-detergent 30W pump oil and the operating temperatures of pumps running at 3,400 RPM with inlet water up to 60°C (140°F). Cheap plastic caps warp or crack under those conditions within a season.

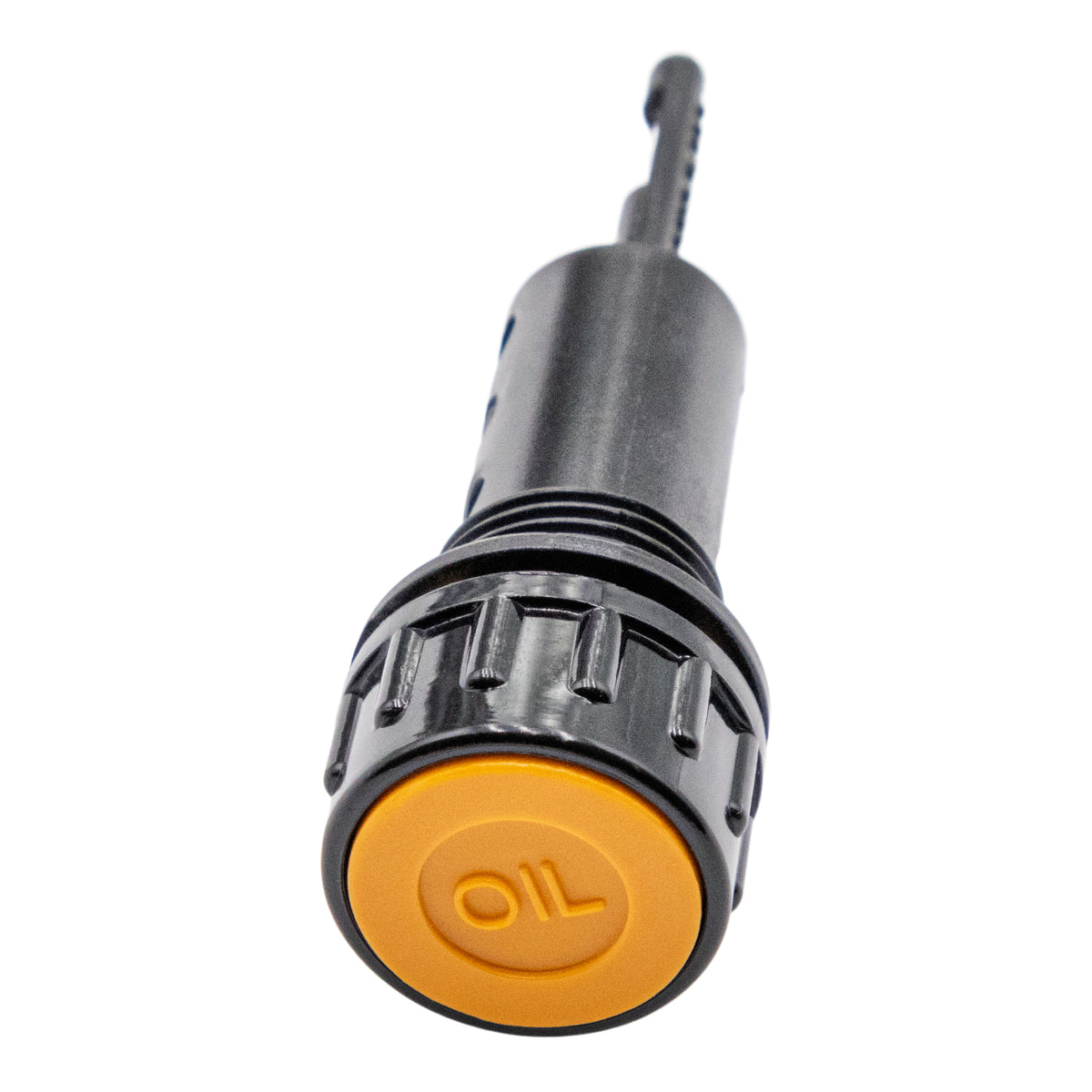

• High-visibility color – Some versions of the 880130 come in yellow or orange, making it easy to locate on a pump head crowded with fittings and hoses. When you're doing a quick walk-around on a trailer rig, a bright cap beats hunting for a black plug.

How It Works

The 880130 dipstick works on the same principle as a car engine dipstick, but it's sized and marked for a high-pressure pump crankcase instead of an engine block.

1. Install in the oil fill port – With the pump off and cool, remove the existing oil fill cap. It is important to clean the area surrounding the cap before removal so no debris falls into the crankcase. Thread the 880130 into the fill port by hand until the O-ring seats. No tools required.

2. Check the oil level – Check oil level with the dipstick after parking on level ground. Shut off the pump, wait about 30 seconds for oil to settle, then remove the dipstick, wipe the stem clean with a lint-free cloth, reinsert it fully, and pull it out again. Read the oil film against the min/max marks.

3. Interpret and act – If oil is below the minimum mark, add non-detergent 30W pump oil until the reading sits between min and max. Add at least one quart of oil if low on dipstick; running a quart low means 25% less oil in the engine (or in this case, the pump crankcase). If the oil looks milky, foamy, or burnt, stop and inspect seals. Overfilling can cause excessive pressure or oil leakage, so don't go past the max mark. High oil levels may indicate coolant leaks or condensation.

Product Details

Here are the quick-reference specs for pump oil dip stick 880130.

• Material / Construction: Oil-resistant polymer cap with integrated breather vent; reinforced polymer dipstick stem rated for continuous contact with pump oils and operating temperatures up to 60°C (140°F)

• Dimensions: Approximately 100 mm total length (stem tip to cap top), with a cap footprint of roughly 2 inches; thread diameter approximately 16 mm

• Thread / Port Size: Designed to fit the factory oil fill port threads on AR RSV, RRV, RMV, and RCV pump heads without adapters

• Compatibility: Direct-fit replacement for Annovi Reverberi triplex plunger pumps including RSV 3G30, 4G30, 3G35, 4G35, 3.5G35, and 4G40 models; these pumps typically deliver 3 to 4 GPM at pressures up to 4,000 PSI

• Sealing: Integrated O-ring or gasket prevents oil weeping while maintaining the breather vent function

• Color / Visibility: Available in high-visibility yellow/orange in some versions for quick identification during service checks

• Included: Ships as a single dipstick assembly, ready to install

• Warranty: Covered by the manufacturer against material and workmanship defects

Who It's For

The 880130 oil dipstick is for anyone who owns or operates an AR triplex pump and wants to keep it running without guesswork.

• Professional pressure-washing contractors – Running RSV 4G30 or 4G40 pumps on skid or trailer rigs that see daily use. A 15-second dipstick check before each job is cheaper than a $400 pump rebuild.

• Facilities and fleet maintenance teams – Managing wash bays where multiple operators share equipment. The dipstick gives every operator the same simple method to verify oil, reducing the odds that someone runs a pump dry on a busy shift.

• Agricultural and ranch operations – Using high-pressure pumps to clean machinery, barns, and pens in dusty, chemical-heavy environments. The sealed, vented cap keeps contaminants out of the crankcase between oil change intervals.

• DIY owners of commercial-grade pressure washers – Customers who invested in a pro-level pump and want to protect that investment through simple, visual oil monitoring rather than guessing whether the oil is still good.

Using the 880130 Dipstick with a 4 GPM, 4,000 PSI Pump

On a triplex pump delivering 4 GPM at up to 4,000 PSI, correct oil level supports smooth plunger motion, keeps bearings lubricated, and manages heat during continuous duty at 3,400 RPM. The 880130 is the item that lets you verify all of that in seconds.

• Correct oil level prevents metal-on-metal contact in the crankcase. At 4 GPM and 4,000 PSI, even a brief period of oil starvation generates enough heat to score bearing surfaces and warp seals.

• A simple pre-shift routine: visually inspect the pump for leaks, pull the 880130 dipstick, verify oil sits between min and max, check that oil looks smooth and glossy (not milky or dark), then start the engine. This takes less time than filling a coffee cup.

• Frequent short checks via the dipstick cost nothing and prevent things from escalating. Replacing a worn dipstick O-ring once a year is trivial compared to rebuilding a crankcase because an unnoticed oil leak ran the pump dry over a week.

• A contractor doing long days of flatwork and fleet washing can avoid midday breakdowns by checking the dipstick at the start of each job. If the oil level dropped overnight, that's a leak; find and fix it before you're stranded at a job site.

Installing and Caring for Your Pump Oil Dip Stick 880130

Correct installation and basic care ensure accurate readings and a long service life for the dipstick.

• Installation – With the pump off and cool, remove the old fill cap or dipstick. Wipe the fill port threads clean, then gently thread the 880130 in by hand until the O-ring seats against the port surface. Do not use tools to overtighten; hand-tight is the true spec for this item.

• Initial calibration check – Fill the pump crankcase with the manufacturer-recommended non-detergent 30W pump oil to the specified volume (roughly 12 to 16 fluid ounces on RSV-series pumps). Then use the new dipstick to confirm that "full" aligns with the upper mark. If it doesn't, verify you have the correct 880130 for your pump model.

• Regular use – Check oil at least daily in professional settings, or every few uses in light-duty applications. Follow the same pull-wipe-reinsert method used on car engines. This is the single most effective way to catch problems early.

• Cleaning – Periodically wipe the stem with a lint-free cloth to prevent sludge buildup that obscures the marks. A clean stem gives a clean reading.

• Seal inspection – Every few months, pull the dipstick and inspect the O-ring or gasket for cracks, flattening, or hardening. A failed seal lets moisture and grit into the crankcase and allows oil to weep out under vibration. Replace the dipstick if the seal no longer holds.

• Storage – If the pump is stored for the off-season, ensure the dipstick is fully installed after winterizing the pump with antifreeze or pump saver solution. A sealed crankcase keeps moisture and dirt out during months of downtime.

Frequently Asked Questions

Here are answers to the most common questions customers ask about the pump oil dip stick 880130.

Is the 880130 dipstick easy to install? Yes. Remove the existing oil fill cap, clean the port threads, and thread the 880130 in by hand. No special tools, no adapters. The whole process takes less than a minute.

How often should I check my pump oil with this dipstick? Before each workday for professional users. For DIY owners, check every few uses or any time the pump has been running long enough to heat the oil. Consistent checks are the simplest way to prevent oil-related failures.

What does milky or foamy oil on the dipstick mean? Milky oil indicates water ingress, typically from a failed crankcase seal or condensation. Foamy oil can signal overfilling or aeration. Either condition means you should stop, drain the oil, inspect seals, and refill before running the pump again.

Can I use the 880130 dipstick on any pump? No. It is designed for Annovi Reverberi RSV, RRV, RMV, and RCV triplex pump heads with a specific fill port thread size. Verify your pump model against the compatibility list before ordering.

Will this dipstick improve pump performance? The dipstick itself doesn't add PSI or GPM. What it does is help you maintain correct lubrication, which in turn supports consistent pressure output and longer pump life. A pump running at the right oil level delivers the performance it was built for; a pump running low on oil does not.

What happens if I lose or damage the dipstick? Running without a proper cap or dipstick leaves the crankcase open to dust, moisture, and debris. It also eliminates your ability to verify oil level and removes the venting function, which can cause pressure buildup and oil leaks. Replace it with the correct 880130 as soon as possible.

Protect Your Pump Investment

Pump oil dip stick 880130 is a small part that does critical work: it seals your crankcase, vents internal pressure, and gives you a fast, accurate reading of oil level and condition every time you pull it. For a triplex pump delivering 4 GPM at 4,000 PSI, correct oil is the difference between years of reliable service and an early rebuild. Treat the dipstick as essential, not optional, whenever you service or set up a high-pressure pump. Add the 880130 to your maintenance kit or include it with your next pump installation.
