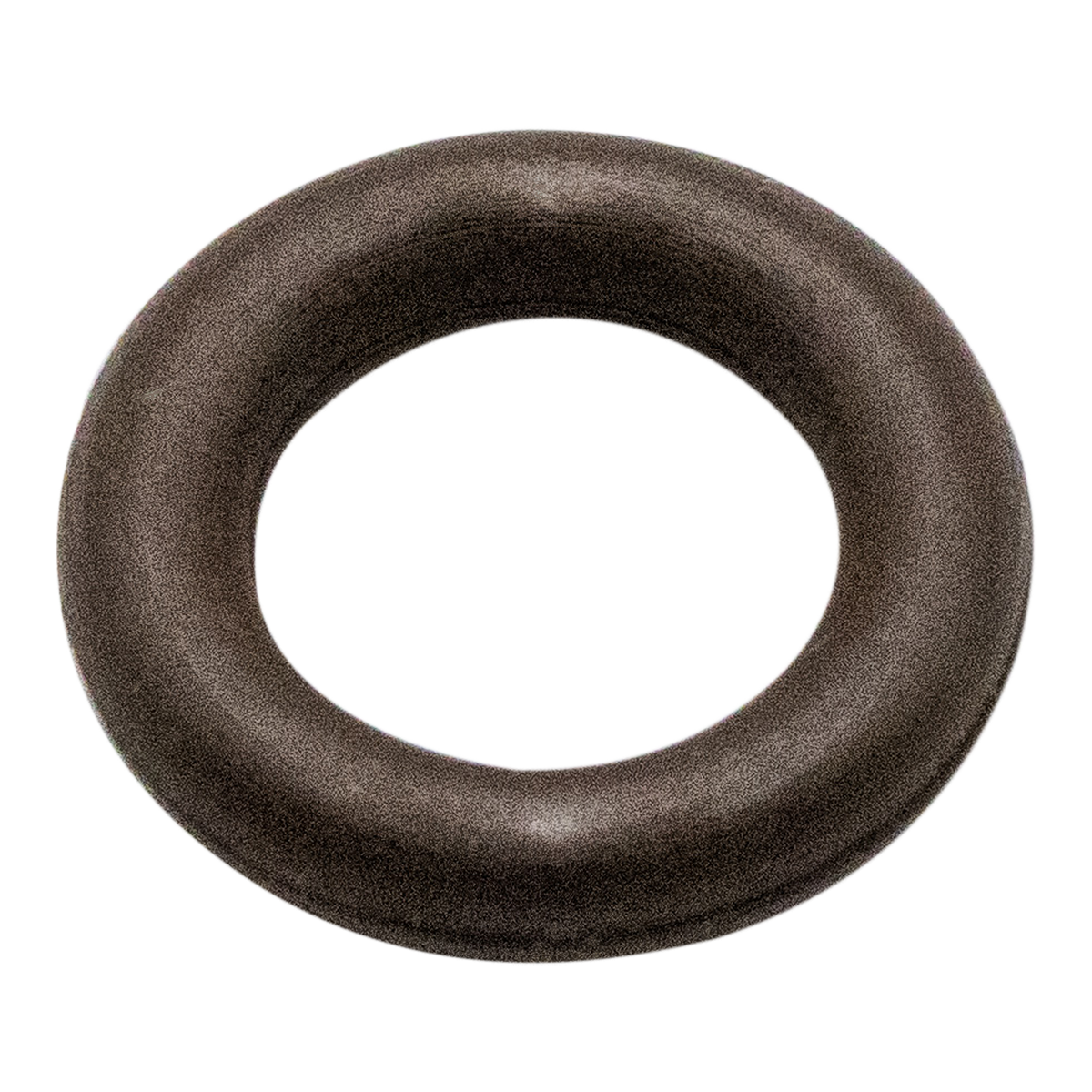

General Pump 90357200 Viton O-Ring 70 Duro - 3369

General Pump Viton O-Ring: The Fast Answer

General Pump Viton O-rings are fluoroelastomer (FKM) seals engineered to fit the exact grooves, valve guides, and manifold positions inside General Pump triplex plunger pumps, chemical injectors, unloaders, and related accessories. Viton is classified as a fluoroelastomer (FKM) synthetic rubber, originally developed by DuPont, and these o rings are specified where standard Buna-N seals simply cannot survive the combination of harsh chemicals, elevated temperatures, and relentless high-pressure cycling that commercial and industrial pump systems demand.

Why does the material matter this much? Because sealing failures are the single most common reason a pressure washer goes down. Standard nitrile o rings swell, crack, or soften when exposed to chlorine-based bleaches, caustic degreasers, petroleum-based solvents, or hot water above roughly 180°F. Viton o rings offer exceptional resistance to all of those attack vectors, which translates directly into fewer leaks, longer service intervals, and less money lost to downtime.

If you're running a 3,000–4,000 PSI class General Pump triplex unit, a hot-water skid, or a chemical injector that meters aggressive chemicals into your wash stream, Viton seals are almost certainly the right upgrade. Whether you're soft-washing building exteriors with sodium hypochlorite or blasting grease off fleet vehicles with hot alkaline detergent, these o rings keep your pump sealed and working when cheaper elastomers would have already failed.

Why You'll Want Viton O-Rings in Your General Pump

Less downtime, fewer blown seals, and better performance under the harshest conditions you can throw at a pump - that is the short version. Here is the longer one.

• Longer seal life with aggressive detergents – Viton is highly resistant to chlorine-based cleaners, caustic degreasers, many acids, and petroleum-based solvents that would soften or crack standard Buna seals within weeks. Its high fluorine content (roughly 60–70%) creates a chemical backbone that offers excellent resistance to the detergent and solvent exposure common in professional pressure washing and chemical processing applications. Viton O-rings are ideal for sealing aggressive chemicals and petroleum-based fluids, making them the go-to material anywhere harsh chemicals contact your pump's internal sealing surfaces.

• Better performance at elevated temperatures – Viton performs reliably in temperatures from -15°F to 430°F, and Viton O-rings withstand temperatures up to 400°F in continuous service. Compare that to Buna-N, which tops out around 248°F. In hot-water and steam-rinse pressure washers where inlet fluid temperatures regularly push past 180–200°F, Viton maintains its mechanical integrity and elasticity in high-temperature environments where nitrile would harden, crack, and blow out. Viton O-Rings operate effectively across that full temperature span, keeping your seals reliable whether you are running a heat exchanger skid or working under direct sun in midsummer.

• Higher reliability at commercial pressures – General Pump triplex units commonly operate at 3,000–4,000 PSI, with some models pushing even higher. Viton retains its shape and sealing force under sustained pressure, resisting extrusion and blow-by in valve seats, manifold plugs, and unloader assemblies. Its low compression set means the material springs back toward its original shape after millions of pressure cycles instead of taking a permanent deformation the way cheaper rubbers do. Viton O-rings maintain sealing integrity under extreme conditions, which is exactly what you need in a pulsating positive-displacement pump.

• Reduced maintenance and downtime – Because Viton resists deterioration from heat, chemicals, ozone, and UV exposure, the interval between o-ring replacements stretches significantly. Viton O-rings typically last between 5 and 10 years under appropriate service conditions. Fewer rebuilds mean lower labor cost, less collateral damage from leaks, and more billable hours on the job site instead of in the shop.

• Compatibility with multiple General Pump assemblies – Viton seals are used across pump heads, fixed chemical injectors, quick-connect couplers, and select unloader or bypass assemblies where FKM is specified. General Pump's own parts catalogs increasingly call out "O-Ring, 70 Duro, Viton" in injector and accessory kits, making these seals a direct OEM-supported upgrade for critical sealing applications throughout the system.

What Makes General Pump Viton O-Rings Different

Generic viton o rings are widely available from dozens of suppliers, but not every fluoroelastomer ring is built for the specific requirements of a high-pressure pump environment. General Pump's OEM Viton o rings are selected for the exact pressures, geometries, chemical exposure profiles, and thermal stresses that their triplex and injector products generate.

• Formulated for high-pressure pump environments – Triplex plunger pumps apply rapid, cyclic pressure changes - compression, decompression, vibration - millions of times over the life of a seal. These Viton o rings are chosen for their excellent resistance to compression set under that kind of relentless pulsing. Where generic elastomers might swell or lose form after a few hundred hours, properly specified FKM maintains its sealing force and dimensional stability across demanding applications.

• Optimized hardness and squeeze – A Viton o ring that is too soft will extrude under pressure and fail; too hard and it will not conform to the groove, creating a leak path. General Pump OEM parts are commonly specified at 70 Shore A durometer - the sweet spot that balances easy installation with long-term sealing performance in pump manifolds, valve guides, and chemical injector housings. For example, the OEM fixed injector O-ring (part 701050) is a 70 Duro Viton ring sized at .364″ ID × .070″ cross section, purpose-built for that assembly.

• Precision sizing for General Pump components – These are not "close enough" rings pulled from a generic bin. Part numbers correspond to exact dimensions - some metric, some imperial - that match specific groove geometries in General Pump hardware. The ESN series nickel-plated triplex pump, for instance, calls out O-rings at 67.95 × 2.62 mm and 55.56 × 3.53 mm for critical static sealing positions. Getting the size wrong by even a fraction of a millimeter invites leaks or extrusion under pressure.

• Better chemical window than Buna kits – Standard Buna repair kits work fine with cold water and mild soaps, but they fall apart fast when exposed to sodium hypochlorite mixes, high-pH caustics, or petroleum-based solvents. Viton's fluorocarbon backbone delivers superior resistance to swelling, cold flow, aging, and ozone attack across a far wider range of chemicals. It is the reason OEM injector kits designed for chemical injection increasingly ship with Viton seals as standard rather than as an optional upgrade.

How a Viton O-Ring Works Inside a General Pump

Inside a positive-displacement triplex pump, o rings do one critical job: they form a barrier between metal surfaces that stops pressurized fluid from escaping. How well that barrier holds up over time comes down to the material sitting in the groove.

• Static and dynamic sealing – Viton o rings are compressed between rigid metal surfaces in manifold covers, valve guides, plugs, and fittings, creating a seal that blocks water and chemicals at pressures up to and beyond 4,000 PSI. In dynamic positions - where valves open and close or unloader mechanisms cycle - the rings must also tolerate sliding contact and fluid flow without sticking, tearing, or wearing through. Viton's low surface friction and heat resistance make it well suited for both static and dynamic sealing applications inside a General Pump.

• Resistance to swelling and softening – When exposed to hot water mixed with detergents, solvents, or chlorinated hydrocarbons, standard elastomers absorb fluid at the molecular level. They swell, soften, lose hardness, and open up leak paths. Viton's fluoroelastomer chemistry resists that absorption. It maintains its mechanical properties and dimensional stability, keeping the seal tight where other rubbers would have already deformed. This is what makes it so effective in chemical processing environments and fuel systems where exposure to hydrocarbons and aggressive chemicals is constant.

• Sustained performance over time – Under proper installation and lubrication, a Viton o ring can cycle millions of times with minimal loss of sealing force. Its low compression set means it recovers toward its original shape even after prolonged compression at elevated temperatures - a critical property in a pump that may run eight or ten hours a day. Viton O-rings offer superior resistance to ozone and weathering compared to standard elastomers, adding durability even in outdoor-mounted systems exposed to UV and atmospheric aging.

Product Details: General Pump Viton O-Ring Specs and Options

Specs matter because the wrong size, hardness, or material will cause immediate leaks or premature wear. Here is what you are working with when you select General Pump Viton o rings.

• Material / Compound – These are FKM (Viton-type) fluoroelastomer o rings, a synthetic rubber formulated for outstanding oil, fuel, and detergent resistance in pump service. The compound may include additives for UV resistance and improved low-temperature flexibility depending on the specific formulation. Viton is the Chemours/DuPont trade name; generic FKM is the equivalent ASTM polymer class. Some comparable formulations are marketed under brand names like Dai-El in certain regions.

• Typical temperature and pressure capability – Viton O-Rings resist temperatures up to 400°F in continuous service, and Viton O-rings can operate in temperatures up to 450°F (232°C) in short-duration peaks. The practical operating window spans roughly -15°F to 430°F. Pressure ratings depend on the pump design, but since General Pump triplex units commonly run 3,000–4,000 PSI, the o rings must seal reliably at full working pressure plus occasional spikes. OEM kits are engineered with these pressures in mind.

• Common sizes used in General Pump heads – Viton o rings are available in sizes matching common General Pump valve o-rings, seal retainers, manifold plugs, and injector housings. OEM examples include the fixed injector O-ring at .364″ ID × .070″ CS (part 701050), a larger injector housing ring at .487″ ID × .103″ CS, and metric sizes like 67.95 × 2.62 mm and 55.56 × 3.53 mm used in ESN series triplex pump heads. Always match to your pump model's parts breakdown rather than guessing at a "standard" size.

• Compatibility – Viton o rings are typically specified for General Pump triplex units, unloaders, chemical injectors (fixed injectors with brass or stainless housings), some quick-connect couplers, and select pump head or manifold positions. Not every o-ring position in a pump is OEM-specified as Viton - some remain Buna or EPDM - so check the parts diagram for your specific model before ordering.

• What's normally included in a Viton-based seal kit – For chemical injectors or accessory kits marked "Viton," the package typically includes the Viton o-ring(s) specific to that unit (inner and sometimes outer), and may include backup rings or washers. Full pump head rebuild kits configured for chemical or hot-water service may mix Viton o rings in critical locations while using standard material elsewhere. OEM repair breakdowns will specify which rings are "70 Duro, Viton" and which are standard compound, so you know exactly what you are getting.

Who Should Use Viton O-Rings in Their General Pump

Not every pump owner needs Viton, but certain users will see an outsized return on the modest cost premium. Here is who benefits most.

• Professional pressure washing contractors – If you are running alkaline degreasers, sodium hypochlorite for soft washing, or hot-water skids on a daily basis, Viton seals are not optional - they are a baseline requirement. The chemical resistance and heat tolerance eliminate the constant seal failures that plague contractors using standard Buna kits with aggressive chemicals. Viton O-rings are widely used in chemical processing applications for exactly this reason: they handle what other materials cannot.

• Agricultural and lawn-care sprayer operators – Fertilizers, herbicides, and pesticides often contain solvents or aggressive agents that break down standard seals over time. Viton's excellent resistance to a wide range of aromatic and aliphatic hydrocarbons, chlorinated compounds, and mineral-based solutions makes it the better choice for sprayer operators who need reliable performance season after season.

• Industrial and facility maintenance teams – Food plant washdowns, parts washers, vehicle detailing shops, and equipment sanitation stations all expose pump seals to strong detergents, degreasing solvents, and elevated temperatures. Viton o rings reduce chemical cross-contamination risks and seal failures in these critical environments. Viton O-rings are also effective in hydraulic systems and fuel systems across industrial facilities, making them a versatile sealing solution.

• Fleet and equipment wash bays – High duty cycles, continuous chemical injection, elevated water temperatures, and relentless pressure cycling make Viton the logical upgrade for any wash bay running General Pump hardware. The durability advantage compounds over thousands of hours of operation.

If you are a DIY or occasional user who only runs cold water and mild soap, standard Buna or EPDM seals may be perfectly adequate and cheaper. But the moment you smell strong chemicals or feel heat coming off that pump head, Viton becomes the safer bet.

How to Choose the Right General Pump Viton O-Ring Kit

Matching both material and size to the exact General Pump model is the single most important determining factor in whether your new seals perform or fail. Here is how to get it right.

• Match by pump model and parts diagram – Find the model number on your pump's identification tag and cross-reference it with General Pump's parts catalog or breakdown sheet. Identify which o-ring positions are specified as Viton or FKM and note the exact dimensions (ID × cross section) and hardness for each. Do not assume all o rings in a pump share the same size or durometer.

• Consider the fluids and cleaners used – List every chemical your system contacts: pH levels, presence of solvents, bleach, chlorinated hydrocarbons, acids, or fuels. Viton is is highly resistant to aggressive chemicals and fuels, but it is not universally resistant - certain strong polar solvents, some ketones, and ester-based cleaners can still attack it. Always consult a chemical compatibility chart for the specific formulations you run. Note that Viton is not suitable for hot water, steam, and certain polar solvents in some compound grades, so compound selection matters.

• Account for operating temperature – Hot-water machines, steam-assisted units, and pumps mounted near hot engines benefit most from Viton's high-temperature capability. Viton withstands temperatures up to 400°F, which gives you enormous headroom above the 180–200°F inlet temperatures common in heated pressure washer systems. On the cold end, be aware that some Viton grades stiffen below about -15°F; certain specialty grades of Viton improve performance in low temperatures and rapid gas decompression if your application demands it.

• Decide between individual o-rings and a full kit – If you are doing a complete pump head rebuild, a full Viton-based kit covering manifold, plugs, valves, injector, and unloader positions is the smarter investment. If you are chasing a single leak in one chemical injector, the correct individual Viton o-ring may be all you need. But mixing materials within the same sealing assembly invites problems.

• Don't mix unknown rubbers in the same assembly – Old Buna or EPDM seated next to new Viton in a critical sealing stack creates differential compression set, uneven squeeze, and eventual leak formation. Standard practice is to replace all critical seals in an assembly with matched hardness and material so they age and compress consistently.

Installing Viton O-Rings in a General Pump (Step-by-Step)

Careful installation is every bit as important as material choice. Viton can be nicked, twisted, or damaged if forced over sharp threads or edges, and even the best material will not compensate for a sloppy install.

1. Depressurize and disconnect – Shut off the engine or motor, squeeze the trigger to relieve all trapped pressure, disconnect high-pressure hoses, and allow the pump to cool before touching any seals. Viton retains heat more than nitrile, so handling components while hot risks warpage or damage.

2. Access the pump head or component – Remove manifold bolts, unloader housing, or injector assembly per the model-specific service instructions. Follow torque sequences in reverse during disassembly to avoid warping cover plates or manifolds.

3. Remove old o-rings without scratching metal – Use plastic or brass picks to extract the old seals. Metal tools will gouge the sealing surface, creating leak paths that undermine the benefit of a premium material. Inspect every groove and mating surface for corrosion, scoring, or debris.

4. Clean and inspect – Wipe all grooves clean of chemical residue, salt deposits, and old lubricant. Any pitting or deep scratches in the metal may require polishing or outright component replacement - no o-ring, regardless of material, can reliably seal against a badly damaged surface.

5. Lubricate and install new Viton o-rings – Apply a compatible lubricant - pump oil, manufacturer-approved silicone grease, or food-grade lubricant if required - to both the o-ring and the groove. Seat each ring carefully without twisting or stretching beyond about 5–10% of its resting diameter. Roll it gently into the groove; do not force it.

6. Reassemble and test – Re-torque bolts evenly per the manufacturer's spec chart. Reconnect hoses, prime the system with clean water, and run at low pressure first. Inspect every joint and seal for leaks before bringing the system up to full working pressure. Listen for any unusual pulsation or blow-by at the valves.

Maintaining General Pump Viton O-Rings for Long Life

Even Viton seals will fail early if starved of water, run dry, or left exposed to incompatible chemicals without flushing. A few simple habits dramatically extend seal life.

• Use clean, filtered water – Sediment, grit, and mineral deposits act like sandpaper on both metal surfaces and o-ring contact faces. Even Viton will be cut or abraded by particulate contamination, regardless of its chemical resistance. Install an inlet filter and clean it regularly.

• Avoid running the pump dry – Without water flow, friction and internal heat spike rapidly, glazing Viton o rings and damaging plungers, sleeves, and manifold surfaces. Always maintain a steady, air-free water supply and never leave the trigger closed for extended periods without an unloader cycling flow.

• Flush chemicals after use – After running concentrated detergents, bleach, or high-pH cleaners, flush the entire system with clean water for several minutes. Lingering chemical residue attacks seals en masse when combined with residual heat and pressure, accelerating wear and aging even on high-grade Viton.

• Monitor for early signs of seal wear – Drips around the pump head, pressure loss at the gun, fluctuations in spray pattern, or visible cracks, swelling, or flattening on exposed o-rings are all early warnings. Catching degradation before it becomes a blowout saves both the seal and the mating metal surface.

• Schedule periodic rebuilds – In high-use chemical and hot-water environments, plan o-ring replacement based on hours of operation - every 250–500 hours for critical injector and unloader seals - rather than waiting for obvious failure. Keep spare Viton kits on hand so a rebuild never stalls your schedule.

• Protect from UV and ozone during storage – Exposure to ozone, sunlight, and atmospheric aging degrades even fluoroelastomers over time. Store spare Viton o rings in sealed, dark containers at moderate temperature. If the pump lives outdoors, cover it when not in use to reduce UV exposure on gaskets and external seals.

Frequently Asked Questions About General Pump Viton O-Rings

Are Viton o-rings always better than Buna in a General Pump? Viton excels under heat, chemical exposure, and pressure cycling - no question. But in mild conditions with cold water, light soap, and infrequent use, Buna can perform adequately at lower cost. Buna o-rings rebound better after compression than Viton in some low-temperature scenarios, and Buna is generally more cost-effective than Viton for light-duty setups. If your operating environment is harsh, though, Viton is the clear winner.

Can I upgrade my existing General Pump from Buna to Viton o-rings? Yes, in most cases. Match the exact size (ID × cross section) and hardness, ensure the groove geometry and mating surfaces are suitable, and verify that General Pump's documentation does not warn against FKM for a specific location (which is rare). Viton is commonly used in automotive and aerospace applications as an upgrade over nitrile for the same reasons - superior chemical and heat resistance across demanding applications.

Will Viton o-rings fix a worn-out pump head? No. O-rings seal metal to metal; if those mating surfaces are deeply scored, corroded, pitted, or warped, no seal material alone will reliably compensate. A manifold or component replacement may be necessary before new seals can do their job.

Do Viton o-rings handle all chemicals? Viton O-Rings withstand exposure to aggressive chemicals and oils across a wide range of industries, but it is not universally resistant. Strong polar solvents, certain ketones, ester-based cleaners, and some amines can still degrade it depending on the compound grade. Always check a chemical compatibility chart for the specific Viton formulation and the chemicals in your system before assuming full compatibility. Viton is superior in harsh chemical environments compared to Buna, but for the most extreme exposures, specialty FFKM compounds may be required.

How often should I replace Viton o-rings in commercial use? In heavy chemical injection, hot-water, high-pressure service with multi-day usage, plan to inspect every 100–250 hours and replace critical injector, unloader, and manifold seals every 300–500 hours. In milder service, seasonal replacement or every 500–1,000 hours may be sufficient. Chemical exposure, temperature, and duty cycle are the primary factors determining replacement intervals - track your hours and keep spare kits on hand.

Ready to Upgrade Your General Pump Seals?

If you are running hot water, strong detergents, or aggressive chemicals through your General Pump, treating Viton o-rings as the default choice in every critical sealing position is the single best thing you can do for reliability and uptime. The cost premium over Buna is modest; the payoff in reduced leaks, longer service intervals, and fewer emergency rebuilds is substantial. Viton is essential in aerospace fuel systems, automotive fuel systems, and industrial chemical processing for the same reason it belongs in your pressure washer pump - nothing else matches its combination of chemical resistance, heat tolerance, and durability under pressure.

Check your pump model number, pull up the parts diagram, and identify every o-ring position where FKM or Viton is specified. Then grab the correct Viton-based kits or individual seals for your next service interval. Your pump - and your schedule - will thank you for it.
