VeeJet H1/4DT-SS8006 1/4" FPT Stainless Nozzle - 3182

High-Impact Flat Spray Performance for Precision Cleaning and Rinsing

The H1 4DTSS 8006 is a stainless steel flat spray nozzle engineered to deliver a high impact liquid stream for industrial cleaning, rinsing, and coating operations. It produces a controlled 80° flat fan spray pattern with consistent coverage across the target surface, helping reduce water consumption while improving wash times. Part of the proven 4DTSS series from Spraying Systems Co, this nozzle is a trusted component in food processing lines, metal cleaning systems, conveyor washing stations, and general industrial spraying applications where repeatable performance and corrosion resistance are non-negotiable.

Why You'll Love the H1 4DTSS 8006 Nozzle

The H1 4DTSS 8006 outperforms generic spray tips in every area that matters to maintenance teams and process engineers. Here's what sets it apart for customers who demand reliability:

• Consistent Flat Fan Coverage – The nozzle delivers a uniform fan-shaped spray pattern across the full 80° spray angle, minimizing striping and untreated zones on belts, trays, or parts. VeeJet® nozzles are designed for overlapping in headers and manifolds for even distribution, and the 8006 follows that same principle to ensure complete surface contact.

• High-Impact Cleaning Action – The 8006 capacity code and precision orifice geometry concentrate impact force for effective removal of residues, oils, and fines at typical industrial pressures of 20–60 psi (1.5–4 bar). It provides a high impact liquid stream that dislodges stubborn soils without excessive water use.

• Reduced Water and Chemical Use – Optimized droplet size and a well-defined tapered edge spray pattern help achieve target cleanliness with less flow compared to improvised or worn nozzles. It reduces water consumption while improving wash times - a measurable gain for operations running two or three shifts daily.

• Food-Grade Stainless Steel Durability – VeeJet® nozzles are made from 303 Stainless Steel, and the stainless steel version provides higher longevity against chemical corrosion. The body holds up in caustic wash solutions, hot water, and CIP cycles, making it suitable for use alongside 304/316 stainless steel process equipment.

• Easy Integration and Replacement – The inlet connection of the VeeJet® nozzle is 1/4 inch female NPT, fitting standard headers, manifolds, and spray bars without custom adapters. Installation takes minutes with a wrench, and the hex flats on the body ensure secure alignment.

What Makes the H1 4DTSS 8006 Different

Many basic flat fan tips and low-cost imports suffer from uneven patterns, rapid orifice wear, and clogging under real-world conditions. The H1 4DTSS 8006 is built differently - precision-machined from stainless steel with tight tolerances that maintain spray performance over extended service life.

• Precision-Machined 4DTSS Orifice – Tight machining tolerances deliver reliable capacity matching the 8006 code and repeatable spray performance from nozzle to nozzle. This consistency matters when you need every position on a header to perform identically.

• Optimized 80° Fan Geometry – The spray angle is designed so that adjacent nozzles overlap smoothly at standard header spacing of 6–12 inches (150–300 mm), ensuring uniform coverage across conveyors or tank surfaces. VeeJet® nozzles have a nominal spray angle of 80°, and this geometry balances width with impact force.

• Clog-Resistant Passage Design – The internal flow path is shaped to reduce buildup from particulates, fibers, and scale - especially important in recirculating wash systems where debris accumulates over time.

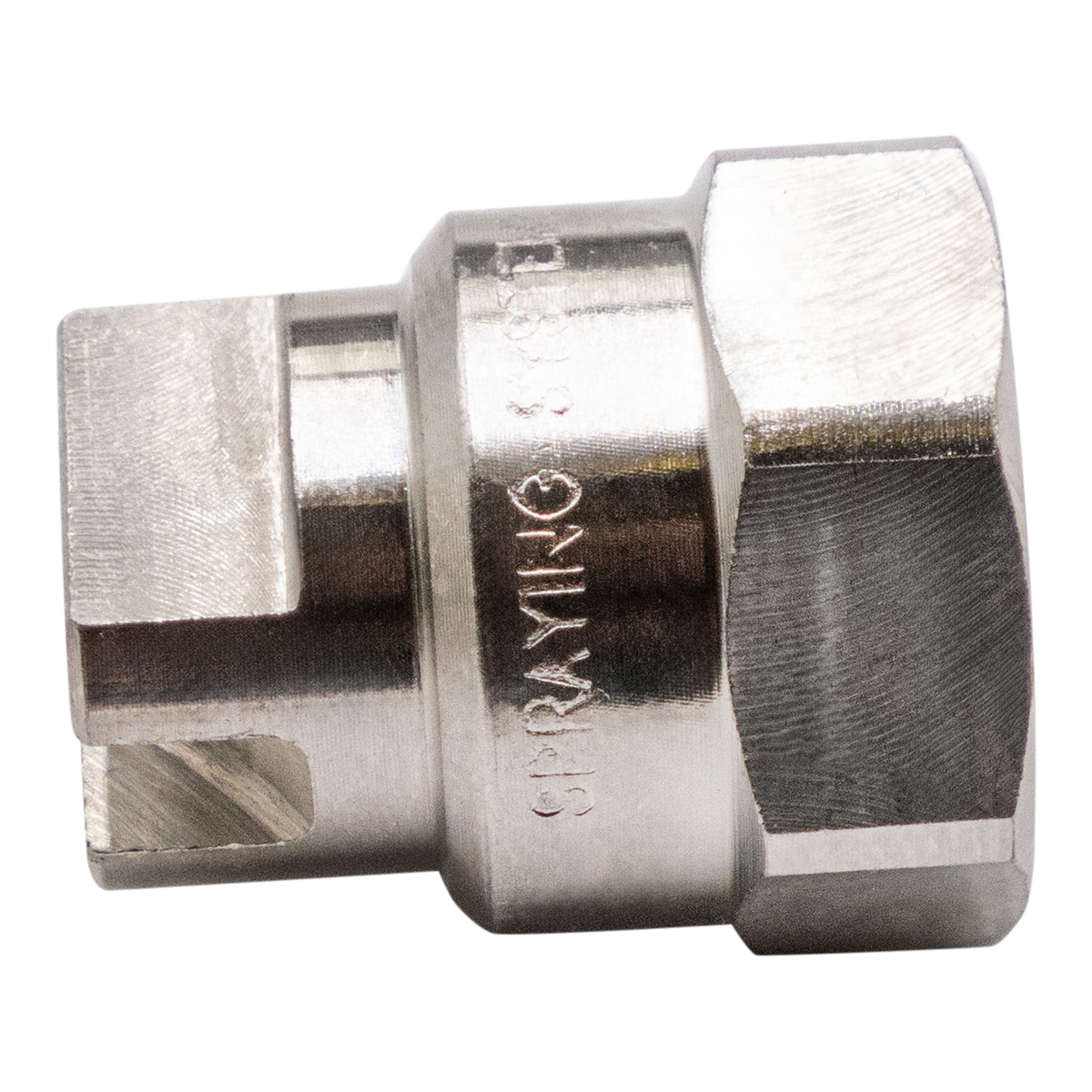

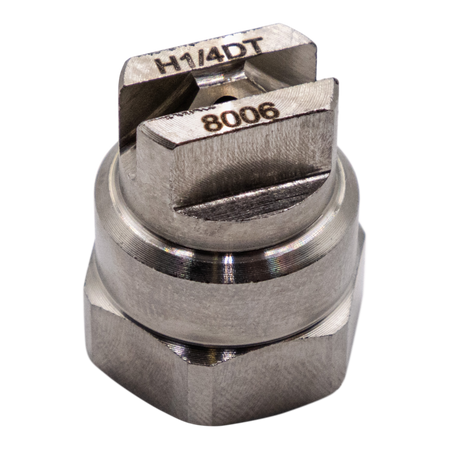

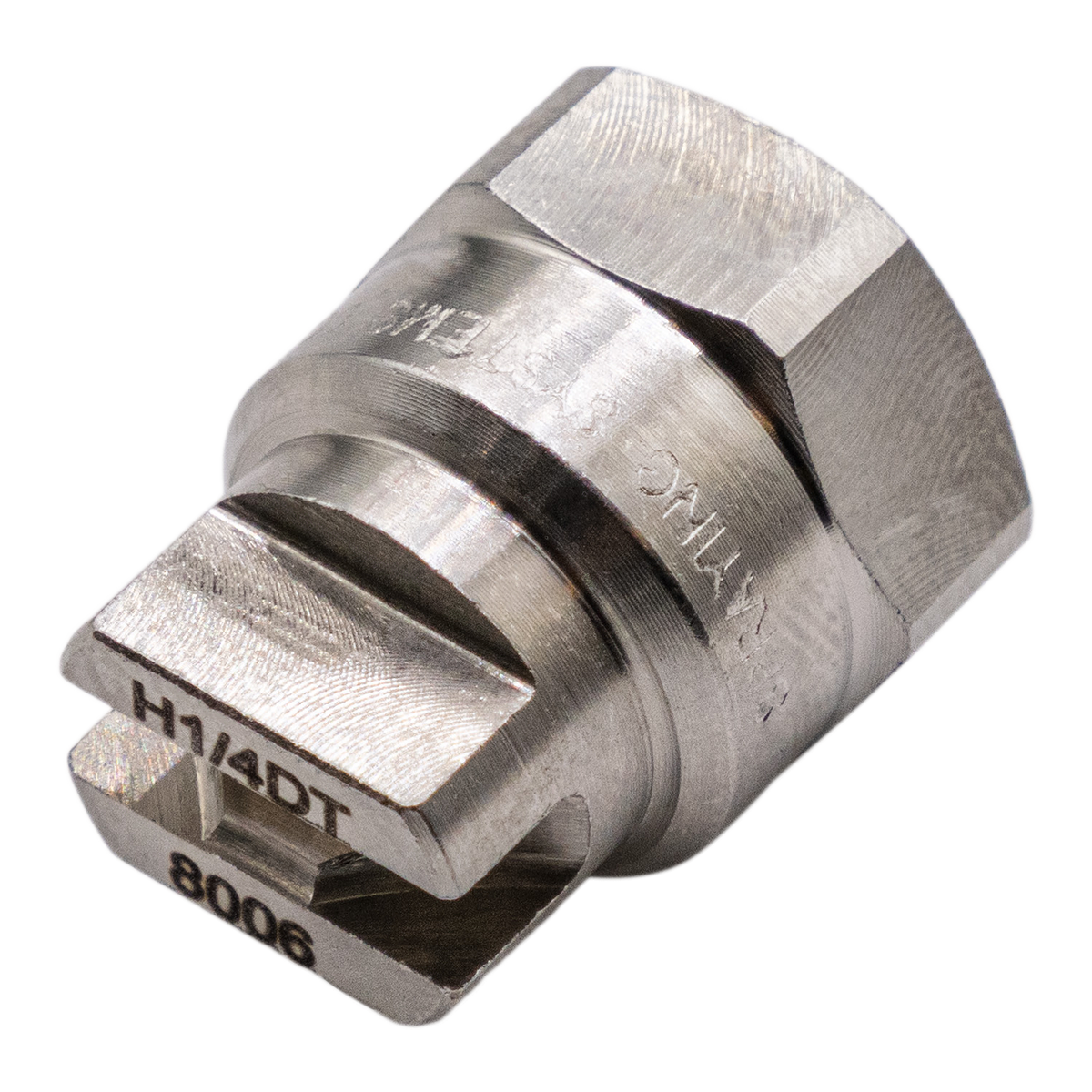

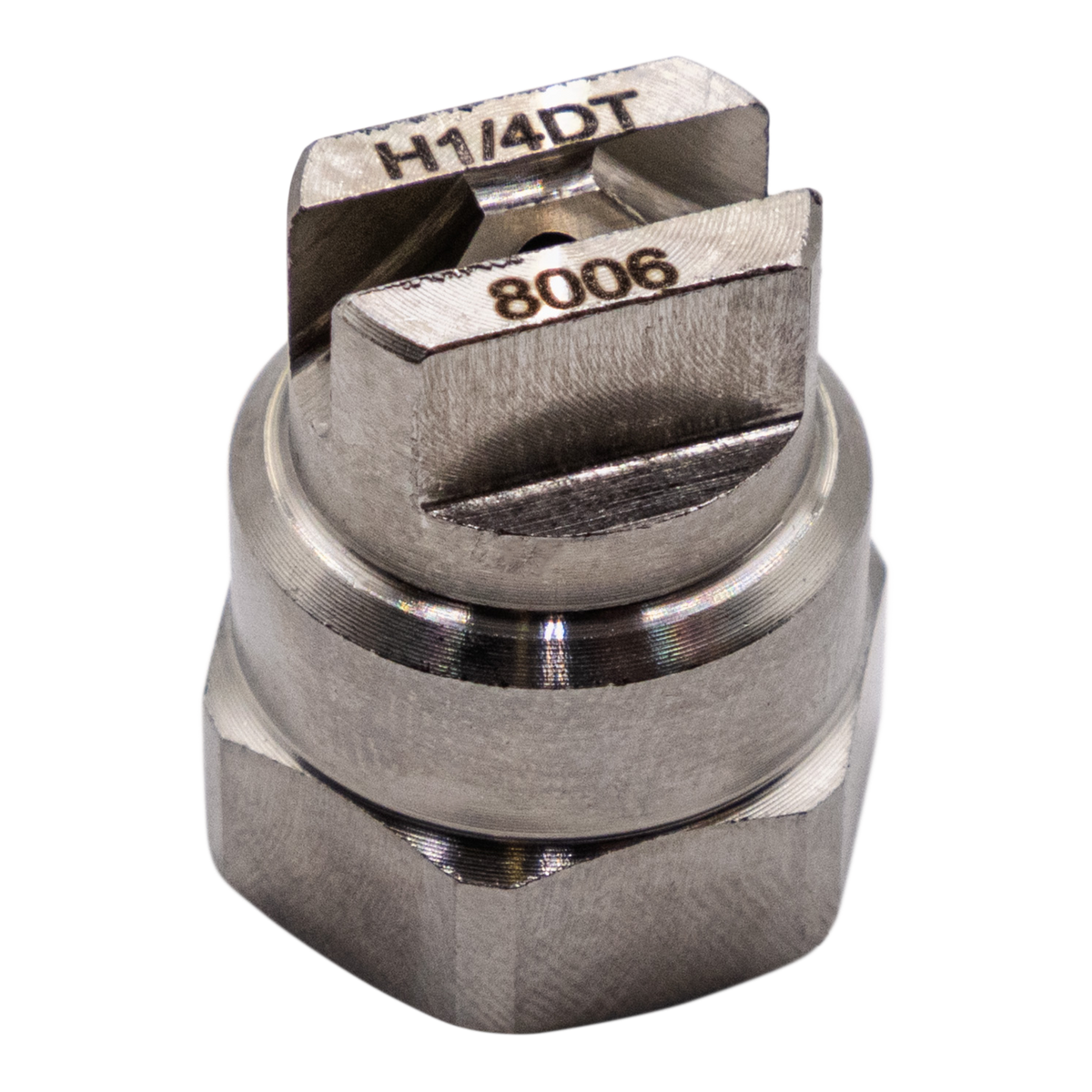

• Traceable Industrial Component – The H1 4DTSS 8006 designation is stamped directly on the body, supporting maintenance tracking, compliance documentation, and rapid identification during nozzle audits or replacements.

How the H1 4DTSS 8006 Works

Operating this nozzle is straightforward. Here's how it delivers results in three steps:

1. Mount and Align on the Header – Screw the nozzle into a compatible header or manifold using the 1/4" NPT thread. Align the flat fan perpendicular to the direction of travel (for conveyor applications) or as required by your system layout. Tighten to the manufacturer's recommended torque using the hex flats on the body.

2. Pressurize the Fluid – When wash water or process fluid is pumped through the 4DTSS orifice at the specified pressure, the internal geometry shapes the liquid into a controlled flat fan sheet. VeeJet® nozzles operate across a pressure range of 5 to 500 psi, giving you broad flexibility in system design.

3. Impact and Coverage on the Target – The resulting 80° fan creates a thin, high-impact sheet of liquid that sweeps across surfaces, flushing away soils and providing even wetting or coating. The tapered edge spray pattern allows overlapping bands from adjacent nozzles to blend seamlessly for full coverage.

Product Details: H1 4DTSS 8006 Specifications

This section provides the key specifications in a scannable format to help you find the right fit for your system:

• Material – Nozzle body and orifice are 303 stainless steel, suitable for washdown environments, moderate chemical exposure, and corrosion resistance. For harsher chloride-rich or strong-acid environments, a 316 SS upgrade should be considered.

• Spray Pattern – Flat fan spray with an 80° nominal spray angle at 40 psi (2.8 bar). The 8006 nozzle has a tapered edge spray pattern, requiring overlap with adjacent nozzles for uniform distribution.

• Capacity Code 8006 – The "80" designates the spray angle; the "06" designates the size and flow capacity. Flow rate is approximately 0.60 gpm (2.3 L/min) at 40 psi with clean water. The flow rate range for VeeJet® nozzles is 0.21 to 2.1 gpm, and the difference in capacity size affects water consumption and pump requirements.

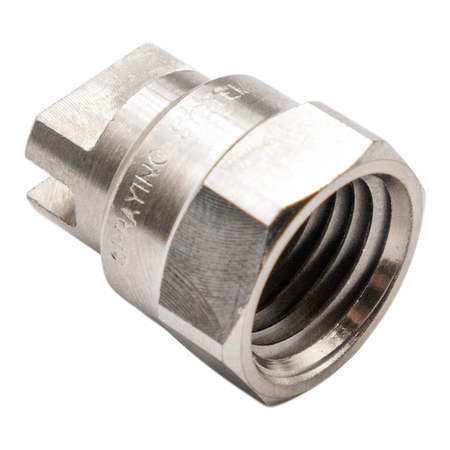

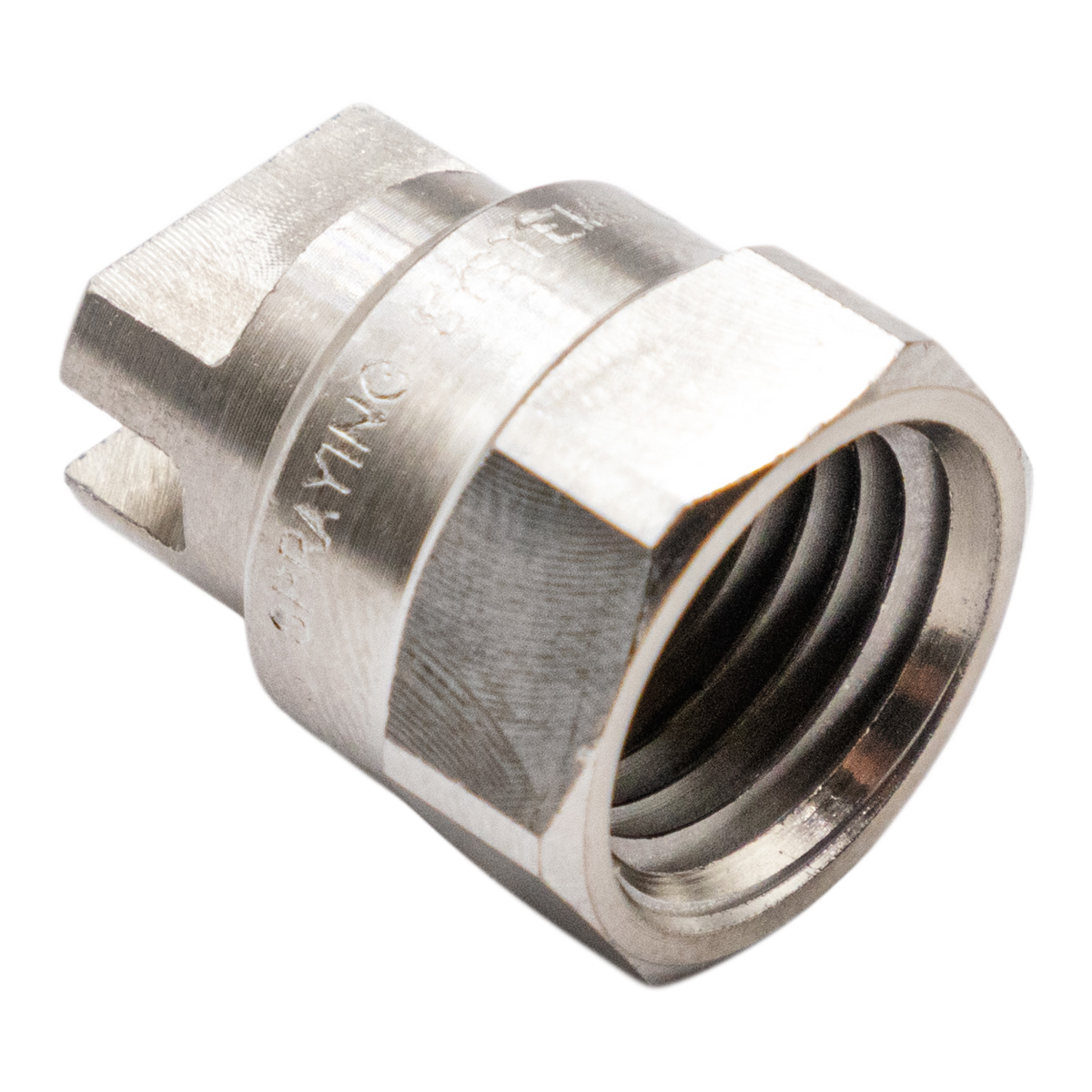

• Thread Size and Type – 1/4" female NPT inlet connection, compatible with standard stainless steel headers and manifolds used across industrial spray systems.

• Operating Pressure Range – Usable from approximately 10 psi up to 500 psi. Optimal cleaning impact for most applications falls within 20–100 psi. The nozzle is suitable for various flow rates and pressure outputs, with flow scaling proportionally to the square root of pressure.

• Recommended Temperature Range – Suitable for cold to hot wash fluids up to 90–95°C (194–203°F) for continuous operation, depending on gasket and system components.

• Mounting Orientation – The fan can be oriented horizontally or vertically. Hex flats and the stamped part number on the body help align the fan direction during installation.

• Included Components – This listing is for a single nozzle only. Headers, unions, filters, and valves are not included.

• Compliance – Suitable for use in food-processing environments when installed in systems designed to meet applicable FDA or EU food-contact guidelines. Confirm specific requirements with your facility's quality team.

Who the H1 4DTSS 8006 Is For

This nozzle is ideal for engineers, maintenance teams, and operators who need reliable flat spray coverage and refuse to compromise on consistency. Choose the H1 4DTSS 8006 if your role matches any of these profiles:

• Food and Beverage Processors – CIP and COP washers, crate and tote washers, conveyor belt cleaning, and post-rinse stages where stainless steel construction and uniform coverage are critical to product safety. VeeJet nozzles are ideal for cleaning and rinsing applications in these environments.

• Metal and Parts Wash System Designers – Pretreatment lines, shot-blast pre-wash, and degreasing tunnels requiring high-impact rinsing before coating or painting operations.

• Industrial Maintenance Teams – In-plant cleaning manifolds, cooling sprays on machinery, and general-purpose washdown where predictable spray geometry reduces rework and labor. VeeJet® nozzles are commonly used for cooling and quenching in industrial processes, and the 8006 handles these duties with precision.

• Chemical and Pharmaceutical Facilities – Spray bars in washing vessels, carrier belts, and equipment exteriors where corrosion resistance and traceability matter. Chemical scrubbers benefit from the durability of stainless steel VeeJet® nozzles, and this model's stamped identification supports compliance documentation.

If you need a robust flat spray nozzle with repeatable performance across demanding industrial applications, the H1 4DTSS 8006 is a strong fit. More than 50 billion gallons flow through VeeJet products daily - it offers reliable spray performance across various applications because the design has been proven at scale.

Frequently Asked Questions About the H1 4DTSS 8006

Here are answers to the most common selection, use, and maintenance questions customers ask about this nozzle.

Is the H1 4DTSS 8006 easy to install? Yes. It uses a standard 1/4" NPT threaded connection and can be installed with a wrench. Simply align the flat fan in the desired direction and apply appropriate thread sealant where allowed by your system specifications.

What flow rate should I expect? At 40 psi with clean water, expect approximately 0.60 gpm (2.3 L/min). Flow rates increase with the square root of pressure - so doubling the pressure increases flow by roughly 1.4×. Consult a detailed capacity chart for precise sizing at your operating conditions.

Can I use it with hot water and cleaning chemicals? The stainless steel body is suitable for hot water up to 90–95°C and common alkaline or mildly acidic cleaners. For strong acids, chloride-rich solutions, or aggressive sanitizers, verify chemical compatibility and consider a 316 SS version. VeeJet® nozzles can be compared by material variations and spray angle options to find the right match for your chemistry.

How do I keep the nozzle from clogging? Use upstream filtration - 50 to 100 mesh screens are recommended. Inspect nozzles regularly and remove deposits by soaking in a compatible cleaning solution. Avoid abrasive tools or wire brushes that can damage the precision orifice.

How long does a nozzle like this typically last? Service life depends on operating pressure, abrasiveness of the liquid, and cleaning regime. Stainless steel construction is designed for long-term use in two- to three-shift industrial operations when properly maintained. Monitor flow rates periodically; a 10% increase typically indicates orifice wear and signals replacement time.

Can I replace an existing 8006 nozzle with the H1 4DTSS 8006? It is designed to match standard 8006 capacity and 80° spray pattern. Confirm thread type, pressure rating, and nozzle spacing with your current system before swapping. A 65° spray angle provides a concentrated liquid stream for localized cleaning, so if your existing nozzle has a different angle code, verify the geometry matches your coverage requirements.
