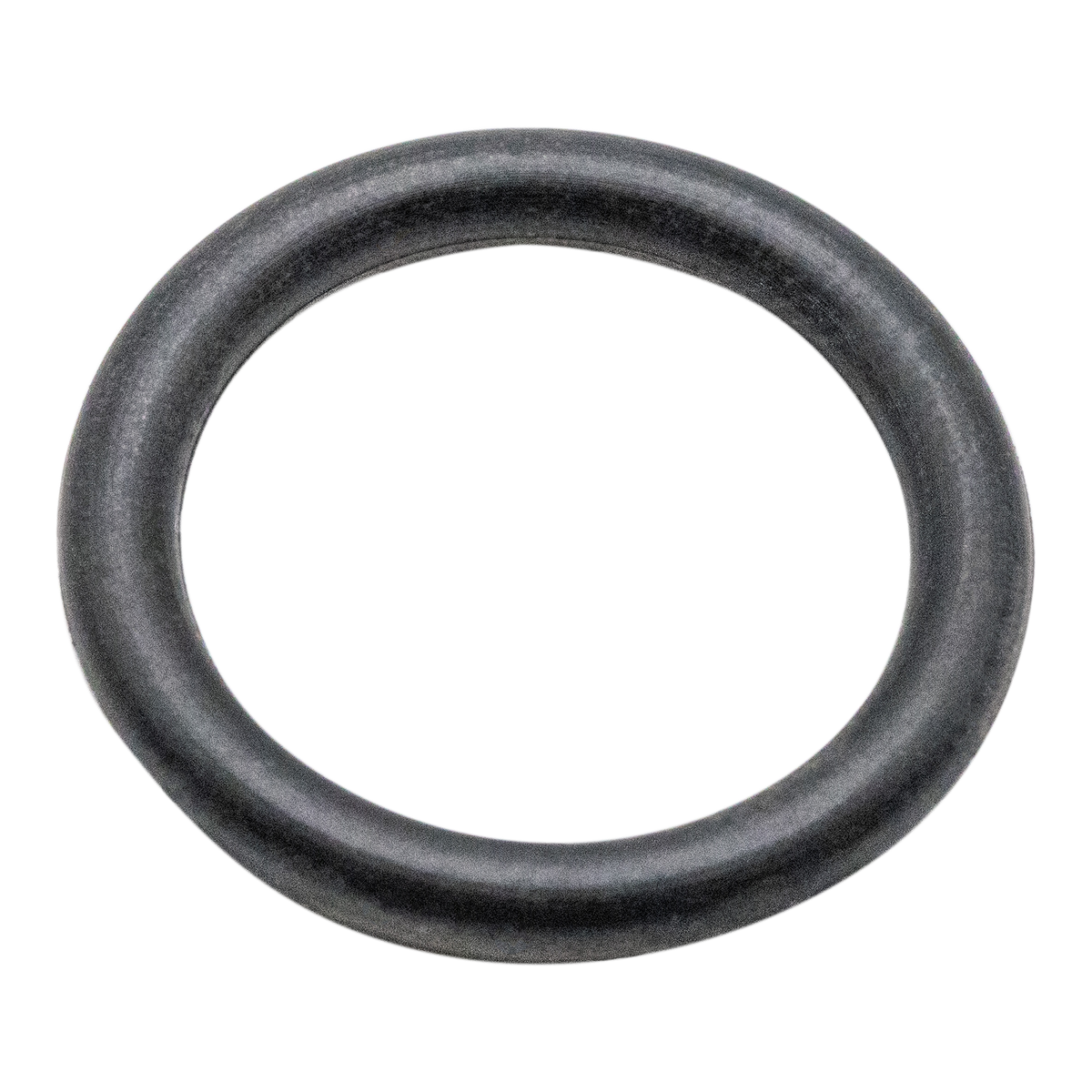

General Pump 90383900 Buna-N O-Ring - 3026

Reliable Sealing for General Pump Systems in One Simple Part

The General Pump 90383900 Buna-N O-ring is a small but critical sealing component used across many General Pump pressure washer and fluid handling systems. Whether you're troubleshooting a leak on an ET-series manifold or performing scheduled maintenance on an EP-series pump head, this single part can make the difference between reliable operation and costly downtime. This article explains what the 90383900 O-ring is, where it's used, how to replace it, and how to choose the correct seal for your pump model. In plain terms, this O-ring prevents leaks, protects internal pump components, and maintains consistent pressure throughout your system.

Why You'll Want the General Pump 90383900 O-Ring

The right O-ring dramatically affects how well your pressure washer pump performs and how long it lasts before needing a major rebuild kit or full overhaul.

• Prevents Water and Chemical Leaks – A fresh 90383900 O-ring restores sealing around key connections in General Pump heads, manifold plugs, and fittings, keeping water and detergent where they belong. The O-ring provides a seal to prevent leakage in pressure-control assemblies.

• Protects Pump Internals from Damage – Proper sealing helps you avoid cavitation, corrosion, and premature wear of pistons, valves, packing, and other components that are far more expensive to replace.

• Maintains Consistent Pressure – A worn or flattened ring can cause pressure drops, pulsation, or unstable spray patterns-issues that frustrate customers and reduce cleaning efficiency.

• Quick, Low-Cost Maintenance Win – Swapping this specific O-ring is a fast repair that can restore performance without a full rebuild, saving time and maintenance costs that General Pump rebuild kits are also designed to address.

• Durable for Repeated Use – Buna-N O-rings resist petroleum-based oils and water, along with many common cleaning chemicals, delivering long-term reliability when installed correctly.

What Makes the 90383900 O-Ring Different

Not all o rings are interchangeable. Using generic gaskets or seals from a mixed assortment can lead to fit issues and premature failure with General Pump equipment, which has been designed for specific industry needs since the company began operating in 1982.

• Exact OEM Size and Profile – The 90383900 matches the original General Pump specification: O-ring dimensions are approximately 15.88 mm × 2.62 mm (inner diameter × cross-section), with the approximate outside diameter of the General Pump 90383900 O-ring being 21.12 mm. This ensures proper compression in the pump groove without error.

• Buna-N Formulated for Pump Applications – The General Pump 90383900 O-Ring is made of Buna-N material (nitrile rubber), optimized for water, detergents, and light oil exposure commonly seen in pressure washer and industrial pump environments.

• Compatible with General Pump Assemblies – The O-Ring is compatible with various General Pump models, and the part number 90383900 is specifically called out in General Pump parts diagrams and service manuals for manifolds, valve assemblies, and adapters.

• Consistent Hardness for Reliable Sealing – The O-Ring has a durometer rating of 70, balancing flexibility and resistance to deformation under clamping force-exactly the right hardness to work without extruding under high pressure.

• Using the correct part number and SKU eliminates trial-and-error during maintenance and helps you find the right seal the first time.

How It Works in Your Pump

The 90383900 O-ring sits in a machined groove between metal components inside General Pump assemblies to create a compression seal under operating pressure. General Pump products ensure tight sealing and stable operation because each sealing point is engineered for the specific groove geometry and pressure load of the pump.

1. Installed in the Correct Groove or Housing

The O-ring is lubricated lightly and placed into the designated groove in the pump head, valve cap, fitting, or adapter where 90383900 is specified. Typical locations include start/stop manifold plugs, inlet/outlet adapters, and selected valve caps-positions you can find in your pump's exploded parts diagram.

2. Compressed When Components Are Assembled

When bolts or caps are tightened to the recommended torque, the O-ring compresses slightly, filling microscopic gaps between metal surfaces. This compression forms a tight seal around water passages and prevents fluid from bypassing the joint, even under the thousands of PSI that General Pump units can generate.

3. Maintains a Seal Under Operating Pressure

Under typical working pressures, the compressed Buna-N ring flexes slightly, maintaining contact even with vibration and temperature changes. Over time, however, exposure to heat, chemicals, and repeated pressure cycles can harden or flatten the ring-which is why regular inspection of O-rings is recommended during pump service and routine replacement of 90383900 is part of good maintenance practice.

Product Details for General Pump 90383900 O-Ring

This section is a quick reference for technicians who need hard facts to verify they have the correct item before they add it to cart or begin a repair.

• Material: Buna-N (nitrile rubber), providing resistance to water, standard cleaners, and petroleum-based pump oils.

• Typical Hardness: 70 durometer class for a balance of flexibility and shape retention under clamping force.

• Dimensions: Approximately 15.88 mm inner diameter × 2.62 mm cross-section; approximate outside diameter is 21.12 mm.

• Color: Usually black (note that color alone should not be used as the only identification method).

• General Size Category: A small-format O-ring used in sealing ports and fittings; please try to confirm exact dimensions from a service manual or caliper measurement.

• Operating Environment: Suitable for cold to moderately hot water (approximately −40 °F to +250 °F), many detergents, and contact with pump crankcase oil; not ideal for strong solvents (ketones, concentrated acids) or sustained very high temperatures.

• Typical Use Points: Found in specific General Pump manifolds, valve assemblies, and connection adapters where 90383900 is listed in the exploded parts diagram. It is essential to verify the part number against parts diagrams for compatibility.

• Identification: Technicians should confirm the "90383900" part number against the pump model's official parts breakdown before ordering.

Who This O-Ring Is For

This part is relevant for anyone maintaining or repairing General Pump equipment that specifies 90383900 in its service documentation.

• Pressure Washer Owners and Operators – Home and professional customers running cold-water or hot-water units that rely on General Pump heads and manifolds for daily work.

• Service Technicians and Maintenance Teams – Shops and facilities responsible for scheduled service of General Pump ET-Series, EP-Series, TT-Series, and similar models where this O-ring appears in the parts list.

• OEMs and Equipment Builders – Manufacturers integrating General Pump components into custom cleaning rigs, car wash systems, or industrial skids who need dependable long-term sealing solutions and want to purchase the correct parts from the start.

• Spare Parts Managers – Inventory planners committed to maintaining bins of high-turnover seals, gaskets, and accessories like 90383900 for quick turnaround on repairs across their country or region.


How to Replace a General Pump 90383900 O-Ring

Depressurizing the system is necessary before servicing any high-pressure pump. Always disconnect power and relieve all trapped pressure before beginning any repair.

• 1. Identify the Sealing Point – Consult your General Pump exploded diagram to locate every position where part 90383900 is used (e.g., manifold plugs, specific valve caps, adapters).

• 2. Depressurize and Drain – Shut off the engine or motor, release the trigger on the spray gun to bleed residual pressure, and allow the unit to cool. Drain water if required by the service procedure.

• 3. Remove the Component – Loosen the relevant bolts, caps, or fittings carefully, keeping track of washers, springs, and other small parts to avoid losing them.

• 4. Extract the Old O-Ring – Use a plastic pick or blunt tool to lift the old ring out without scratching the metal groove. Do not use sharp screwdrivers that can damage the seal surface.

• 5. Clean the Sealing Surfaces – Wipe away scale, debris, and old lubricant with a lint-free cloth. If needed, use a compatible cleaner that will not attack Buna-N or pump coatings.

• 6. Inspect for Damage – Check for pitting, deep scoring, or corrosion in the groove or mating part. Any damage here can compromise the new O-ring's ability to seal and may need further attention.

• 7. Lubricate and Install the New 90383900 O-Ring – Lightly coat the new O-ring with compatible grease or pump oil, then seat it evenly in the groove without twisting. Careful installation of O-rings can prevent leaks in high-pressure systems.

• 8. Reassemble and Tighten to Spec – Reinstall all parts in reverse order and tighten fasteners to torque values recommended in the pump manual. Over-tightening is a common error that can flatten or extrude the new seal.

• 9. Test for Leaks – After reassembly, run the pump at low pressure first, observing the repaired area for drips, then bring it to full working pressure and recheck. Rebuilding a General Pump this way can fix water leakage issues without replacing major components.

Tips for Choosing and Maintaining 90383900 O-Rings

Small changes in how you handle and store O-rings can dramatically extend their service life and help you share a better experience with your team.

• Verify the Part Number – Always confirm "90383900" against the pump's parts list instead of buying by size alone. Compatibility of O-ring materials with cleaning chemicals is crucial for performance, and a generic ring may not match the Buna-N specification.

• Store Seals Properly – Keep unused O-rings in sealed bags, away from direct sunlight, ozone sources (like electric motors, cat-adjacent compressor rooms), and extreme temperatures to maintain elasticity.

• Avoid Aggressive Chemicals – Some solvents or specialized cleaners may attack Buna-N; check chemical compatibility when changing detergents or switching to a new cleaning agent in your operation.

• Inspect During Routine Service – Check visible O-rings whenever the pump head, valves, or fittings are opened for other maintenance tasks. General Pump offers comprehensive repair kits for pressure washers and General Pump rebuild kits include high-precision sealing components, so consider bundling replacements.

• Replace at Signs of Wear – Common failure symptoms include flattening, cracking, swelling, or a hardened texture. Replace immediately if any of these are seen-waiting only risks bigger problems. General Pump rebuild kits restore optimal pump performance when multiple seals need attention at once.

Frequently Asked Questions

Below are answers to the most common questions about the General Pump 90383900 Buna-N O-ring, based on real-world service experience and General Pump documentation.

Is the 90383900 O-Ring easy to install?

Yes. For most users with basic tools, installation is straightforward when they follow the pump's service manual and the step-by-step guidance above. A simple O-ring swap often takes under 30 minutes depending on pump access, making it an easy task even for those without deep mechanical experience.

How often should I replace this O-Ring?

Replacement intervals vary with hours of use, water quality, and chemical exposure, but many operators inspect seals at every major service or annually for frequent-use equipment. Replace the 90383900 O-ring whenever there is visible wear or leakage around the sealed connection-don't wait for a total failure to choose a new ring.

Can I substitute another material instead of Buna-N?

While alternative materials like Viton (FKM) or EPDM exist, users should follow General Pump's material recommendation for the location where 90383900 is specified. Using an incompatible material can lead to swelling, shrinking, or rapid failure if exposed to the wrong fluids or temperatures-so the selected material matters as much as the dimensions.

How do I know if 90383900 fits my pump model?

Locate the nameplate on your pump (model and serial number) and cross-reference it with the official General Pump parts breakdown or service manual. Check each callout in the diagram, since some pumps use multiple different O-ring part numbers in various positions. If you need help, Barens support team is here.

What should I do if the new O-Ring still leaks?

First, check for groove damage, incorrect torque, debris on sealing surfaces, or installation errors such as twisting or pinching the O-ring. Verify that the installed ring is truly a 90383900 and not a similar-looking size from a mixed assortment. If you've confirmed the part is correct and surfaces are undamaged, the issue may lie elsewhere in the assembly-consult your pump's service manual or a qualified technician for further diagnosis.

Ready to Keep Your General Pump Leak-Free?

Staying ahead of seal wear with the correct General Pump 90383900 Buna-N O-ring helps maintain pressure, protect internal components, and reduce unplanned downtime that makes nobody happy. Check your pump's parts list today, confirm where 90383900 is used, and keep a small stock of replacements on hand for fast repairs.
