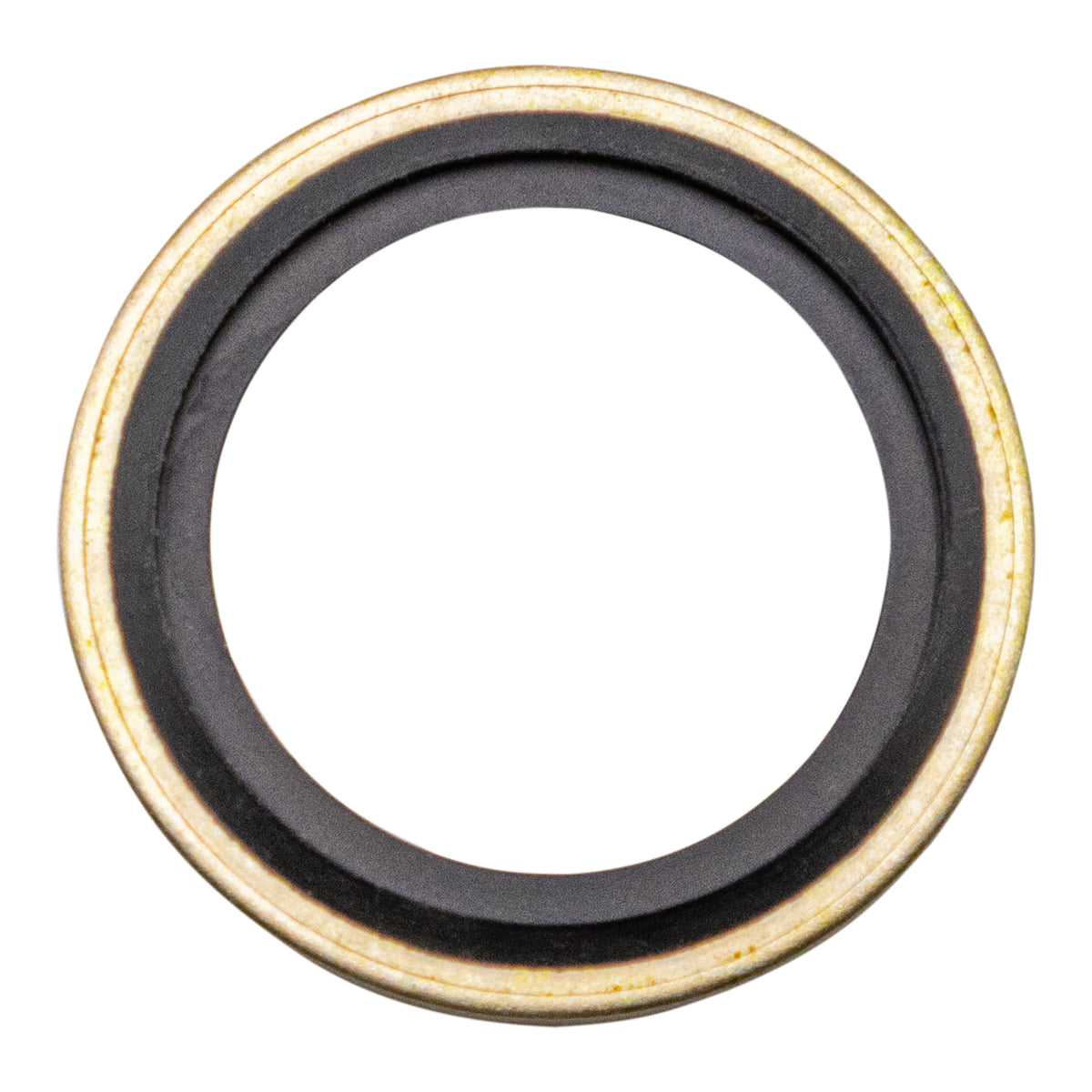

1/2" Unloader Seal Washer Bonded RBR/STL 4000PSI - 2814

Stops Leaks and Pressure Loss in Your 4 GPM Pump

The 1/2 inch unloader seal washer is one of the most overlooked yet critical sealing components in any high-pressure washer pump, especially 4 GPM / 4,000 PSI triplex units like the Centurion. This bonded seal - also known as a Dowty seal - consists of a steel outer ring and an elastomeric inner ring, and its sole job is to create a leak-proof barrier at the unloader valve connection point. Without it, you're looking at water leaks, dangerous pressure spikes, and premature pump failure.

A worn or missing unloader seal washer allows high-pressure water to escape - what technicians call "blow-by" - at the connection between the unloader valve and the pump manifold. That leakage doesn't just waste water. It destabilizes hydraulics inside your triplex pump, accelerates wear on plunger seals, valve seats, and packing, and can ultimately crack ceramic plungers or warp the pump head. Replacing unloader seal washers is a standard maintenance task in pressure washers, and ignoring it is a fast track to an expensive rebuild.

Why You'll Love a Quality 1/2" Unloader Seal Washer

Every pressure washer operator has dealt with the headaches: drips pooling under the unloader, pressure that surges and hunts instead of holding steady, or a pump that runs hotter than it should. A properly rated 1/2 inch unloader seal washer addresses all of these problems at once - and it's one of the cheapest parts on the entire machine.

• Stops nuisance leaks at the unloader – A quality seal washer keeps the 1/2 inch unloader port bone dry under full operating pressure. No more puddles under your rig, no more wasted water, and no more chasing drips that slowly erode your fittings and corrode your frame.

• Protects your Centurion pump from damage – Correct sealing at the unloader eliminates the pressure spikes and cavitation that destroy internal seals and plungers. Unloader seal washers maintain airtight seals under high pressure, keeping your bypass circuit functioning the way it was designed to.

• Keeps pressure consistent at the wand – When the seal between the unloader valve and the manifold is tight, you get smooth trigger response, zero pulsation, and stable 4,000 PSI output from the first pull to the last. No more "hunting" or surging mid-job.

• Extends service intervals and lowers ownership costs – Fewer rebuilds, less downtime between jobs, and a better return on the investment you've already made in a commercial-grade pump. A washer that costs a few dollars can save you hundreds in parts and labor.

• Quick, simple replacement – Swapping the washer can be done in minutes with basic tools and no special training. Proper tool selection is critical for unloader seal washer installation, but you don't need anything beyond a standard wrench set and a clean workspace.

What Makes This 1/2" Unloader Seal Washer Different?

Most generic washers you'll find at the hardware store are flat rubber or fiber gaskets designed for garden-hose connections and low-pressure plumbing. They're stamped from the wrong durometer rubber, aren't sized to the right screw size, and will blow out or deform the first time they see 4,000 PSI. That's not a seal - it's a liability.

A purpose-built 1/2 " unloader seal washer is engineered for an entirely different range of demands:

• Built for 4,000 PSI environments – The elastomer compound and steel support ring are matched to the pressures generated by triplex pumps like the Centurion. Unloader valves on these systems can see transient spikes of 4,400–4,500 PSI during bypass cycling, and a properly rated bonded seal handles that without permanent deformation. Generic washers typically begin leaking or blowing out well below 3,000 PSI.

• Precision 1/2 inch sealing surface – The inner diameter of the unloader seal washer matches a 1/2-inch nominal connection, with tolerances tight enough to fit common 1/2 inch NPT and BSP unloader threads and seats. Unloader seal washers are compatible with a variety of fittings including BSP and metric, so you get a reliable fit across multiple unloader brands and models.

• Resistant to detergents and 140°F inlet water – The elastomeric material is typically nitrile rubber (Buna-N), which handles the combination of water, oil, and common pressure washer detergents without swelling or degrading. It's rated for the Centurion's maximum inlet temperature of 60°C (140°F), and heat generated in the bypass loop during normal operation stays well within the material's working range.

• Designed around pressure washer hydraulics – Unlike a simple flat gasket, a bonded seal washer uses compression of the rubber insert against a rigid metal ring to maintain sealing force through thousands of rapid pressure cycles per hour. The washer shape and rubber hardness - typically in the 70–90 Shore A range - support smooth bypass flow when the unloader activates, preventing the pressure oscillations that plague systems sealed with generic parts. Bonded seals simplify machining compared to O-rings and deliver more consistent performance in high-pressure fluid systems.

How the 1/2" Unloader Seal Washer Works in Your System

The unloader assembly on a 4 GPM triplex pump like the Centurion is mounted externally on the pump head. It's the traffic cop for your entire hydraulic circuit - when you squeeze the trigger, water flows to the wand at full pressure; when you release it, the unloader valve diverts flow into a bypass loop to protect the pump. The 1/2 inch seal washer sits right at the mating surface between the unloader body and the pump manifold or fitting, forming the pressure-tight barrier that makes the whole system work.

Step-by-Step Overview

1. Creates a watertight seat inside the unloader body – The washer is positioned between the unloader valve body and the mating surface on the pump or fitting, sealing the 1/2 inch port. The steel outer ring prevents the seal from extruding under compression, while the rubber inner ring conforms to microscopic irregularities in the metal seats, closing off any path for water to escape. Seal washers are used in hydraulic ports to create leak-free face seals, and this application is no different.

2. Maintains seal under high pressure and rapid cycling – Every time you pull and release the trigger, pressure inside the unloader shifts from full working pressure to bypass and back again. The bonded rubber compresses and rebounds with each cycle, maintaining a consistent seal without taking a permanent set. This is where generic washers fail - they deform after a few hundred cycles and start leaking. A quality unloader seal washer for a 1/2-inch fitting creates a leak-proof barrier through thousands of these transitions.

3. Directs flow safely into bypass when you release the trigger – When the gun is closed, the unloader piston shifts and diverts water flow through the bypass circuit. If the washer is compromised, pressure can't build correctly to push the piston, or water escapes around the seal instead of flowing through the bypass. This leads to overpressure conditions that can stall your engine, overheat water in the bypass loop, and damage internal pump components. A properly seated washer keeps bypass operation smooth and protects your Centurion from overpressure every time the gun is closed.

Product Details for a 1/2" Unloader Seal Washer

Here are the key specs for quick reference when ordering or verifying compatibility:

• Size and compatibility – Sized for 1/2 inch unloader ports (NPT, BSP, or FNPT) and common pressure washer manifolds used with 4 GPM / 4,000 PSI pumps. Fits a wide range of unloader valves, including popular General Pump YU and YVB series and similar designs from other manufacturers. They are available in a range of standard sizes and materials to match your specific setup.

• Materials – A bonded seal consists of a steel outer ring and elastomeric inner ring. The steel ring (or brass/stainless steel in chemical-heavy applications) prevents extrusion under pressure. The inner seal is an oil- and chemical-resistant elastomer - typically nitrile rubber for standard water and detergent use, with EPDM or Viton options available for hotter water or aggressive chemicals.

• Pressure and temperature range – Rated for continuous operation at up to 4,000 PSI with transient spike tolerance up to approximately 4,500 PSI. Temperature range matches Centurion pump limits: up to 60°C (140°F) inlet water with nitrile rubber. Viton-type elastomers can handle temperatures up to approximately 200°C (392°F) for hot-water systems.

• Application – Use in unloader valves, bypass manifolds, and 1/2 inch high-pressure connections on commercial pressure washers. High-pressure fluid systems often require seal washers for bypass mechanisms, and this washer is designed specifically for that role.

• What's included – A typical maintenance kit may include several 1/2 inch unloader seal washers along with related O-rings or seals. Old seal washers should not be reused as they are intended for one-time use - always install fresh parts during service.

Who This 1/2" Unloader Seal Washer Is For

This washer is designed for owners and operators of commercial-grade pressure washers who need reliable, leak-free unloader performance and don't want to gamble their pump's health on generic hardware-store parts.

• Professional pressure washing contractors – Those running 4 GPM, 4,000 PSI rigs for driveways, building exteriors, and flatwork who can't afford leaks or unstable pressure on a paying job. A failed washer mid-job means lost revenue and an unhappy customer.

• Fleet and facilities managers – Operators of dedicated wash bays who need unloader valves to cycle all day without failure while washing trucks, buses, or heavy equipment. When your pump runs eight or ten hours a day, the quality of every seal and gasket matters.

• Agricultural and ranch operations – Users cleaning tractors, implements, barns, and pens where chemical exposure to sanitizers and long run times demand reliable sealing. If you're running chlorinated or acidic cleaners, you need a washer compound that won't swell and fail.

• Small industrial and manufacturing sites – Maintenance teams relying on stable wash-down pressure for machinery, parts, and process areas. Consistent pressure without pulsation keeps cleaning efficient and protects sensitive equipment.

How to Replace a 1/2" Unloader Seal Washer Safely

Before you touch anything, shut the system down completely and depressurize. Water trapped at 4,000 PSI can cause serious injury, and pressurized pump elements can move violently when disturbed. Take the two minutes to do this safely - every time.

1. Shut down and depressurize – Turn off the engine or motor. Squeeze the trigger on the spray gun to relieve all trapped pressure in the line. Disconnect the spark plug wire or power source so the unit can't accidentally start. Pressure washers use unloader seal washers to prevent high-pressure leaks, but those seals are only safe to work on when the system is fully depressurized.

2. Access the unloader assembly – Use the correct wrench to remove the 1/2 inch unloader fitting or cap from the pump manifold. Note the orientation of existing parts - take a photo with your phone if needed. Thread sealants are typically not used with bonded seal washers in hydraulic connections, so you shouldn't find tape or compound on the threads.

3. Remove the old washer and inspect seats – Lift out the worn seal washer. Installing seal washers requires cleaning surfaces to ensure proper sealing and prevent leaks, so inspect the mating metal surfaces carefully for grooves, pitting, scale, or corrosion. Use a magnifying glass if available. Even the best washer won't seal against a damaged seat - if you find significant pitting, the seat or fitting may need to be replaced or resurfaced.

4. Install and lubricate the new washer – Place the new 1/2 inch unloader seal washer in the correct position with the rubber side facing the sealing surface. Seal washer installation often involves lubricating the washer to prevent pinching or tearing - use a silicone-safe lubricant if recommended by the manufacturer. Never reuse an old washer; they are single-use parts.

5. Reassemble and torque correctly – Thread the unloader or fitting back into the pump manifold. Tighten to the manufacturer's torque specification - typically in the 10–20 ft-lb range for 1/2 inch fittings, depending on your specific unloader model. Overtightening crushes the washer beyond its design compression, destroying its ability to rebound. Undertightening allows blow-by. Either way, you'll be doing this job again way too soon.

6. Test for leaks and stable pressure – Reconnect power, supply clean water, and start the unit. Check around the 1/2 inch connection while cycling the trigger several times. Look for drips, listen for hissing, and confirm that pressure at the wand is steady and consistent. A properly installed seal washer should give you a completely dry, stable connection.

Keeping Your Unloader Seal Washer Alive Longer

Simple habits can significantly extend the life of unloader washers and other seals in a 4 GPM pressure washer pump. Most premature failures come down to avoidable operating mistakes, not defective parts.

• Avoid running the pump dry – Always prime with clean water before startup. Running dry even briefly generates enough heat to scorch rubber seals and warp sealing surfaces. The damage is usually permanent.

• Limit long bypass cycles – Leaving the trigger closed for extended periods forces water to circulate through the bypass loop, where friction raises the temperature well above the inlet water temp. That extra heat accelerates compression set in the rubber and shortens washer life. If you're not spraying, shut the pump down.

• Use clean, filtered water – Install an inlet filter and clean or replace it regularly. Grit, sand, and mineral scale act like sandpaper on sealing surfaces and rubber faces, cutting micro-channels that grow into full leaks. A simple mesh filter is cheap insurance.

• Match chemicals to seal materials – Not all detergents and sanitizers are safe for every elastomer compound. Nitrile handles most standard pressure washer soaps, but acidic or heavily chlorinated cleaners can swell or soften it. Check compatibility guides before running aggressive chemicals through your system.

• Include washers in regular inspections – Check the 1/2 inch unloader connections whenever you inspect or change the pump oil. Look for any weeping, discoloration, or residue around the fitting. Catching a failing washer early prevents the cascade of damage that follows a full blowout.

Frequently Asked Questions About 1/2" Unloader Seal Washers

These are the questions contractors and maintenance crews running 4 GPM pressure washers ask most often when dealing with unloader sealing issues.

Can I use a generic 1/2" washer from a hardware store?

You can physically fit one, but it's a bad idea. Most generic washers are flat rubber or fiber gaskets not rated for 4,000 PSI or for the repeated pressure cycling that happens every time you pull and release the trigger. They typically lack the bonded steel ring that prevents extrusion under high pressure. Unloader seal washers can be made from bonded materials like metal and rubber specifically to handle these forces. A generic washer may hold for a few minutes or a few hours, but it will eventually deform and fail - often suddenly, and usually at the worst possible time.

How often should I replace the unloader seal washer?

There's no single magic number, but plan on inspecting the washer during every major pump service interval or after every few hundred operating hours. Replace it immediately at the first sign of leakage, pressure instability, or pulsation at the wand. Many operators swap the washer as part of any unloader rebuild, which is smart preventive maintenance. If you're running in high-heat or chemical-heavy environments, expect shorter intervals.

Will this washer work with my Centurion 4 GPM pump unloader?

It is designed to fit standard 1/2 inch unloader ports commonly used with 4 GPM, 4,000 PSI triplex pumps like the Centurion. However, unloader designs vary by manufacturer and model, so always verify the exact hole diameter, screw size, and thread type (NPT vs. BSP) against your specific unloader before ordering. When in doubt, check the exploded parts diagram in your pump's manual or contact the manufacturer.

What happens if I run the pump with a damaged unloader seal washer?

Nothing good. You'll see continuous leaks at the unloader connection, progressive pressure loss at the wand, and overheating water in the bypass loop as the unloader can't cycle properly. Over time, the unregulated pressure and thermal stress will damage plunger seals, valve seats, and potentially the pump head itself. Unloader valves regulate pressure in systems like pressure washers and air compressors - when the seal fails, so does the regulation, and the entire system pays the price.

Ready to Lock In Leak-Free Unloader Performance?

A 1/2 inch unloader seal washer costs next to nothing compared to the pump it protects. For a few dollars and five minutes of your time, you eliminate leaks, stabilize pressure, and shield a 4 GPM, 4,000 PSI investment from the kind of cascading damage that leads to full rebuilds and lost work days.

Treat washer replacement as what it is: the cheapest insurance you can buy for your Centurion or any other pro-grade triplex pump. Before your next big job, pull the unloader fitting, inspect the page of parts you can see, and drop in a fresh, properly rated 1/2 inch bonded seal washer. Your pump - and your bottom line - will thank you.
