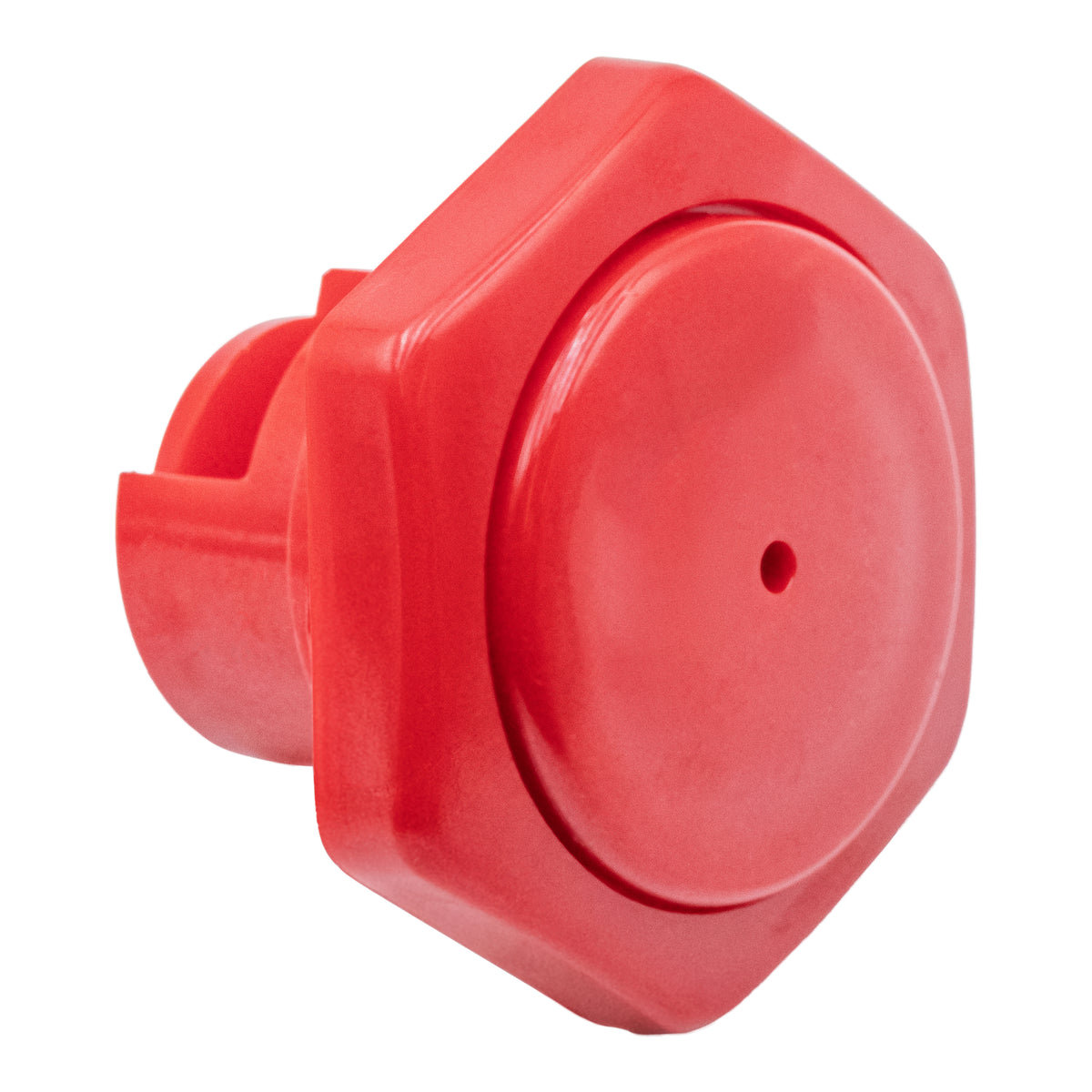

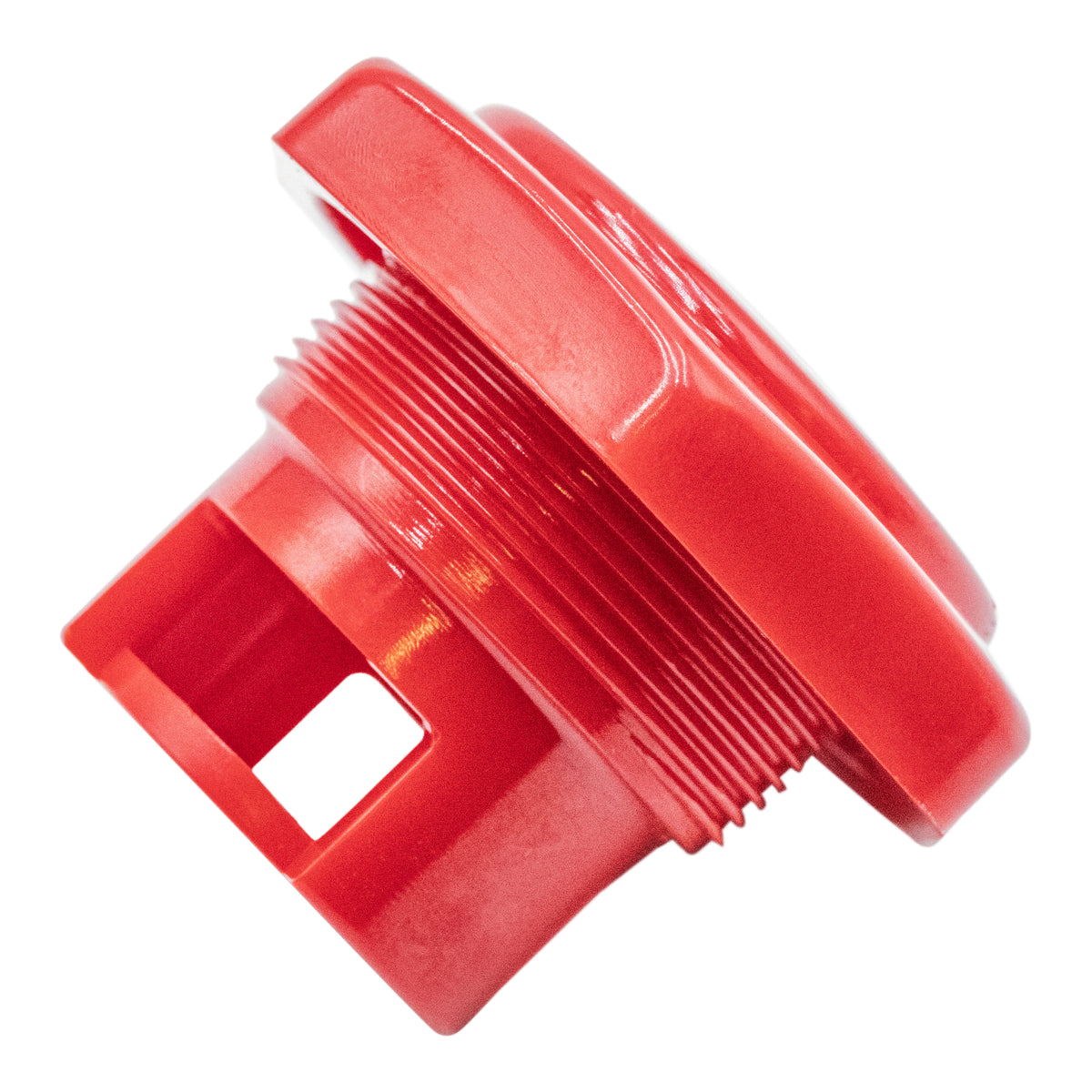

CAT Pumps 43211 Oil Filler Cap - 2723

A Proper Oil Filler Cap Prevents Leaks, Protects the Crankcase, and Extends Pump Life

A cracked or missing oil filler cap lets dirt into your crankcase and oil onto your shop floor. Replacing it takes about five minutes, costs a fraction of a seal kit, and prevents the kind of contamination that kills bearings and plungers. This guide walks you through choosing and installing the correct pump oil filler cap replacement on common triplex pressure washer pumps from Cat Pumps, AR, and General Pump; no general pump theory, just the practical steps.

Why Pump Oil Filler Cap Replacement Matters

The oil filler cap on a triplex pressure washer pump does three jobs at once: it seals the crankcase to keep contaminants out, vents internal pressure so thermal expansion doesn't blow seals, and gives you a clean access point for oil checks and refills. The seal on the oil filler cap keeps out dust, dirt, moisture, and external debris. A missing or damaged oil filler cap can disrupt internal pressure balance, and if pressure regulation fails, oil can become contaminated or depleted faster.

A worn, cracked, or incorrectly threaded cap with o ring failure is where problems start. A damaged or loose oil filler cap can allow oil to leak out during operation. Oil leaks can lead to overheating and severe engine damage. On high-output units running at 4 GPM and 4,000 PSI, crankcase contamination from a failed seal accelerates wear on every moving part inside.

• A tight oil filler cap helps prevent oil from leaking or splashing out during operation, keeping your frame and work area clean

• Replacing an oil filler cap ensures a proper seal to maintain internal crankcase pressure

• Replacing the oil filler cap is crucial to maintain consistent engine performance, especially on pumps that run for hours at a stretch

• A secure cap with a tight gasket prevents pressurized oil from leaking, which matters most on continuous-duty commercial rigs

Why You'll Be Glad You Replaced the Cap

Spending a few dollars on the right oil fill cap saves hundreds in avoided seal kits and pump rebuilds. Here's what you actually get out of it.

• Stops messy oil leaks – A fresh cap and o ring keep oil inside the crankcase instead of weeping down the pump housing. The rubber or cork gasket under the oil filler cap prevents oil leaks and contamination.

• Protects internal components – A sealed, properly seated cap blocks water, grit, and dust from reaching bearings, plungers, and the crankshaft. Cat Pumps states that dirt and water entering through a bad cap are among the top causes of premature bearing failure.

• Prevents pressure build-up – Properly vented caps let expanding air escape during thermal cycling (crankcase oil temps typically reach 120-140°F during normal operation). Without that vent, pressure forces oil past seals and out through any weak point. A missing or faulty oil filler cap can allow unmetered air to enter or escape, disrupting internal balance.

• Reduces downtime – On a truck-mounted 4 GPM rig that's booked every day, a five-minute cap swap is the difference between finishing the route and sitting on the side of the road waiting for parts.

• Makes oil changes easier and cleaner – A correctly fitting filler cap threads on and off by hand with no tools. That means faster oil checks, fewer messes, and no hunting for a wrench at 6 AM.

What Makes a Good Pump Oil Filler Cap Different

Generic caps and leftover shipping plugs might thread on, but they often lack venting and use incorrect o ring dimensions. A well-designed replacement built for commercial pressure washer pumps solves problems that cheap alternatives create.

Integrated venting design – A vented cap uses a pinhole, labyrinth channel, or integral breather to relieve crankcase pressure without letting liquid oil escape. Non-vented shipping caps (the red plastic plugs many pumps arrive with) trap pressure. Users on pressure washing forums regularly report seal blowouts traced back to running a sealed shipping cap for weeks or months. A loose oil filler cap introduces a vacuum leak that can disrupt engine performance; a sealed cap creates the opposite problem.

Precisely matched threads and diameter – Thread pitch and diameter vary between pump families. Cat Pumps models 270 and 279 use different cap part numbers (43211 vs. 44374) depending on serial number, each with a corresponding o ring (14177 or 44377). AR's RSV/RRV/RCV family uses cap part 880130 with a ~16 mm thread. Using a cap with the wrong pitch strips threads in plastic or aluminum crankcase ports.

High-temperature, oil-resistant materials – The oil filler cap is made from impact-resistant ABS plastic. Quality caps use ABS, nylon, or ABS/nylon blends rated for continuous exposure to crankcase oil at 50-82°C. Metal caps exist but cost more and can corrode if uncoated.

Durable o ring or gasket – A quality cap ships with an o ring that resists swelling and compression set in hot oil. Cat Pumps specs approximately 70 Shore-A durometer for their filler cap o rings. Cheap replacements sometimes omit the ring entirely.

Ergonomic, tool-free grip – Hex or knurled cap profiles let you remove and install the cap by hand, even wearing work gloves. Overtightening an oil filler cap can warp the plastic or make removal difficult, so a grip that encourages hand-tightening prevents cracking.

How Pump Oil Filler Cap Replacement Works

Six steps, from finding the right part number to confirming a leak-free seal. No special tools required.

Step 1 – Identify the Correct Oil Filler Cap for Your Pump

Find the data plate on your pump manifold or crankcase (usually near the unloader on Cat and AR models). Write down the brand, model, and serial number. Cross-reference that information against the parts diagram in your owner's manual or on the manufacturer's website.

Part 46798 fits Cat pumps 4HP, 5DX, 6DX, 66DX, 5CP. The oil cap 547961 fits 2SF, 2DX, 3DX, 3SP pumps. AR's 880130 cap fits multiple AR triplex models including the RSV 3G30, 4G30, and 4G40. These are not interchangeable; the thread diameter, stem length, and vent design differ between product lines.

If you can't locate the original part number, measure the existing cap: thread diameter, thread pitch (fine vs. coarse), and overall length. The oil cap dimensions are 1.2 x 1.2 x 1.8 inches on Cat's common filler cap, but AR's 880130 with its integrated dipstick stem measures approximately 50 mm in diameter and 100 mm in overall length. A mismatch of even a millimeter on thread pitch causes leaks or cross-threading.

Step 2 – Prepare the Pump for Safe Replacement

Shut off the engine or motor. Relieve pressure at the wand by squeezing the trigger with the water supply on. On gas-powered units, disconnect the spark plug wire. Let the pump cool below 100°F before touching the cap; crankcase oil runs 120-140°F during normal operation and hotter on high-RPM models.

Place the machine on level ground. An unlevel pump gives inaccurate oil level readings and may spill oil the moment you remove the cap. Wipe around the existing cap with a clean rag so no dirt falls into the crankcase when you open it.

Step 3 – Remove the Old Oil Filler Cap

Grip the cap's hex or knurled surface and unscrew counterclockwise by hand. If heat expansion or overtightening has locked it in place, wrap a rag around the cap and use a wrench gently; crushing ABS plastic creates debris that can drop into the oil.

Once removed, inspect the cap bore and threads inside the crankcase port. Look for a stuck, flattened, or cracked o ring left behind in the groove. Remove any old gasket material with a clean pick. If you need to clean the threads, cover the opening with a lint-free cloth to keep debris out of the oil.

Step 4 – Inspect and Top Off Pump Oil (Optional but Recommended)

With the cap off, check the oil through the sight glass or by pulling the dipstick (AR 880130 caps have an integrated dipstick stem). Healthy pump oil is clear to light amber. Milky oil means water intrusion; dark oil with metallic flecks means bearing or plunger wear. Either state calls for a full oil change using non-detergent 30W pump oil before installing the new cap.

Top up to the correct level mark without overfilling. Cat Pumps notes that an overfilled crankcase forces oil out through the vent or past seals. General Pump's CW1635, for example, holds 128 oz (3.8 L); always check your specific model's capacity in the data sheet.

Step 5 – Install the New Oil Filler Cap and O-Ring

Apply a thin film of clean pump oil to the new o ring. This prevents the ring from pinching or twisting as it seats in the groove, and it improves the initial seal. O-ring for part 46798 must be ordered separately; confirm before you start the job so you're not stuck waiting.

Thread the new cap in by hand. Start it straight and turn clockwise until it seats firmly. Do not use pliers or a wrench; firm hand-tight is the correct quantity of torque. Cat Pumps warns that their plastic caps crack or deform if overtightened. After seating, confirm that any vent hole or labyrinth channel in the cap is unobstructed; a clogged vent defeats the purpose of a vented design.

Step 6 – Test for Leaks and Proper Venting

Start the pressure washer and let the pump run at its rated operating speed (3,400 RPM on a typical direct-drive 4 GPM unit) for several minutes. Watch the area around the cap for oil seepage or bubbling. A small amount of initial weeping can occur as the o ring seats, but persistent leaking indicates a wrong-sized ring, damaged threads, or an overfilled crankcase.

Listen for whistling or hissing near the cap. If pump seals begin "ballooning" or you notice oil being pushed out at seal ends, the vent may be blocked or you may have installed a non-vented cap by mistake. Swap to a compatible vented design.

Key Product Details to Look For in a Replacement Oil Filler Cap

Use this checklist when comparing replacement options, regardless of brand.

• Material / Construction – Oil-resistant ABS, nylon, or ABS/nylon blends handle vibration and crankcase heat. Metal caps offer more durability but cost more and may corrode without coating.

• Dimensions / Thread Specs – Common Cat pump oil cap dimensions are 1.2 x 1.2 x 1.8 inches. AR caps with integrated dipstick stems run about 50 mm diameter and 100 mm long. Thread pitch (fine vs. coarse) and diameter must match your pump's crankcase port exactly.

• Temperature and Oil Compatibility – The cap and o ring must handle pump oil at crankcase temps up to about 60°C / 140°F without softening, cracking, or losing seal compression.

• Vent Type – Pinhole, labyrinth, or integral breather. Sealed (non-vented) caps are only acceptable as temporary shipping plugs, not for operation.

• Included Components – Some caps ship with a pre-installed o ring; others (like Cat's 46798) require you to order the ring separately. Verify before placing your order so the item arrives ready to install.

Who Needs to Replace a Pump Oil Filler Cap

How urgently you need a replacement depends on your operating conditions and duty cycle.

Professional pressure washing contractors run their pumps for hours daily and haul them over rough roads. Transport vibration loosens caps and accelerates o ring wear. Keeping a spare cap and ring on a 4 GPM truck-mounted rig means a cracked cap doesn't cancel the next job.

Facilities and fleet managers running fixed wash bays see their pumps cycle thousands of hours per year. Oil seepage from a worn filler cap creates slip hazards on bay floors and triggers housekeeping issues during safety audits.

Agricultural and ranch operations expose pumps to dust, mud, and temperature swings that degrade plastic and harden rubber faster than indoor use. A tight-sealing cap is the first line of defense against grit entering the crankcase.

Homeowners with mid-to-high-end pressure washers can swap a cracked or missing cap in minutes. If your pump arrived with a red non-vented shipping cap, replacing it with a proper vented filler cap before your first job prevents seal damage down the road.

How Often Should You Check or Replace a Pump Oil Filler Cap?

Inspect the cap and its o ring every 25-50 operating hours, or at each oil level check. Look for hairline cracks in the plastic, a flattened or brittle ring, oil weeping at the cap base, and any blockage in the vent hole.

On pumps seeing daily commercial use, replace the cap proactively every few oil changes (roughly every 500-1,000 operating hours). UV exposure from outdoor storage, hot-water operation, and contact with aggressive detergents all accelerate polymer aging. A cap that looks intact on the outside may have an o ring that's lost its compression set resistance and no longer seals under crankcase pressure.

Cat Pumps recommends the first oil change after about 50 operating hours, then every 500 hours. Each of those oil changes is a natural time to inspect and, if needed, replace the cap.

Common Problems After Oil Filler Cap Replacement (and Fixes)

Most post-installation issues trace back to fit, tightening, or vent design. All are correctable without disassembling the pump.

Oil still leaking around the cap – Check three things. First, confirm the o ring is the correct cross-section and diameter for your pump model; a ring that's even slightly undersized won't fill the groove. Second, inspect the crankcase port threads for damage or stripping. Third, verify the oil level isn't above the sight glass or dipstick maximum; an overfilled crankcase pushes oil out regardless of cap quality.

Cap difficult to remove – Overtightening is the most common cause. Heat expansion during long run times compounds the problem. Apply a thin coat of pump oil to the o ring at each installation to prevent the cap from bonding to the seat. If threads are galling (common with aluminum crankcase ports and plastic caps), clean them with a brass brush and re-lubricate.

Pump seals failing soon after replacement – A non-vented or clogged-vent cap raises crankcase pressure during thermal cycling. That pressure forces oil past low-pressure seals. If you replaced a vented cap with a sealed one (or a generic cap without a vent channel), switch to a properly vented OEM-style design. Cat Pumps lists "damaged cap O-ring" and "pump running at higher than rated RPM" as causes of oil being blown out.

Cap pops off or loosens during use – Mismatched thread pitch is the usual culprit. On high-RPM direct-drive pumps, vibration gradually backs out a cap that can't fully engage. Confirm that the item you purchased lists your specific pump model as compatible. Cat's 270/279 family alone uses two different cap part numbers depending on serial number; "close enough" threads do not hold.

Frequently Asked Questions About Pump Oil Filler Cap Replacement

Can I run my pump without an oil filler cap?

No. Running without a cap throws oil out of the crankcase, lets dirt and water in, and can destroy bearings within a short operating window. A missing or faulty oil filler cap can allow unmetered air to enter or escape, and the resulting contamination and oil loss will damage internal components. Do not operate the pump until a proper vented cap is installed.

Do I need the exact OEM oil filler cap, or will any similar cap work?

Thread size, vent design, and o ring dimensions must match your pump. "Almost right" caps leak or trap pressure. Cat pump oil cap part numbers differ between model families and even between serial number ranges within the same model. AR's 880130 is compatible across the RSV/RRV/RCV family but does not fit Cat or General Pump crankcases. Use OEM or direct-replacement parts that list your specific pump model.

How do I know if my existing oil filler cap is bad?

Look for visible cracks, faded or brittle plastic, a flattened o ring, oil weeping around the cap base, or a noticeable "puff" of pressure when you unscrew the cap. Any of these signs means the cap or ring has failed and should be replaced before the problem escalates to a blown seal or contaminated crankcase oil.

Do I have to drain the pump oil to replace the filler cap?

If the pump is level and the oil isn't overfilled, you can swap the cap without draining. Some oil may wick up onto the threads, but the level won't drop enough to matter. During a scheduled oil change, replacing the cap and ring at the same time makes the most sense; you're already working on the crankcase, and the weight of fresh oil helps test the new seal immediately.

Can a bad filler cap really affect pump performance?

Yes. Excessive crankcase pressure from a blocked or non-vented cap pushes oil past seals and reduces volumetric efficiency. On a 4 GPM, 4,000 PSI pump where seal integrity determines output consistency. Cat Pumps lists overfilled crankcase, damaged cap o ring, higher-than-rated RPM, and unleveled installation as the four main causes of oil blowout; three of those four relate directly to cap condition or fit.

Fix That Leaking Pump and Protect Your Investment

A correct, vented oil filler cap with a fresh o ring is one of the least expensive parts on any pressure washer pump, and one of the most consequential. It keeps oil in, contaminants out, and crankcase pressure where it belongs.

Inspect your current cap today. Match the right replacement to your pump model using the part number from your data plate or manual. Follow the six steps above for a clean, quick swap, and do it before your next job; not after you spot a puddle under your rig.
