General Pump 90164400 Crankcase Oil Seal TT Series - 2430

OEM Crankcase Oil Seal for General Pump Triplex Plunger Pumps

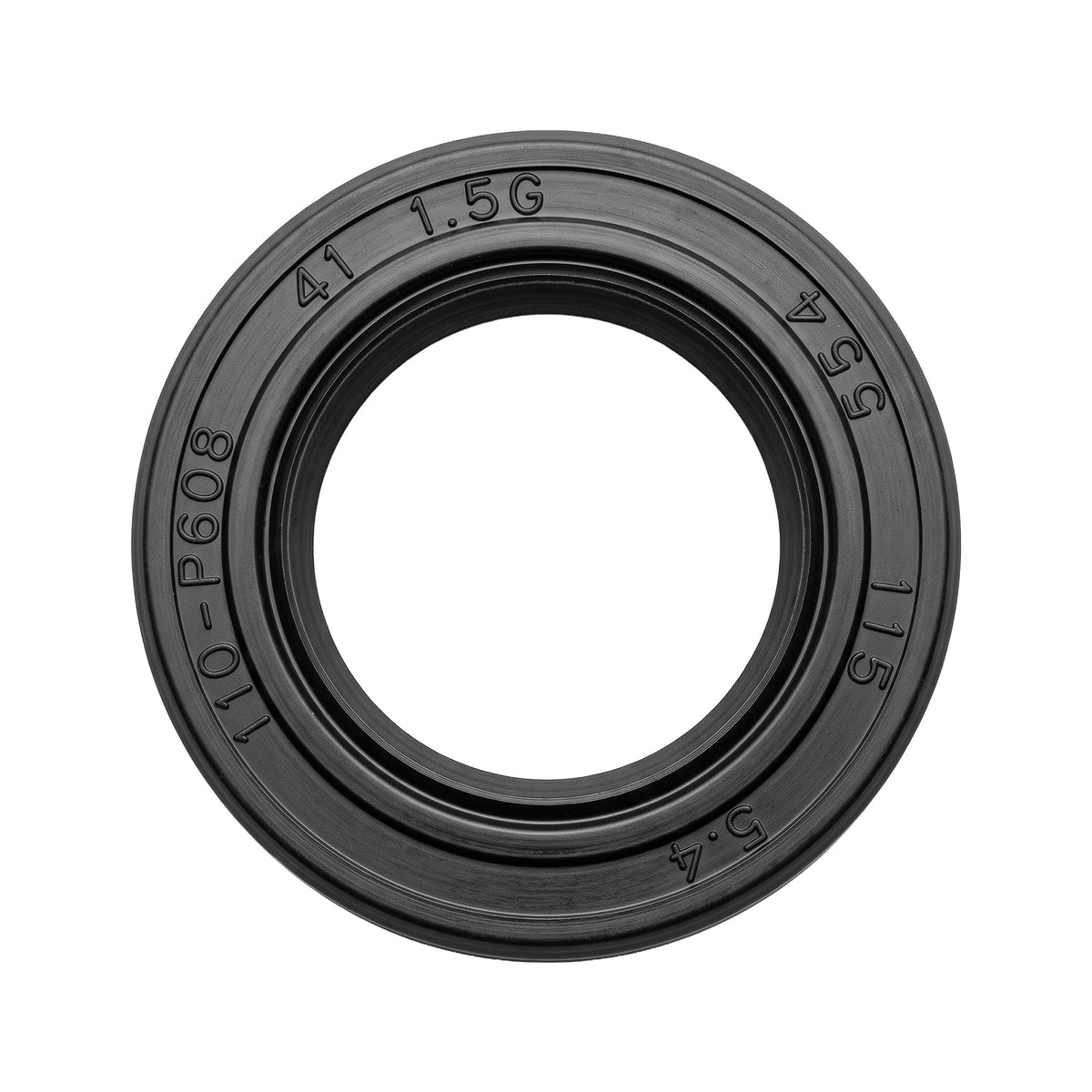

The General Pump 90164400 is an OEM replacement oil seal for high-pressure industrial pumps, specifically designed to retain crankcase lubricating oil and prevent external contaminants from entering the crankcase. This oil seal fits select General Pump triplex plunger models, including the TT Series and C17 Series, and is listed in official General Pump parts documentation as "Radial Ring Ø 30×42×7."

This guide covers what the 90164400 oil seal does, which pumps use it, how to identify when it needs replacement, and how to install it correctly. If you run or maintain General Pump triplex plunger units, this is the seal that sits between your crankcase oil and the rest of the pump.

Why You'll Rely on the 90164400 Oil Seal

Each benefit below reflects what this seal does in practice, not lab conditions.

• Prevents crankcase oil leaks – The 90164400 oil seal functions as a barrier to retain oil and exclude contaminants from the crankcase. A fresh seal eliminates oil weeping from the crankcase side of the pump, keeping your shop floor clean and your oil level stable.

• Protects bearings, connecting rods, and crankshaft – Maintaining the correct oil level is critical for lubrication and preventing premature wear of internal components. When this seal holds, bearings stay lubricated and connecting rods operate within their design parameters.

• Blocks water and detergent intrusion – The oil seal sits on the crankcase side opposite the high-pressure water packings. If both sealing systems are intact, moisture and cleaning chemicals stay out of the oil bath.

• Reduces unplanned teardowns – Conducting regular inspections can identify oil seal wear and prevent catastrophic internal damage in pumps. Replacing the 90164400 proactively during a scheduled rebuild avoids a second teardown weeks later.

• Matches factory tolerances for designated General Pump models – This oil seal is utilized in various General Pump models including the TT Series and C17 Series. Using the correct OEM part eliminates the guesswork that comes with sorting through generic seal bins.

What Sets the 90164400 Apart from Generic Seals

Aftermarket radial seals with 30×42×7 mm dimensions exist, but dimensional match alone does not guarantee correct function.

OEM lip profile and bore fit – The General Pump 90164400 is manufactured to seat in the machined bore of specific General Pump crankcases. Generic seals can differ in lip angle, outer shell hardness, or dust lip configuration; any of these mismatches can cause oil to bypass the seal within days of installation.

Industrial-grade elastomer construction – The General Pump oil seal is made from a durable industrial-grade elastomer to withstand friction and heat. The seal body typically includes a rigid metal reinforcement ring with an elastomeric inner lip, chosen for compatibility with pump crankcase oil and the operating temperatures (ambient to roughly 80–100 °C) found in commercial pressure washer duty cycles.

Proven across documented installations – General Pump's own kit charts list the 90164400 as the crank oil seal for models TT2028, TT2035, TT9061, and TT9071. That field history across thousands of pumps confirms real-world durability that a no-name seal cannot demonstrate.

How the General Pump 90164400 Oil Seal Works

Understanding where the seal sits inside the pump helps explain why correct installation and part selection matter.

1. Sits in the crankcase-side seal bore – The 90164400 is pressed into a machined bore at the interface between the crankcase housing and the plunger area. In General Pump's exploded parts diagrams, it appears as item 98, positioned among other sealing rings and O-rings adjacent to the crankshaft and plunger interface.

2. Maintains continuous lip contact around the plunger – The inner elastomer lip rides lightly against the plunger surface. As the plunger reciprocates, this lip flexes without losing contact, blocking oil from migrating forward toward the water side.

3. Separates oil from water – High-pressure water packings handle the pressure side of the pump. The 90164400 oil seal handles the opposite job: keeping crankcase oil in and keeping moisture or detergent from creeping into the oil bath. Both systems must be intact for the pump to operate correctly.

Product Details for the 90164400 Oil Seal

• Part number: 2430

• Type: Crankcase-side radial oil seal for triplex plunger pumps. This oil seal is distinct from water seals or plunger packings used in pumps.

• Material: Durable industrial-grade elastomer lip with metal-reinforced body, designed for pump oil compatibility and sustained heat exposure.

• Dimensions: 20 mm inner diameter, 30 mm outer diameter, and 5 mm width.

• Orientation: Lip side faces the oil chamber; the seal sits flush in the machined bore.

• Confirmed compatible models: TT2028, TT2035, TT9061, TT9071, and other TP / Series 51 / C17 triplex plunger pumps. Compatibility of the 90164400 oil seal can vary by pump configuration and revision, so always verify against your pump's parts breakdown.

• What's included: One oil seal per purchase. Triplex pumps may require multiple seals; check your pump diagram for the exact quantity.

• Weight: Approximately 0.02 lbs per seal.

Who Should Use the 90164400 Oil Seal

• Pressure washer service shops rebuilding General Pump units with visible crankcase oil seepage behind the plungers.

• Facility maintenance teams servicing stationary car wash, food plant, or industrial cleaning systems that rely on General Pump triplex units.

• Mobile wash and contractor operators who stock critical seals to avoid multi-day downtime waiting for parts.

• Any pump operator spotting oil behind the manifold or on the drive-end frame. Oil in those locations often traces back to a worn crankcase seal.

When to Replace a General Pump 90164400 Oil Seal

Oil seals are critical components evaluated during routine maintenance, especially during oil changes. The rubber lips of oil seals can harden and crack over time, necessitating replacement to prevent oil leaks. Here are the most common indicators that the 90164400 needs attention:

Oil weeping from behind the pump head. If you see oil collecting around the crankcase side where the plungers pass through, the seal lip has likely lost contact or cracked.

Frequent need to top off crankcase oil. A failing oil seal may result in oil leaks and contamination of crankcase oil. If the oil level drops between service intervals without an obvious external puddle, the seal may be allowing oil to migrate past the plunger interface.

Milky or discolored crankcase oil. When both the water packing and oil seal degrade, water or detergent can reach the oil bath. Cloudy oil at your next oil change is a clear sign to inspect the 90164400.

Oil film on plungers after manifold removal. During any teardown, check the plunger surfaces. Oil where only water residue should appear points to a failed crankcase seal.

Replace the 90164400 seal proactively whenever you perform a full pump rebuild (bearings, packings, valves). The labor to access the seal is already done during those jobs; installing a new seal at the same time avoids a repeat teardown.

Replacing the 90164400 Oil Seal: Basic Overview

Always follow General Pump's official service manual and safety procedures. If you are unsure about any step, contact a professional or reach out to the Barens team before proceeding.

Step 1 – Prepare the pump. Disconnect power, relieve system pressure, and drain the crankcase oil per the manufacturer's recommendations.

Step 2 – Remove the pump manifold. Disconnect discharge and inlet plumbing. Unbolt the manifold evenly and slide it off the plungers. Set aside packings and intermediate seal rings in order.

Step 3 – Extract the old oil seal. With the packings removed, the old 90164400 seal is accessible from the crankcase side. Use a seal puller or similar tool to remove it. Avoid scratching the bore surface or the plunger; any scoring on the bore can cause the new seal to leak. Interchangeable jaw snap ring pliers work well for oil seal removal, and snap ring pliers can replace oil seals effectively in many pump configurations.

Step 4 – Install the new 90164400 oil seal. Proper installation of oil seals is essential to prevent leaks and ensure their functionality. Lightly lubricate the outer diameter of the new seal and the plunger surface with clean pump oil. Press the seal squarely into the bore using a correctly sized socket or seal driver. A socket can help seat oil seals during replacement by distributing force evenly. The lip must face the oil chamber, and the seal must sit flush with the bore surface.

Step 5 – Reassemble. Reinstall packings and intermediate rings, slide the manifold back over the plungers, and torque the manifold bolts in a criss-cross pattern to General Pump's published torque specification. Refill crankcase oil to the correct level and run the pump briefly to check for leaks.

Clean work matters here: no debris in the bore, no twisted seal lips, no over-torqued fasteners.

90164400 Oil Seal vs. Other Pump Seals

Oil seal vs. high-pressure water packing. Water packings sit on the manifold side and handle system pressure (often 2,000–5,000+ PSI depending on model). The 90164400 oil seal sits on the opposite side of the plunger and operates at ambient crankcase pressure. The two components serve different functions and are not interchangeable.

90164400 vs. other General Pump oil seal part numbers. General Pump uses several oil seal part numbers across its product line. For example, models outside the TT2028/TT2035/TT9061/TT9071 family may call for part 90163400 or 90169000 instead. The difference is dimensional: each seal is machined for a specific bore diameter and plunger size. Installing the wrong part number, even if it appears similar, results in poor radial contact or misfit and leads to leakage.

Why verifying the part number matters. Always cross-reference 90164400 against your pump's official parts breakdown before ordering. The 90164400 oil seal is designed to maintain crankcase integrity in high-pressure pumps, but only in the models it was engineered for.

Frequently Asked Questions About the General Pump 90164400 Oil Seal

How do I confirm that my pump uses the 90164400 oil seal? Check the model tag on your pump and compare it to the General Pump parts breakdown for that model. The 90164400 is confirmed for models TT2028, TT2035, TT9061, TT9071, and other TP / Series 51 / C17 triplex units. If you're unsure, contact the Barens team with your pump model and serial number.

How many 90164400 seals does my pump need? Most triplex pumps use one oil seal per plunger, so three seals is common. However, the official parts list for some configurations lists a quantity of one. Always verify against your pump's exploded diagram before ordering.

Can I reuse an old oil seal? No. Oil seals are wear parts. Once removed, the lip profile is compromised. If you see any hardening, cracking, or deformation, the seal must be replaced.

Do I need special tools? A seal puller and a correctly sized socket or seal driver handle most installations. Interchangeable jaw snap ring pliers are also useful. The key is avoiding damage to the bore and plunger surfaces.

How often should I replace the oil seals? General Pump does not publish a standalone hour interval for the 90164400 seal. In practice, replace it during every major pump overhaul (when packings, valves, and bearings are serviced) or whenever inspection reveals wear, hardening, or oil leakage.

What oil should I use with this seal? Use the crankcase oil type and viscosity specified in your General Pump owner's manual. Mixing incompatible lubricants can swell or degrade the elastomer lip and cause premature failure.

Ready to Service Your General Pump?

The 90164400 oil seal is a small component that protects the entire crankcase assembly of your General Pump triplex plunger pump. Replacing it on schedule keeps oil where it belongs, prevents contamination, and avoids costly unplanned teardowns.

Before starting a rebuild, verify your pump model and gather all needed seals, packings, and hardware. If you need help confirming that the 90164400 is the correct oil seal for your pump, selecting the right quantity, or assembling a complete seal and packing kit for your specific General Pump model, contact the Barens team directly.

Phone: Reach us during business hours for immediate part verification and ordering assistance. Email: Send your pump model, serial number, and any photos of your current seals; we'll confirm compatibility and recommend exactly what you need.

Whether you're a service technician, distributor, or end user, the Barens team is here to help you get the right parts the first time.
