AR2633H Pump Rail Kit 2 5/8" RK/XM/RC/RR - 2403

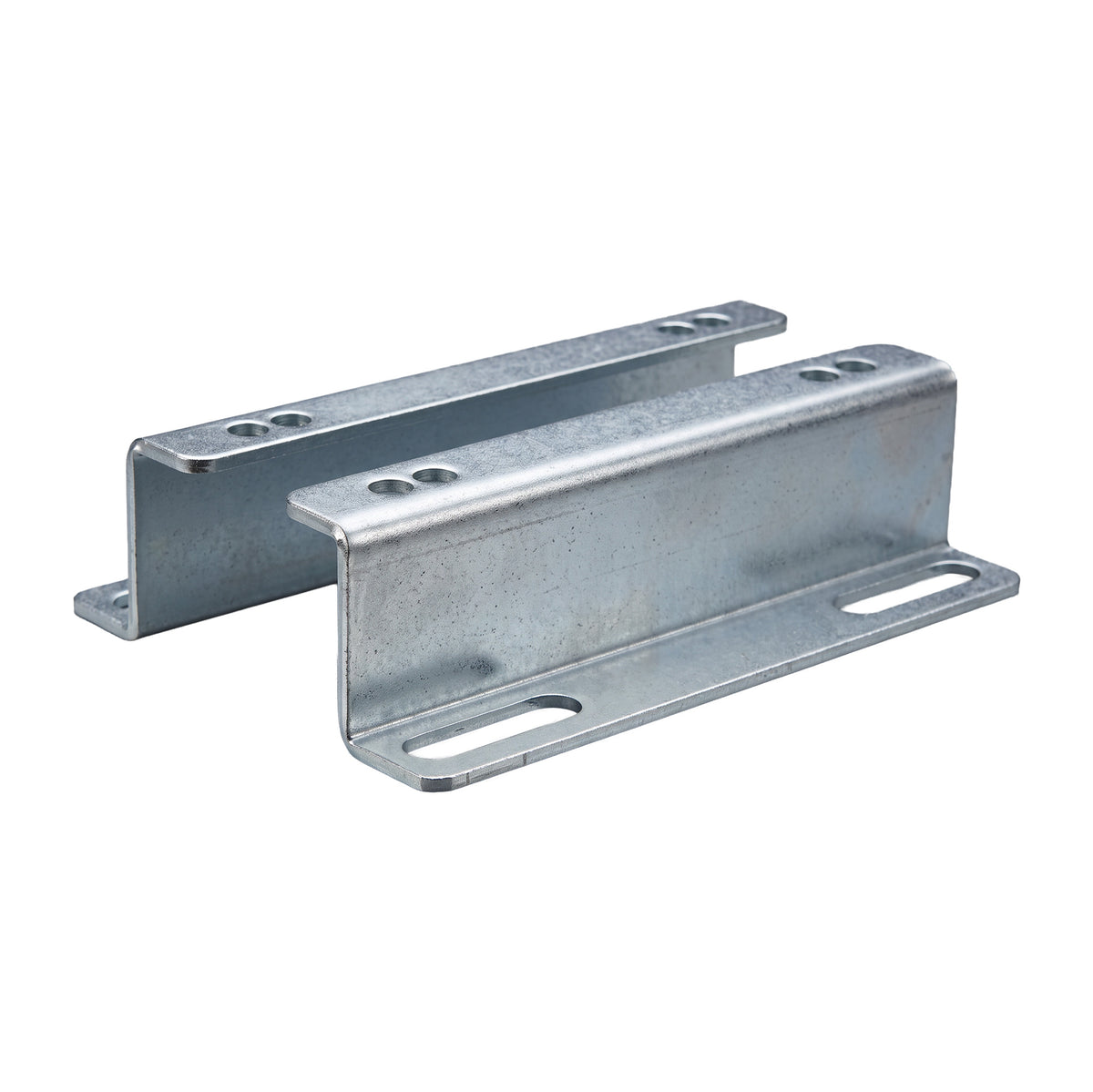

AR2633H Pump Rails At a Glance

The AR2633H is a heavy-duty pump rail kit for stabilizing high-pressure pumps manufactured by AR North America (Annovi Reverberi). It solves one of the most persistent problems in commercial and industrial pump installations: achieving stable, vibration-resistant mounting that keeps your AR pump properly aligned with its drive source over thousands of hours of operation.

This factory rail kit falls into the category of OEM mounting accessories designed for 1-3/4″ pump frames commonly used on AR RC, XM, RR, and RK series units across North America. The AR2633H pump rails measure 2 5/8 inches in size, making them the "high rail" option in the AR2633 family-built for setups that need additional clearance between the pump base and the frame.

Primary Benefit

AR2633H pump rails deliver secure, vibration-resistant mounting for AR RC, XM, RR, and RK series pumps, ensuring correct shaft alignment on standard rail frames without custom fabrication.

Whether you're running a mobile pressure washer rig, an industrial cleaning station, or a truck-mounted system, the AR2633H keeps your pump locked in position so you can focus on the job instead of chasing alignment issues.

Why You'll Appreciate AR2633H Pump Rails

The real value of a mounting rail kit shows up in what it prevents-downtime, premature failures, and frustrating reinstalls. Here's what the AR2633H delivers in practice:

• Simplified pump mounting on standard rail frames – The AR2633H matches AR pump base bolt patterns directly, so you avoid drilling, welding, or modifying generic rails to fit. The quantity of custom work drops to near zero.

• Improved pump stability and alignment under load – Its rigid rail design helps stabilize pump installations during operation. The AR2633H provides a mounting solution to minimize deflection and base twist, which means less vibration, less noise, and fewer alignment-related failures.

• Protection for high-pressure hoses and fittings – A firmly mounted pump doesn't shift under cycling pressure loads. That means less stress on connections, fewer hose failures, and reduced risk of leaks at critical fittings.

• Long-term durability in harsh environments – The rail kit is constructed from heavy-duty steel for durability. The robust gauge steel holds up in outdoor rigs, wash bays, and mobile trailer applications where exposure to moisture, chemicals, and road vibration is constant.

• Reduced internal pump wear – The AR2633H aids in reducing premature wear on internal pump components by maintaining proper alignment between pump and drive source, protecting seals, bearings, and plungers from asymmetric loading.

• OEM-engineered fit with zero guesswork – Because AR North America designed this kit specifically for their own pump footprints, you get matched geometry right out of the box. No measuring, no hoping-just bolt-on compatibility.

What Makes AR2633H Different From Other Pump Rails

Generic pump rails are a common source of frustration. Misaligned bolt patterns force installers to drill new holes. Rails that are too thin flex under load, gradually shifting the pump out of alignment. Universal rails rarely match the exact footprint of AR pump bases, creating a loose fit that worsens with every operating hour.

The AR2633H is purpose-built to eliminate these problems for AR pump bases used on standard rail systems in North American equipment. The AR2633H is designed for "N Version" pumps in multiple Annovi Reverberi series, which means it matches the specific base geometry these pumps share.

AR2633H is built differently:

• OEM-matched hole spacing for AR RC, XM, RR, and RK pump bases – Bolt holes align directly with the mounting holes on compatible pump feet, enabling true bolt-on installation without modification. This is not a "close enough" fit-it's an exact match.

• Consistent 2-5/8″ rail height preserving correct shaft centerline – The rail height is specifically designed for proper shaft alignment with motors and engines. This matters because even small vertical misalignment causes coupling wear, bearing stress, and premature failure. The AR2633H enhances alignment stability between the pump and motor.

• Mounting feet designed for load distribution – The rail set includes mounting feet for stabilization, spreading the pump's weight and dynamic forces evenly across the frame rather than concentrating stress at bolt points.

• Heavier, more rigid construction than generic alternatives – Where universal rails flex and fatigue, the AR2633H's heavy-duty steel resists deformation under the cyclic loads that high-pressure plunger pumps generate.

How AR2633H Pump Rails Work in Your System

Understanding where the AR2633H fits in your pump setup is straightforward. The rails serve as the interface between your pump base and your machine frame, keeping height, alignment, and stability locked in under dynamic operating loads.

1. Install the rails onto your frame or skid – Position the two AR2633H steel rails on your existing frame crossmembers or skid channels. The rails sit parallel, spaced to match your pump's foot width. Attach them loosely at first to allow fine adjustment before final tightening.

2. Mount the AR pump to the rails – Set your AR pump (RC, XM, RR, or RK series) onto the positioned rails, passing the included bolts through the pump's base holes and into the rail mounting points. Align the pump shaft-whether solid or hollow-with your engine crankshaft, motor coupling, or belt pulley before snugging hardware down.

3. Run under load with confidence – Once tightened, the rails maintain alignment during startup, pressure cycling, and sustained operation. Vibration stays controlled, connections remain secure, and the pump-to-drive alignment holds steady. After the initial test run, a quick re-torque of bolts confirms everything has settled properly.

AR2633H Product Details

This section provides a scannable overview of the AR2633H's key specifications:

• Material: Formed heavy-duty steel rails with a protective finish suitable for wash-down, outdoor, and shop environments.

• Rail Height: 2-5/8″ (approximately 2.625″), raising the pump base to maintain proper shaft centerline relative to the drive source.

• Compatibility: AR2633H pump rails are designed for RK, XM, RC, RR series pumps-including variants such as RK-SS, XM-SS, RCA, and RRA-that share the standard AR "N Version" pump base footprint.

• Mounting Holes: The kit uses fixed-position bolt holes matched to AR pump foot spacing. Installers should verify that frame-side mounting allows adequate positioning before drilling or committing.

• Included in the Kit: The kit includes two rails and mounting bolts for installation.

Compatible AR Pumps and Systems

Correct compatibility is the most common question buyers have about the AR2633H, and for good reason-failure to confirm pump compatibility may lead to unsuitable installations.

• RK Series – Belt-drive triplex plunger pumps commonly found in gas engine–driven pressure washers, mobile cleaning rigs, and trailer-mounted systems. The RK family is one of the most widely used AR pump lines in North America.

• XM Series – Often paired with electric motors or direct-drive configurations in industrial settings such as car wash stations, OEM cleaning equipment, and stationary wash systems.

• RC Series – Higher-pressure solid shaft pumps used in heavy-duty commercial cleaning, retrofit builds, and specialty high-pressure applications.

• RR Series – Similar to the RC in application scope, covering varying stroke configurations for demanding industrial cleaning tasks.

The mounting kit supports applications in pressure washers and industrial cleaning across all of these pump families. The AR2633H is aimed at users in industrial and commercial equipment fields who need reliable, repeatable mounting.

If your frame uses a different rail size or your pump is an older legacy model outside these families, you may need an adapter or a different rail kit entirely. Cross-check your pump base diagrams or contact AR North America support to verify fit for unusual configurations.

Installation Overview

This section provides a practical, high-level installation guide for technicians and experienced DIY users. Correct installation of the AR2633H aids in easier maintenance access down the line and prevents costly alignment problems.

Before you start:

• Confirm your pump model and verify it belongs to the RC, XM, RR, or RK series

• Measure your existing frame rails to verify compatibility

• Gather tools: appropriately sized wrenches or sockets, a torque wrench, a level, and a straight edge

• Disconnect power source (engine or motor) and drain pump oil if removing an existing pump

Installation steps:

1. Position the AR2633H rails on the frame crossmembers or skid channels, parallel and spaced to match the pump foot width. Leave hardware finger-tight for adjustment.

2. Set the AR pump onto the rails, aligning the pump base holes with the rail bolt holes. Insert the included mounting bolts loosely.

3. Check shaft alignment between the pump and drive source. Use a straight edge or laser alignment tool to verify that the pump shaft centerline matches the engine crankshaft or motor shaft both horizontally and vertically.

4. Verify belt or coupling alignment if using belt drive or flexible coupling. Adjust rail position on the frame as needed before tightening.

5. Tighten mounting hardware in a cross pattern-one corner, then the opposite, then the remaining two-incrementally increasing torque to ensure even clamping pressure.

6. Run an initial test under working pressure for a brief period, then shut down and visually inspect for any shift, vibration, or loosening.

7. Re-torque all mounting bolts after the first few hours of operation, as vibration and settling during initial use can loosen hardware.

Correct engine-to-pump alignment is critical. Even slight misalignment causes premature bearing wear, crankshaft stress, and coupling failure. Detailed torque values and safety limits should be taken from the official AR North America installation documentation.

Best Practices for Use and Longevity

Proper use of the AR2633H rails extends pump service life and keeps your system running at peak reliability for years.

• Inspect for frame flex or distortion regularly. Mobile units and trailer-mounted rigs are especially susceptible to frame twist, which transfers directly to the rails and misaligns the pump. Don't assume a rigid frame stays rigid under repeated road vibration or heavy loads.

• Check mounting bolts and feet periodically. Vibration can gradually loosen hardware. Look for signs of corrosion, bolt fatigue, or hole elongation (holes becoming oval) that indicate the mount has been shifting.

• Keep rails and frame clean. Oil buildup, chemical residue, and heavy scale accelerate corrosion on steel components. A quick wipe-down during routine maintenance goes a long way.

• Address the root cause of chronic vibration. If vibration persists despite properly torqued rails, investigate unbalanced engines, worn pulleys, or misalignment rather than simply tightening the rails further. Over-tightening creates new stress points without solving the underlying problem.

• Re-check alignment after any impact event. If the pump skid is dropped, the transport vehicle hits a significant bump, or the frame sustains any damage, perform a quick rail and pump alignment check before resuming operation.

Who AR2633H Pump Rails Are Designed For

If you're wondering whether the AR2633H is the right product for your setup, here's a quick look at the ideal user profiles:

• Equipment manufacturers building pressure washers, industrial cleaning rigs, or OEM systems on standard rail-based frames who need a reliable, repeatable mounting solution for AR pumps.

• Service shops and dealers replacing worn pump mounts, upgrading frames, or swapping pump models within the RC, XM, RR, or RK families.

• Facility maintenance teams retrofitting older frames to accept current-generation AR pumps without fabricating custom mounting hardware.

• Advanced DIY and small-business owners who service their own pressure washer skids and want OEM-quality mounting without sourcing generic parts and hoping for the best.

If your frame uses non-standard rail dimensions or you're working with non-AR pumps, alternative hardware or custom solutions will be a better path. Always verify before you order.

Frequently Asked Questions

Will AR2633H fit my frame? The AR2633H is designed for frames using standard rail configurations compatible with AR pump bases. Measure your existing rails and compare to the AR2633H specifications. If you're unsure, Barens' technical support can help confirm fit.

Which AR pump series are compatible? AR2633H pump rails are designed for RK, XM, RC, and RR series pumps, including stainless steel variants like RK-SS and XM-SS. For legacy or uncommon models, contact the Barens team to confirm compatibility before purchasing.

Can I install this myself, or do I need a professional? Experienced DIY users comfortable with pump systems, alignment tools, and torque wrenches can handle the installation. If you haven't worked with high-pressure pump mounting before, a professional technician will ensure correct alignment and safe operation.

Will the rails eliminate all vibration? Proper rail mounting and alignment significantly reduce vibration and noise. However, rails stabilize the pump-they don't absorb engine imbalance, worn coupling vibration, or other mechanical issues upstream of the pump. Those problems require separate diagnosis.

How do the rails hold up in wet or outdoor environments? The heavy-duty steel construction handles typical wash bay, outdoor, and mobile trailer conditions well. Periodic inspection and maintenance-cleaning off chemical residue, checking for surface corrosion-will keep the rails in good condition long-term. Reviews from users in demanding environments consistently point to the importance of this basic upkeep.

Upgrade Your AR Pump Mounting

The AR2633H pump rail kit delivers exactly what commercial and industrial pump installations demand: stable, correctly aligned, OEM-matched mounting for AR RC, XM, RR, and RK series pumps. With heavy-duty steel construction, purpose-built geometry, and a design that minimizes deflection and base twist, it replaces the guesswork and compromise of generic rails with a straightforward bolt-on solution.

Before selecting the AR2633H, confirm your pump model falls within the compatible series and verify your frame's rail configuration. A few minutes of verification saves hours of rework. If you have any doubt about fit or installation approach, reach out to the Barens support team-they'll point you to the right product for your setup.
