General Pump 90384100/701115 Buna-N O-Ring 17x2.5mm - 2369

OEM Replacement Seal for High-Pressure Pump Valve Assemblies

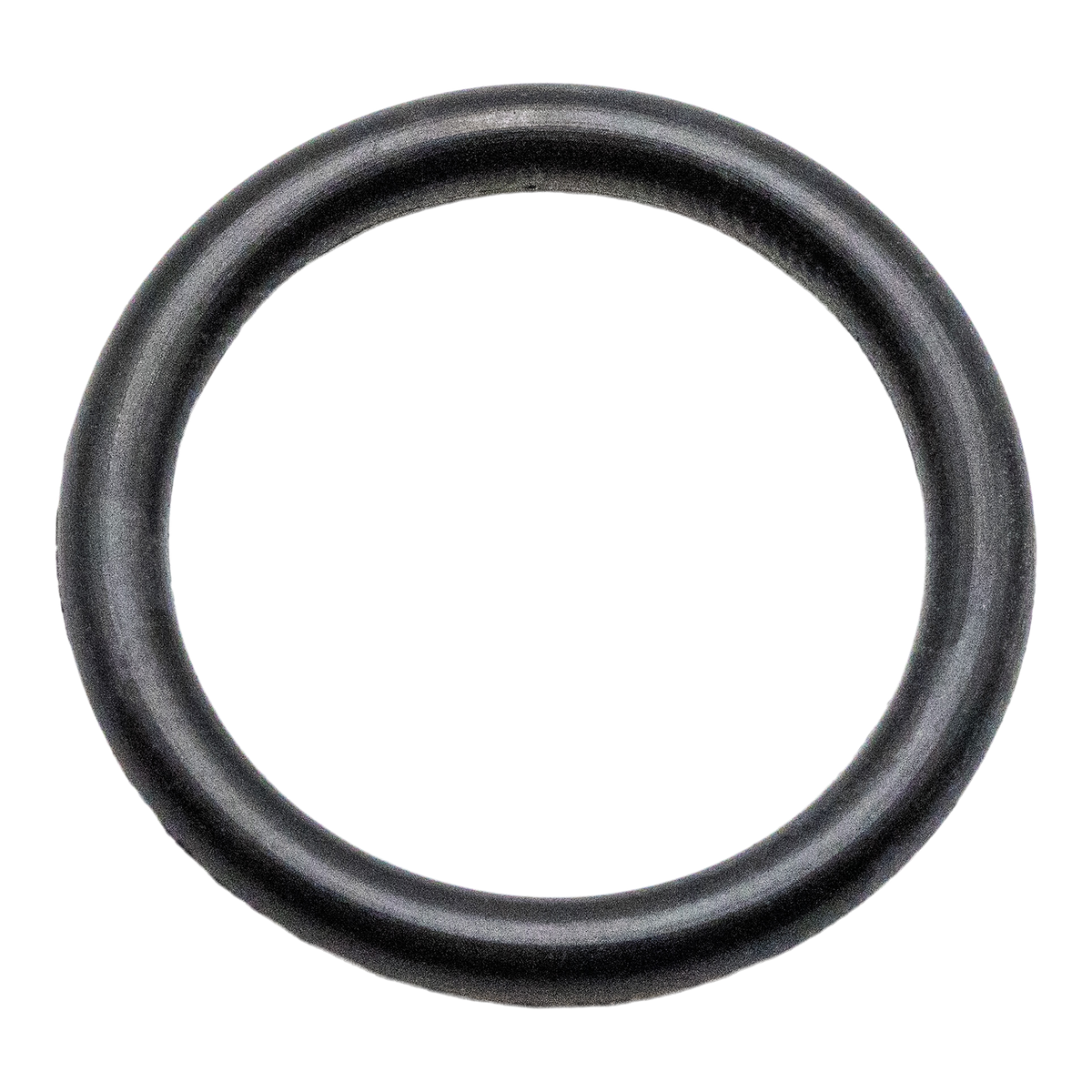

The General Pump 90384100 O-ring is a replacement part built from 70 durometer Buna-N rubber, sized at 2.5mm x 17mm. It serves as a critical check valve seal in high-pressure triplex plunger pump systems, preventing water from bypassing the valve components during operation.

Why You'll Love the General Pump 90384100 O-Ring

This O-ring sits between you and a pressure drop. When it fails, pump performance falls apart. When it's seated correctly, your system holds pressure and your workday stays on schedule.

• Leak-free valve sealing – The 90384100 O-ring keeps check valve assemblies sealed tight, so water stays on the correct side of the valve seat. A damaged O-ring can cause water leakage or pressure fluctuations, forcing the pump to work harder and reducing cleaning output.

• Direct OEM compatibility – This ring replaces worn or leaking seals in General Pump and select Interpump units. It cross-references to part numbers 701115, 080023, and 25-0053, making it easy to find across catalogs and confirm you have the right seal.

• 70 durometer Buna-N compound – The nitrile rubber resists water, petroleum-based pump oils, and common detergents used in pressure washing. Its operating temperature range spans approximately −40°F to 250°F, covering cold-water and hot-water applications.

• Protects downstream components – Replacement O-rings ensure a proper seal in pumps. Without that seal, air ingestion and cavitation can damage plungers, pistons, and pump heads; components that cost far more to replace than a single O-ring.

• Field-ready size – Small enough to carry a dozen in a toolbox or service kit. Quick to swap during scheduled maintenance or when diagnosing a pressure loss on site.

What Sets the 90384100 Apart from Generic O Rings

A hardware store O-ring might share the same inner diameter and cross-section. What it won't share is the precise durometer, surface finish, or dimensional tolerance that General Pump's groove geometry requires. At pressures above 3,000 PSI, those differences determine whether the seal holds or leaks.

The 90384100 is engineered around General Pump's valve cap and check valve groove dimensions. Its 70 Shore A hardness splits the difference between flexibility and extrusion resistance: soft enough to conform to machined surfaces, firm enough to stay in place under high-pressure cycling.

General Pump O-rings are designed for specific pump models. This ring commonly cross-references to 90384100, 701115, 080023, and 25-0053 across OEM parts lists, Mi-T-M documentation, and aftermarket catalogs. Service centers and shop technicians rely on these cross numbers to sort through inventory and confirm fitment before opening a pump head.

How It Works

1. Seated into the valve groove – The 90384100 O-ring drops into a machined groove on the check valve body or valve cap. The groove's depth and width are cut to accept this ring's 17 mm ID and 2.5 mm cross-section.

2. Compressed during assembly – When valve caps or fittings are torqued to spec, the Buna-N ring compresses between mating metal surfaces. That compression fills micro-gaps and creates a barrier against water migration.

3. Sealed under operating pressure – As the triplex plunger pump cycles, the O-ring prevents water from bypassing the valve components. The seal holds through repeated pressure pulses, keeping discharge pressure stable and protecting internal pump surfaces from erosion.

Product Details

Key technical details for the General Pump 90384100 O-ring:

• Material / Compound: 70 durometer Buna-N (Nitrile) rubber. Resistant to water, common cleaning detergents, and petroleum-based hydraulic fluids.

• Dimensions: The O-ring is sized 17x2.5mm, matching General Pump check valve and fitting grooves.

• Compatibility: OEM replacement for General Pump and select Interpump triplex plunger pump models where the manual specifies part 90384100, 701115, 080023, or 25-0053. Also used in accessories such as the General Pump ZGP11 spray gun valve body.

• Quantity per pump: Many General Pump triplex models (HTX series, EP series, TS series) use six of these O-rings in their valve assemblies. Replace all six during a head rebuild to avoid mismatched seals.

• Service environment: Cold to hot water (up to approximately 250°F static), common cleaning chemicals, and pump oils found in commercial pressure washing.

• Packaging: Sold individually and also included in various General Pump repair kits. Kit 37 is compatible with T41 and TS1041 pumps. Kit 88 is compatible with EZ2545E and TT9351 pumps. Kit 204 is designed for HTX1810S and HTX1812S pumps. Kit 141 is compatible with TT1505EBF pump. Kit 148 is for T1321 and TS1321 pumps.

Who the 90384100 O-Ring Is For

This O-ring supports anyone running General Pump equipment who needs a dependable valve seal.

• Professional pressure washer service shops – Repair centers that rebuild General Pump heads weekly keep these on hand by the box. Replacing all six valve O-rings during a head service is standard practice.

• Commercial cleaning contractors – Fleet operators running building wash, fleet wash, or agricultural cleaning rigs where a single leaking valve means lost revenue per hour of downtime.

• Facility and maintenance managers – Plants, warehouses, and institutions maintaining in-house pressure washers for scheduled cleaning operations.

• DIY owners of General Pump units – Homeowners and small operators with prosumer machines who want to match the exact OEM seal rather than guess at a hardware store alternative. Even if the O-ring appears undamaged, replacement is advisable during service to prevent mid-job failures.

Installing and Replacing the 90384100 O-Ring

Before starting, depressurize the system and disconnect the pressure washer from its power source and water supply. Residual pressure in the pump head can cause injury.

1. Confirm the correct part number – Check your pump manual or parts breakdown for 90384100 (or cross numbers 701115, 080023, 25-0053). General Pump repair kits for your specific model will list which O-rings are included.

2. Access the valve assembly – Remove the valve caps or check valve cover following the manufacturer's disassembly sequence. Keep fasteners organized for reassembly.

3. Remove the old O-ring – Lift the worn ring out of its groove using a plastic pick or your fingers. Avoid metal tools that could scratch the sealing surface. The O-ring should be inspected for damage before installation of the new one; look for flattening, cuts, chemical swelling, or hardening on the old ring to diagnose the failure mode.

4. Clean the groove and mating surfaces – It is essential to clean the sealing surfaces before O-ring installation. Wipe away scale, grit, old lubricant, and any rubber residue. A scratch or burr in the groove will compromise the new seal.

5. Install the new 90384100 O-ring – Lubricate the O-ring lightly before installation to prevent damage. Use a pump-safe grease compatible with Buna-N (not standard silicone grease, which can swell nitrile rubber). Seat the ring evenly in the groove without twisting or pinching.

6. Reassemble and test – Torque valve caps to the manufacturer's specification. Reconnect the water supply and power, then bring the pump up to operating pressure. Check around each replaced seal for drips or weeping. O-rings can replace worn or leaking seals in pumps, and a dry joint after pressurization confirms the job is done.

Maintenance Practices That Extend O-Ring Life

Good operating habits reduce how often you open the pump head.

Never run the pump dry. Water acts as both coolant and lubricant for Buna-N seals. Dry running creates localized heat spikes that harden and crack O-rings within minutes.

Check chemical compatibility. Buna-N handles alkaline cleaners and most soaps well. Strong solvents (ketones, chlorinated hydrocarbons), concentrated acids, or aggressive oxidizers degrade nitrile rubber. If your application requires those chemicals, consider EPDM or Viton seals for the affected positions.

Maintain proper inlet supply. A starved inlet forces the pump to cavitate, hammering internal seals with pressure spikes that exceed normal operating loads. Clean inlet filters, use adequately sized supply hoses, and verify water flow rates meet the pump's specification.

Inspect O-rings during every scheduled service. O-rings should be replaced during routine maintenance of the pump. Whenever you open the pump for packing, valve, or head work, view each O-ring for compression set, nicks, or swelling. Replace any ring that shows wear, and consider replacing all six valve O-rings as a set.

Store spares properly. Keep replacement O-rings in a sealed bag in a cool, dry location away from direct sunlight and solvent fumes. UV exposure and ozone degrade nitrile rubber over time, even before installation.

Frequently Asked Questions

Common questions about the General Pump 90384100 O-ring:

Is the 90384100 O-ring an OEM replacement part? Yes. The General Pump 90384100 O-ring is a replacement part listed in General Pump and select Interpump parts catalogs. It replaces the same ring under updated part number 701115, as well as aftermarket cross numbers 080023 and 25-0053.

What material is this O-ring made from? It is manufactured from 70 durometer Buna-N (Nitrile) rubber. This compound resists water, common cleaning detergents, and petroleum-based pump oils across a temperature range of approximately −40°F to 250°F.

Which pumps does this O-ring fit? It fits General Pump and Interpump triplex plunger pump models that list 90384100, 701115, 080023, or 25-0053 in their parts breakdown. Examples include the HTX series, EP series, and TS series. Always confirm fitment against your specific model's parts diagram.

Can I use a generic O-ring instead? A generic ring with the same nominal dimensions may physically fit the groove, but it may not match the 70 durometer hardness or the dimensional tolerances needed at operating pressures above 3,000 PSI. Mismatched hardness leads to extrusion, compression set, or leakage under load.

How often should I replace this O-ring? Replace it whenever the pump is opened for service and the ring shows any sign of wear. Under daily commercial use with detergent exposure, expect functional life of one to two years. In lighter, intermittent use, the ring may last longer, but proactive replacement during scheduled service prevents mid-job failures.

Do I need special tools to install it? No. Most replacements require basic hand tools (wrenches for valve caps, a plastic pick for ring removal) and a tube of Buna-N-compatible lubricant. No specialty equipment is needed. Thanks to its standard groove design, the swap takes minutes once the pump head is accessible.

Keep Your General Pump Sealed and Running

The 90384100 O-ring is a low-cost part that prevents high-cost problems: pressure loss, water bypass, cavitation damage, and unplanned downtime. Replacing all valve O-rings during service keeps your pump operating at full pressure and protects the components around them.

Contact the Barens Team to confirm compatibility with your specific General Pump model and to place your orders. The team can also recommend complementary parts, such as valve kits, packing kits, and additional seals, so you can complete a full pump service in one stop.
