CAT Pumps 34062 Buna-N Seal Kit 4HP/5DX - 2232

Cat Pumps 34062 Seal Kit: Quick Overview

The Cat Pumps 34062 seal kit is a complete OEM Buna-N seal replacement package engineered specifically for older Cat 4HP and 5DX triplex plunger pumps. This seal kit lets you fully refresh the wet end of your older 4HP or 5DX pump so it runs leak-free, holds rated pressure, and delivers reliable performance again-without replacing the entire unit.

The kit replaces worn sealing components in the pump's fluid end, giving aging pumps a second life at a fraction of the effort required for a full rebuild.

Why You'll Value the Cat Pumps 34062 Seal Kit

Whether you're a mobile cleaning contractor, a facility maintenance manager, or a pump repair technician, here's why this seal kit deserves a spot in your parts stock:

• Complete wet-end refresh in one service session – Every primary sealing component for all three pump cylinders is included, so you can address every plunger bore without sourcing individual parts or placing a separate order for each item.

• Restored pressure and flow – The kit maintains operating pressure in high-pressure plunger pumps, bringing aging 4HP and 5DX units back to their rated output when seals have begun to wear.

• Crankcase protection – New low-pressure seals prevent water from migrating toward the crankcase, eliminating the milky oil and internal corrosion that follow a failed seal.

• Durable Buna-N construction – Seal kits include nitrile (Buna-N) materials for durability, delivering dependable service life in cold and warm water applications with mild detergents.

• Matched to factory tolerances – Every ring, seal, and adapter in the 34062 kit is dimensioned to Cat Pumps' original specifications for 4HP and 5DX manifolds and plungers-no guesswork on fitment.

• Simplified maintenance planning – Keeping a spare kit in stock means you can act immediately when early leak symptoms appear, reducing equipment downtime for mission-critical wash systems.

What Makes the 34062 Seal Kit Different

Generic or aftermarket seal kits for older Cat models frequently arrive with incorrect dimensions, incomplete component sets, or materials that don't meet the durometer and blend standards required for reliable sealing.

The CAT Pumps 34062 Seal Kit is for 4HP and 5DX pumps, and it's built to address the specific design characteristics of these triplex plunger platforms:

• Exact fit for 4HP and 5DX series – Seal bores, plunger diameters, and spacer heights in these older pumps differ from newer Cat series. The 34062 kit matches every critical dimension so each seal seats properly without shimming or modification.

• Complete component coverage – The kit includes low-pressure seals, V-Packings, seal-case O-rings, male adapters, and seal washers-everything needed for a standard seal service on a 3-plunger pump. You won't discover a missing ring halfway through reassembly.

• Updated seal stack design – Cat Pumps revised the V-Packing configuration in older 4HP builds from a dual thin-ring arrangement to a single thicker V-Packing with a heavier male adapter. The 34062 kit ships with the updated components, ensuring correct stack height and compression.

• Purpose-built for pumps still earning their keep – Rather than forcing you toward a full pump replacement, this kit addresses the needs of users who want to extend the productive life of well-built 4HP and 5DX units that still have thousands of hours of potential service ahead.

How the Cat 34062 Seal Kit Works in Your Pump

In a Cat triplex plunger pump, three plungers reciprocate inside the manifold to generate high-pressure flow. Seals surrounding each plunger keep pressurized water on the discharge side and protect the crankcase oil from contamination. When those seals wear, the pump loses pressure, leaks water, or allows moisture into the oil-all problems the 34062 kit is designed to solve.

The kit replaces worn sealing components around each plunger in your 4HP or 5DX pump. Here's the functional sequence in plain terms:

1. Old seal removal – Worn low-pressure seals, high-pressure seals, O-rings, and backup components are extracted from each plunger bore in the manifold.

2. New components installed – Each new seal and ring from the 34062 kit is placed in the correct orientation and stack order around the plungers, with sealing lips facing the water side as specified by Cat Pumps.

3. Pump reassembly – The manifold is bolted back to the crankcase, lines are reconnected, and the pump is primed with water.

4. Restored operation – Fresh seals maintain tight contact around each plunger, the kit restores sealing performance and prevents water leakage, and the pump builds and holds rated pressure again.

Product Details: Cat Pumps 34062 Seal Kit

Here are the key specifications and facts a buyer or technician should read before adding this item to the cart:

• Kit designation: Cat Pumps factory seal kit number 34062

• Pump compatibility: Designed specifically for older Cat Pumps 4HP and 5DX triplex plunger pumps (including 4HP35G1, 4HP40G1, and 5DX30G1–5DX50G1 variants); not interchangeable with newer 5CP, 7CP, or other current-production series.

• Seal material: Nitrile (Buna-N) elastomer with a special-blend V-Packing for enhanced dynamic sealing; nylon male adapters provide rigid retention within the seal stack.

• Operating environment: Suitable for typical cold and warm water pressure washing, rinsing, and light detergent applications compatible with Buna-N.

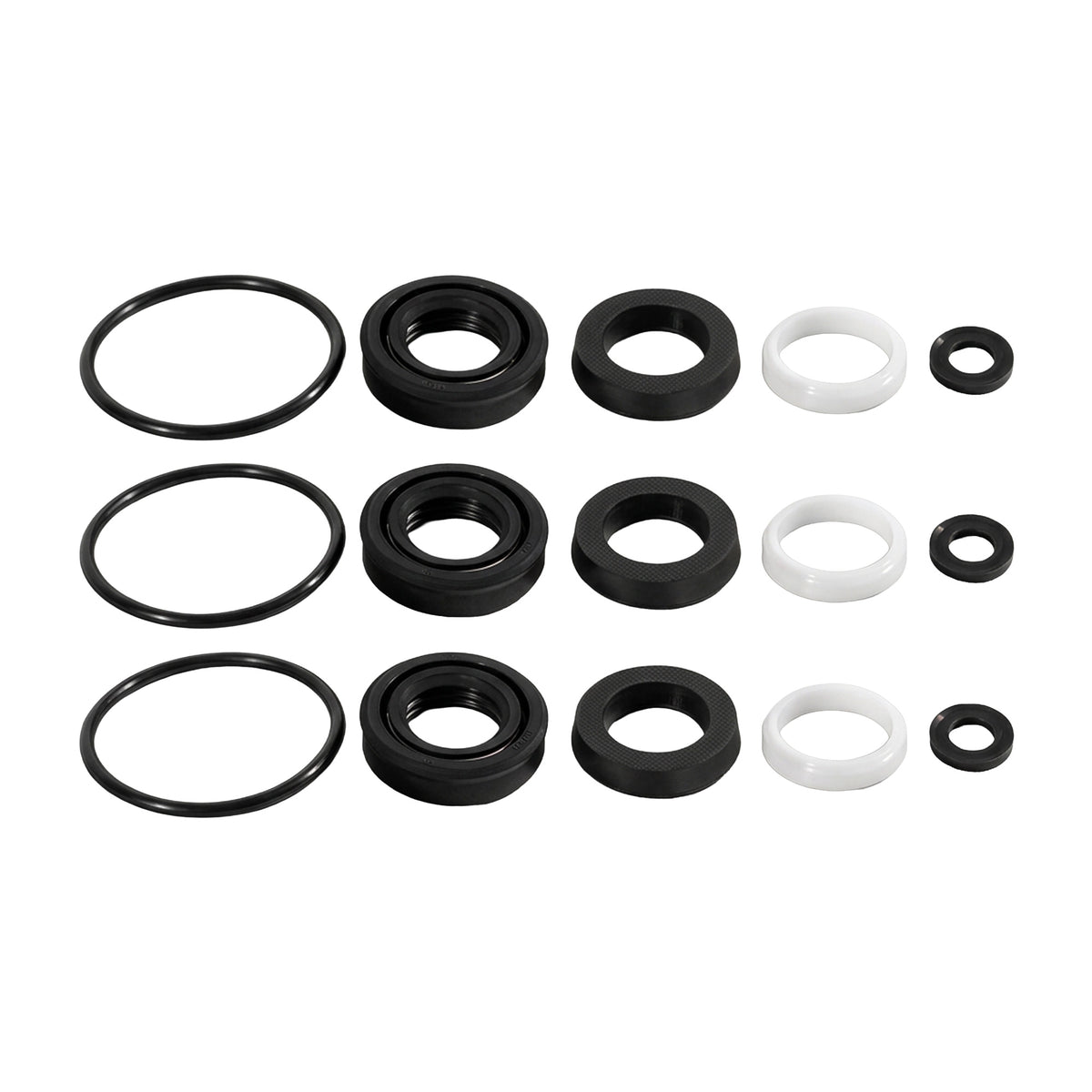

• Kit contents by category: Low-pressure seals, V-Packings, seal-case O-rings, male adapters, and seal washers-the kit includes parts for all three pump cylinders in one matched set.

• Quantity per package: One complete kit services one 3-plunger pump.

Who the 34062 Seal Kit Is For

The typical owner of an older Cat 4HP or 5DX pump is someone who bought quality equipment years ago and expects it to keep performing. These pumps show up in professional pressure-washing rigs, factory wash-down stations, and fleet cleaning operations-environments where downtime costs real money.

Ideal for:

• Contractors running legacy pressure washers powered by 4HP or 5DX pumps who want to extend pump life and avoid replacing an otherwise sound unit.

• Maintenance teams in factories, food processing facilities, or warehouses operating fixed wash systems built around 4HP/5DX pumps that still deliver the flow and pressure the job demands.

• Equipment rental companies that keep dependable 4HP/5DX-based machines in their fleet and need a reliable seal repair option that ships quickly and installs predictably.

• Technicians and service centers specializing in high-pressure pump repair who regularly rebuild Cat 4HP and 5DX models and need OEM-spec kits they can trust.

If your pump nameplate shows "4HP" or "5DX" and the unit is experiencing leaks or loss of pressure, the 34062 kit is likely the correct sealing solution-verify the full model number to be certain.

Basic Installation Overview

Before beginning any work, depressurize the system completely, disconnect power or the engine drive, and shut off the water supply. Proper installation requires attention to seal orientation and torque specifications as outlined in Cat Pumps' official service literature. This overview is not a substitute for the factory service manual-service manuals provide step-by-step maintenance instructions for each model.

1. Identify your pump – Read the model number from the nameplate to confirm it is a Cat 4HP or 5DX that uses kit 34062.

2. Isolate the unit – Shut off inlet water, relieve residual pressure, and disconnect the drive source.

3. Remove the manifold – Disconnect discharge hoses and unbolt the manifold from the crankcase to expose the plunger seals.

4. Extract old seals – Carefully remove all old seals, O-rings, and backup components from each plunger bore. Inspect seals during pump teardown for effective maintenance-note their order and orientation before discarding.

5. Clean and inspect – Wipe down sealing surfaces and plungers. Look for scoring on plungers and any corrosion or pitting inside the manifold bores. Ceramic plungers in Cat pumps can last well beyond 10,000 hours under favorable conditions, but a scored plunger should be replaced before new seals are installed.

6. Install new seals – Lubricate and install each new component from the 34062 kit in the correct stack order, ensuring sealing lips face the water side as recommended by Cat Pumps.

7. Reassemble and test – Reinstall the manifold, torque bolts evenly per specifications, reconnect lines, and slowly bring the pump back into service while checking for leaks.

Care, Maintenance, and When to Replace Seals

Even with a freshly installed 34062 kit, the habits you follow afterward determine how long those new seals last. Regular maintenance ensures optimum performance of Cat Pumps and protects your investment in the repair.

• Inspection intervals – Pumps in daily commercial use should be checked for leaks and pressure consistency at least weekly. Units used occasionally still benefit from a visual inspection before each start. Seal kits are essential for maintaining Cat Pump performance over the long run.

• Symptoms of failing seals – Water dripping from the pump body or manifold area, milky or foamy crankcase oil, a noticeable drop in system pressure, or pulsation at the spray wand all signal that seals may need replacement.

• Inlet water quality – Use clean, filtered inlet water. Sediment and particulates accelerate seal wear and can score plunger surfaces. Avoid air ingress at the inlet, which causes cavitation and hammers seal faces.

• Temperature awareness – Buna-N seals perform well in cold and warm water applications but degrade faster when exposed to excessively hot water. If your application consistently runs at elevated temperatures, monitor seal condition more frequently.

• Avoid dry running – Running the pump without water across the plungers causes rapid heat buildup and seal damage. Always ensure water supply is flowing before starting the pump.

• Oil change schedule – Cat Pumps recommends the first crankcase oil change at approximately 50 hours of operation, then every 500 hours thereafter. Clean oil reduces internal contamination that can work its way into sealing surfaces.

• Keep a spare kit in stock – For mission-critical equipment that relies on an older 4HP or 5DX pump, having a spare 34062 kit on hand means you can act immediately when symptoms appear, rather than waiting for the item to ship.

Frequently Asked Questions about the Cat Pumps 34062 Seal Kit

These are the questions Cat 4HP and 5DX owners most commonly ask before they buy or install this kit.

Is the 34062 kit compatible with every Cat 5DX pump, or only certain versions? The 34062 kit is designed for older 5DX models including the 5DX30G1 through 5DX50G1 range. Always confirm your pump's full model number on the nameplate before you order. If the nameplate is unreadable, contact the team at Barens for help checking compatibility.

How can I confirm that my pump is a 4HP or 5DX and not a different Cat model? Check the data tag on the pump body-it lists the model and serial number. If it reads "4HP" or "5DX" followed by a flow/pressure code, the 34062 kit is the correct match. Pumps labeled 6DX, 5CP, or other series require different kits.

Can the 34062 seals handle detergents or chemicals? Buna-N is compatible with water, mild detergents, and many common cleaning solutions. However, harsh caustics, strong solvents, or specialty chemicals may degrade nitrile. For aggressive chemical applications, consult Cat Pumps about alternative seal materials such as Viton or EPDM.

How long should new seals from this kit last? Under standard commercial pressure-washing conditions with clean water and proper maintenance, Cat Pumps indicates a baseline service life of at least 1,500 operating hours for Buna-N seals. In ideal conditions-clean water, moderate temperatures, regular oil changes-seal life can extend well beyond that, potentially reaching several thousand hours.

Do I need any special tools to install the 34062 kit? Standard hand tools, a torque wrench, and seal-compatible lubricant are typically all that's required. A seal pick or extraction tool helps remove old seals without damaging manifold bores. Always follow the torque specifications listed in your pump's service manual.

Should I replace valves at the same time as seals? Cat Pumps recommends valve replacement approximately every 3,000 hours-roughly every other seal kit interval. If your pump is due for both, it's efficient to service valves and seals together. Valve kits are separate items; consult your pump's repair parts page or parts list for the correct valve kit number.

Ready to Restore Your 4HP or 5DX Pump?

The Cat Pumps 34062 seal kit gives older 4HP and 5DX pumps exactly what they need to keep working: fresh seals that restore pressure, stop leaks, and protect the crankcase from water intrusion. With correct-fit Buna-N components matched to factory specifications, this kit delivers a reliable repair without the cost or waste of replacing a pump that still has years of service ahead of it.
