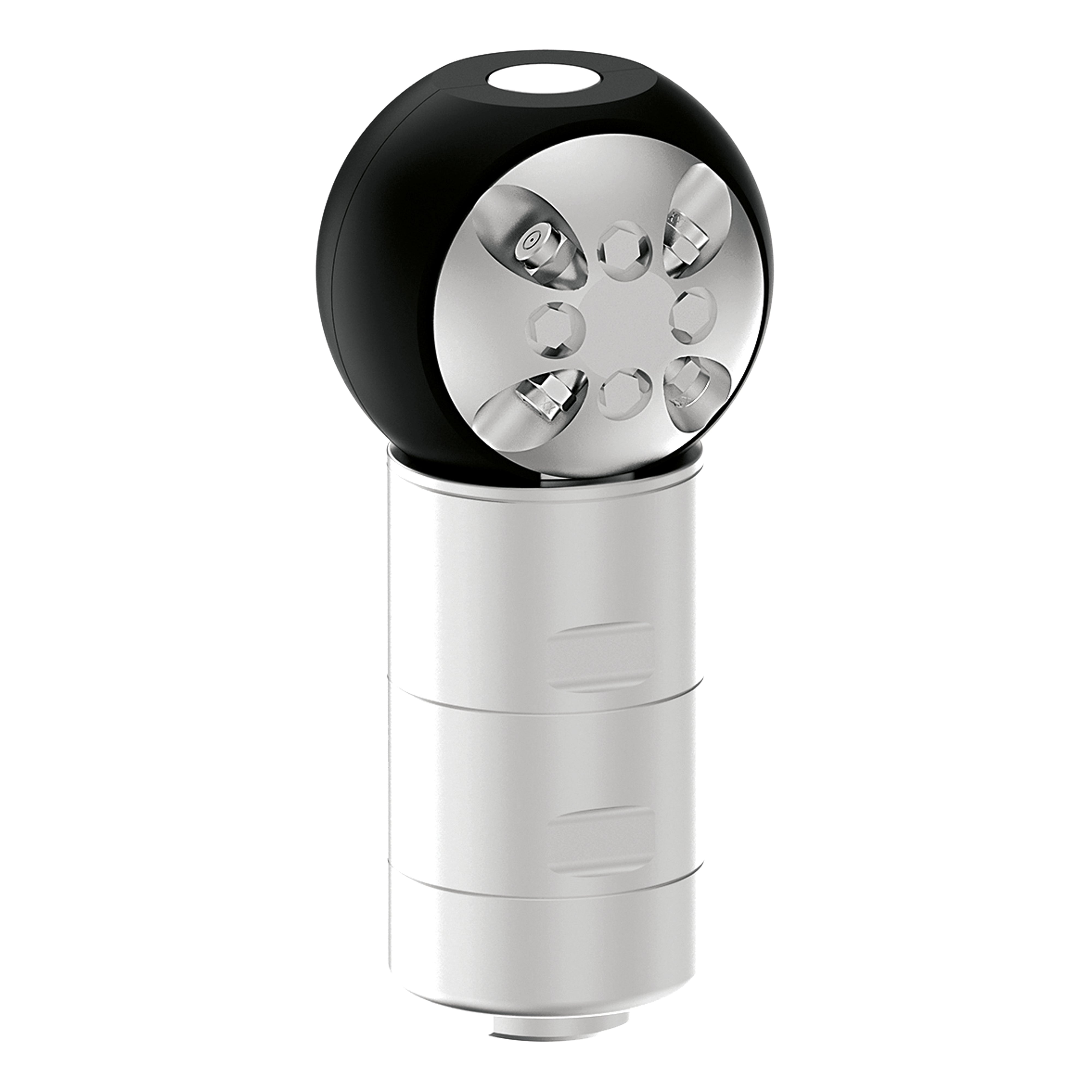

Centurion TK1 360° Rotating Tank Head Cleaner, 1/2" Inlet, 5 to 16 GPM, 3,600 PSI, 212°F, Built to Order

Cleaning Your Tank Heads & Domes Like Never Before

The Centurion TK1 tank head cleaner is a high-performance cleaning head that uses a fluid-driven rotary jet system to blast away tough residue from tank heads, dome surfaces, and other hard-to-reach areas. Whether you're dealing with dried product films, stuck on fats, syrups, or even the toughest protein deposits - the TK1 is designed to help operators achieve better cleaning results on tank heads and dome surfaces without manual entry and meet demanding overhead cleaning requirements.

This page is geared towards processers, wash & reclaim operations, and contract CIP teams that need a serious solution for automated tank head and dome cleaning without getting into the tank itself, with guidance on the right application for different cleaning demands. We'll walk you through how the TK1 works, where it outperforms static spray balls, its key specs and target applications, and give you the lowdown on installation, operation, and maintenance for those who need to meet super-tight hygienic cleaning standards.

Why You'll Fall in Love with the Centurion TK1 Tank Head Cleaner

At the end of the day, what matters is how clean your tank is after a wash cycle - not how you got there. The TK1 delivers real-world improvements over conventional cleaning gear in 5 key areas, and it’s an ideal option when operators need better overhead cleaning performance.

Where static spray balls fail. Tank heads are notoriously tricky to clean - especially when it comes to product residue film, stuck on fats, or protein deposits on curved surfaces or top nozzles. The TK1's multi-axis rotary mechanism takes care of these areas with ease, while static spray equipment just can't compete.

Clean faster, work smarter. Automated tank cleaning systems can save you time and reduce downtime. We've seen cases where replacing static spray balls with rotary jet heads cut cycle time in half - from 40 minutes to just 10! The TK1 is looking to bring similar reductions for head-cleaning passes, often cutting 30-40 minute runs down to under 15 minutes depending on tank size and soil type.

Save water, save chemicals, save the planet. Static spray balls require more liquid to clean effectively because they flood the entire tank - rather than targeting specific surfaces. The TK1's got a 5-16 GPM flow range, which means it only uses the cleaning fluid you need to get the job done - reducing water and chemical load across the cleaning environment while delivering massive savings. We've seen one client save up to 95% in water usage by switching to rotary heads!

Handles the tough stuff other heads can't. Baked on coatings, viscous polymers, caramelized sugars, and dried dairy proteins all love to accumulate on dome surfaces - but not the TK1. With its pressure rating of up to 3,600 PSI and nozzle options (flat fan or high-impact solid stream) it's the perfect tool for taking on stubborn deposits in a single pass.

DIY installation - no fuss required. The TK1 connects through a standard ½-inch stainless steel inlet - meaning if you're already running a Centurion 4 GPM pump or similar Barens high-pressure package, you can just connect a supply line and set your valve sequence. No new controls, no pipework redesign - just plug and play.

Built for the long haul. The TK1 is constructed from tough, corrosion-resistant 316 stainless steel - body and wetted parts alike. An integrated inlet mesh filter prevents clogging from particulates and it's built to handle the thermal and chemical stress of alkaline and acid CIP cycles without wearing out like plastic or lower-grade stainless heads.

What Sets the TK1 Tank Head Cleaner Apart

Most tank cleaning nozzles tend to spread fluid evenly across the entire tank - which works for sidewalls, but tank heads and dome surfaces are tricky to reach. The TK1 is engineered to concentrate impact exactly where it matters most.

Upper hemisphere in focus. The TK1's nozzle geometry is designed to direct jet energy at the tank head, top welds, and upper sidewalls - which is where residue tends to accumulate. Standard rotary spray head designs often lose coverage here, but the TK1's got it covered.

Compact profile for tight spaces. Many tanks have agitator shafts, thermowells, spray balls, or internal coils near the head - but the TK1's low-profile design means it still fits underneath these obstructions and delivers full rotation. This makes it suitable for medium-sized tanks and vessels where clearance above the liquid line is limited.

Always Works Well With Centurion 4 gpm Pumps. The TK1's internal plumbing is designed to work efficiently with 4 gpm at up to 4,000 psi pumps. When teamed with a Centurion direct drive pump in a Barens system, or other pumps in the Centurion series that are built on the same flow class, the TK1 gives you consistent rotation and jet impact - without the spin-out and misfires you often get from reaction drive nozzles that lose their way.

Maintains Steady Rotation Across Pressure Swings. The TK1 operates using a hydrokinetic controlled rotation system - an internal gear or turbine mechanism that keeps the head steady even when CIP circuit pressure is fluctuating wildly during wash, rinse, and sanitize phases. Rotary jet heads give you thorough cleaning in just eight cycles for max coverage. Gear controlled nozzles give the highest impact for large tanks - and the TK1 takes that concept down to a size that fits tank head cleaning perfectly.

Fewer Shadow Zones to Worry About. Static spray balls are used for small tank cleaning, but they leave shadow zones behind nozzles, stiffeners and manway flanges. The TK1's pre programmed spray pattern is designed to reach behind these obstacles, giving you the thorough cleaning that regulatory inspections and swab tests require.

How the Centurion TK1 Head Cleaner Works

Three easy to follow steps, from mounting to verified cleanliness.

Step 1: Mount and Hook Up

Mount the TK1 through an existing tank top port, manway, or dedicated CIP connection in the tank head area. Thread in the ½ inch stainless inlet on your supply line - the connection is compatible with standard sanitary clamp or NPT fittings. Feed it in from a Centurion 4 gpm direct drive pump or a plant CIP pump running in the 5-16 gpm range, and then check you've got clearance from agitator blades, pipes and thermowells before you start the first cycle. Choose the mounting place based on clearance and the specific tank application.

Step 2: Pressurized Flow Drives the Rotary Jet Heads

When the CIP sequence opens up the supply valve, pressurized cleaning fluid goes into the TK1 - and the rotary action begins as soon as the cleaning fluid is turned on. The cleaning fluid passes through the integrated inlet mesh filter first and then spins the internal turbine. The rotary spray head then spins both vertical and horizontal axes, blasting concentrated jets across the tank surface at the dome, upper tank wall, weld seams and overhead fittings. Flow rates of 5 to 16 gpm and pressures up to 3600 psi determine how hard it will hit - a typical CIP loop will run at 4 gpm and a few hundred psi, but a high impact head cleaning circuit can take it right up to the limit, with pressure and flow matched to tank sizes for the required impact.

Step 3: Get the Whole Job Done

After a few revolutions, the TK1 has scoured the head and shoulder area of process tanks. The very same device handles both detergent wash and fresh water rinse phases - just adjust the pump settings and cycle time to switch between them. For industries where hygiene is paramount (think dairy, beverage, pharmaceuticals) then verify cleanliness with a visual inspection or swab test. Automated tank cleaning heads save time and water, and the TK1 is built to provide that efficiency with repeatable cleaning cycle after cycle.

Product Details: Centurion TK1 Tank Head Cleaner and Tank Cleaning Nozzles Specs

Some key stats for planning and integration:

• Material and Construction: 316 stainless steel all the way - body, internal components and wetted surfaces. Seals are chemical resistant so will handle common CIP solutions just fine.

• Recommended Flow Range: 5-16 gpm (19-61 l/min). Optimal performance with Centurion 4 gpm pumps, will also play nice with plant CIP pumps in a similar flow range.

• Max Pressure Rating: The cleaning head is rated for up to 3600 psi (248 bar).

• Coverage Pattern: The TK1 gives you full 360 degree coverage during the cleaning process, with a focus on the upper hemisphere - head, top welds, manway flanges and upper sidewalls.

• Nozzle Options: You can configure the TK1 with flat fan or high impact solid stream nozzles to match up with residue type and tank geometry.

• Max Tank Head Diameter: Will work on tank heads with diameters up to 3-6 m (10-20 ft), depending on operating pressure and soil load. TankJet® nozzles are used to clean tanks up to 30.5 m in diameter. If you've got very large tanks then larger Centurion style rotary jet equipment will do the job, but the TK1 is designed for smaller tanks, the head zone of medium and large tanks.

• Connection Type: ½ inch stainless steel inlet, compatible with sanitary clamp ferrule or NPT connections.

• Temperature Limits: The TK1 can take water temperatures up to 212°F (100°C) - from cold rinses to hot detergent washes.

• Filtration: Includes an integrated inlet mesh filter to keep the internal mechanics from getting clogged up with debris.

• Included with the TK1: Assembled tank cleaning head, connection adapter, recommended operating guidelines, and some maintenance tips to keep you going.

Who the Centurion TK1 Tank Head Cleaner Is For

The TK1 is built for operators who need reliable, repeatable tank head cleaning across a variety of industrial applications without having to send someone in to scrape the tank with a brush.

Food and beverage processors - that's us - need a tool that takes care of the gunk on tank heads, overhead fittings, and process tanks without getting in the way of production. That's where the TK1 comes in: rotary jet heads are available in hygienic and industrial models, 316 stainless construction and controlled rotation all come together to give you the product quality you need to pass muster in front of the auditors.

Chemical and specialty fluid producers (laboratories, plants that handle viscous stuff, etc.) will like the TK1 too. If your process involves claggy products like polymers or coatings clinging to domed heads and nozzles, the TK1 is designed to make quick work of it all - even in harsh environments. Its pressure rating is more than up to the task, stripping away baked-on residue in one go.

Industrial wash and reclaim operations (that's us again!) will see a big payback with the TK1: automated tank cleaning systems save time and downtime in a big way. It's compact and self-cleaning, making it perfect for more than just one tank, including portable or multi-tank deployment for small tanks.

Contract cleaning and CIP service companies will also find the TK1 a handy tool: their customers with tanks of all shapes and sizes will appreciate the portable or skid-mounted setups.

If you already run a Centurion 4 GPM pump or something similar, you'll find the TK1 is a natural upgrade when it comes to stubborn tank heads.

How to Get the Most out of Your TK1

Here are some high-level tips for getting it running smoothly - but keep in mind, this is just a starting point - you'll need the full manual that comes with it for all the nitty-gritty details.

Choosing the Right Operating Parameters

Match your pump (Centurion 4 GPM or similar Barens high-pressure package) to the TK1's flow rate. Choose the recommended pressure and cycle time based on residue type, cleaning objective, and application, starting at the suggested setting for tough residues and adjusting from trial runs. The TK1 will do best if you spin its free nozzles at low pressure for light dirt, but for sticky stuff, crank up the pressure and heat (up to 212F) and watch it work.

Positioning and Playing it Smart with Shadow Zones

Mount the TK1 right so its jets can hit all the critical areas on the tank head: vent nozzles, manway flanges, level probes and the like. Run a water-only test cycle first. See how the spray does, and check for any dead spots - adjust the lance length or orientation if you need to.

Keeping the TK1 in Good Shape

Look for signs of wear after a set number of CIP cycles: bearings, seals and nozzles all need some TLC. Flush it out with clean water after every chemical job, especially if you're using harsh stuff like strong acids or bases. PAIR it with some decent filtered feed water (just like Centurion pumps in Barens skids) and the TK1 will give you years of service - parts like nozzles, seals and filter elements are easy to replace and don't need special tools.

Frequently Asked Questions

Here are the answers to the questions we get from customers who are thinking of using the TK1.

Is the Centurion TK1 a pain to install?

Most installations are a breeze - it's just a matter of plugging it in through an existing tank top port with a sanitary or threaded connection. The inlet's ½ inch stainless so it fits right into most CIP plumbing. If you have some tight spaces to deal with (agitators, internal coils, the works) a quick look-see before final positioning will come in handy.

Can I use the TK1 with my existing Centurion 4 GPM pump?

Absolutely - as long as you keep the pressure within the recommended range (up to 3,600 PSI). Plant CIP pumps delivering similar flow rates work too, just make sure you've got a good valve and bypass design to keep things stable.

Will it clean the bits my static spray balls can't get to?

The rotating jet pattern packs a bigger punch when hitting the tank head, dome, weld seams, and overhead fittings than those static spray balls, which rely on gravity to feed the flow and just can't generate enough force to knock off baked-on residue from curved surfaces. Run some before/after inspections or swab tests to prove the improvement - operators in the food and beverage business have often seen residue just vanishing from surfaces that used to need a good scrubbing to get rid of it.

What about maintenance and the like?

Getting good clean supply water and using proper filtration (the TK1's built-in inlet mesh filter can handle most of the small stuff) means you can schedule routine inspections alongside your existing CIP maintenance windows. The wear parts are a snap to replace, tool-free, and Barens can even help you find Centurion-compatible parts.

Hot CIP and nasty chemicals - is it up to the task?

The TK1 can handle water up to 212°F (100°C) - that covers most standard hot caustic washes and acid sanitizer rinses. Its all 316 stainless steel body and seals that are resistant to chemicals can handle common CIP chemicals (alkaline detergents, phosphoric acid, peracetic acid) but be sure to check the published specs before running anything really harsh or throwing in hot water for a long time.

Ready to give your tank head cleaning a serious upgrade?

The Centurion TK1 tank head cleaner is part of Centurion’s complete range of tank cleaning solutions and can pretty much put an end to manual cleaning of dome surfaces, save you money on water and chemicals by blasting away residue with strong rotary jets, and slips into your existing CIP circuit with just one ½-inch connection. Pair it with a Centurion 4 GPM high-pressure pump and a Barens system and you've got a top-notch cleaning package built around 316 stainless steel, precise rotation, and up to 3,600 PSI of impact where you need it most - on your tanks.

Learn more about the TK1, check out the animations, then phone a Barens specialist to chat about your tank types, what kind of residue you're up against, and pump configuration, or just add the TK1 to your existing Centurion pump setup today. Click for more product details or extra reading material.
