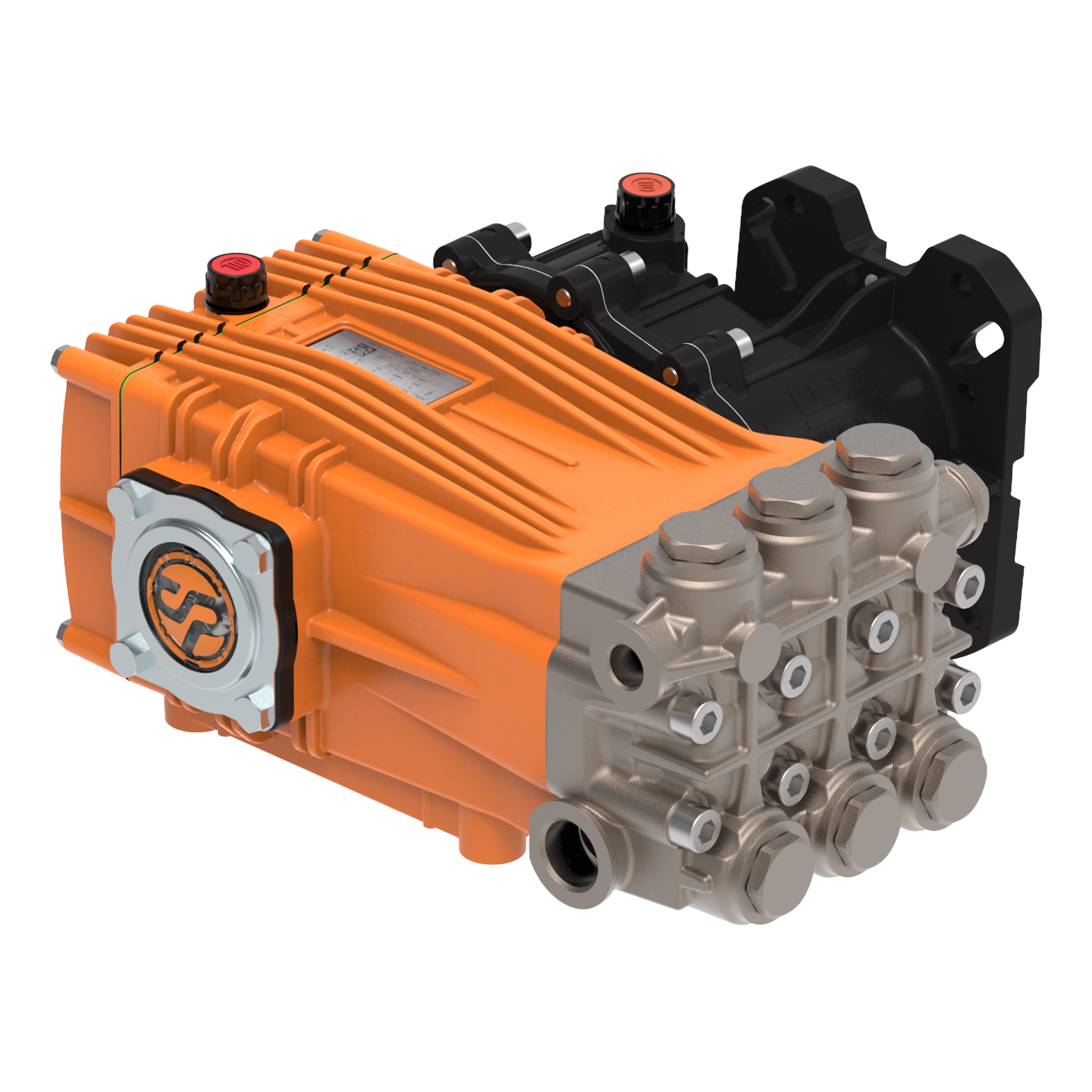

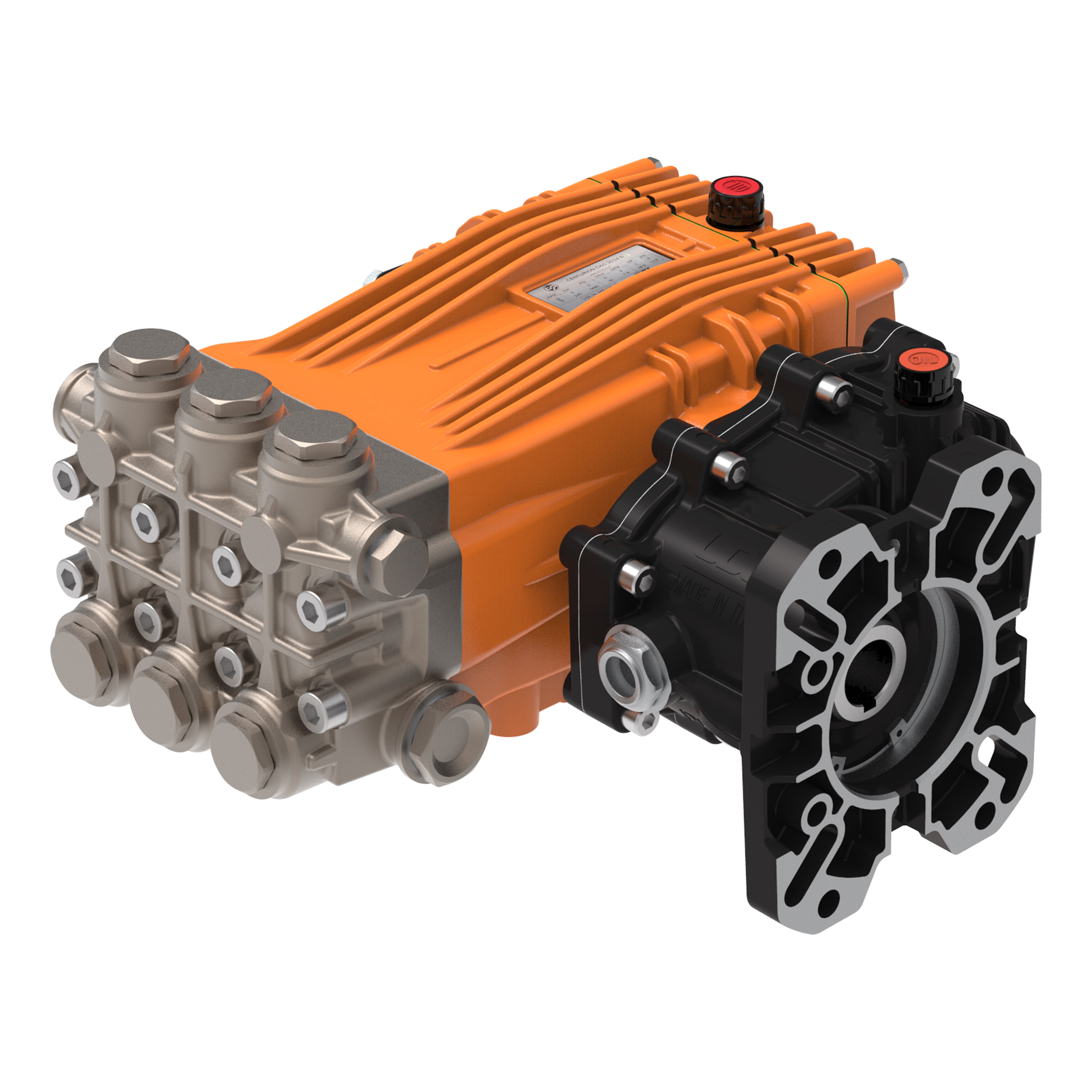

Centurion CKC 30/24 CGR Gear Reduction Triplex Pump, 7.0/8.5 GPM, 3,600 PSI, 1-1/8" Hollow Shaft

High-Flow 8 GPM Cleaning Power in One Compact Centurion Pump

The Centurion 8 GPM pump is an absolute powerhouse built by Barens for operators who need massive cleaning volume without compromise. It delivers a flow rate of 7.0 to 8.5 GPM at pressures up to 3,600 PSI, making it the go-to choice for commercial pressure washing, hydro excavation, fleet wash bays, and heavy industrial maintenance. The Centurion 8 GPM pump is designed for heavy-duty industrial applications, the kind of work where a 4- or 5-GPM unit just can't keep up. When you multiply 8 GPM by 3,600 PSI, you land at roughly 28,800 cleaning units, nearly doubling the throughput of a standard 4 GPM setup. That means dramatically faster washing of big surfaces, rigs, heavy equipment, and entire vehicle fleets, less time on site, and more jobs completed per day.

Most pressure washers operate at 2 to 10 GPM and 500 to 5,000 PSI. But the Centurion 8 GPM pump sits right at the top of that range for demanding high-pressure pump applications — you get the volume to rinse enormous surfaces quickly, plus the force to strip grease, caked mud, manure, and industrial grime without making multiple passes. High-pressure pumps are essential for effective pressure washing, and this one is in a class of its own.

Why You'll Love the Centurion 8 GPM Pump

Results matter more than spec sheets, and the Centurion 8 GPM delivers results you can measure in hours saved, square footage covered, and money earned. Here's why operators across the world keep choosing it:

• Crushes big jobs faster: At 8 GPM, you're pushing nearly double the cleaning volume of a 4 GPM pump. That means truck fleets, large concrete pads, farm yards, and warehouse floors get done in a fraction of the time. Where a 4 GPM unit delivers about 16,000 cleaning units, the Centurion 8 GPM cranks out around 28,800, roughly 75–80% more throughput per hour. That's a serious edge when you're billing by the job, not the hour.

• Supports wide surface cleaners and dual guns: With 8 GPM of flow, you can comfortably run 24-inch surface cleaners or two spray guns for teams working in parallel. Smaller pumps limit you to 16–20-inch cleaners and result in pressure loss due to head losses in the hoses. This pump doesn't flinch.

• Smoother, more consistent pressure:The pump uses a triplex design with three ceramic plungers, which means steady, pulse-free flow so operators see fewer "striping" marks and more even results across every pass. The triplex design delivers constant flow and pressure, no surging, no surprises.

• Built for all-day commercial duty: This is not a weekend-warrior pump. A heavy-duty crankcase, ceramic plungers, premium seals, and a nickel-plated manifold for corrosion resistance mean you can run it day in and day out without worrying about reliability. These pumps are engineered for continuous-duty cycles without overheating.

• Simple to live with – Easy hose connections, accessible oil fill and check points, and straightforward maintenance keep downtime to a minimum. You won't be hunting around for proprietary accessories or adapters just to keep things running.

What Makes the Centurion 8 GPM Pump Different

Most pumps that claim high flow are really mid-range units pushed past their comfort zone. They overheat, wear out fast, and leave you replacing seals every few months. The Centurion 8 GPM pump is built differently.

Engineered for true high-flow work: The internal hydraulics on this pump are optimized around an 8 GPM duty point, not stretched from a smaller design. Every passage, valve, and plunger is sized to handle the volume and pressure this pump actually delivers. That's the difference between a pump that performs and one that just survives.

High-efficiency triplex layout: Triplex pumps use three ceramic plungers for efficiency, and the Centurion 8 GPM takes full advantage of that architecture. Precision-machined valves and oversized plunger bores reduce power loss and heat generation, protecting both the pump and your engine. Triplex pumps reduce vibration and wear compared to axial pumps, which matters enormously when you're running all day.

Heavy-duty materials where it counts: it features a nickel-plated manifold for corrosion resistance, stainless steel valves, and premium seals designed for harsh outdoor and chemical-exposed environments. Corrosion isn't optional when you're working in rain, chemical runoff, or agricultural settings; this pump handles it. The Centurion pump is manufactured in Italy for industrial-grade quality, so every component meets the tightest tolerances.

Designed to integrate into real rigs: The pump operates at 1,450 to 1,750 RPM to reduce heat and vibration, using belt-drive and gear-reduction setups that match common commercial engines and skid configurations. The design includes a solid 24mm shaft for durability, with a 1⅛-inch hollow shaft option available in gear-reduction models. Whether you're building a new trailer rig or retrofitting an existing setup, this pump drops in with minimal headaches.

How the Centurion 8 GPM Pump Works

This is a positive-displacement triplex plunger pump, three ceramic plungers cycling inside hardened sleeves, drawing water in and forcing it out under high pressure. Simple in concept, precise in execution. Here's how to get it running.

Step 1 – Mount and Connect

Mount the Centurion 8 GPM pump to an appropriate gasoline engine (around 21 HP) or an equivalent electric motor, aligning the shafts and securing them with bolts. The belt-drive configuration runs at 1,450–1,750 RPM, so make sure your pulleys and belt ratios match the specified operating speed. Connect a high-volume water supply line to the ½-inch FPT inlet, and ensure your supply can deliver 8 GPM without restriction. Attach the high-pressure outlet line to the ⅜-inch FPT outlet, sized for the flow. Connect your unloader, thermal relief valve, and chemical injection system where applicable.

Step 2 – Prime and Run

Before starting the engine, fill the inlet line with clean water to prevent trapped air from causing cavitation and premature wear. Start the engine at low RPM and gradually bring it up to the operating speed within the 1,450–1,750 RPM range. As the three ceramic plungers cycle, the pump draws water in through the inlet and forces it out at high pressure, delivering a continuous 8 GPM to your hoses, wands, or surface cleaners. Listen for smooth operation, any knocking or pulsation means something is off with your water supply or air is trapped in the system.

Step 3 – Control and Shutdown

When operators release the trigger, the built-in unloader valve automatically diverts flow so pressure doesn't spike dangerously, it has a built-in unloader valve for pressure control. For proper shutdown, release the trigger, let the pump cool in bypass briefly, then power off the engine. Flush detergents and chemicals with clean water to protect internal passages. If you're storing in freezing conditions, run an antifreeze solution through the internal passages, drain all lines, and store in a dry, frost-free location to prevent damage to the seals and manifold.

Centurion 8 GPM Pump Details

Here are the key specs for easy reference and planning:

• Flow rate: 7.0–8.5 GPM (approximately 26.5–32.2 litres/min) at rated speed and pressure

• Pressure range: Up to 3,600 PSI, well within the range where most heavy commercial and industrial cleaning gets done

• Construction materials: Solid ceramic plungers, nickel-plated brass manifold for superior corrosion resistance, stainless steel valves, and premium seals designed for extended service life

• Drive and speed: Belt-drive / gear-reduction configuration running at 1,450–1,750 RPM; available with a solid 24mm shaft or 1⅛-inch hollow shaft depending on model - recommended engine size is approximately 21 HP gasoline or equivalent motor

• Port configuration: ½-inch FPT inlet to support high-volume flow, ⅜-inch FPT high-pressure outlet, plus ports for bypass/unloader and chemical injection

• Operating limits: Maximum inlet temperature of 60°C (140°F); it is suitable for both hot and cold water applications, use clean water plus approved pressure washer detergents only

• Physical size: Heavier than smaller Centurion models (the Centurion P3 weighs 14 lbs - expect the 8 GPM to be considerably more), with a footprint suited for skids and trailer rigs

• What's in the box: Pump assembly, inlet/outlet port adapters, built-in unloader, thermal relief valve, chemical injector port, and owner's manual

Who the Centurion 8 GPM Pump Is For

This pump is built for professionals and high-demand operations that have outgrown smaller 4–5.5 GPM units. If you need serious performance and have the power and water supply to match, this is your pump.

• Commercial pressure washing contractors – Ideal for trailer-mounted and truck-mounted rigs tackling parking lots, warehouses, large driveways, building exteriors, and multi-story flatwork. The 8 GPM flow rate works a treat with 24-inch surface cleaners, letting you cover massive square footage per hour. Typical applications include commercial pressure washing and hydro excavation.

• Fleet and logistics operations – Perfect for wash bays servicing trucks, buses, delivery vans, and heavy transport where rapid turnaround matters. The flow supports multiple wands or guns, so teams can work on vehicles in parallel, dramatically cutting your per-vehicle wash time.

• Agricultural, ranch, and dairy operations – Built for washing tractors, combines, livestock trailers, barns, pens, and milking parlors where heavy soils and manure demand high volume plus serious pressure. The corrosion-resistant manifold and chemical-tolerant seals withstand the harsh cleaners used in agricultural sanitation.

• Industrial facilities and plants – A strong fit for equipment degreasing, process-area washdown, and large concrete-pad cleaning in factories, food processing plants, and distribution centers. When your concrete pads span thousands of square feet, the efficiency difference between 8 GPM and 4 GPM is impossible to ignore.

• Municipal and public works departments – Applications such as cleaning sidewalks, public transit shelters, park infrastructure, drainage structures, and utility facilities all benefit from the combination of high flow and sustained pressure.

Frequently Asked Questions About the Centurion 8 GPM Pump

Here are the most common questions operators ask before stepping up to an 8 GPM commercial pump.

Is 8 GPM too much for my cleaning jobs?

If you're regularly running wide surface cleaners, dual-gun setups, or cleaning truck fleets and large concrete pads, 8 GPM is where you want to be. It's the difference between being stretched thin on big jobs and finishing with time to spare. For small, occasional residential work, a lower-flow pump like the Centurion P3 - which delivers 3,800 PSI and 2.5 GPM with a direct-drive gas configuration for maximum power transfer - may be all you need. But once you test the productivity of 8 GPM on serious commercial workloads, there's no going back.

What engine or motor do I need to drive an 8 GPM pump?

You'll need approximately 21 HP at the shaft to drive this pump at full pressure and flow. A gasoline engine in that power range, matched to the pump's 1,450–1,750 RPM operating speed through a proper belt and gear reduction setup, is the standard approach. Undersizing the engine will lead to underperformance and accelerated wear; it's always safer to have a bit of headroom in your power source.

Can the Centurion 8 GPM pump handle hot water?

The standard configuration handles inlet temperatures up to 60°C (140°F). Triplex pumps maintain performance under fluctuating inlet temperatures up to 140°F. If you need to run hotter water, you'll need upgraded seals and head materials rated for the higher temperature. A functional thermal relief valve is absolutely critical at this flow, bypass heat builds quickly when 8 GPM has nowhere to go.

How difficult is installation?

Most experienced mechanics or contractors can handle it with standard tools. Aligning the shaft, securing the mounting, and plumbing the inlet and outlet are straightforward. The belt-drive design, with a solid 24mm shaft or a 1⅛-inch hollow shaft, fits standard commercial setups. If you're integrating hot water coils, remote hose reels, or chemical proportioning systems, professional setup is worth the investment.

What happens if I starve the pump of water at 8 GPM?

Insufficient inlet flow or restricted supply causes cavitation, noisy operation, seal damage, cracked plungers, and shortened pump life. At 8 GPM, you're consuming roughly 480 gallons per hour of continuous operation, so your water supply, filter, and hose sizing need to be ready for that volume. Use oversized supply hoses, minimize lifts, keep runs short and kink-free, and install proper filtration to catch debris.

How do I maintain the Centurion 8 GPM pump so it lasts for years?

Regular oil changes with non-detergent 30W oil are the foundation; change after the first 50–100 hours, then every 250–500 hours depending on use. Clean or replace your inlet filter regularly. Watch for pressure loss or pulsation, which usually means seals or valves need service. Keep a basic rebuild kit (seal and valve kits) on hand to minimize downtime. Before winter storage, flush the system with clean water, run antifreeze through internal passages, and store in a dry, frost-free environment. The Centurion rewards even casual care with years of reliable performance.

Ready to Upgrade to 8 GPM Performance?

Stop throwing good time and money at pumps that can't keep up with your workload. The Centurion 8 GPM pump from Barens delivers massive cleaning volume, 3,600 PSI of force, and industrial-grade durability backed by Italian engineering and premium triplex construction. It's the innovation that separates operators who are ready to scale from those still making extra passes.

For contractors, fleet managers, agricultural operations, and facility teams who need to cover more square footage per hour and handle tougher grime without compromise, this is the pump that gets the job done. Add the Centurion 8 GPM pump to your rig and learn what real high-flow cleaning power feels like, easy ordering and support available directly through Barens. Stock is available now.
