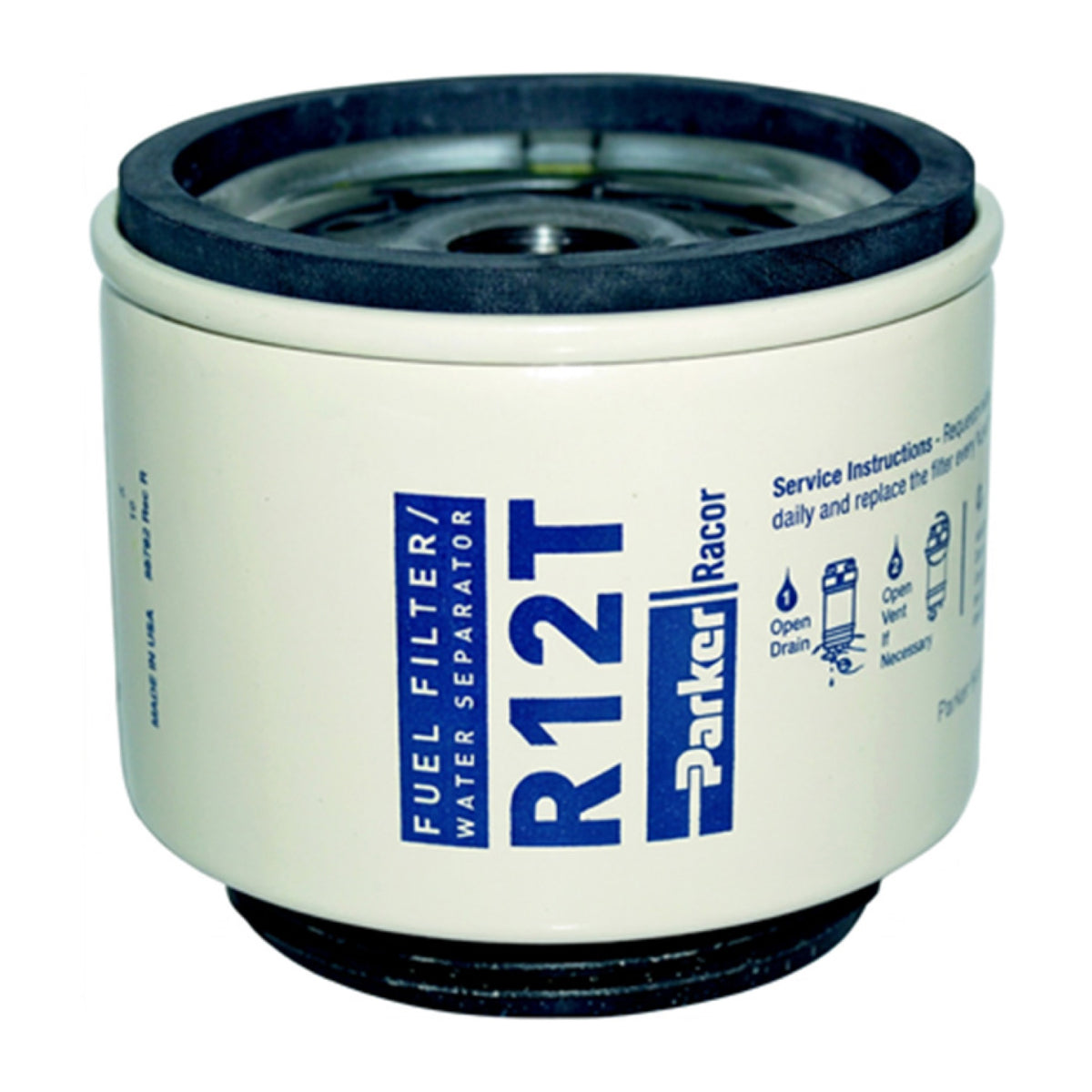

Racor R12T M18x1.5 10-Micron Fuel Filter Element - 1484

Racor R12T Replacement Element: Clean Fuel, Reliable Starts

The Racor R12T is a 10-micron spin-on fuel filter and water separator element built for Racor 120A and 140R series fuel filter assemblies. It strips fine particulates and free water out of diesel fuel before they reach injectors, pumps, or other precision components. The element dimensions for the R12T are approximately 3 inches in diameter and 2.4 inches in height, making it compact enough to fit tight engine compartments on boats, generators, and small industrial engines.

The R12T is a direct replacement for existing 10 micron elements in Racor's small spin-on fuel filtration assemblies. If your equipment already runs a Racor 120A or 140R head, the R12T threads right in with an M18 × 1.5 center thread and a factory-installed gasket. No adapter plates, no head swaps, no guesswork.

Racor R12T filters typically feature Aquabloc media for water and particulate removal. This multi-layer, water-repellent media is the core of Parker Racor's spin-on line, designed to separate free water from fuel while trapping rust, dirt, and organic growth (including algae) down to the 10 micron level. Racor filter elements achieve 98% filtration efficiency at that nominal rating, which translates to measurable protection for diesel engines in marine, agricultural, and off-road service.

Why You'll Love the Racor R12T Replacement Element

Spec sheets don't start engines on cold mornings or keep injectors clean over years of service. Here's what the R12T actually delivers in practice.

• Reliable 10 micron protection – A 10 micron primary element catches rust, dirt, and organic contaminants that pass straight through coarser filters. In systems where a secondary engine-mounted filter handles 2-5 micron particles, the R12T handles the heavy lifting upstream, reducing the load and extending the life of that finer downstream filter. Racor R12T elements are designed for diesel fuel applications where fuel quality varies from tank to tank.

• Effective water separation – The R12T filter integrates filtration capabilities to remove nearly 100% of free water. Aquabloc media repels water rather than absorbing it, forcing droplets to coalesce and fall into the clear bowl below the head. You can see accumulated water through the bowl and drain it before it causes corrosion or injector damage.

• Long service intervals between changes – The pleated, multi-layer Aquabloc media holds more contaminants relative to its size than single-layer paper elements. Under normal operating conditions with reasonably clean fuel, users get longer intervals between element changes. In heavily contaminated fuel or high-water environments, service frequency increases; depending on conditions, seasonal replacement covers most recreational marine applications.

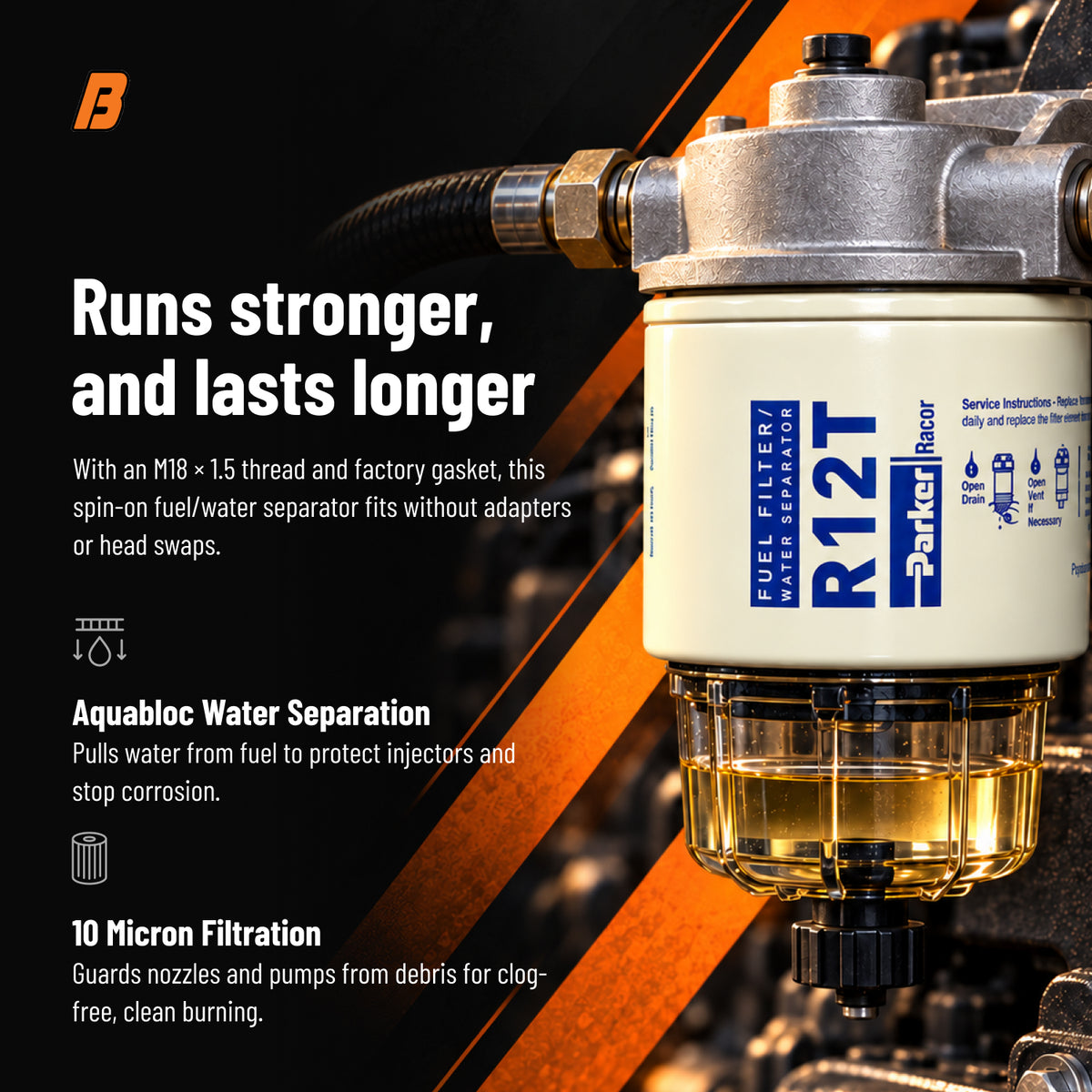

• Simple spin-on replacement – Racor R12T filters utilize a spin-on design for straightforward maintenance. Thread the old element off, thread the new one on. No disassembly of the head or bowl housing required for an element change. The compact 2.4-inch height keeps the swap manageable even in cramped engine compartments.

• Built for marine and off-road punishment – The 120A/140R heads that accept the R12T are rated for ambient temperatures from −40°F to +255°F (−40°C to +124°C). The element and housing handle vibration, tilt, salt air, and the fuel quality problems common on boats, tractors, and portable generators without losing filtration performance.

What Makes the R12T Different from Generic Fuel Filter Elements

Generic fuel filters often use single-layer cellulose media that absorbs moisture over time. As the media saturates with water, flow restriction increases, water passes through to the engine, and the element's useful life drops. Gasket tolerances and thread quality on off-brand copies can also be inconsistent, creating leak paths that let air into the fuel system. Air leaks can cause hard starting or loss of prime in fuel systems, turning a $15 filter savings into hours of troubleshooting.

The R12T is built differently in three specific ways.

• Aquabloc media vs. standard paper – Racor's Aquabloc media consists of multiple layers combining cellulose and synthetic nanofibers treated to be hydrophobic. Instead of absorbing water and swelling, the media forces water droplets to bead up and fall out of the fuel stream. Standard paper filters lose flow capacity as they absorb water; Aquabloc maintains its rated flow. The maximum flow rate for R12T filters is rated at 15 GPH (57 LPH), with a clean element pressure drop of just 0.15 psi at that flow.

• Color-coded micron ratings – Racor uses a color system across its spin-on elements: blue cap for 10 micron (R12T), red for 30 micron (R12P), brown for 2 micron (R12S). On equipment with multiple Racor heads, or when filters are stored in the same parts locker, the color coding prevents installation errors. No squinting at fine print on a greasy canister.

• Precision fit for Racor housings – The R12T's gasket diameter, thread pitch, and sealing surface are matched to 120A and 140R heads. Aftermarket copies can have slightly undersized gaskets or softer shell materials that are susceptible to collapse under cold, viscous fuel. The R12T maintains its micron rating and flow characteristics across the full range of operating temperatures and fuel viscosities these systems encounter.

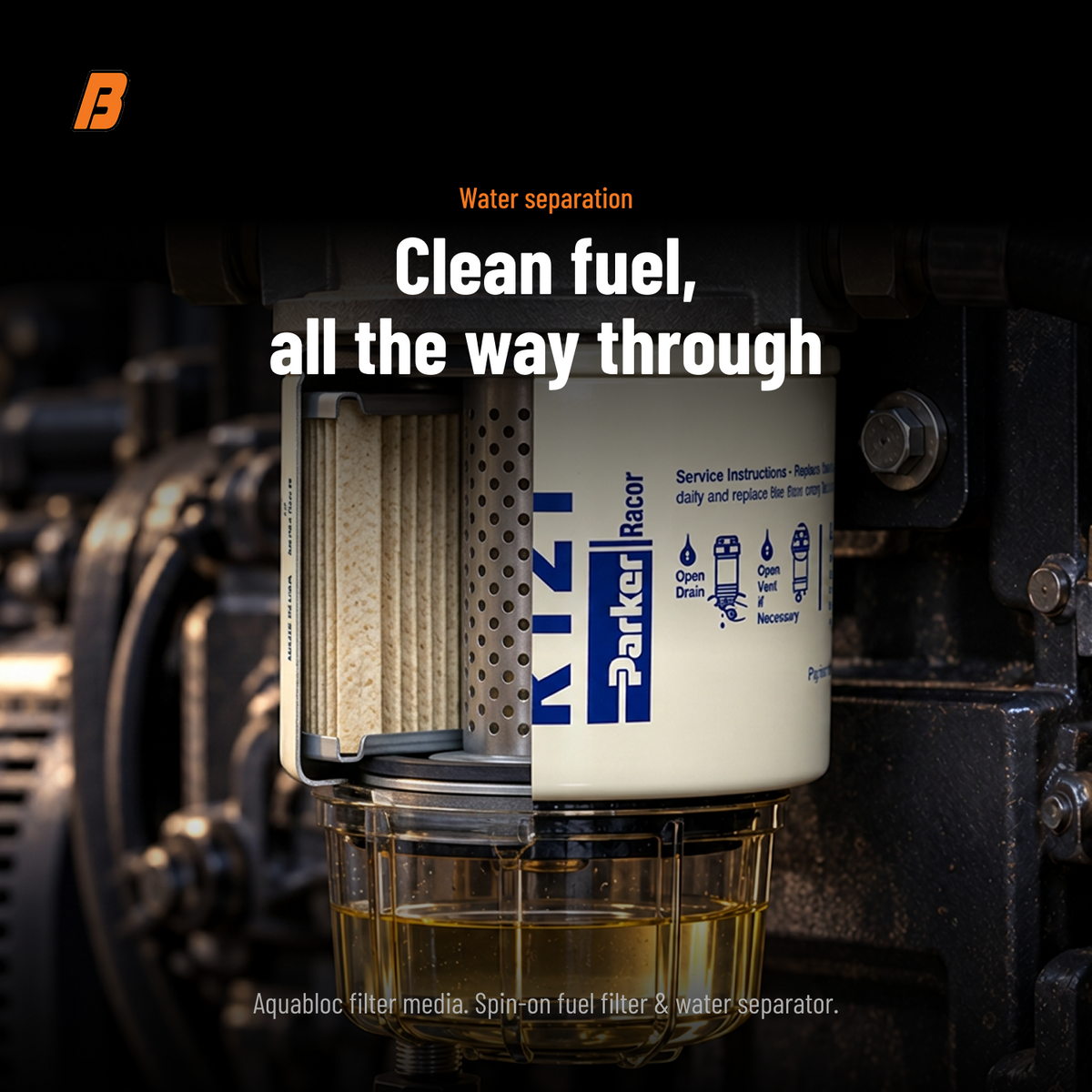

How the Racor R12T Replacement Element Works

Fuel enters the filter head and flows around the outside of the pleated Aquabloc media. What happens next is a two-stage separation process: particulate capture and water rejection.

1. Fuel enters through the outer shell – Diesel fuel flows from the head inlet port, filling the space around the outside of the pleated element. Particles (rust, dirt, tank scale, algae) and free water droplets are carried in the fuel stream toward the media surface.

2. Contaminants and water are captured – The Aquabloc media traps particles down to 10 microns with 98% efficiency. Because the media is hydrophobic, water droplets don't pass through; they coalesce on the outer surface, grow heavier, and drop into the clear bowl below. The bowl on 120A/120B heads holds approximately 1.76 ounces (52 ml) of water before it needs to be drained.

3. Clean, dry fuel exits to the engine – Filtered fuel passes through the graduated media layers to the central core, exits through the outlet port, and flows to the engine. The result is fuel with far fewer particles and virtually no free water reaching injectors or fuel pumps. This protects spray patterns, maintains pump lubrication, and reduces the risk of corrosion in the fuel system.

Product Details: Racor R12T Replacement Element Specifications

• Micron rating: 10 micron nominal; 98% filtration efficiency at rated particle size

• Media type: Racor Aquabloc multi-layer, water-repellent media for fuel filtration and water separation

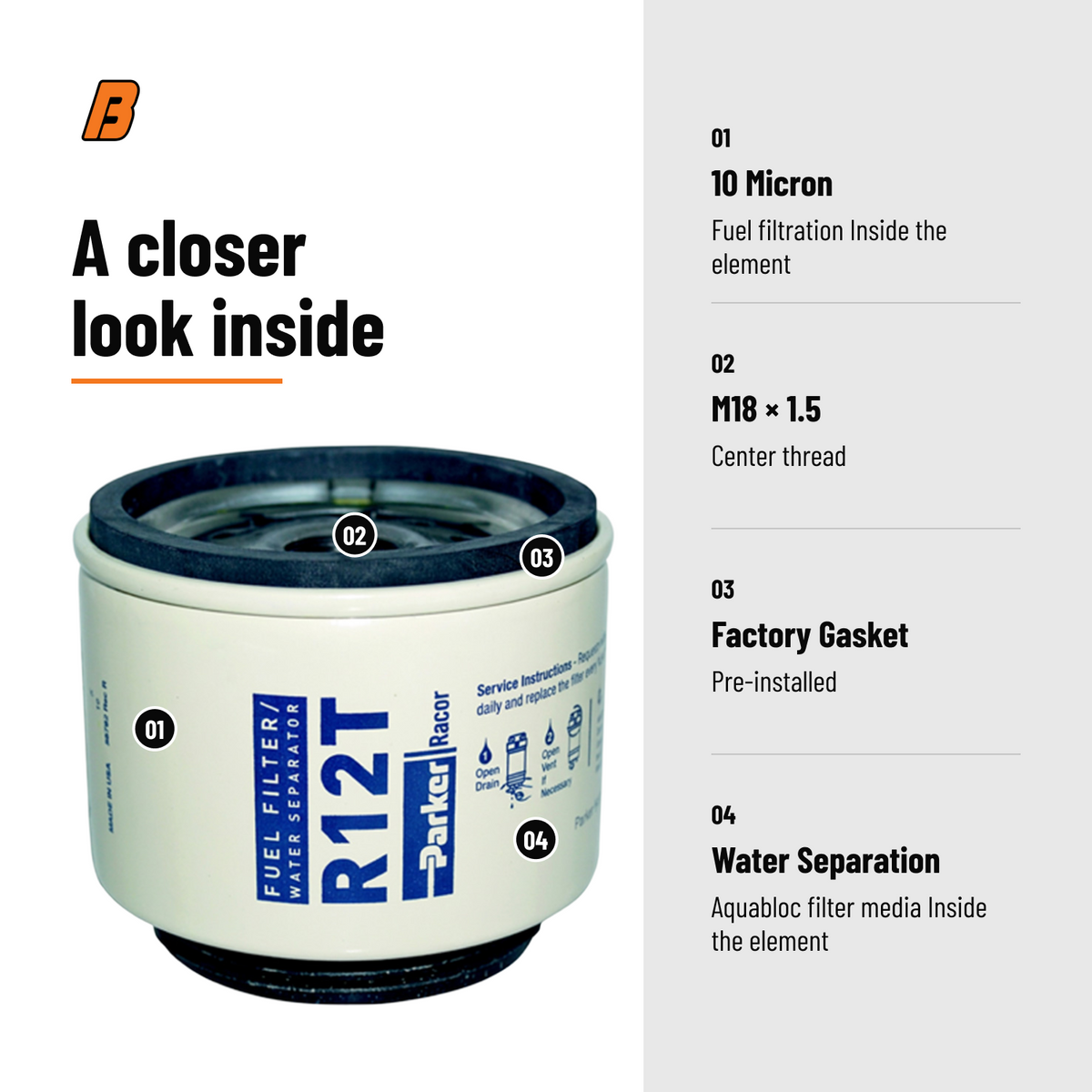

• Form factor: Spin-on canister element, approximately 3.0 inches (76 mm) outside diameter × 2.4 inches (61 mm) height, M18 × 1.5 center thread, integrated gasket

• Maximum flow rate: 15 GPH (57 LPH) through compatible 120A/140R heads

• Clean element pressure drop: ~0.15 psi (~0.01 bar) at rated flow

• Compatible assemblies: Racor 120A and 140R series fuel filter water separator heads

• Fuel compatibility: Diesel fuel, biodiesel blends within OEM limits, and gasoline where the specific Racor assembly is approved for gasoline use

• Operating environment: Rated for ambient temperatures from −40°F to +255°F; designed for marine, off-road, and industrial use with resistance to vibration, tilt, and humidity

• What's in the box: One R12T spin-on element with factory-installed gasket. Bowls, heads, mounting brackets, and fittings are not included.

Who the R12T Replacement Element Is For

This section helps you confirm whether the R12T is the right element for your engine and fuel system.

• Boat owners running Racor 120A or 140R assemblies – The R12T is the standard 10 micron element for small diesel marine engines on sailboats and powerboats. In salt-water environments where water contamination in bunkered diesel is common, pairing the R12T with regular bowl drain intervals keeps water separators working as intended.

• Generator and light industrial engine operators – Portable diesel gensets on RVs, mobile work trucks, and construction trailers fitted with Racor heads benefit from the R12T's balance of filtration and flow. It catches enough contaminants to protect injectors without restricting fuel supply to engines that need reliable starts.

• Compact tractor and off-road equipment users – Farm tractors, landscaping equipment, and small construction machines often run Racor 120A/140R-style pre-filters ahead of OEM engine filters. The R12T fits these setups and handles the dusty, dirty fuel conditions common in agricultural service.

• Owners upgrading from coarser elements – If you're currently running a 30 micron R12P and experiencing injector fouling or excessive contamination at the secondary filter, stepping to the 10 micron R12T provides finer primary filtration. Confirm with your engine manufacturer that 10 micron primary filtration is appropriate before making the change.

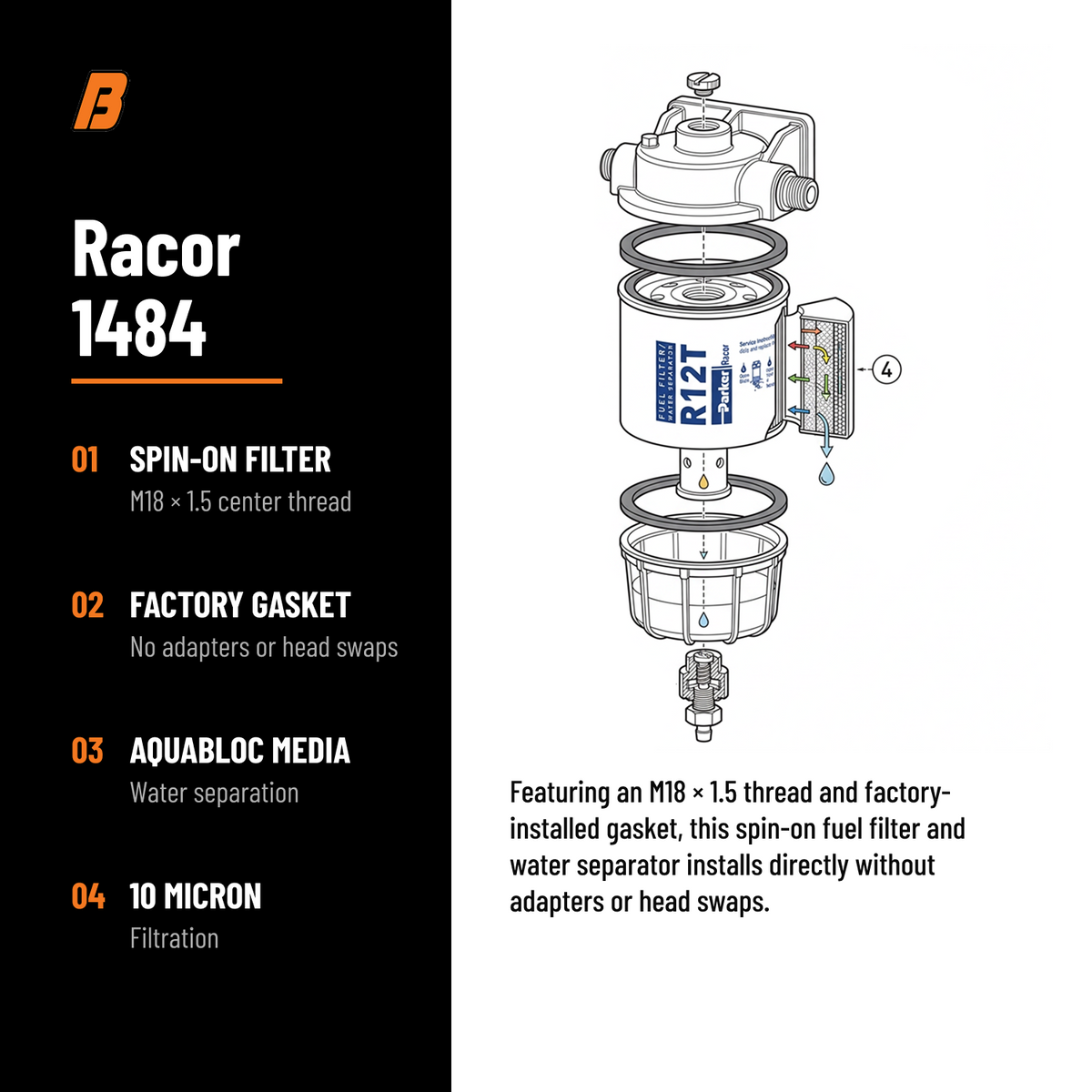

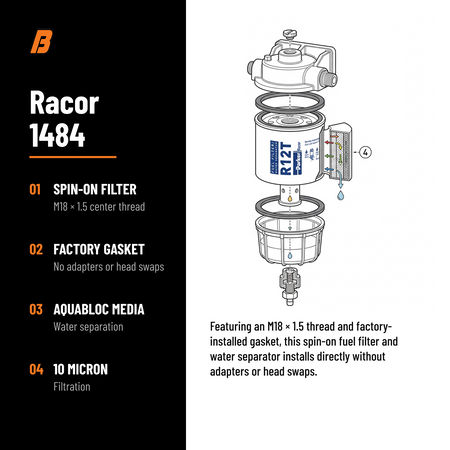

How to Replace a Racor R12T Element Safely and Cleanly

Follow these steps alongside your equipment manual and the Racor assembly instructions for your specific head. The order below covers the 120A/140R spin-on series.

Step 1: Prepare the engine and workspace. Shut down the engine and let it cool. Close the fuel shut-off valve if your system has one. Place absorbent pads or a drip tray under the filter assembly. Have the new R12T, a strap wrench, clean rags, and a small container for old fuel ready.

Step 2: Remove the old element. Unscrew the old R12 element by hand or with a strap wrench. Go slowly; the canister and bowl may hold fuel. Set the old element aside for proper disposal.

Step 3: Inspect and service the bowl. Drain collected water and sediment from the clear bowl. Check the bowl for cracks, cloudiness, or algae residue. Replacing old O-rings and seals is important to prevent leaks during installation; inspect the bowl o ring and replace it if the ring is flattened, cracked, or shows signs of swelling.

Step 4: Prepare the new R12T. Apply a thin film of clean diesel fuel or light oil to the new element's gasket. If your system benefits from pre-filling (check the assembly manual), fill the new element with clean, filtered fuel to shorten priming time after installation.

Step 5: Install and tighten. Thread the new R12T onto the head by hand until the gasket contacts the sealing surface. Proper installation includes hand-tightening the filter element to avoid overtightening; typically 3/4 to 1 full turn past gasket contact. Over-tightening can deform the gasket or damage the head threads, creating the exact leak you're trying to prevent.

Step 6: Prime and check for leaks. Use the built-in primer pump on the head (if equipped) to fill the system. Bleed air per your engine manual. Start the engine and let it idle while inspecting around the gasket, bowl o ring, and all fittings for leaks or weeping. Any bubbles or drips mean something isn't sealed; shut down and re-check before running under load.

Choosing Between R12T, R12S, and R12P Elements

Racor R12T filters are commonly available in different micron ratings such as 10-micron and 2-micron, and the same spin-on form factor accepts all three element grades. The right choice depends on your engine's fuel system requirements and the number of filtration stages in your setup.

R12T, 10 micron (blue cap): The balanced choice for systems where a secondary engine-mounted filter of 2-5 microns handles final filtration. The R12T catches the bulk of contaminants at the primary stage without clogging as quickly as finer elements. This is Racor's "severe service" rating and works for most marine and light industrial diesel engines.

R12S, 2 micron (brown cap): Use this when there is no finer downstream filter and your engine manufacturer specifies 2 micron primary filtration. Common-rail diesel systems with tight injector tolerances sometimes require this level. The trade-off is shorter element life and higher pressure drop, especially in cold weather or with fuel that contains even moderate contamination. Fuel quality needs to be consistently good, or you'll find yourself changing filters far more often.

R12P, 30 micron (red cap): A coarse primary filter for high-contamination environments or as a pre-filter ahead of a finer secondary element. It catches large particles and debris, extending the life of downstream filters, but offers limited protection for injectors on its own. Racor 2020V30 has a micron rating of 30 microns and serves a similar coarse-filtration role in larger Racor assemblies.

Always confirm your micron selection against your engine manufacturer's fuel system recommendations. High-pressure common-rail diesels in particular have specific requirements; using too coarse a primary filter risks damage to injection components that cost thousands to replace.

Frequently Asked Questions About the Racor R12T Replacement Element

Is the R12T compatible with my Racor 120A or 140R assembly? Yes. The R12T is compatible with Racor 120A and 140R series fuel filter assemblies. Verify by checking the part number on your existing element or the head casting. If it currently uses an R12-series element (R12T, R12S, or R12P), the R12T will fit.

How often should I replace an R12T filter? There is no single universal interval. For marine use, replace at least once per season or sooner if the engine shows signs of fuel starvation (hard starts, rough idle, loss of power). For generators and off-road equipment, follow the engine manufacturer's hours-of-operation guidelines. Drain the bowl regularly; weekly in marine environments, monthly under clean fuel conditions. Any time you find heavy water accumulation or visible debris in the bowl, inspect the element.

Can I mix different micron ratings in the same fuel system? Running a coarser Racor element (such as the 30 micron R12P) as a primary filter ahead of a finer OEM engine filter is a common and accepted practice. Avoid randomly swapping between micron ratings without understanding what your engine requires. If you move from a 30 micron to a 10 micron primary element, the finer filter will catch more contaminants but may need more frequent service if your fuel quality is poor.

Does the R12T remove all water from fuel? It separates and collects free water (droplets) with high efficiency. Dissolved water, which is water held in solution within the fuel at the molecular level, passes through all mechanical water separators. Regular draining of the bowl is necessary to remove the free water before it accumulates past the bowl's 1.76-ounce capacity and re-enters the fuel stream.

Can I use an R12T on gasoline as well as diesel? Many Racor 120A/140R assemblies are rated for both diesel and gasoline. However, you must verify that your specific head and installation are approved for gasoline use and that all safety requirements (including proper venting and grounding) are met. Gasoline applications require extra caution due to the fuel's lower flash point.

Ready to Protect Your Engine with the Right Racor R12T Element?

Using the correct Racor R12T replacement element keeps fuel clean, protects injectors from particulate and water damage, and reduces unplanned downtime. It's a small product that prevents expensive problems.

Confirm your housing model (Racor 120A or 140R), verify that 10 micron is the specified rating for your system, and keep spare R12T elements in stock for scheduled maintenance and emergency changes. Filters stored in a clean, dry location remain ready for years.

The R12T is a straightforward, proven element for anyone already running Racor small-series fuel filter water separators. Order the right element, install it correctly, drain your bowl on schedule, and your engine gets clean fuel every time it runs.
