AR 1981801 EZ Start Valve Spring RSV Pumps - 1187

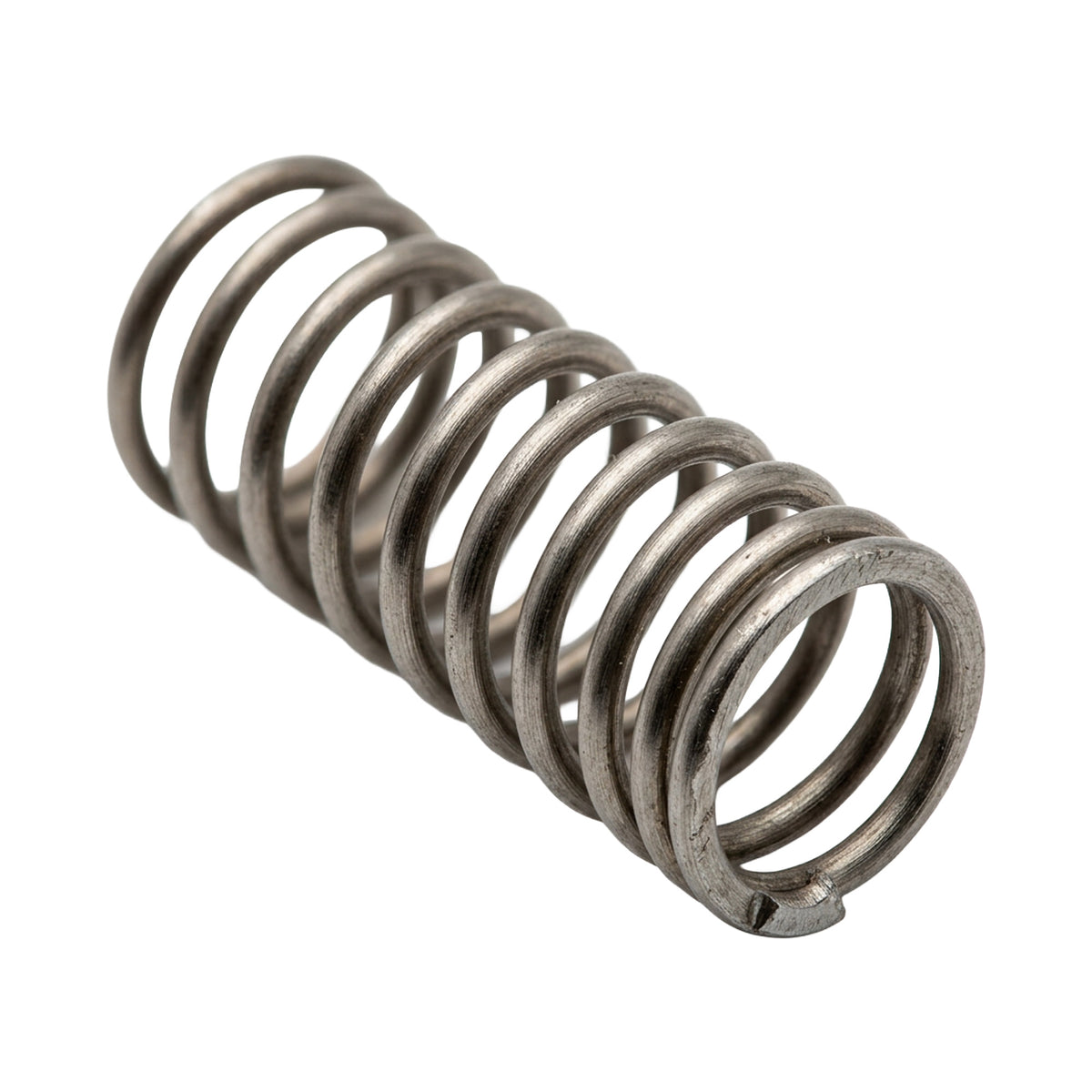

EZ Start Valve Spring for RSV Pressure Washer Pumps

The AR1981801 is an OEM replacement spring designed for high-pressure plunger pumps manufactured by AR North America (Annovi Reverberi). Specifically engineered as the tensioning component for the EZ Start valve, this genuine spring ensures that RSV series pressure washer pumps start smoothly and deliver consistent operating pressure from the first pull of the cord.

This spring officially replaces older part number AR-1981800, which appears in many legacy parts diagrams and operating instructions for RSV series pumps. Compatible models include the RSV2.5G25, RSV3G25, RSV3G30, RSV3G35, and RSV4G40-covering a wide range of residential and light-commercial high-pressure washing applications with rated pressures from approximately 2,500 PSI up to 4,000 PSI.

The AR1981801 isn't just a generic spring swap. It restores the factory-calibrated EZ Start valve function so your pump transitions smoothly from startup to operational pressure, reduces pull-cord resistance, and protects internal components from damaging pressure spikes. For anyone maintaining Annovi Reverberi pumps, this part is the first choice for reliable EZ Start valve service.

Reliable Starts and Stable Pressure in One Simple Replacement

The AR1981801 ensures easier engine starting and protects your pump by regulating initial backpressure through the EZ Start valve-delivering the smooth, low-effort starts that RSV series pumps were designed to provide.

Whether you're a contractor running an RSV4G40 on commercial job sites or a homeowner maintaining a residential pressure washer built around an RSV2.5G25, hard starts and inconsistent pressure waste time and accelerate wear. The AR1981801 supports smoother startup by relieving backpressure during system startup, meaning less strain on the crankshaft, recoil assembly, and pump seals every time you fire up the engine. The result is a pump that starts the way it did when it was new-without fighting you.

Why You'll Depend on the AR1981801 EZ Start Valve Spring

This spring may be small, but its impact on daily pump performance is significant. Here's what installing the correct OEM EZ Start valve spring means in practice:

Key Benefits

• Easier Engine Starting – The proper spring tension inside the EZ Start valve bleeds off initial pump load, so cold starts and restarts require less pull-cord effort. Gas-powered pressure washers with RSV pumps feel noticeably smoother to start when this spring is in spec.

• Protects Pump Components – Replacing a worn spring helps prevent premature wear on pump components. By maintaining the correct spring rate, the AR1981801 prevents sudden pressure spikes that can stress seals, discharge valves, and the pump manifold across models from the RSV2.5G25 through the RSV4G40.

• Restores Factory Performance – Using the genuine Annovi Reverberi AR1981801-not a hardware-store approximation-brings the EZ Start valve back to original AR North America specifications and the design curve intended for RSV pumps.

• Minimizes Downtime – A quick spring replacement can resolve hard-start and low-pressure symptoms without requiring a full pump teardown. This is especially valuable for contractors and service teams who can't afford hours of lost productivity.

• Long-Term Durability – The spring is made from durable metal designed to withstand cyclic high-pressure stress. OEM metallurgy and heat treatment are engineered for the repeated compression cycles typical in both residential and commercial washing schedules.

What Makes AR1981801 Different from Generic Springs

A spring might look like a simple piece of wire, but inside the EZ Start valve of an RSV pump, dimensions, wire gauge, and tension are precisely calibrated. Using an incorrect spring-even one that physically fits-can cause hard starting, erratic pressure, or accelerated wear on other valve components. The AR1981801 eliminates that guesswork entirely.

Engineered for AR RSV Pumps

• Exact OEM Fit and Rate – The AR1981801 is designed by the same manufacturer that builds RSV pumps. Its dimensions (approximately 4.1 mm outer diameter, 9.7 mm free length, 0.5 mm wire thickness) and spring constant match the original AR North America engineering parameters for EZ Start valve operation.

• Validated on Specific Models – This spring is confirmed compatible with core RSV series models including RSV2.5G25, RSV3G25, RSV3G30, RSV3G35, and RSV4G40. RSV series pumps include models with 3/4" and 1" shafts, and the AR1981801 serves across these configurations.

• Factory-Approved Replacement for AR-1981800 – AR1981801 is the official successor to the earlier AR-1981800 spring. While older manuals and exploded-view diagrams may still reference AR-1981800, the AR1981801 is the current OEM part listed as the direct replacement, clearing up potential confusion when referencing legacy documentation.

Advantages Over Non-OEM or Improvised Springs

• Consistent EZ Start Performance – Generic springs may be too stiff or too weak, leading to either excessive pull-cord resistance or premature valve closure and pressure surges. The AR1981801 matches AR's original design curve for progressive valve closure.

• Reduced Risk of Misalignment – Incorrect spring dimensions can cause the EZ Start valve piston or ball to stick, leak, or fail to seat-problems eliminated when the correctly sized OEM spring is installed.

• Confidence in Long-Term Use – Professional contractors and facility maintenance teams can trust that an OEM Annovi Reverberi spring will withstand the demands of daily service through long cleaning seasons without premature fatigue.

How the AR1981801 EZ Start Valve Spring Works Inside Your Pump

The EZ Start valve is a small but critical assembly within RSV series pumps, typically consisting of a plug, ball, seat, spring, and valve piston. The AR1981801 spring sits inside this assembly and controls how the valve opens and closes relative to pump speed and pressure. Here's the straightforward sequence:

Step-by-Step Operation

1. Reduced Load at Startup – When you pull the starter cord or engage the motor, the EZ Start valve opens under controlled spring tension. The AR1981801 allows some flow to bypass, reducing resistance on the crankshaft, plungers, and connecting rods. This makes initial rotation significantly easier.

2. Transition to Working Pressure – As pump speed increases, the spring allows pumps to transition smoothly from startup to operational pressure. The AR1981801 progressively closes the EZ Start valve, letting the pump build to its rated PSI-whether that's 2,500 PSI on an RSV2.5G25 or 4,000 PSI on an RSV4G40.

3. Stable Operation and Protection – During continuous use, the correct spring force keeps the EZ Start valve sealed and pressure steady. This reduces water hammer, prevents flow fluctuation at the nozzle, and protects internal pump components from stress that shortens service life.

AR1981801 Spring Specifications and Product Details

These specifications help confirm that the AR1981801 matches what you see in your RSV pump's parts diagram, service manual, or operating instructions. Refer to your pump's specific page in the manual to verify placement.

Technical Overview

• Part Number – AR North America / Annovi Reverberi OEM part AR1981801

• Replaces – Official replacement for legacy part number AR-1981800, listed in older RSV manuals and exploded-view diagrams

• Function – The AR1981801 functions as a component for the EZ Start valve in pumps, providing the calibrated tension that controls valve opening and closing during startup and operation

• Approximate Dimensions – ~4.1 mm outer diameter, ~9.7 mm free length, ~0.5 mm wire thickness (compared to the superseded AR-1981800 at ~4.1 mm OD, ~11 mm length, ~0.7 mm wire)

• Location in Pump – Situated within the EZ Start valve section of RSV series pumps; consult your pump's exploded-view diagram for exact placement (typically referenced as position 32 in RSV manuals)

• Material – Manufactured from spring steel for repeated compression cycles in water-exposed, high-pressure environments

Compatibility and Included Components

• Compatible AR RSV Models – Explicitly fits RSV2.5G25, RSV3G25, RSV3G30, RSV3G35, RSV4G40, and additional RSV variants equipped with the EZ Start valve option. The RSV series includes models like RSV2.5G25 and RSV3G30 across both 3/4" and 1" shaft configurations.

• Other AR North America Pumps – Some additional AR high-pressure pumps using the same EZ Start valve design may also use the AR1981801. Always verify compatibility by checking your specific pump's parts breakdown. Note that the RMV series includes models like RMV2G25 and RMV25G30, the RK series features models such as RK15.15 and RK18.28H, the XW series includes models like XW15.15 and XW30.25, and the XT series features models such as IXT8.12A and XT11.14-each with their own specific spring and accessories requirements.

• Related Parts – AR2760200 is a replacement Jet Spring for RSV pumps, which is a separate component from the EZ Start valve spring and should not be confused with the AR1981801.

• What's Included – The package includes one (1) EZ Start valve spring (AR1981801). Valve bodies, plugs, balls, seals, and other accessories are sold separately.

• Warranty and Authenticity – As a genuine AR North America replacement part, the AR1981801 is supported by the manufacturer's standard parts warranty terms. Non-genuine parts may void portions of the manufacturer's warranty.

Who Should Use the AR1981801 EZ Start Valve Spring

This part serves anyone who operates or maintains an AR North America RSV series pressure washer pump equipped with an EZ Start valve. Whether you're in the field daily or using your machine seasonally, the AR1981801 is the correct choice for restoring EZ Start function.

Ideal Users and Applications

• Pressure Washing Contractors – Mobile wash crews and cleaning businesses that rely on RSV3G30 and RSV4G40 pumps for daily commercial work-buildings, fleet washing, sidewalks, and parking structures-benefit from reliable starts and zero downtime caused by a worn EZ Start spring.

• Facility and Maintenance Teams – Schools, warehouses, municipalities, and property managers using RSV pumps in fixed or cart-mounted systems need consistent performance. The AR1981801 keeps these systems starting easily shift after shift.

• Homeowners and DIY Users – Homeowners with premium residential pressure washers built around RSV2.5G25 or RSV3G25 pumps can restore easy starting and stable pressure with this OEM spring, even after years of seasonal use.

• Service and Repair Shops – Repair technicians servicing Annovi Reverberi pumps should keep AR1981801 springs on hand as a common wear-item replacement. It's one of the most frequently needed EZ Start valve components.

Basic Replacement and Installation Overview

Important: Always follow your pump's official service manual and safety guidelines. Disconnect power, shut off the water supply, and relieve all system pressure before servicing any pump component. The following is a general overview-not a substitute for model-specific operating instructions.

Simple Replacement Steps

1. Identify the EZ Start Valve Assembly – Locate the EZ Start valve on your RSV pump using the exploded-view diagram in your service manual. Confirm that the existing spring corresponds to AR1981801 (or the older AR-1981800 it replaces). Note that some RSV pumps ship without the EZ Start option-if yours does not have this assembly, this spring does not apply.

2. Safely Access the Spring – Shut off the water supply, trigger the spray gun to release residual pressure, then remove the appropriate valve cap or plug to expose the old EZ Start spring. Use correct tools to avoid damaging sealing surfaces.

3. Swap in the AR1981801 Spring – Remove the worn, corroded, or deformed spring. Before installing the new AR1981801, inspect the valve seat, ball, piston, and O-rings for wear or debris. If other components are degraded, replace them as well-a new spring alone may not resolve issues if the seat or seals are damaged. Install the new spring in the same orientation as the original.

4. Reassemble and Test – Reinstall the valve cap or plug, torquing to the specification listed in your pump's manual. Reconnect hoses, restore water supply, and test-run the pump to verify easier starting and stable operating pressure at the nozzle.

Frequently Asked Questions About AR North America AR1981801 Spring

Below are direct answers to the most common compatibility and usage questions from technicians and pump owners.

Common Questions

Does AR1981801 fit all RSV series pumps? It fits many popular RSV models including RSV2.5G25, RSV3G25, RSV3G30, RSV3G35, and RSV4G40. However, some RSV pumps are configured without the EZ Start valve. Always confirm compatibility by checking your pump's parts list, data plate, or the relevant page of your service manual before ordering.

Can I use a generic spring instead of AR1981801? Using a non-OEM spring is not recommended. Even small differences in wire diameter, free length, or spring rate can cause the EZ Start valve to close too early (pressure spikes) or too late (low pressure, hard starting). The AR1981801 is engineered to match AR North America's original design parameters-generic alternatives cannot guarantee the same performance or longevity.

How do I know my EZ Start spring needs replacement? Common symptoms include suddenly harder pull-cord starts, engine kickback or stalling, fluctuating pressure at the spray gun, or visible corrosion, deformation, or breakage when you inspect the spring during routine maintenance. If you experience any of these, the EZ Start spring should be one of the first components you check.

Is AR1981801 the same as AR-1981800? AR1981801 is the current OEM part that officially replaces the older AR-1981800 designation. While older manuals and exploded diagrams still reference AR-1981800, the AR1981801 is what AR North America now supplies as the correct replacement. The updated spring features slightly refined dimensions-shorter free length and thinner wire-suggesting improved cycle life and performance consistency.

Can I replace the spring myself? Many experienced users and technicians can perform the swap using basic hand tools in under 30 minutes. However, if you're unfamiliar with pump repair or uncomfortable working around pressurized systems, professional service is recommended to avoid component damage or safety risks.

Ready to Restore Your RSV Pump's EZ Start Performance?

The AR North America AR1981801 spring is the genuine OEM solution for restoring smooth, low-effort starting and stable pressure regulation in RSV series pressure washer pumps. As the official successor to part AR-1981800, it delivers the exact fit, spring rate, and durability that Annovi Reverberi engineered into every EZ Start valve.

Don't let a worn-out spring turn every job into a battle with your pull cord. Add the AR1981801 EZ Start Valve Spring to your cart today and keep your RSV pump running the way it was built to-smoothly, reliably, and ready to work.
